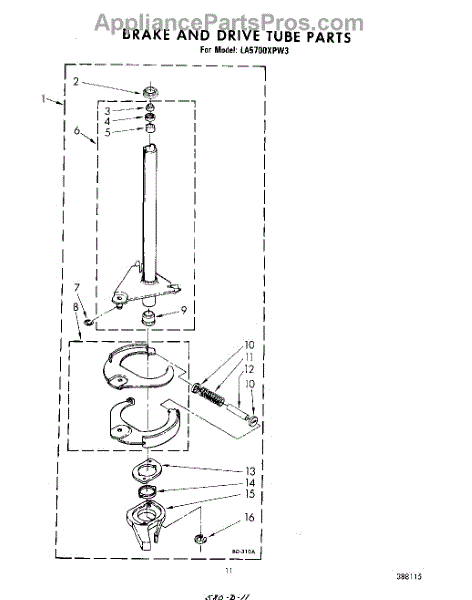

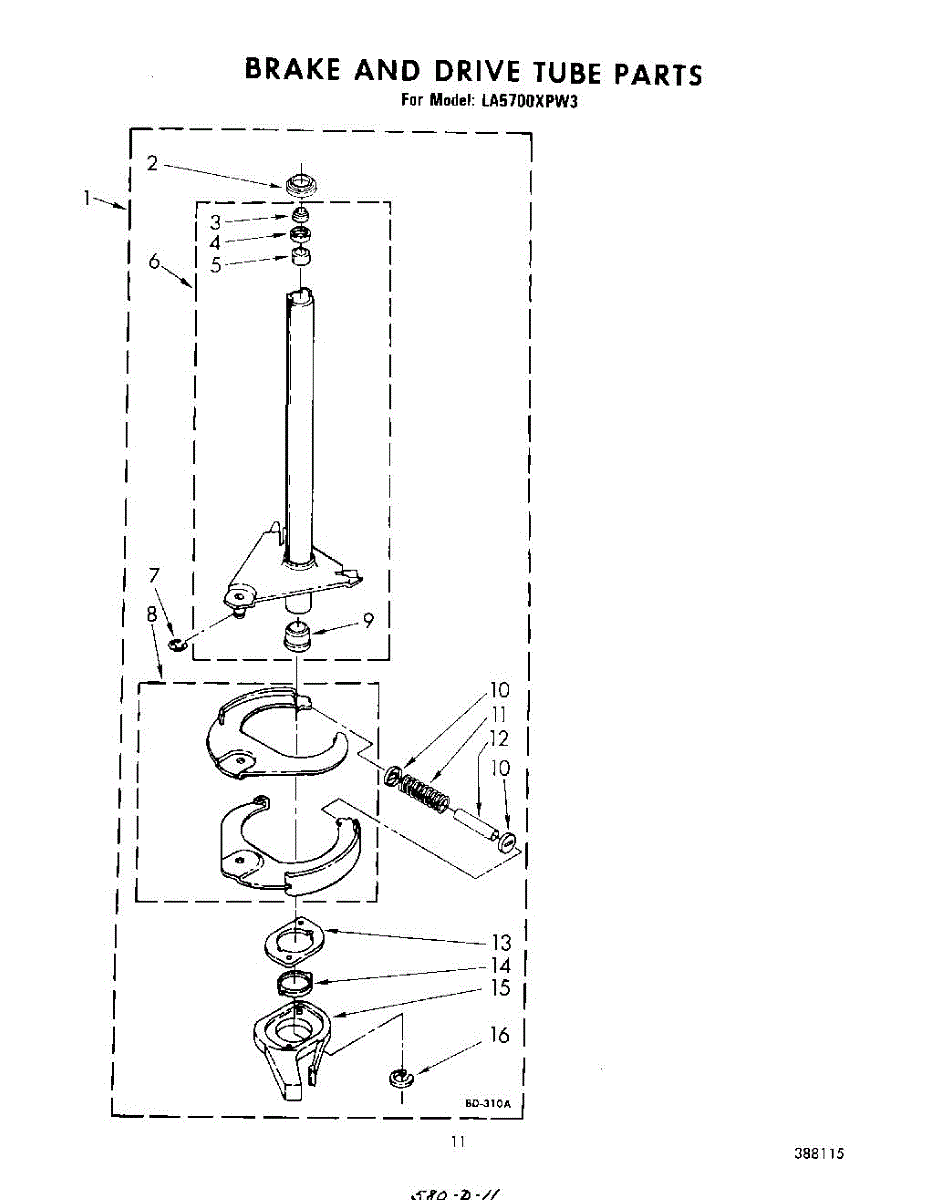

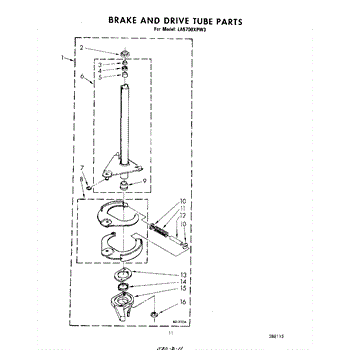

Parts for Whirlpool LA5700XPW3: 09 - Brake And Drive Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Washer won't spin or makes grinding noise during spin cycle? The basket drive rotates the wash basket. Moderate DIY repair with video guidance available.

Washer thrust ring acts as a bearing spacer between the outer tub and basket drive, controlling end-play and reducing friction. Replace when worn to restore smooth, quiet operation and prevent premature wear.

Prevents water from leaking into the transmission on direct-drive washers. Replace if you see water pooling under the machine or oil rings inside the cabinet.

Prevents water leaks around the transmission shaft in your washer. Replace if you notice water on the floor or oil seepage. Confirm fit with your model.

Spin tube assembly with drive spacer, bearing, and shaft seals. Replace if washer leaks from bottom or basket doesn't spin properly. Verify fit.

Secures shafts and pulleys in your washer to prevent axial movement. Replace when worn or damaged to restore proper alignment. Confirm fit with model.

Washer won't stop spinning smoothly or makes loud jerking noise when stopping? The brake shoe stops the tub during spin cycles. DIY repair in 1-2 hours.

Supports the spin basket and reduces friction during operation. Replace if you hear grinding, thumping, or squealing noises during spin cycle. Confirm fit.

Replacement shaft sleeve bushing for washers. Fits over rotating shafts to reduce friction and protect surfaces. Replace when worn, cracked, or missing.

Fix a washer drum that won't stop spinning or releases incorrectly. This brake spring restores proper tension to the brake assembly for normal operation.

Replacement shaft sleeve bushing for washers. Fits over rotating shafts to reduce friction and protect surfaces. Replace when worn, cracked, or missing.

Fixes grinding noise or basket won't spin issues by disengaging the brake during spin cycles. Restores smooth operation when cam wears out or breaks.

A cam sleeve that supports and guides the cam on its shaft to keep the cam-driven mechanism moving smoothly. Replacing a worn sleeve helps restore correct alignment and reduces binding or intermittent movement. What it does

• Centers and stabilizes the cam on its shaft for reliable engagement.
• Prevents metal-on-metal wear between the cam and shaft.
• Helps eliminate binding, wobble, or uneven operation caused by a worn sleeve.
• Common symptom of failure: noise, sticking, or irregular movement from the cam-driven mechanism.

• Disconnect power to the appliance before beginning any repair.
• Access typically requires removing the appropriate service panel; follow the model service manual.
• Inspect mating cam and shaft for wear; replace any damaged components.
• Reassemble panels and verify proper operation before returning the appliance to service.

The Clutch Band and Lining Kit is an OEM part for Whirlpool washing machines. It contains the clutch band and clutch lining components essential for proper transmission of power from the washer motor to its drum during the spin cycle. The clutch band and lining allow for a controlled amount of slippage to safely extract water from clothes without damage.

Symptoms of a bad clutch band and lining include:

• Excessive noise or vibration during spin
• Slow or ineffective spinning
• The drum failing to spin or “locking up”
• Premature wear of other transmission parts

Over time and with heavy use, these components can wear down. If slipping or damage is detected, it’s important to replace the kit to avoid potential transmission repairs.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

This 1-1/8 in wire retaining ring locks into a groove to secure components in place. It helps prevent parts from sliding off a shaft or shifting out of position so assemblies stay aligned and operate reliably.

• Holds components on a shaft or within a groove to prevent axial movement
• Maintains alignment of related parts in the assembly
• Common failure signs: ring is bent, missing, or won't stay seated
• Symptoms include loose or wobbly parts and rattling during operation

• Disconnect power before servicing
• Wear eye protection—retaining rings can spring free during removal
• Use appropriate snap-ring pliers or small picks to remove/install
• Ensure the ring is fully seated in the groove before reassembly and use

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

This is a small tube of silicone-based gasket sealer used to bond and seal gaskets during washer repairs. It creates a watertight seal between mating surfaces to prevent leaks around tub components or pump housings. Use this adhesive when replacing gaskets or resealing joints where the original sealant has deteriorated and water is leaking.

Lubricates transmission gears for smooth wash and spin cycles. Replace when degraded or after transmission repairs. Verify compatibility with your model.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
