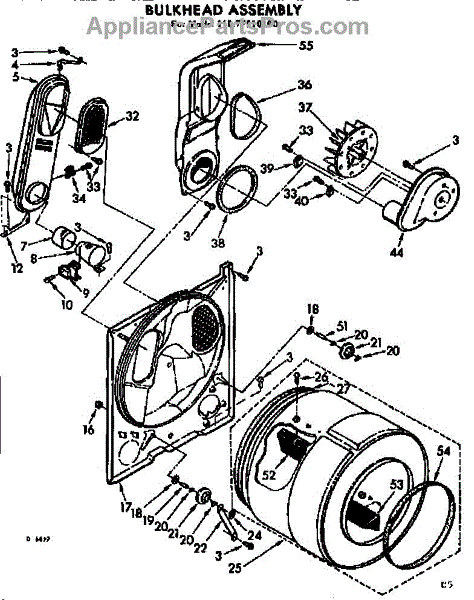

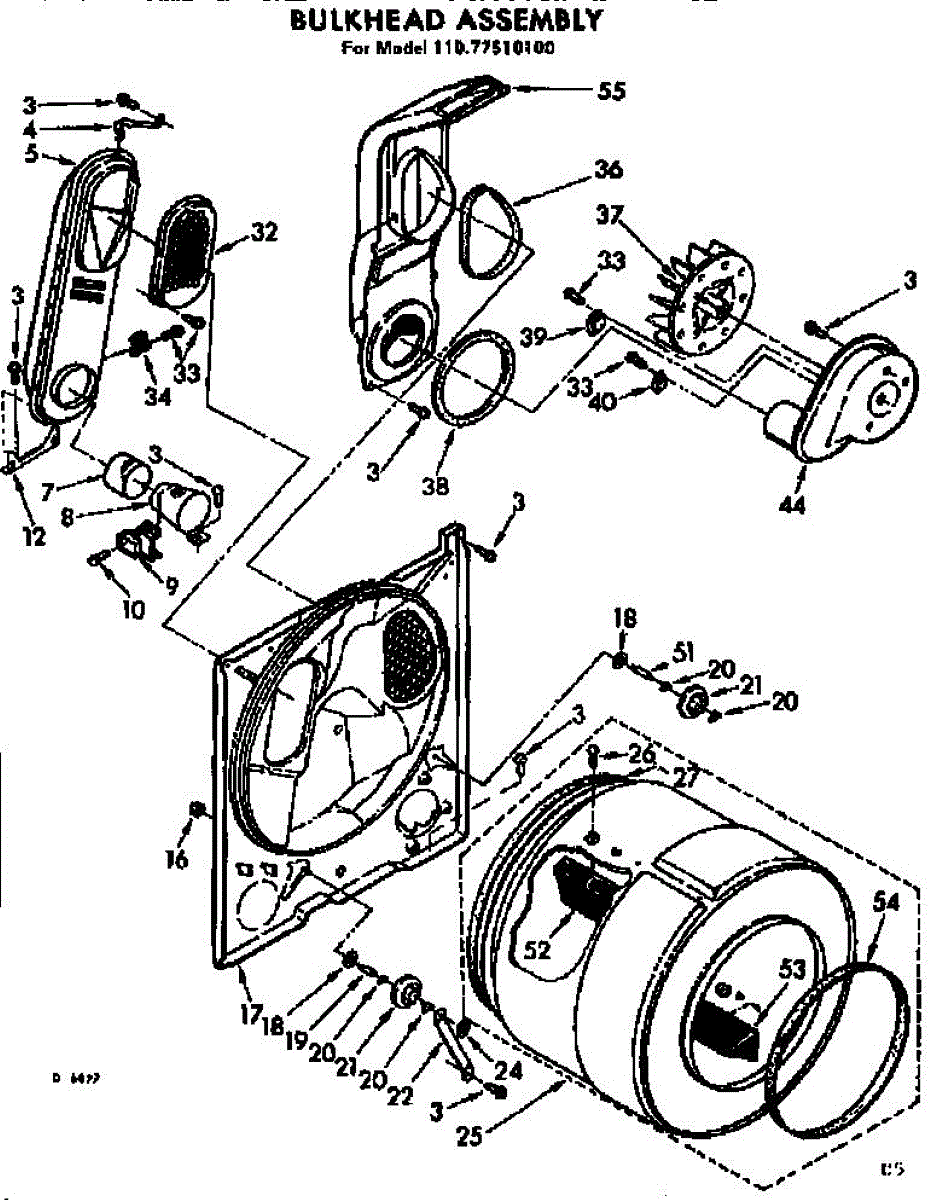

Parts for Sears 11077510100: Bulkhead Assembly Parts

This retainer clip secures a component in place to prevent movement and maintain proper alignment during appliance operation. Replacing a damaged or missing clip helps restore safe, reliable performance.

• Holds the mating part firmly to reduce vibration and noise
• Helps prevent intermittent operation caused by loose fitment
• Common fix when a component feels loose, rattles, or won't stay seated

• Disconnect power and shut off gas/water before servicing
• Note original clip orientation and location before removal
• Use needle-nose pliers to carefully release and install the clip
• Do not over-bend the clip; replace if deformed or fatigued

This is the heater housing box that directs heated air from the heating element into the dryer drum. It forms an enclosed duct pathway to ensure proper airflow during the drying cycle. Replace this part if the dryer is not heating efficiently, takes too long to dry clothes, or the housing is cracked, warped, or damaged from excessive heat.

This is the heater housing box that directs heated air from the heating element into the dryer drum. It forms an enclosed duct pathway to ensure proper airflow during the drying cycle. Replace this part if the dryer is not heating efficiently, takes too long to dry clothes, or the housing is cracked, warped, or damaged from excessive heat.

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This lock nut secures appliance components and resists loosening from vibration. Replacing a stripped, rusted, or missing nut restores a firm, reliable connection to reduce noise and prevent parts from shifting or backing off.

• Secures brackets, shafts, pulleys, panels, or other hardware as designed by the manufacturer
• Helps prevent fasteners from loosening due to vibration and thermal cycling
• Common fix for rattling/vibration noises and components that work loose over time
• Replaces damaged, rounded, or missing original nut to restore proper fit

• Disconnect power and shut off gas/water supplies before servicing
• Remove the worn nut with the appropriate wrench or socket
• Start the new nut by hand to avoid cross-threading; tighten securely—do not overtighten
• Inspect the mating bolt/stud and any washers; replace if worn or damaged

This support washer is a flat spacer used within the mechanism to support and separate mating parts, maintaining alignment and smoother movement. Replacing a worn washer helps reduce friction and wear so components operate properly. What it does:

• Maintains proper spacing and support between adjoining parts
• Helps prevent metal-to-metal contact, reducing scraping or grinding noises
• Addresses wobble or excess play when the original washer is worn, deformed, or missing
• Restores smoother movement and alignment in the assembly

• One support washer

• Disconnect power and water supply before servicing; for gas combos, also shut off gas
• Refer to your model's parts diagram for location and orientation
• Track the order of any shims/spacers during disassembly and reinstall in the same sequence
• Tighten fasteners to manufacturer guidance to avoid deforming the washer or binding parts

Left-side shaft that supports the drum roller assembly in your dryer. Replace if worn, bent, or damaged to restore proper drum rotation and alignment.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Rear drum support roller kit for dryers. Mounts behind the drum to maintain alignment and smooth rotation. Replace when rollers are worn or damaged.

Replace a cracked or missing bracket to keep appliance components securely mounted and aligned. Restoring this support helps prevent movement, vibration, and premature wear, so the connected part operates as intended.

• Provides a rigid mounting point for an associated component or assembly
• Maintains correct alignment and spacing within the appliance
• Helps reduce vibration, rattling, or shifting during operation
• Replaces brackets that are cracked, bent, or broken
• Common signs: loose or wobbly parts, misalignment, rattling noises, or visible bracket damage

• Disconnect power; also shut off the water supply before servicing
• Wear cut-resistant gloves—bracket edges can be sharp
• Reuse original screws/clips unless replacements are specified
• Hand-start fasteners, align parts, and tighten evenly without overtightening

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Seals the rear of the dryer drum to prevent hot air loss and ensure even drying. Replace when worn, cracked, or causing noise. Verify fit by model.

Protective cover that shields the manifold assembly from dust and debris. Replace if cracked, broken, or missing to restore a secure, finished look.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Seals the lint screen housing to prevent air leaks and maintain proper airflow. Replace if damaged, missing, or causing lint buildup. Verify fit.

This is the blower wheel that mounts on the motor shaft inside the dryer and circulates heated air through the drum and out the exhaust vent. It draws moist air away from clothes to facilitate drying. Replace this part if the dryer is noisy, makes a rattling or squealing sound, takes too long to dry clothes, or if the blower fins are cracked or broken.

This is a foam seal that fits around the dryer's blower housing or lint chute area, creating an airtight connection to prevent air leaks. It helps maintain proper airflow through the dryer's exhaust system for efficient drying. Replace this seal if you notice longer drying times, warm air escaping from areas other than the vent, or if the existing seal is crumbling, compressed, or deteriorated.

Right-side shaft for dryer drum support roller. Replace if worn, bent, scored, or damaged to restore proper drum rotation. Installs on right side of cabinet.

This part has been discontinued by the manufacturer and is no longer available.

Supports the front drum edge for smooth, quiet rotation. Replace when worn to stop scraping noises or drum wobble. Confirm fit with your model number.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
