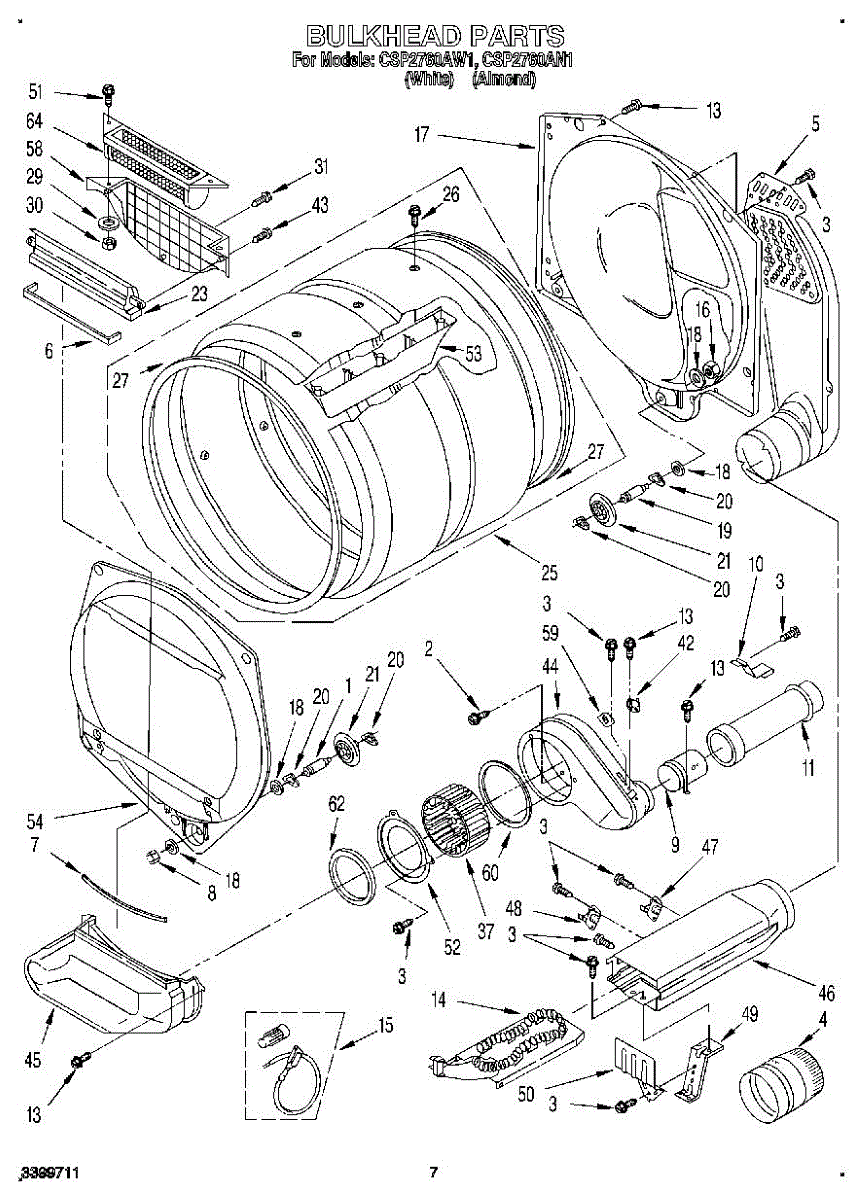

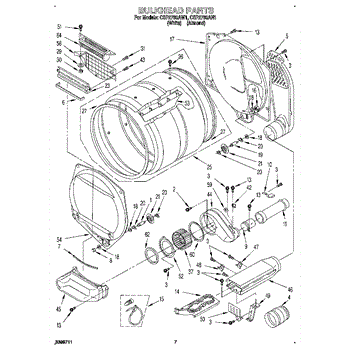

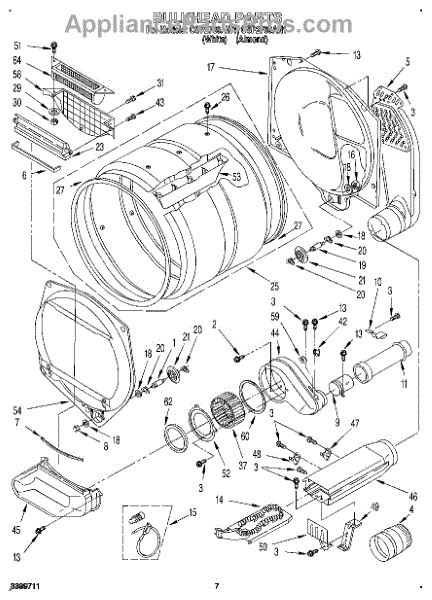

Parts for Whirlpool CSP2760AW1: 04 - Bulkhead, Lit / Optional Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Channels dryer exhaust to external vent connection. Replace if rusted, leaking, or screen is damaged to restore proper airflow and drying performance.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

Seals the dryer outlet housing to prevent air leaks and maintain venting efficiency. Replace if lint accumulates in cabin or moisture escapes. Verify fit.

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

Exhaust vent elbow routes hot air and lint from your dryer to the external vent. Replace if cracked, bent, or leaking to restore airflow and safety.

This part has been discontinued and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Dryer not heating? A faulty heating element is often the cause. This part generates heat to dry clothes. DIY-friendly repair, takes 30-60 minutes.

Connects power to your dryer's heating element. Replace this wire if it's frayed, burned, corroded, or broken to restore the electrical connection.

Front interior panel that supports the drum and directs airflow. Replace if worn, cracked, or causing drum misalignment. Confirm fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Houses and secures the lint filter in your dryer. Replace if cracked, warped, or broken to prevent lint bypass and maintain airflow. Verify fit by model.

Replacement dryer drum front bulkhead panel. Installs at the front of the drum assembly. Needed when cracked, warped, or damaged from wear.

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

This internal-bias thermostat controls exhaust temperature in your dryer, cycling the heat on and off to maintain proper drying temperatures. Replacing a failed thermostat can restore consistent drying performance and help protect the dryer from overheating shutdowns.

• Monitors exhaust air temperature and opens/closes the heating circuit to regulate heat
• Provides the bias function used by automatic cycles for correct temperature control
• Failure symptoms can include no heat or low heat, long dry times, overheating or high-limit trips, and inconsistent cycling temperatures
• Helps prevent thermal cutoffs caused by restricted airflow or faulty temperature regulation

• Disconnect power before servicing; for gas models, also shut off the gas supply
• Access location is typically on the blower/exhaust housing; note wire positions and transfer one at a time
• Ensure the thermostat mounts flush for proper sensing; tighten screws securely
• After replacement, verify good airflow and clear venting to prevent repeat failures

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Blower housing assembly that directs airflow from the drum to the exhaust vent. Replace if cracked, damaged, or causing excessive noise in your dryer.

Dryer not heating? A warped or damaged heater box lets heat escape, reducing efficiency. This housing secures the element and protects components.

Dryer won't heat? This thermal cut-off kit prevents overheating by interrupting power to the heating element. Common DIY fix with basic tools in 1 hour.

Dryer won't heat or overheats? The high limit thermostat monitors drum temperature. Moderate DIY repair with heater housing access required.

Replacement 10-32 machine screw for securing panels, brackets, and internal components. Ideal for replacing missing, stripped, or damaged hardware.

Encloses the blower wheel and seals the housing for efficient airflow. Replace if cracked, broken, or missing to restore proper air movement.

Replaces a cracked, broken, or missing dryer drum baffle. Installs inside the drum to lift and tumble clothes during the drying cycle. Easy repair.

This front drum bulkhead is the stationary front panel that supports the dryer drum and seals the drum opening to maintain proper airflow and drum alignment for reliable drying performance. What it does:

• Provides a mounting surface and seal for the front of the dryer drum to help maintain correct drum alignment
• Directs airflow from the drum into the exhaust plenum for consistent drying
• Reduces rubbing and wear on the drum edge and front roller or glide surfaces
• Can help stop visible grinding, scraping or excess vibration when worn or cracked

• One front drum bulkhead

• Turn off power and disconnect the dryer before beginning service
• Handle plastic parts carefully to avoid cracking; check surrounding seals and rollers during replacement
• Some models require removal of the front panel and drum for access; keep fasteners organized for reassembly

The Thermal Fuse is an OEM part for Whirlpool dryers. It is a critical safety component designed to protect the dryer from overheating by blowing and cutting off power if the temperature exceeds safe limits. This disposable, one-time fuse is essential for preventing potential fire hazards and ensuring the appliance operates within safe temperatures.

Symptoms of a bad Thermal Fuse include:

• The dryer not starting or suddenly stopping during a cycle
• No heat being produced while the dryer is running
• Unexplained cessation of all dryer functions

Causes of a bad thermal fuse can stem from restricted airflow due to lint buildup, a malfunctioning heating element that causes excessive temperatures, or other electrical issues within the dryer.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

Seals the joint between the lint screen housing and blower assembly. Replace when worn to prevent lint buildup in cabinet. Confirm fit by model number.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
