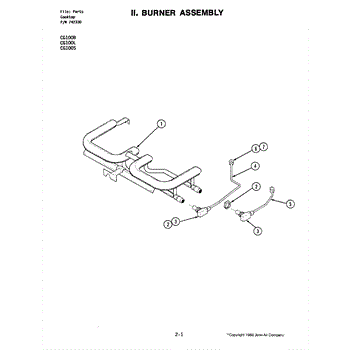

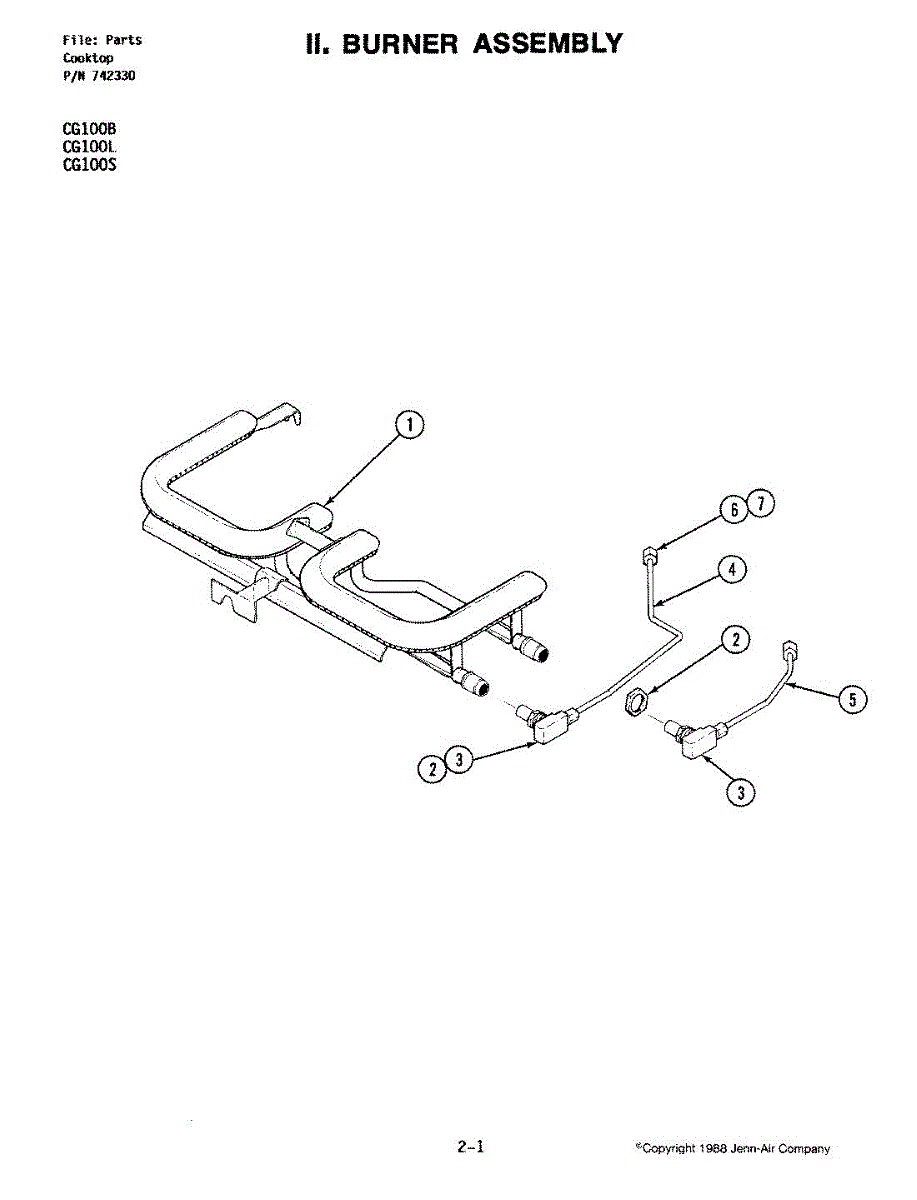

Parts for Jenn-Air CG100B: 02 - Burner Assembly Parts

This genuine OEM part is a cooktop grill burner. The grill burner is the component part that allows the gas flame to spark so that the stove can perform its job of cooking and heating. If the stove burners are no longer producing a flame or not turning on at all, it might be time to replace the grill burner. Luckily this is a relatively simple repair.To start, make sure that all power to the stove has been turned off by either unplugging the appliance or shutting off the circuit breaker. Close the shut off valve on the propane gas tank. Remove the cooking grate and the flame tamer from the top of the damaged burner. Pull the cotter pin out of the back of the burner. Remove the burner mounting screws. Pull the burner back then up to remove it from the manifold and remove the burner. Place the new burner into the manifold and fasten the mounting screws. Reinstall the cotter pin and flame tamer and restore the gas and power back to the appliance.This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand stoves.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This is a replacement hex nut used to secure appliance components and fasteners. It restores a tight, reliable connection where a worn or missing nut causes loose panels, trim, or bracketing. What it does:

• Secures threaded studs, bolts, or fasteners to keep panels and components in place
• Restores proper fastening when original nut is stripped, corroded, or lost
• Helps eliminate rattling, vibration, or loose parts caused by a missing/failed nut
• Compatible with the appliance locations that use a standard hex nut for mounting

• Turn off and unplug the appliance before accessing interior panels or fasteners
• Use the correct wrench or socket size to avoid rounding the nut
• Replace only like-for-like nuts; if thread damage is present, inspect and replace the mating bolt/stud as needed
