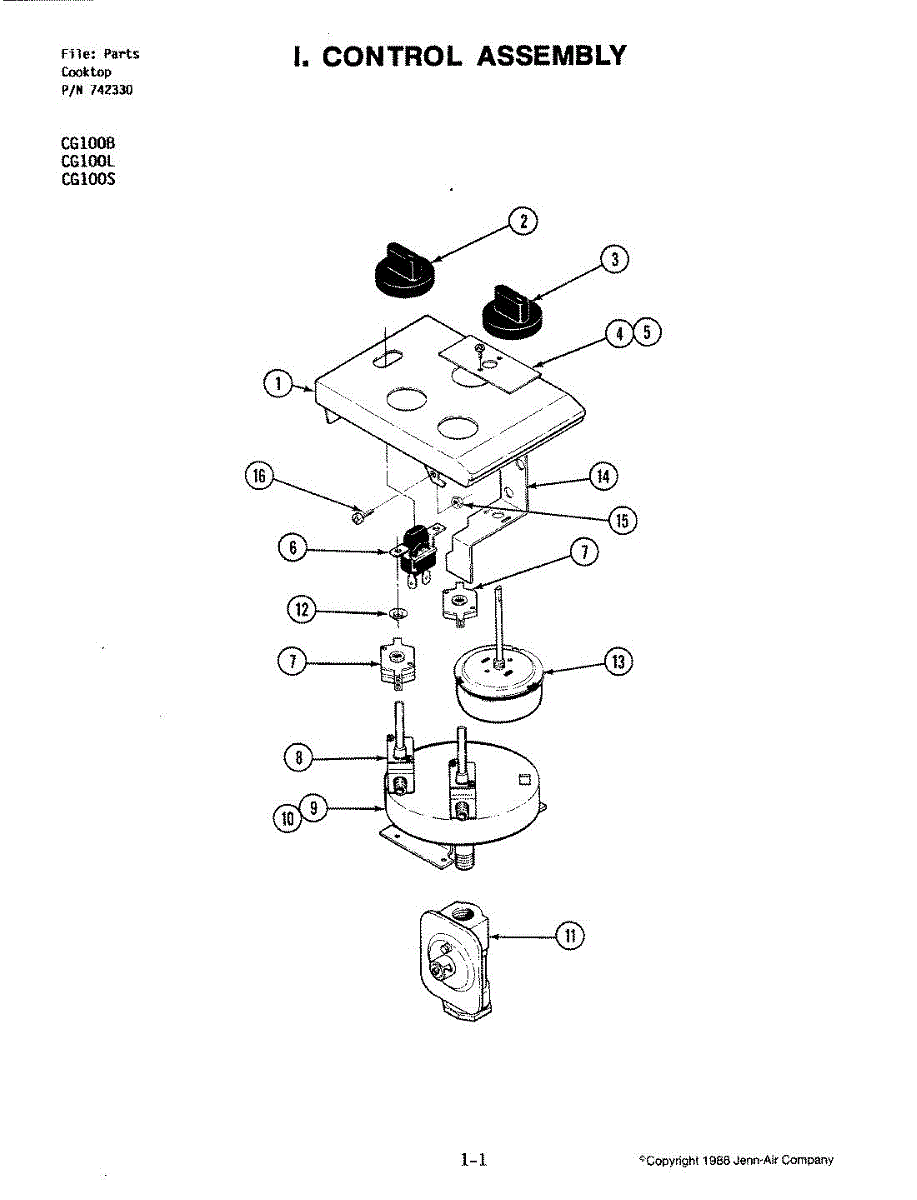

Parts for Jenn-Air CG100B: 03 - Control Assembly Parts

The Top Burner Control Knob is an OEM part for Whirlpool ranges. It is used to regulate the heat output of the stovetop burners, allowing you to adjust the flame intensity for cooking. This control knob fits securely on the control shaft and provides a reliable way to control burner settings.

Over time, the top burner control knob can become worn out or damaged from frequent use, exposure to high heat, or accidental impact. A faulty knob can compromise your ability to control the burner effectively, impacting your cooking experience.

Symptoms of a bad top burner control knob include:

• Difficulty turning the knob
• The knob slipping or not staying in place
• Inaccurate heat settings
• The knob not engaging properly with the control shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This timer knob replaces a worn or broken range timer control knob, restoring a positive grip and reliable dial operation so you can set cooking times accurately. Easy-restore part for common knob damage or wear. What it does:

• Provides a replacement control surface for the oven/range timer so the dial turns smoothly
• Re-establishes a secure connection between the user and the timer shaft for accurate time setting
• Commonly used when the knob is cracked, stripped, loose, or will not engage the timer shaft
• Helps eliminate slipping or intermittent timer operation caused by a damaged knob

• Unplug or disconnect power to the appliance before replacing the knob
• Pull the old knob straight off the timer shaft; align and press the new knob firmly onto the splined shaft
• Do not force the knob at an angle; if it does not seat easily, inspect the shaft for debris or damage
• The timer control assembly may also need replacement

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

This part has been discontinued by the manufacturer and is no longer available.

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

Size: 8-32 x 1/4 inch.
