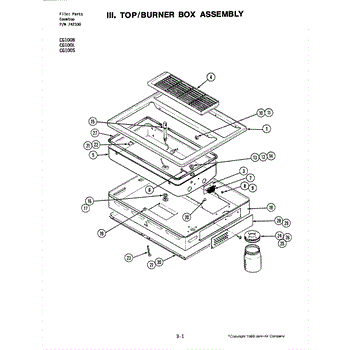

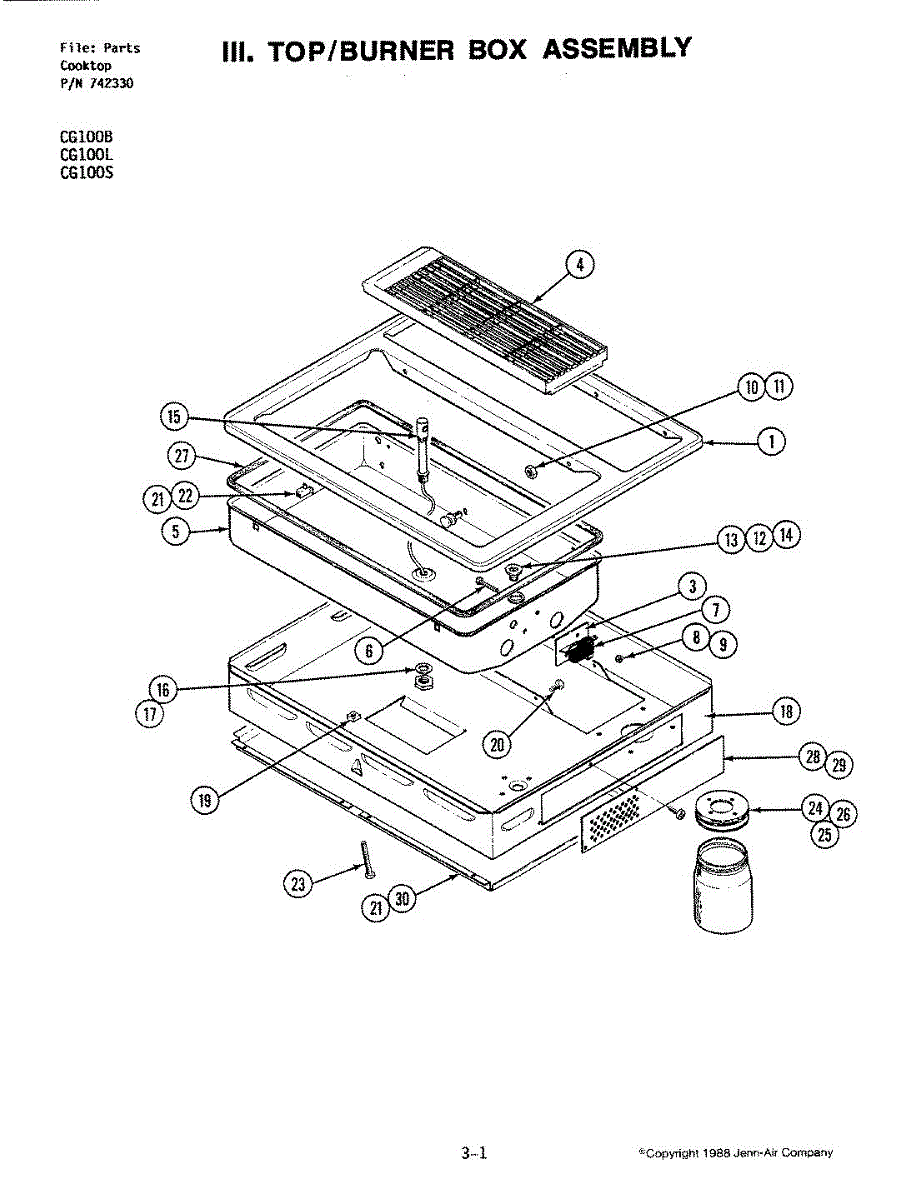

Parts for Jenn-Air CG100B: 04 - Top / Burner Box Assembly Parts

This is a small micro-switch used in the grill module fan circuit of a range. It detects the position or state of the fan assembly and signals the control board to activate or deactivate the fan as needed. Replace this switch if the grill fan fails to turn on or off properly, or if the switch is visibly damaged or no longer clicks when actuated.

Fastener nut for securing appliance components and panels. Replace if stripped, corroded, or missing to restore proper assembly and stability.

Fix burners that won't light with this spark igniter electrode. Simple DIY repair—hardest part is accessing the back panel. Test for continuity first.

Fix rattling or loose components caused by vibration with this jam nut. Secures threaded connections on gas ranges and cooktops to prevent backing off.

This part has been discontinued by the manufacturer and is no longer available.

Sheet metal pan head screw secures panels, brackets, and components to appliance cabinets. Replace missing, stripped, or corroded screws to restore fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a small glass jar that attaches to the underside of a range vent hood to collect grease and cooking residue filtered from the air during use. It threads or clips into a designated opening on the hood's grease collection system. Replace this jar if it is cracked, chipped, missing, or if the threading is damaged and it no longer seats securely, which can cause grease to drip onto the cooktop below.

Pop rivet secures sheet-metal panels, brackets, and burner jar lids on appliances. Replace missing, drilled-out, or damaged rivets for permanent hold.

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.
