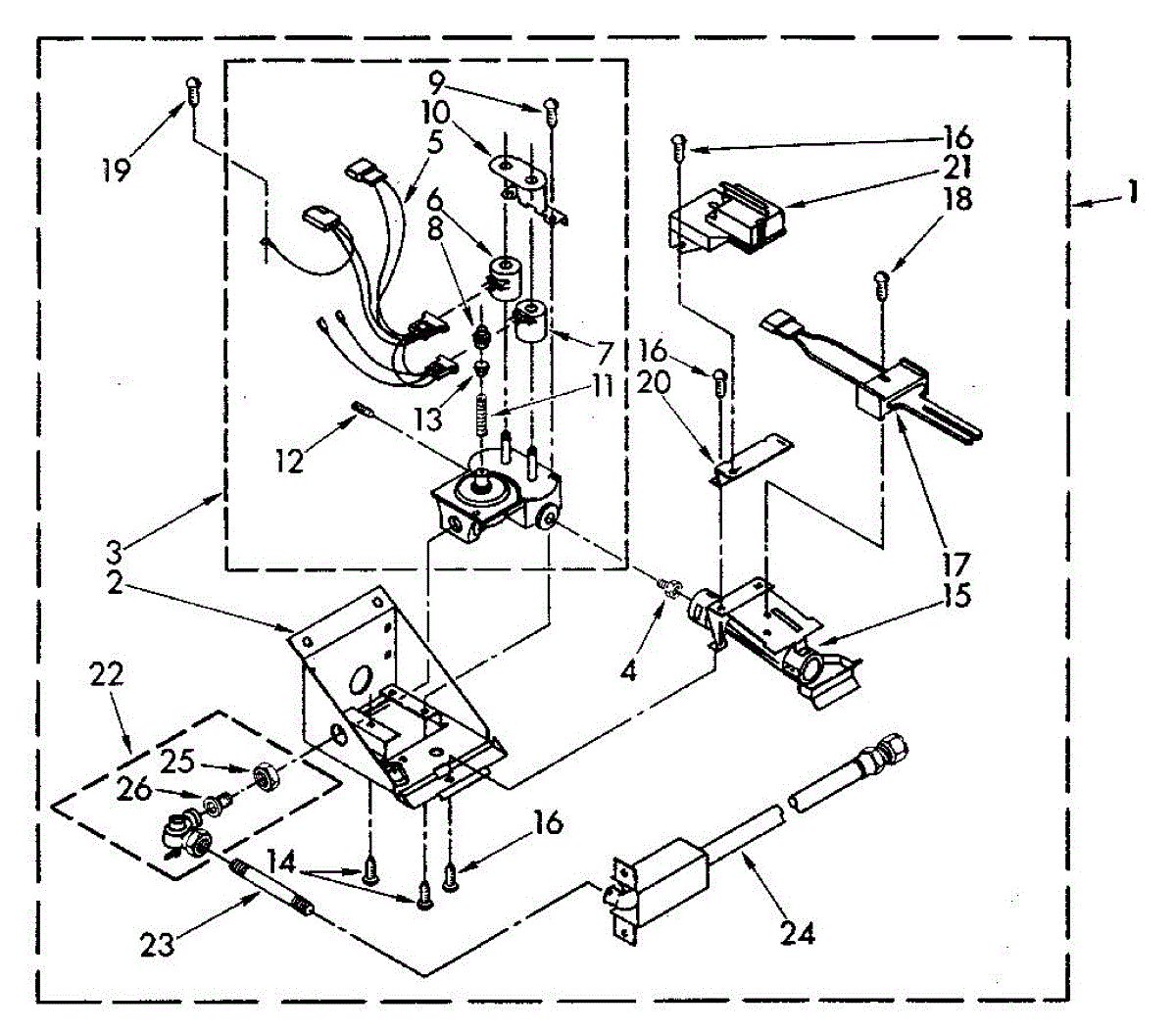

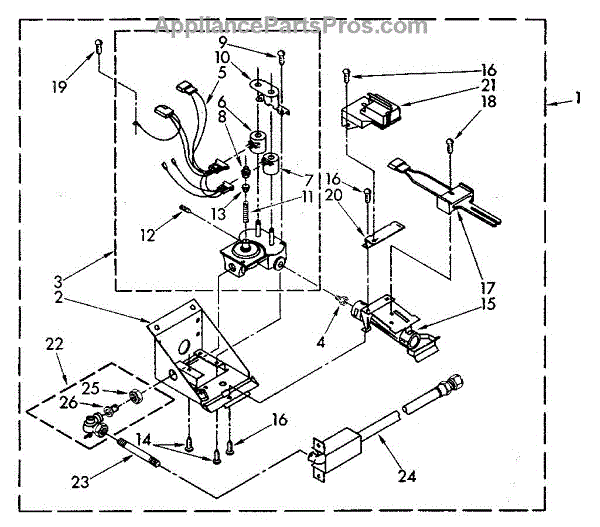

Parts for Kenmore 110.697436 (110697436, 110 697436): Burner Assembly Parts

Fix a dryer that won't heat or heats poorly with this gas burner orifice. Controls gas flow to the burner assembly. Simple 15-minute repair.

Wire harness for dryers. Replaces damaged, frayed, or burnt wiring harnesses. Essential when original wiring is cracked, melted, or connections worn.

Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.

Dryer won't heat or flame shuts off after 15 seconds? Gas valve coils control gas flow to the burner. Takes about 30 minutes to replace both coils.

If your dryer won't stay lit or shuts off after a few minutes, the gas limiter may be faulty. This regulator controls safe gas flow to the burner.

Mounting bracket for dryer shunt assembly. Secures electrical shunt component to cabinet frame. Replace if cracked, bent, or missing hardware slots.

Spring installs inside the gas pressure regulator assembly on gas dryers. Replace if lost during conversion between natural gas and propane fuel types.

Dryer making high-pitched sound when igniter turns on? This natural gas regulator maintains proper gas pressure to burners. DIY-friendly repair.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Dryer not heating or won't dry clothes? This igniter kit lights the gas burner. Moderately easy DIY repair with video guide—replaces failed igniters.

Replacement mounting screw for securing panels, brackets, and interior assemblies. Needed when original screw is stripped, missing, or damaged.

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

This part has been discontinued and is no longer available.

Compression nut for dryer installation. Secures hoses and connections. Replace if stripped, corroded, or missing to ensure proper assembly and fit.
