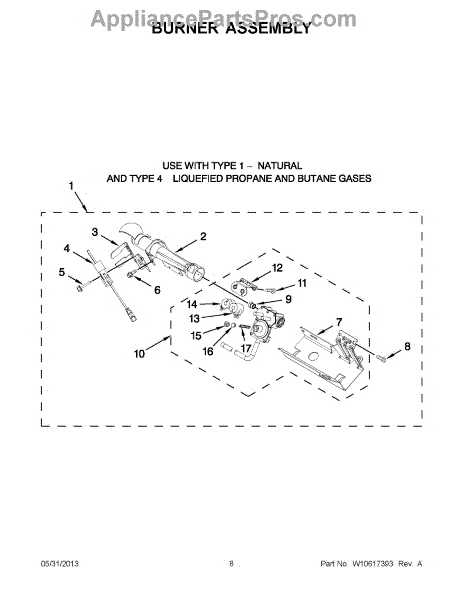

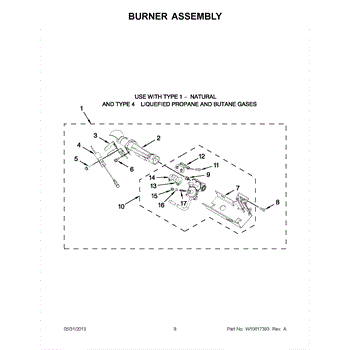

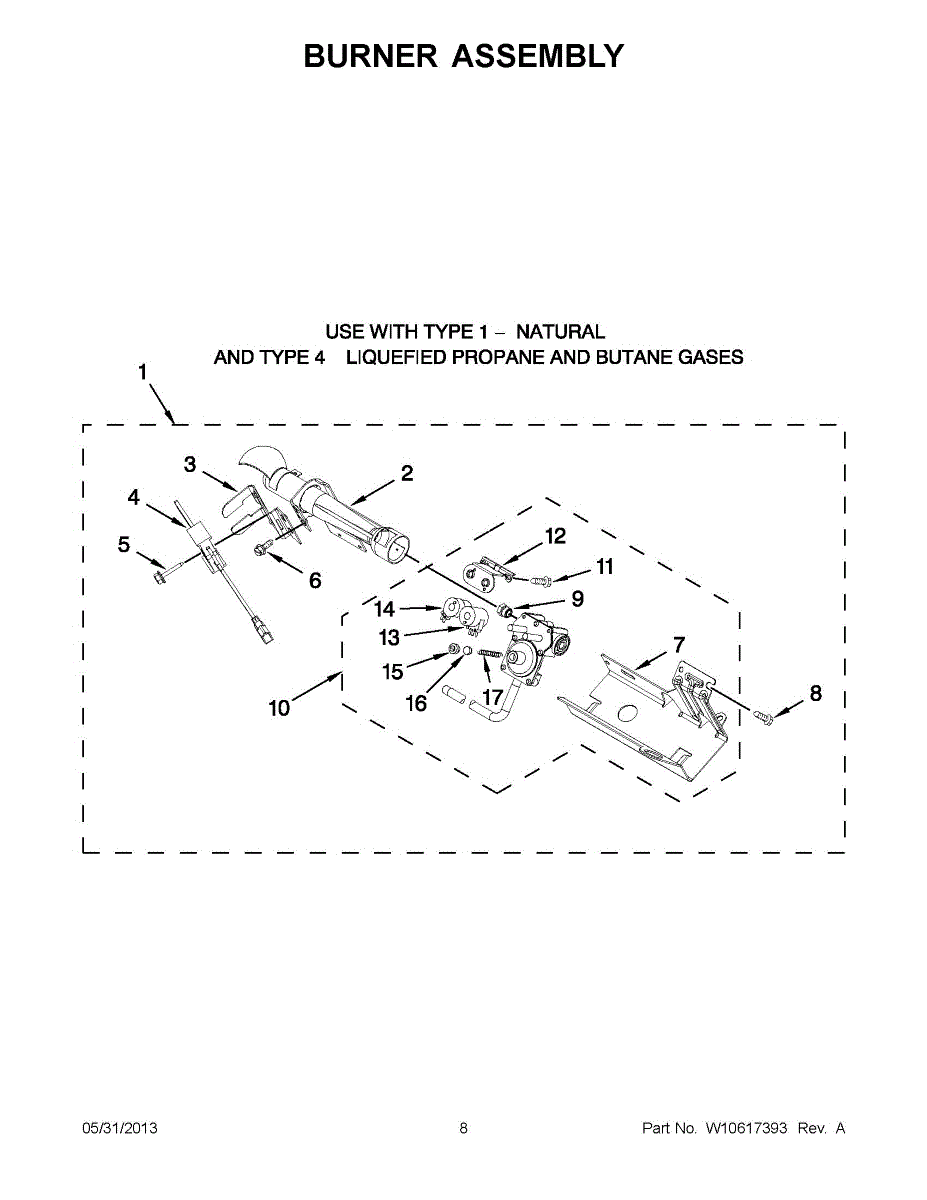

Parts for Maytag MGDB950YW3: 04 - Burner Assembly Parts

Made for use on a dryer unit, this part is a burner and gas valve assembly. This part includes the complete assembly with the burner that distributes the gas to create an even flame, the gas valve that controls the flow of the gas, and the igniter that lights the gas to create a flame.If there is a gas smell inside of the dryer drum, this part may be faulty. If this is the case, turn off the gas immediately. Another symptom of a bad burner and gas valve assembly is if the dryer will not heat at all. Turn off the gas before performing any care or maintenance on the appliance. Wear work gloves to protect the hands during this process.This part is sold individually and is sourced straight from the manufacturer itself. This particular burner and gas valve assembly are compatible with dryers manufactured by Whirlpool, Maytag, Kenmore, and Kenmore Elite.

This gas burner tube replaces a damaged or corroded oven burner tube to restore proper gas flow to the burner assembly. It's a direct-fit replacement that helps re-establish even heating and reliable ignition. What it does:

• Channels gas from the manifold to the oven burner for a steady flame
• Restores consistent burner flame shape and heat distribution
• Helps correct weak or uneven heating caused by a cracked or clogged tube
• Reduces gas leakage risk from damaged tubing when installed correctly

• Designed for direct replacement; refer to your model's service manual for exact removal/installation steps
• Turn off gas supply and power before starting work; verify no gas leaks after installation
• Inspect surrounding components (burner, igniter, orifices) and clean if needed for optimal performance

This bracket is used to attach and is included in the igniter kit. Save money by ordering the igniter kit 279311.

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This precision-drilled burner orifice is sized for Type 4 butane applications. It meters gas to the burner so flames ignite reliably and burn cleanly when the appliance is configured for butane per the manufacturer's specifications. What it does:

• Regulates gas flow to the burner head for proper flame size and shape
• Type 4 drilling intended for butane gas configurations specified by the manufacturer
• Replaces a missing or stripped orifice during service or gas-type conversion

• 1 burner orifice (Type 4, butane)

• Shut off gas supply and power; allow the appliance to cool before service
• Access the orifice at the burner base/manifold; remove the original with the correct wrench or socket
• Start threads by hand; tighten snugly—avoid overtightening or cross-threading
• After reassembly, leak-check with soapy water and verify flame; gas conversions should be performed following OEM instructions and local codes

The Natural Gas Orifice is an OEM part for Whirlpool dryers. This part regulates the flow of natural gas to the burner, ensuring efficient and safe combustion for proper drying performance.

Causes of a bad natural gas orifice can include buildup of debris or lint, wear and tear over time, or damage from improper handling during maintenance.

Symptoms of a bad dryer natural gas orifice include:

• The dryer not heating up
• Inconsistent or weak flame in the burner
• Longer drying times than usual
• Unusual gas odors or hissing sounds

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This gas valve is the safety/regulator assembly that controls gas flow to burners in compatible ranges and ovens, restoring reliable ignition and stable flames for safe cooking. What it does:

• Regulates and directs gas to the oven/range burner when the control calls for heat
• Helps ensure consistent burner ignition and steady flame height
• Common symptom: burners or oven will not light or maintain a flame
• Can address intermittent ignition or loss of heat when valve sticks or fails

• Shut off gas supply and electrical power before beginning any repair
• Installation may require removing access panels and disconnecting gas and electrical connections
• Check all gas fittings for leaks after installation using a soapy-water test or approved leak detector

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Gas Valve Coil Kit is an OEM replacement part for Whirlpool dryers, as well as Kenmore and Samsung dryers. It is a set of coils that control the flow of gas fuel to the burner. The gas valve regulates the precise amount of gas needed to properly combust and generate heat for drying clothes.

Causes of a bad gas valve coil can be wear and tear from regular use, lime or mineral buildup on the coils over time, or physical damage to the coils.

Symptoms of a bad gas valve coil kit include:

• Inconsistent or incomplete drying
• Slow or intermittent drying
• Burning smell from the gas dryer
• Improper burner ignition or non-ignition

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Natural Gas Limiter is an OEM replacement part for Whirlpool dryers. Located where the gas supply connects, it regulates safe flow levels to fuel burners during heating cycles. Precise control prevents over-firing issues.

Symptoms of a faulty limiter include:

• Dryer not achieving proper temperatures or taking too long
• Yellow flames indicating abnormal gas-to-air ratios
• Fault codes showing problems with gas valve readings

Causes can range from debris accumulation reducing gas flow to mechanical wear of linkage components. This replacement restores optimized operation.

This OEM replacement part is compatible with select KitchenAid and Maytag brand models.

The Natural Gas Regulator is an OEM part for Whirlpool ranges. This regulates the pressure of natural gas entering the appliance, ensuring safe and efficient operation. It maintains a consistent gas flow to the burners and oven, allowing for precise temperature control and optimal cooking performance.

Over time, the natural gas regulator can wear out or become damaged due to exposure to high temperatures, contaminants in the gas supply, or mechanical failures.

Symptoms of a bad natural gas regulator include:

• Inconsistent flame or burner performance
• The oven or burners not igniting or staying lit
• Unusual odors or hissing sounds near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Natural Gas Spring is an OEM part for Whirlpool ranges. This part assists in regulating the flow and pressure of natural gas to the burners, ensuring consistent and safe operation. The spring helps maintain the correct pressure within the gas regulator, which is vital for efficient cooking performance.

Causes of a bad natural gas spring can include wear and tear from prolonged use, exposure to high temperatures, or contamination from particles within the gas line.

Symptoms of a bad natural gas spring include:

• Inconsistent or weak burner flames
• Difficulty in lighting the burners or oven
• Irregular cooking temperatures
• Unusual noises or gas odors near the regulator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool LP gas conversion kit is an OEM replacement part responsible for allowing the conversion of a natural gas-powered dryer to operate on LP (liquid propane) gas. This kit contains the orifice, leak limiter, and an instruction sheet to guide the conversion process. Once the conversion kit is installed, it alters the fuel source of the dryer, allowing it to burn LP gas instead of natural gas. This conversion is necessary when a home or installation site lacks access to natural gas and relies on LP gas as the fuel source for heating appliances

Causes for needing an LP gas conversion kit include relocating the appliance to a home with LP gas, or preferring LP gas over natural gas for cooking efficiency or availability. The conversion process involves changing the orifices and adjusting the gas pressure to suit LP gas requirements.

Symptoms that indicate a need for conversion or issues with the current setup include:

• Improper or uneven flame on the burners
• Difficulty in lighting the burners
• Burners not operating at full power
• Gas smell indicating possible leaks or incorrect gas type

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
