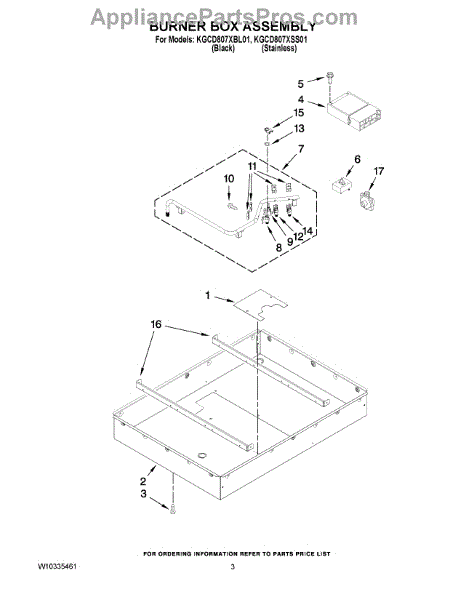

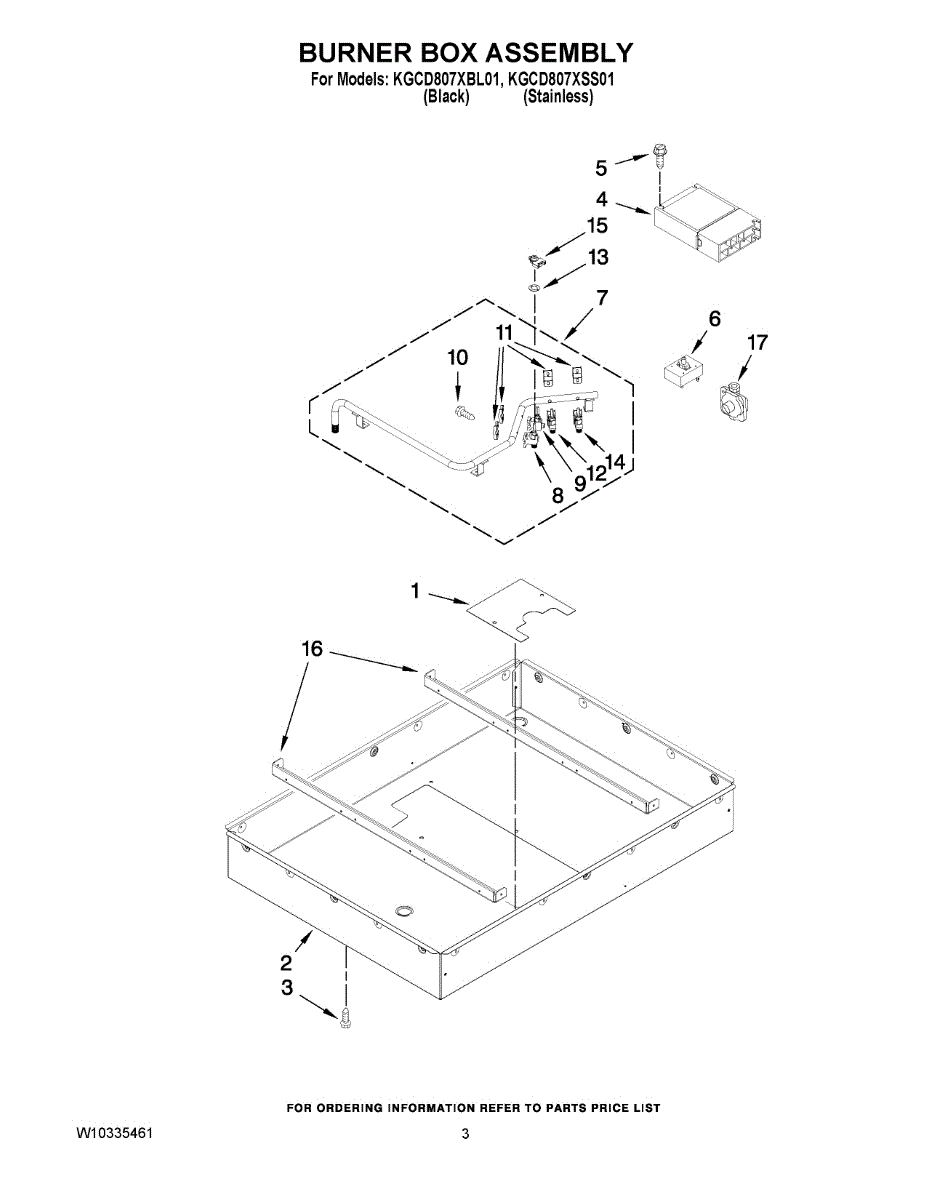

Parts for Kitchenaid KGCD807XBL01: 02 - Burner Box Assembly Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spark module controls the surface burner igniters on gas ranges, providing reliable spark sequencing so burners light quickly and evenly. Replaces a failed module to restore normal ignition behavior. What it does:

• Sends timed spark pulses to surface burner igniters so burners ignite when the control is turned on
• Stops ignition if the module fails, which can cause no spark or constant clicking without lighting
• Helps prevent unlit gas flow by only firing igniters when the range control calls for flame
• Works with oven/range ignition systems that use a separate spark module

• 1 spark module

• Disconnect electrical power and shut off the gas supply before starting any repair
• Handle the module and wiring harness carefully to avoid damage to connectors or wiring
• Match connector plugs and mounting locations to the old module for proper fit and secure mounting
• Test all burners for proper spark and ignition after installation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rotary switch replaces a worn or failed control selector, restoring reliable selection of cycles and settings on compatible Whirlpool appliances. It provides the same mounting and terminal layout as the original part. What it does:

• Selects and maintains the chosen cycle or setting when turned
• Transfers user inputs to the appliance control for cycle start and function selection
• Common symptom fix: selector won't turn, slips, or fails to engage settings
• Common symptom fix: appliance doesn't respond or changes settings unexpectedly

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the control panel or console; keep fasteners organized
• Match terminal layout to the old switch and transfer any knobs or shrouds as needed
