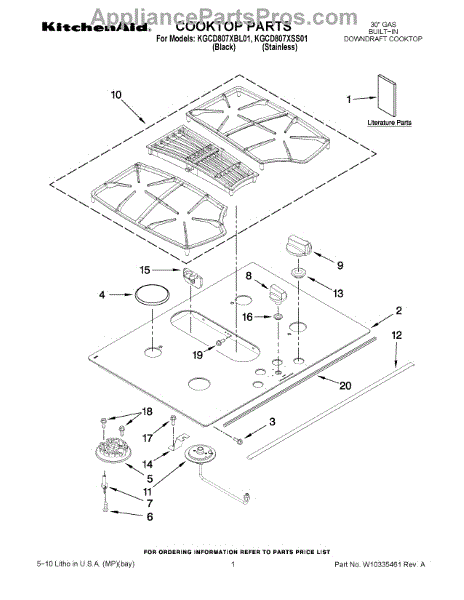

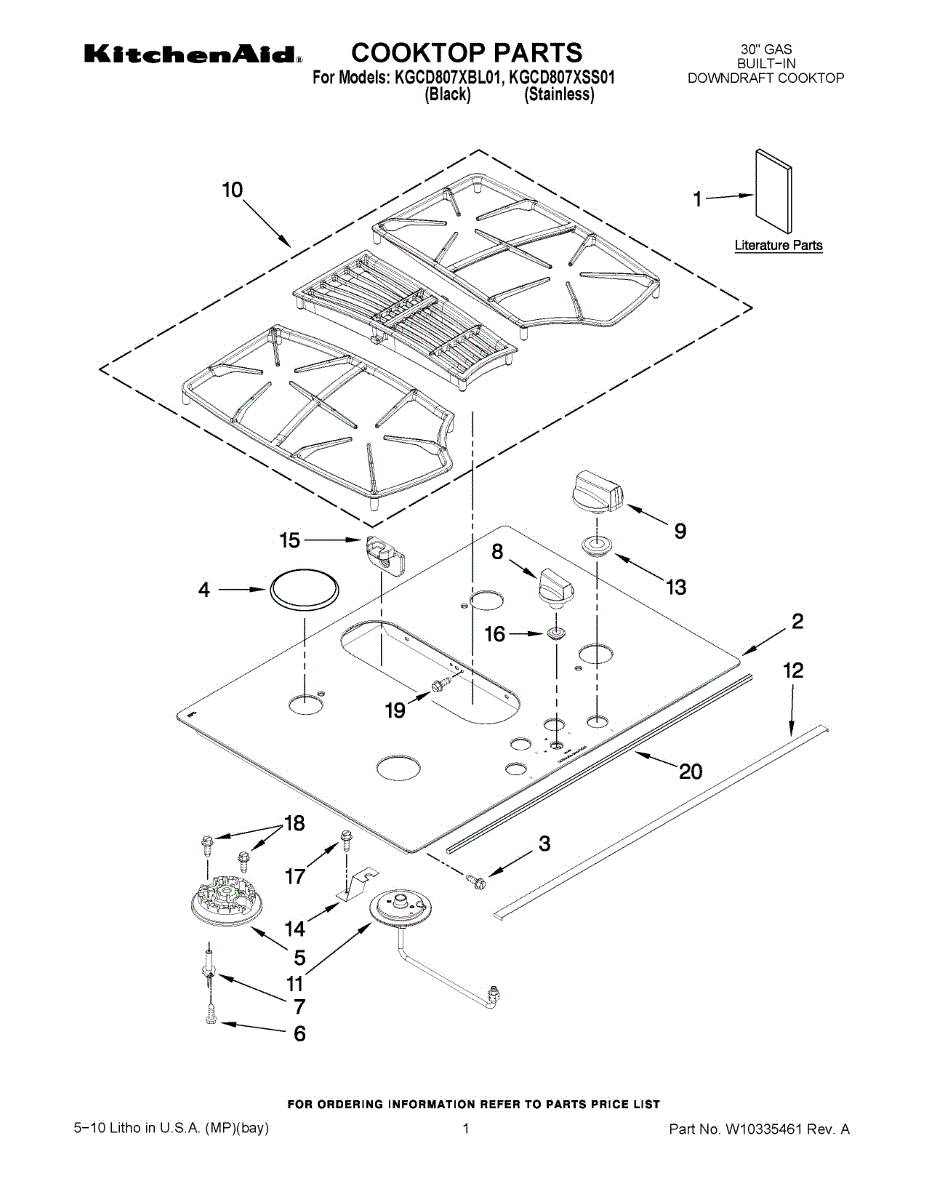

Parts for Kitchenaid KGCD807XBL01: 01 - Cooktop Parts

This smooth glass cooktop surface replaces a cracked, chipped or worn cooktop to restore a flat, easy-to-clean cooking area and proper support for burners. It returns the cooktop to safe, usable condition. What it does:

• Replaces the damaged glass surface that covers the burner openings and supports cookware
• Restores a smooth, wipe-clean finish for easier cleanup and improved appearance
• Prevents debris from falling into burner areas and helps maintain proper heat contact
• Common symptom: visible cracks, chips, deep scratches, or uneven surface that affect use

• Disconnect power to the range before starting any repair to avoid electrical shock.
• Handle glass carefully — use gloves and eye protection to avoid cuts from sharp edges.
• Installation may require lifting the cooktop into place and securing screws or clips; verify fit before final fastening.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This surface burner cap sits atop the burner head to shape the flame and protect the burner from spills. Replacing a chipped, warped, or missing cap restores proper ignition and even, efficient heating.

• Directs and evens the flame for consistent cooking
• Shields the burner head and igniter from spills and debris
• Common symptoms of a bad cap include uneven or yellow flames, delayed ignition or repeated clicking, weak heat, or flames that lift/sputter
• Replace if the cap is cracked, chipped, warped, or heavily coated with residue

• Allow the cooktop to cool; remove the grate and lift off the old cap
• Clean the burner head ports and seating surface; ensure the igniter is clean and intact
• Center the new cap on the burner head so it sits level and fully seated
• Restore power/gas and test burner; reseat the cap if the flame is uneven

The Large Burner Head is an OEM part for Whirlpool gas ranges and cooktops. It is designed to fit over the burner base and distribute the gas evenly for efficient and consistent heating.

Causes of a bad burner head can include blockages from food debris or residue buildup, warping or damage from high heat exposure, or general wear and tear over time.

Symptoms of a bad Large Burner Head include:

• Uneven heating or hot spots on the burner
• Yellow or irregular flame patterns
• Difficulty igniting the burner or keeping it lit
• Loud popping or hissing noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface burner head is a genuine Whirlpool part, sold individually. It can be used as a replacement part for a gas range. This surface burner head provides structure and support for the surface burner cap and the ignition, which all work in conjunction to ignite the spark plugs and power on the burner.Signs of damage to this part will include a gas ignition that glows but will not ignite, a gas range that will not start at all, or a heating element that will not heat up the appliance. If any of these signs of damage occur and are directly attributable to the surface burner head, the component should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This surface burner head is compatible with the following appliance brands: Whirlpool, Jenn Air, and KitchenAid.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Top Burner Igniter is an OEM part for Whirlpool gas cooktops and ranges. This thin metal coil provides the spark to light the burner flames during startup. It is a spark electrode with a male spade connection.

Causes involve cracking of fragile ceramic insulator casings allowing moisture ingress, compromised electrical connections cutting off sparking ability, or general wear reducing spark output strength.

Symptoms of failure consist of:

• Inability to light one or more front gas burners
• Click sounds but no flame present when turning burner knob
• Safety issues arising from unlit gas accumulating

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Knob is an OEM part for Whirlpool cooktops. It is used to control the heat level of the burners on the cooktop, allowing you to adjust the flame or heat intensity for cooking.

Causes of a bad cooktop knob can include wear and tear from regular use, physical damage from impacts or spills, or internal cracking that prevents it from properly turning the burner control valve.

Symptoms of a bad knob include:

• Difficulty turning the knob
• The knob not staying in place
• The burner not adjusting heat levels properly
• The knob feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM part for Whirlpool ranges, ovens, and cooktops. It allows users to adjust the heat level of the burners or the oven temperature, providing precise control for cooking.

Causes of a bad knob include normal wear and tear, cracking or breaking due to impact, or the internal mechanism becoming stripped and unable to properly engage the control shaft.

Symptoms of a bad knob include:

• Difficulty turning the knob
• The knob not staying in place
• Inconsistent temperature or heat level control
• The knob feeling loose or spinning freely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Orifice Holder is an OEM part for Whirlpool gas cooktops. This part is responsible for securely holding the orifice, which controls the flow of gas to the burners. The gas cooktop orifice holder ensures proper gas flow and safe operation of the burners. It is designed to withstand high temperatures and regular use.

A bad orifice holder can occur due to wear and tear over time, exposure to heat, or accidental damage. If you notice symptoms such as gas leaks, weak flame, or inconsistent burner performance, it may be time to replace this part.

Symptoms of a bad orifice holder include:

• Gas leaks
• Weak flame
• Inconsistent burner flame

Restore your Whirlpool gas cooktop by replacing the worn or damaged orifice holder with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Right rear

Left front

Right front

This rear trim is a factory-style replacement piece that restores the finished back edge of your 30-inch range or cooktop for a clean, factory look and to help protect internal components from debris. What it does:

• Covers and finishes the rear edge of the cooktop or range for a factory appearance
• Helps block dust, grease and debris from entering the control or rear cavity area
• Replaces damaged, bent or missing trim that can catch food and interfering particles
• Fits the standard 30-inch width for compatible Whirlpool-style ranges

• One rear trim piece (30-inch)

• Disconnect power to the appliance before attempting any service
• Usually secures with screws or clips at the rear; inspect mounting points before installation
• Handle carefully to avoid scratching the finish; use appropriate tools and protective gloves

This grommet sits in the control panel opening around the valve/switch shaft on select ranges and cooktops. It helps seal out spills and stabilizes the control knob for a clean look and smooth operation.

• Seals the knob/shaft hole to help keep moisture, grease, and crumbs out of the control area
• Centers and supports the knob for a snug, stable feel
• Helps prevent rubbing and cosmetic wear around the panel opening
• Common signs: cracked or missing grommet, visible gap around knob, loose/wobbly knob, evidence of spills beneath the knob

• Disconnect power and, if applicable, shut off gas supply before servicing
• Pull the knob straight off the shaft and lift out the old grommet
• Clean the panel opening; press the new grommet fully into place, matching the original orientation
• Reinstall the knob and ensure smooth, unobstructed operation

Color: black. Measures about 1-1/2 inches in diameter.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This adhesive-backed foam tape seals small gaps and cushions mating parts inside your appliance. Replacing worn or missing foam helps reduce noise and vibration while preventing air leaks and condensation that can lead to performance issues.

• Seals joints and gaps to help maintain proper airflow and temperature control
• Cushions panels and components to reduce rattles, buzzing, and vibration
• Helps prevent moisture intrusion that can cause condensation or frost
• Restores secure fit where original foam has compressed, torn, or fallen off

• Disconnect power (and water supply if applicable) before starting
• Remove all old foam/adhesive and clean surfaces; allow to dry fully
• Measure, cut to length, peel backing, and apply without stretching the tape
• Press firmly along the length for good adhesion; keep clear of moving parts and vents
