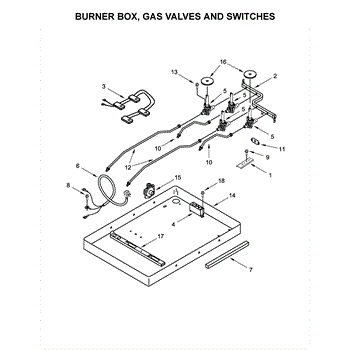

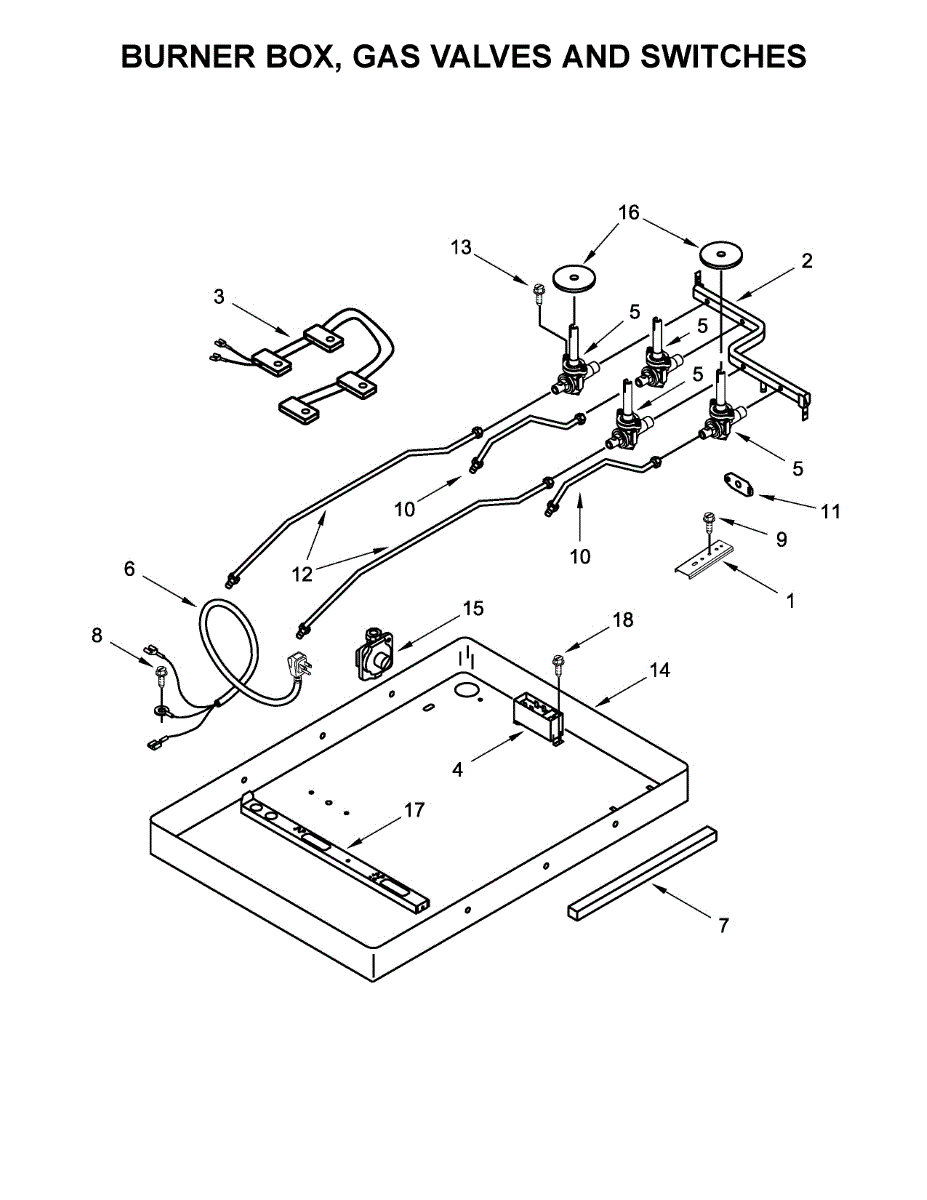

Parts for Ikea ICS333DS01: Burner Box, Gas Valves And Switches Parts

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This switch harness is the factory wire assembly for a bank of four control switches. It links the switches to the appliance wiring so the controls operate reliably and deliver power to the circuits as intended.

• Connects four control switches in the panel to the appliance's main wiring harness
• Ensures proper routing of power through each switch circuit
• Typical symptoms: a function won't start or works intermittently when a switch is turned
• Visual clues: brittle/melted insulation, darkened connectors, or arcing at the switch bank

• Disconnect power at the breaker or unplug the appliance before servicing; verify no voltage is present
• Access the control area per your model's procedure
• Photograph or label wire positions; move connectors one at a time to the new harness
• Route and secure away from sharp edges and hot surfaces; verify all terminals are tight before reassembly

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

This valve kit repairs the appliance's water/control valve assembly and provides the small mounting screw needed for secure installation. It replaces a worn or damaged valve kit so the appliance can restore proper valve function. What it does:

• Replaces the valve assembly components that control water flow or internal fluid routing
• Helps stop issues caused by a damaged valve kit, such as inconsistent water delivery or valve leakage
• Restores secure mounting with the included screw to prevent loose fittings
• Works as the direct replacement kit specified for the original valve location

• Disconnect power and shut off water supply before starting any repair
• Handle valve components carefully to avoid damaging seals and fittings
• Use basic hand tools; avoid overtightening the mounting screw to prevent stripping

Location: Right rear & right front.

Location: Left rear & left front.

Gas valve shaft seal.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit
