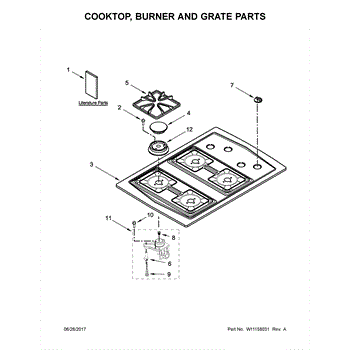

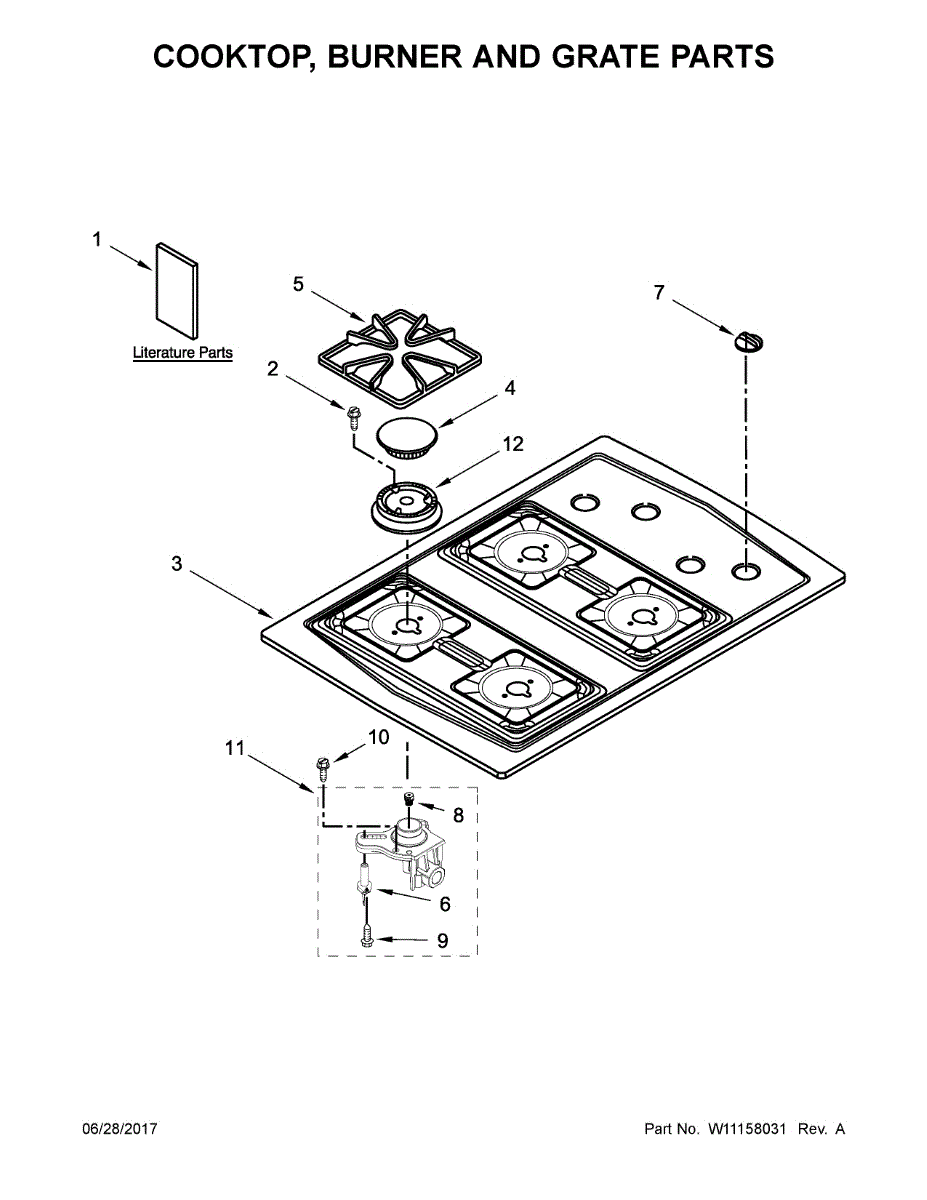

Parts for Ikea ICS333DS01: Cooktop, Burner And Grate Parts

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cooktop surface top replaces a damaged or worn cooktop to restore a smooth, usable cooking area and proper fit. It provides the finished surface that sits over the cooktop opening for a clean look and stable cooking zones. What it does:

• Replaces a cracked, chipped, or heavily scratched cooktop surface
• Restores a flat, stable cooking area so cookware sits evenly
• Helps prevent debris from falling into the cooktop cavity
• Can resolve fit or sealing issues caused by a warped or damaged top

• Disconnect electrical power (and gas if applicable) before starting any work
• Handle edges carefully — glass/porcelain surfaces can chip or crack if dropped
• Follow your appliance's service manual for correct fasteners, sealants, and alignment

The Burner Cap is an OEM part for Whirlpool gas ranges. This part sits atop the burner head and distributes the flame evenly for efficient cooking. It helps protect the burner head from spills and debris while also providing a stable base for cookware. Note: This is a set of four burner caps

Causes of a bad burner cap can include exposure to high heat, frequent spills, or impact damage.

Symptoms of a bad burner cap include:

• Uneven or unstable flames
• Difficulty igniting the burner
• Visible cracks, chips, or discoloration
• Burner flames that are too high or too low

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replace worn or damaged cooktop grates with this grate kit to restore a stable, level platform for your pots and pans. It helps maintain safe, consistent pan support and keeps your range or cooktop looking and performing its best. What it does:

• Supports cookware above the burners at the correct height
• Restores level, stable pan support when grates are cracked, warped, or missing
• Helps reduce rocking or tipping of pots and pans
• Common signs it's needed: chips or cracks, grates won't sit flat, unstable cookware

• One grate kit

• Turn off all burners and allow the appliance to cool completely before handling
• Lift off old grates; clean support ledges and burner surrounds
• Position new grates per the burner layout; ensure they sit level and centered
• Verify pan stability before cooking

This surface ignitor sparks the burner on gas ranges so you can light cooktops quickly and reliably. It replaces a worn or damaged ignitor to restore normal ignition and consistent burner operation. What it does:

• Creates the spark needed to ignite the burner when a control is turned on
• Restores ignition when burners fail to light or produce weak/no sparks
• Stops intermittent ignition or continuous clicking caused by a faulty ignitor
• Works as the user-replaceable electrode for surface burner ignition systems

• One surface ignitor

• Disconnect electrical power and shut off the gas supply before starting.
• Handle the ceramic electrode carefully; oils or cracks can cause failure—avoid touching the tip.
• Verify proper wire connection and secure mounting; test ignition after reassembly.

Location: Right rear & left rear.

Burner orifice for large base. 12 BTU.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NAT to LP gas conversion kit
