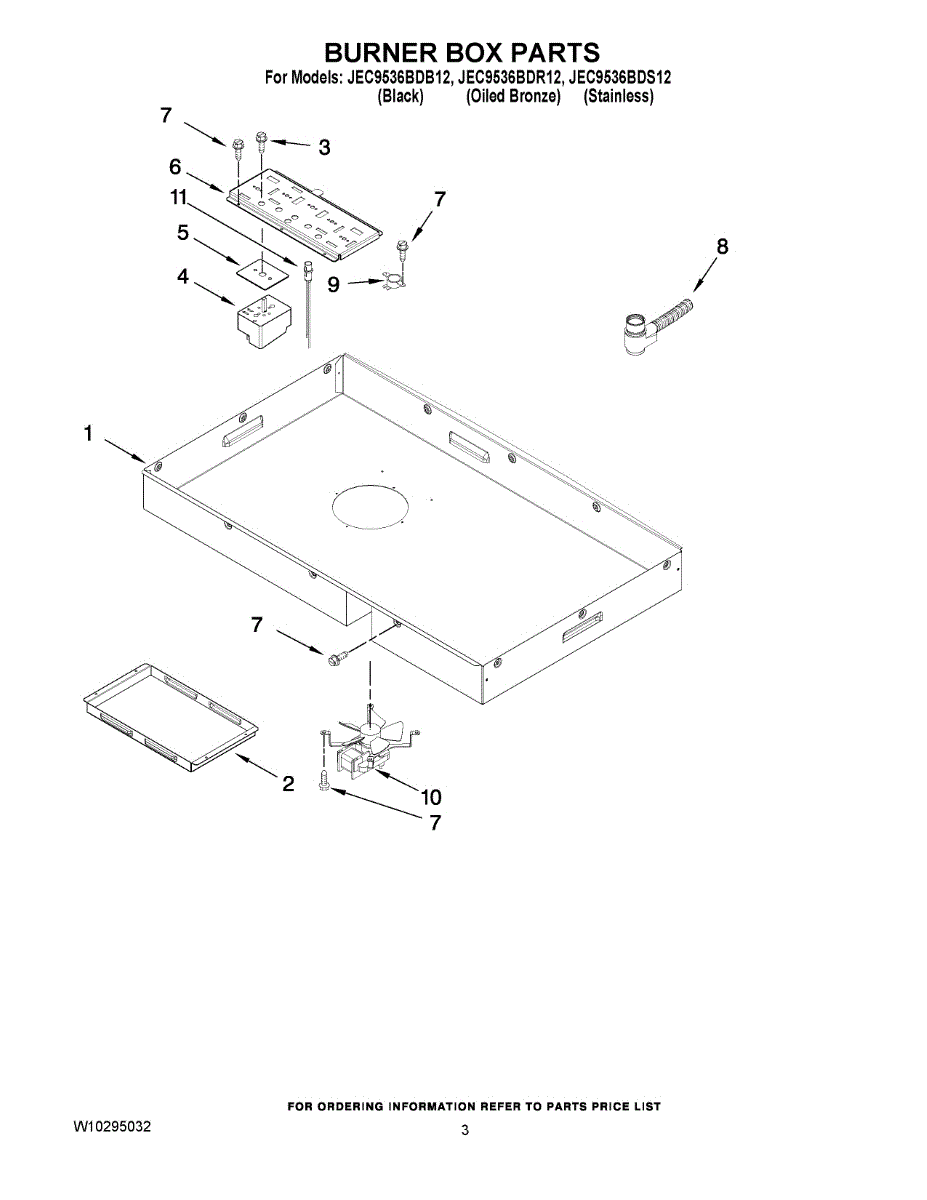

Parts for Maytag JEC9536BDB12: 02 - Burner Box Parts

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This infinite switch is the user control that regulates a cooktop surface burner's heat levels so you get consistent, adjustable cooking temperatures. It replaces a worn or faulty control to restore proper burner responsiveness. What it does:

• Controls and varies electrical power to a surface burner for precise heat settings
• Allows selection of multiple heat levels from low to high
• Commonly replaced when a burner won't heat, won't change settings, or stays at one temperature
• Also used when the burner cycles erratically or doesn't respond to the knob

• One infinite switch

• Always disconnect power to the appliance before starting any repair
• Handle wiring carefully; note or photograph connections to ensure proper reassembly

This infinite switch controls the heat level of a cooktop's front or rear top burner, restoring variable temperature adjustment for electric ranges. It replaces a worn or failed burner control to help your surface element respond correctly. What it does:

• Regulates burner heat by varying power to the surface element for low-to-high settings
• Commonly used when a burner won't heat, overheats, or only works on one or two settings
• Replaces a faulty control that causes erratic temperature changes or no response to knob adjustments
• Connects to the stove's internal wiring and mounts at the range control panel

• One infinite burner control switch

• Disconnect power to the appliance at the breaker before starting any work
• Note terminal locations and wire colors; transfer wires one at a time or label them to ensure correct reassembly

This infinite switch replaces the surface-burner control on electric ranges, restoring variable heat selection for a single cooktop burner so you can adjust cooking temperature reliably. What it does:

• Regulates the power delivered to an electric surface burner to provide variable heat settings.
• Replaces a failed or worn infinite switch that prevents changing burner temperature.
• Common symptoms: burner won't heat, burner remains at one setting, heat level can't be adjusted, or heat is inconsistent.
• Use only with compatible range models.

• Disconnect power to the appliance at the circuit breaker before you begin.
• Access the control panel per your model's service instructions; note wire locations or photograph them before removal.
• Reconnect wires to matching terminals and secure mounting hardware; restore power and test the burner.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
