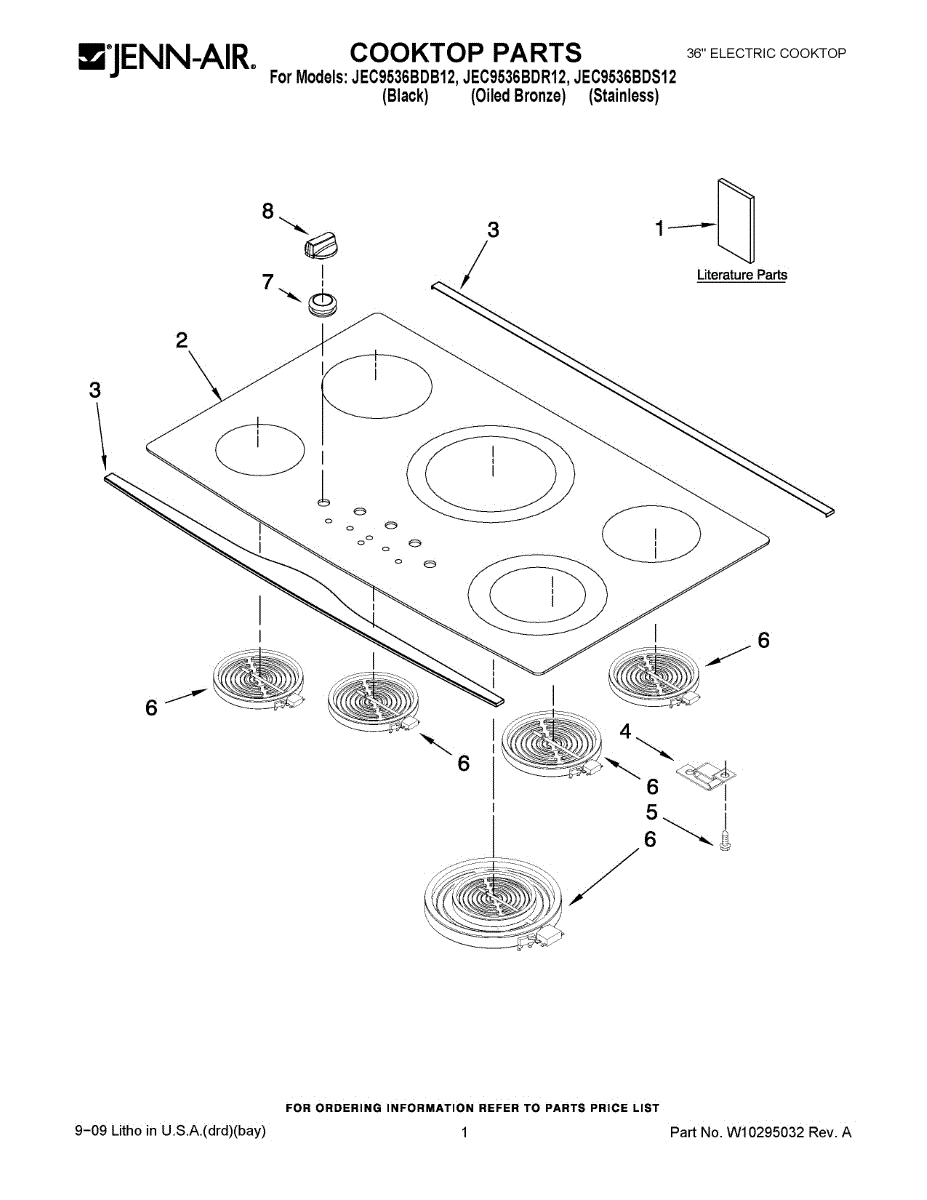

Parts for Maytag JEC9536BDB12: 01 - Cooktop Parts

This is a replacement cooktop trim piece that restores the finished edge around your cooktop for a clean, factory look and helps cover gaps between the cooktop and countertop. Ideal for replacing damaged or bent trim. What it does:

• Replaces worn, dented or scratched cooktop edging to improve appearance
• Covers gaps at the cooktop edge to restore a flush, finished look
• Helps stabilize the cooktop perimeter and reduce rattling or movement
• Matches OEM fit and mount points for a secure replacement

• Disconnect power to the appliance before beginning any work.
• Remove screws or clips securing the old trim; handle edges carefully—parts may be sharp.
• Align new trim to OEM mounting points and secure with original fasteners.

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

This surface heating element restores dependable heat to a burner on your range or cooktop. Also called a surface burner or top burner element, it delivers the cooking temperature for that zone when the control sends power. What it does:

• Generates heat for one cooking zone on the cooktop
• Common symptoms: burner won't heat, heats unevenly or only partway, takes too long to heat, or shows visible damage
• Helps isolate a single-burner failure when other surface elements still work
• Replaces a damaged or open element to restore consistent heating

• 1 surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Access the element per your model (remove burner pan or lift the glass top)
• Note/photograph wiring and transfer any brackets or clips; move wires one at a time to matching terminals
• Ensure the element sits flat and all connections are secure before reassembly and testing

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

Color: black. Measures about 1-1/2 inches in diameter.
