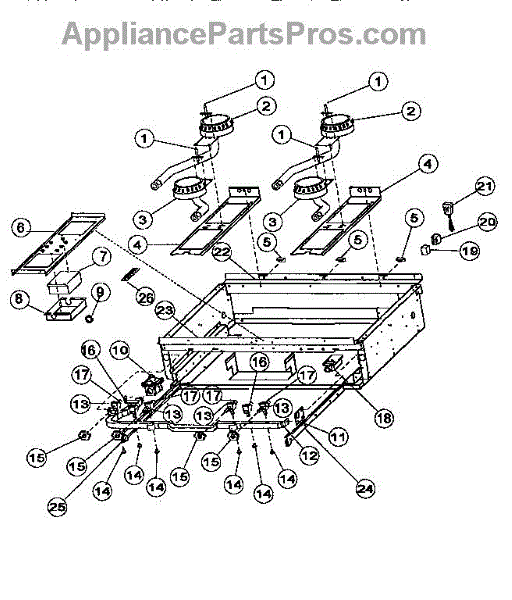

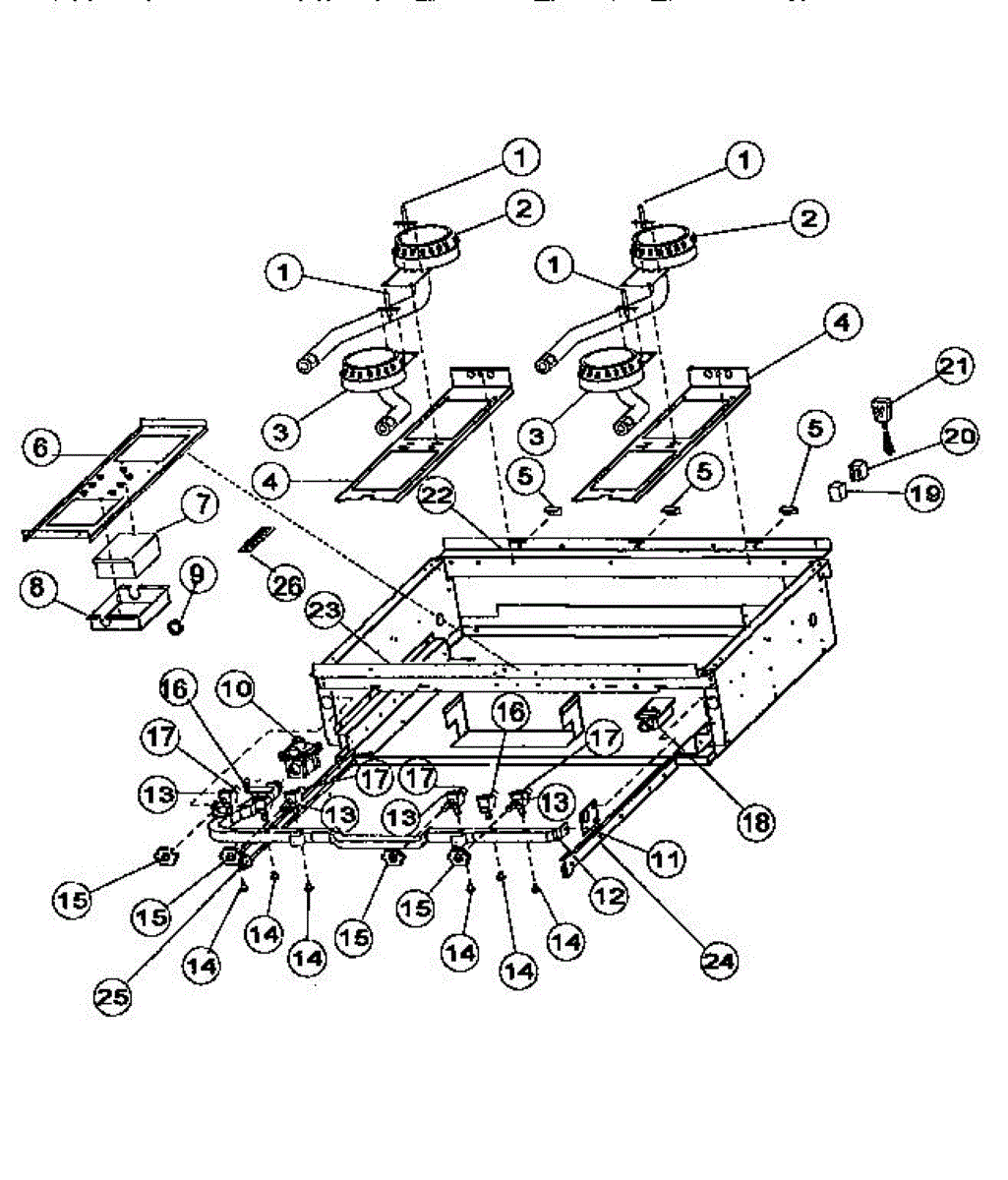

Parts for Viking Range VGSC30: Burner Box Sub-Assembly Parts

This burner igniter is the surface spark electrode that lights a gas burner on your range. Replacing a worn or cracked electrode restores dependable ignition so burners light promptly when you turn the knob.

• Produces a high-voltage spark at the burner head to ignite the gas
• Activates when a burner knob is turned; interfaces with the unit's spark ignition system
• A cracked insulator or worn tip can result in weak or no spark
• Symptoms may include clicking without lighting, intermittent ignition, or needing a match to light

• Disconnect electrical power and shut off gas before servicing
• Remove grates, caps, and the burner head as needed to access the electrode
• Transfer any mounting hardware from the old electrode; position the tip at the same gap and orientation as original
• Route and connect the lead to the correct terminal; keep wiring clear of heat and sharp edges, then test for spark before reassembly

This top burner front is a direct-fit replacement panel that restores the cooktop's front burner area for proper fit and appearance. It helps secure burner components and keeps the cook surface aligned and stable. What it does:

• Replaces a cracked, warped, dented or discolored top burner front panel
• Restores correct fit and support for front burners and grate alignment
• Helps prevent loose or misaligned burners that can affect cooking performance
• Improves appearance by replacing damaged or worn front trim

• Turn off power and gas to the appliance before servicing; follow all safety precautions
• Basic hand tools required; part installs from the top of the cooktop or under the cooktop depending on model
• Handle edges carefully to avoid cuts; check alignment and secure fasteners evenly

This spark module controls ignition for the surface burners on gas cooktops and ranges. When a knob is turned, it generates the high-voltage spark needed to light the gas, restoring fast, consistent burner ignition across four positions.

• Generates high-voltage pulses to ignite up to four surface burners
• Activates when a burner switch is turned to provide reliable sparking to the igniters
• Common symptoms include no spark on any surface burner
• Intermittent or weak sparking across multiple burners
• Burners only lighting with an external flame

• Disconnect electrical power and shut off gas before servicing
• Photograph or label all wire positions; move wires to the new module one at a time to avoid miswiring
• Mount the module securely in the original location; keep leads dry and routed away from heat/sharp edges
• High-voltage hazard: do not touch igniter outputs during testing; verify all connections are fully seated before restoring power

This pressure regulator controls incoming natural gas pressure to the appliance, helping maintain steady burner performance and proper combustion. It replaces a worn or faulty regulator to restore correct gas flow and consistent heat. What it does:

• Regulates downstream natural gas pressure for safe, consistent burner operation
• Can correct symptoms such as weak or uneven flames, difficulty maintaining a flame, or a burner that won't light reliably
• Works with the appliance's gas valve and manifold to balance fuel delivery to burners
• Designed to meet OEM fit and function for compatible Viking gas ranges

• Turn off gas supply and electricity before starting any repair
• After installation, perform a proper gas leak test and check for correct burner operation
• Do not modify the part; use the OEM-specified regulator for safe operation

This valve and bolt kit is a direct replacement assembly that secures the valve to the appliance and restores the proper seal and connection at the valve mounting point. Use it when a worn or damaged valve mounting is causing leaks or operational issues. What it does:

• Secures the valve to the appliance chassis with the correct mounting hardware
• Restores a tight seal at the valve connection to help prevent leaks
• Re-establishes reliable flow/control through the valve assembly
• Commonly used when the valve mounting is loose, damaged, or corroded

• Shut off power and fuel (gas or liquid) supply before beginning service
• Inspect surrounding gaskets and seals and replace if cracked or damaged
• After installation, test for proper operation and check all connections for leaks per local codes

This spark ignition switch mounts on the gas valve shaft and signals the ignition system when you turn the knob to Lite. Replacing a worn switch helps restore dependable burner lighting and can reduce nuisance clicking from a stuck switch. What it does

• Closes the circuit to the spark module when a burner knob is turned
• Triggers the igniter to spark so the burner lights
• May help resolve: no spark at a specific burner, intermittent ignition, or continuous clicking with knobs off (stuck/wet switch)
• Designed for use on the valve stem behind the control knob

• One spark ignition switch

• Disconnect electrical power; shut off gas if working near supply lines
• Pull off the knob and access the switch on the valve stem
• Transfer wires one at a time and match the original orientation
• Keep the area dry; test for proper spark before reassembly

Orifice hood (#57) is the burner component that centers and protects the burner orifice, helping deliver a steady, correctly-shaped gas flame for even cooking. Replacing a damaged hood restores reliable burner operation and flame control. What it does:

• Positions and shields the burner orifice to ensure correct gas flow to the burner.
• Helps maintain proper flame shape for even heat distribution across the burner.
• Can cause uneven or weak flames, delayed ignition, or irregular heating when damaged or corroded.
• Use as a direct replacement when the existing hood is bent, cracked, or excessively worn.

• Shut off the appliance power and gas supply before attempting any service.
• Replace only when the burner is cool; do not force or over-tighten parts.
• Inspect the burner head and orifice for damage or debris when installing this hood.

This left-hand single thermal valve controls gas flow to one burner assembly, helping restore safe, consistent operation in affected ovens or ranges. It replaces a faulty valve to re-establish proper temperature regulation and ignition behavior. What it does:

• Regulates gas flow to the left-side burner or oven pilot as part of the appliance's gas control system
• Helps prevent unwanted gas flow when the burner is off and allows normal ignition when called for
• Commonly used when burners fail to light, spark but no gas, or flame is irregular on the left side
• Works with existing mounting and gas line connections as the OEM replacement component

• Turn off the appliance's gas supply and electrical power before starting any repair
• Only connect or adjust gas fittings with proper tools and thread sealant rated for gas; check for leaks after installation
• Do not modify the valve; replace with the correct left-hand unit to ensure safe operation
