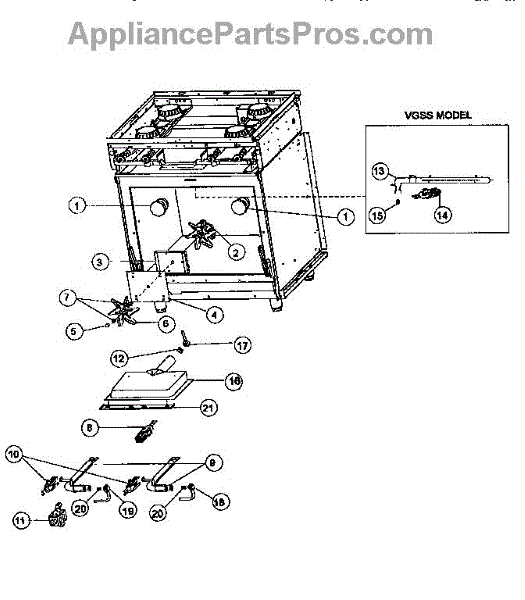

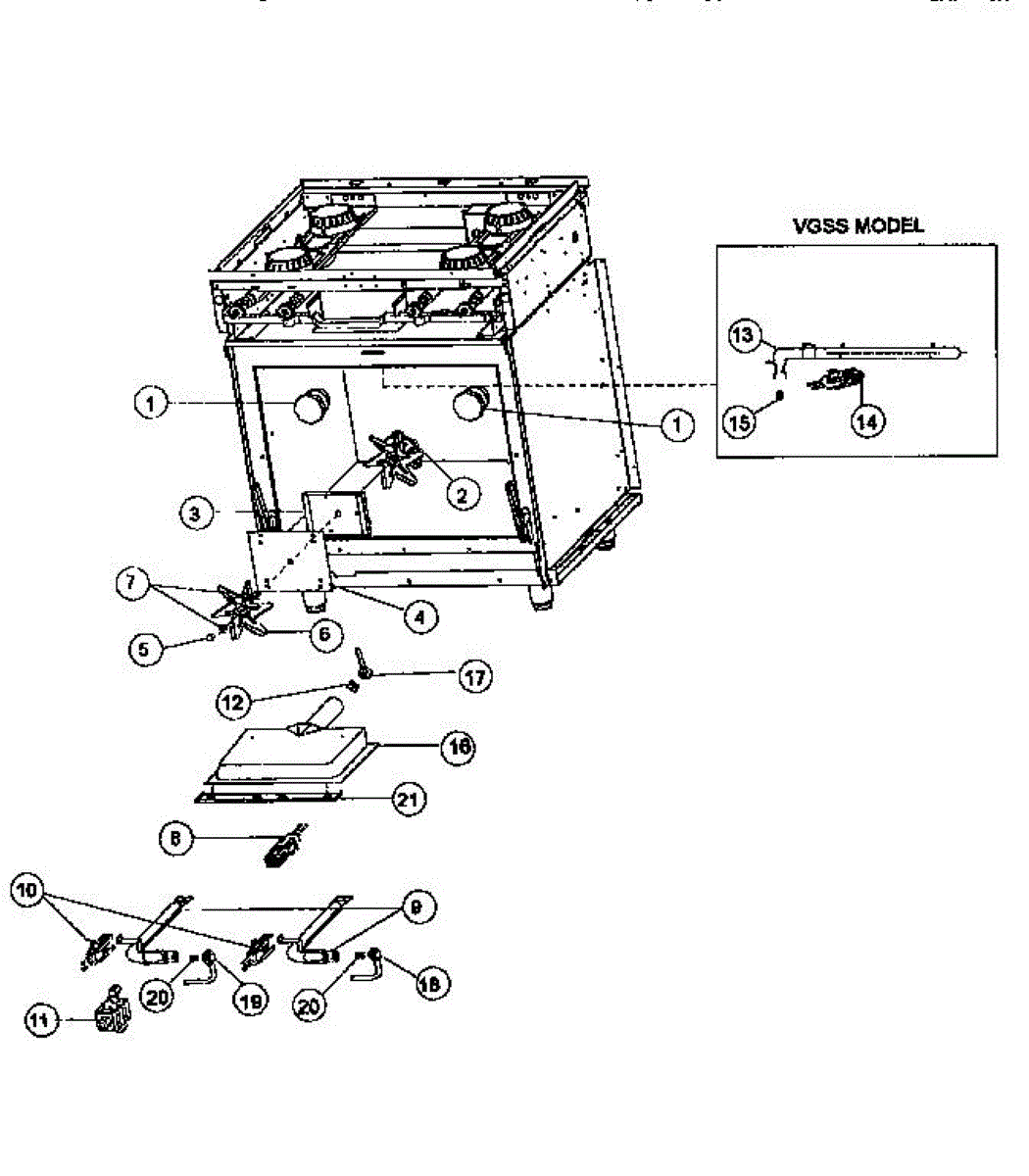

Parts for Viking Range VGSC30: Gas / Electrical Components Parts

Light bulb socket assembly includes: Light bulb socket, light bulb and light lens.

A flat hot-surface ignitor that replaces a worn oven ignitor to restore reliable burner ignition. Heats to ignition temperature so gas burners can light more consistently and help the oven reach operating temperature. What it does:

• Heats to a high temperature to ignite the oven or range gas burner
• Common failure symptoms: oven won't light, long ignition delay, or intermittent ignition
• Direct replacement for flat-style hot-surface ignitors used in compatible gas ovens and ranges
• Matches electrical connector and mounting style of the original flat ignitor design

• Always shut off electrical power and the gas supply before starting repair
• Handle the ceramic element carefully — it is fragile; avoid touching the element surface with bare hands
• Verify connector/wire compatibility and use the original mounting hardware or manufacturer-recommended fasteners

The Oven Burner is an OEM part for Viking ovens, designed to deliver the heat necessary for baking, roasting, and other oven-based cooking processes. This part is a crucial component of the oven's heating system, generating the flame that heats the oven chamber.

Causes of a bad Oven Burner can range from a clogged burner port, preventing gas from being emitted evenly, to wear and tear that affects the burner's ability to ignite or maintain a flame. Damage to the burner assembly, such as bending or corrosion, can also impair its function and efficiency.

Symptoms of a bad Oven Burner include:

• The oven failing to heat up properly or evenly.
• A noticeable delay in ignition when the oven is turned on.
• An uneven flame or a flame that goes out unexpectedly during operation.
• The presence of gas odor when the oven is on, indicating incomplete combustion.

This bimetal gas control valve regulates gas flow to the oven burner as part of the ignition circuit, helping ensure safe light-off and steady, reliable heat so your range reaches and maintains the set temperature.

• Regulates gas to the burner in response to the igniter/thermostat signal
• Bimetal safety design keeps gas closed until proper ignition heat is present
• Helps maintain consistent heating once the burner is lit
• Can address cases where the igniter glows but the burner won't light
• Resolve ovens that heat intermittently or take unusually long to preheat

• Disconnect power and shut off gas supply before servicing.
• Note valve orientation; transfer any required fittings/orifices from the original.
• Use approved gas-rated thread sealant on NPT threads only; never on flare connections.
• After installation, leak-test all joints and verify proper ignition and burner operation.

This infrared burner orifice directs gas to the infrared burner, helping the burner produce the correct flame for consistent searing and broiling. Use it to restore proper burner heat and performance. What it does:

• Controls gas flow to the infrared burner for correct flame size and heat output
• Helps restore even searing and broiling when the burner is underperforming
• Commonly replaced when the burner produces low heat, weak flame, or uneven cooking
• Fits into the burner assembly to ensure safe, consistent operation

• Turn off gas supply and power to the appliance before servicing
• Use appropriate wrench or orifice tool; avoid damaging threads or seat
• Check for gas leaks after installation and relight per manufacturer instructions

Orifice hood (#57) is the burner component that centers and protects the burner orifice, helping deliver a steady, correctly-shaped gas flame for even cooking. Replacing a damaged hood restores reliable burner operation and flame control. What it does:

• Positions and shields the burner orifice to ensure correct gas flow to the burner.
• Helps maintain proper flame shape for even heat distribution across the burner.
• Can cause uneven or weak flames, delayed ignition, or irregular heating when damaged or corroded.
• Use as a direct replacement when the existing hood is bent, cracked, or excessively worn.

• Shut off the appliance power and gas supply before attempting any service.
• Replace only when the burner is cool; do not force or over-tighten parts.
• Inspect the burner head and orifice for damage or debris when installing this hood.

This orifice hood (#54) is a replacement gas burner component that helps direct the flow of fuel to the burner assembly for proper combustion and consistent flame performance. It restores correct burner operation when the hood is damaged or missing. What it does:

• Centers and shields the orifice to ensure stable gas flow to the burner
• Helps maintain consistent ignition and flame pattern for the associated burner
• Common repair for chipped, bent or missing orifice housings that cause uneven flames or ignition issues
• Matches OEM shape and mounting to fit into the burner assembly as designed

• One orifice hood (#54)

• Install only with the appliance disconnected from the gas supply; follow local codes and manufacturer safety instructions
• Verify correct orifice/hood placement before re-connecting gas and testing ignition
