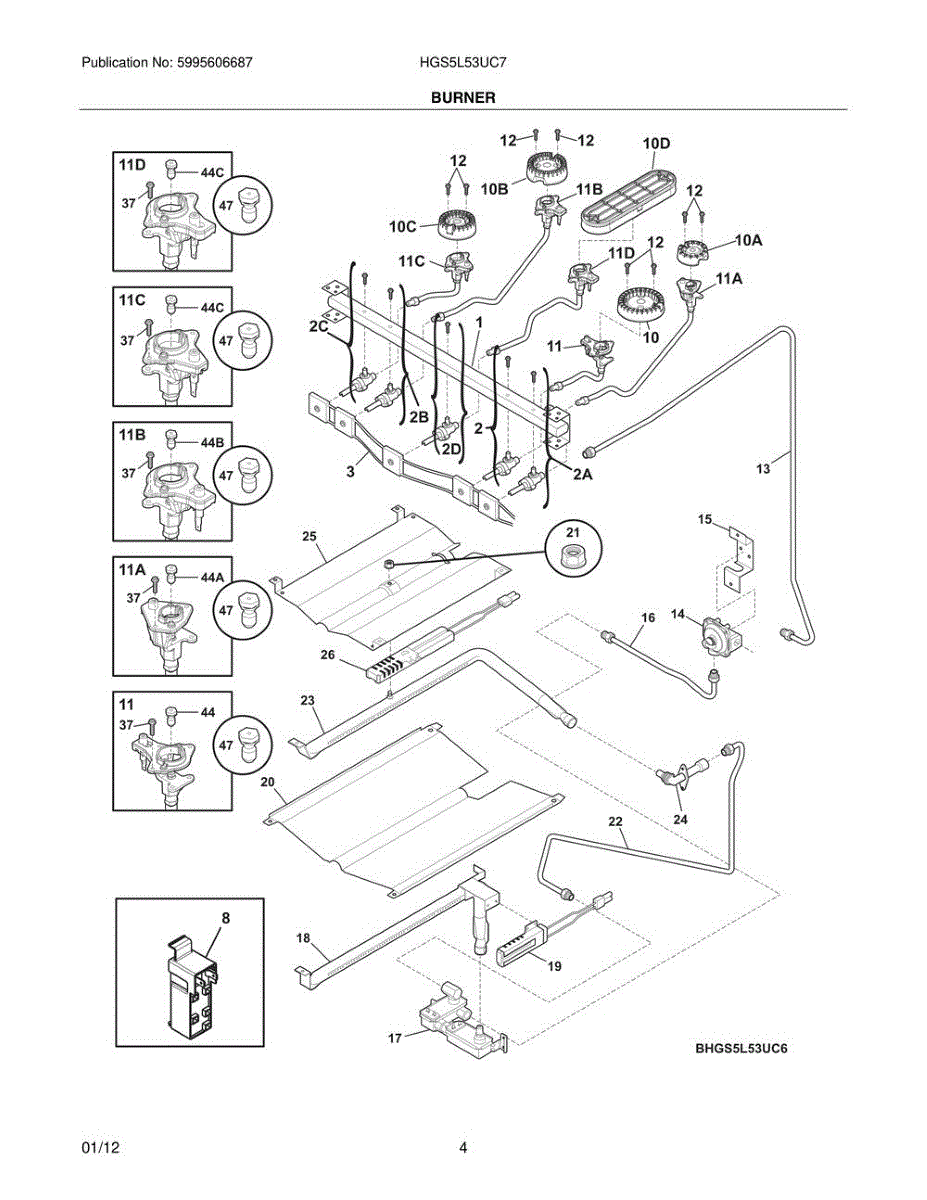

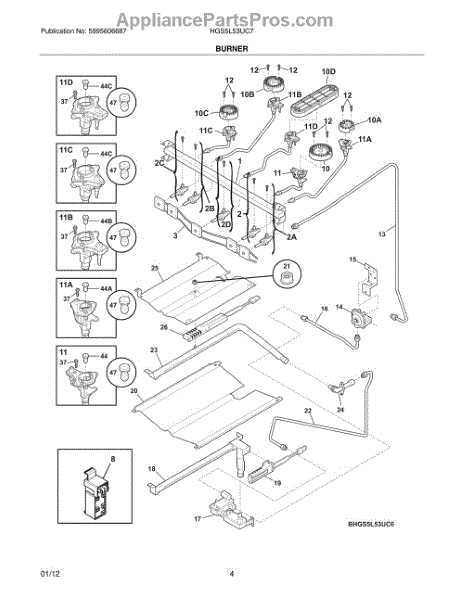

Parts for Bosch HGS5L53UC7: Burner Parts

Routes gas from the inlet regulator to the burner manifold on your gas range. Replace if cracked, leaking, or damaged to restore safe fuel delivery.

This wiring harness connects the appliance's electrical components to restore reliable power and signal routing. It replaces a damaged or worn harness to help resolve power loss and intermittent electrical issues. What it does:

• Transfers power and control signals between components so controls and motors can operate
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps stop failures that lead to no-start or loss of specific functions
• Restores secure connector fit to reduce arcing or poor connections

• Always disconnect power before servicing the appliance
• Match connectors and wire routing to the original harness; avoid stretching or pinching wires
• Secure fasteners and strain reliefs; verify all connections are fully seated
• If you find heat or burn damage at terminals, inspect adjacent components for root cause

This is an orifice elbow fitting that connects to the broil burner assembly in a gas range. It directs and regulates the gas flow to the broil burner for proper ignition and flame output. Replace this part if the broil burner produces an uneven flame, fails to ignite consistently, or if the fitting is cracked or corroded and causing a gas leak.

This is a gas valve that controls the flow of gas to an individual surface burner on a gas range cooktop. Turning the corresponding knob opens or closes this valve to regulate flame size. Replace this valve if the burner will not ignite, the flame is uneven or cannot be adjusted, or if you detect a gas smell around the burner area.

Combined spark igniter and orifice holder for gas surface burners. Replace when the assembly is cracked, worn, or damaged to restore proper burner operation.

Replace a cracked, clogged, or damaged ignitor orifice assembly under your gas range cooktop. Routes gas to surface burner and houses spark electrode.

Replacement surface burner for gas range cooktops. Installs directly onto the burner base. Order when your existing burner is cracked, clogged, or missing.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Meters gas flow to your range or cooktop burner for proper flame size. Replace worn, clogged, or missing orifices or when converting between propane and natural gas.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

This assembly includes the spark ignition switches and wiring harness that control the igniter circuits on a gas range or cooktop. The switches detect burner position and signal the igniters to spark when a burner knob is turned. Replace this assembly if burners fail to ignite, click continuously without lighting, or if the spark module does not activate consistently.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Replace this ignitor orifice assembly if the electrode is cracked, broken, or worn. Installs on gas range surface burners to restore spark ignition.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.
