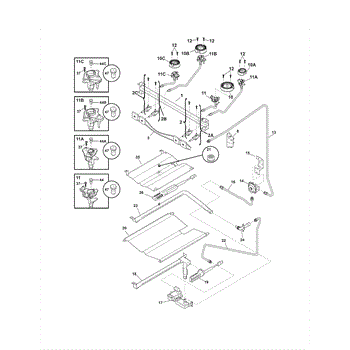

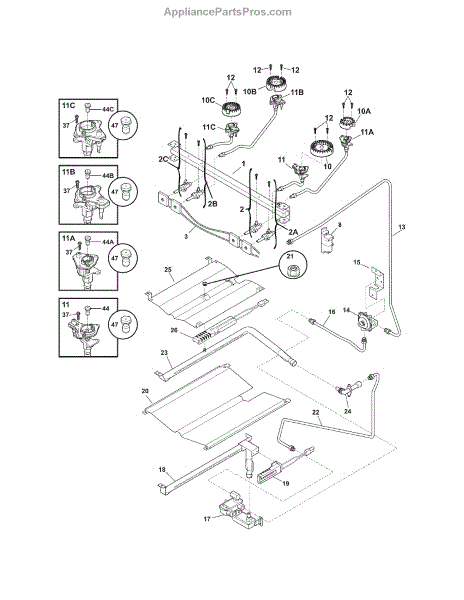

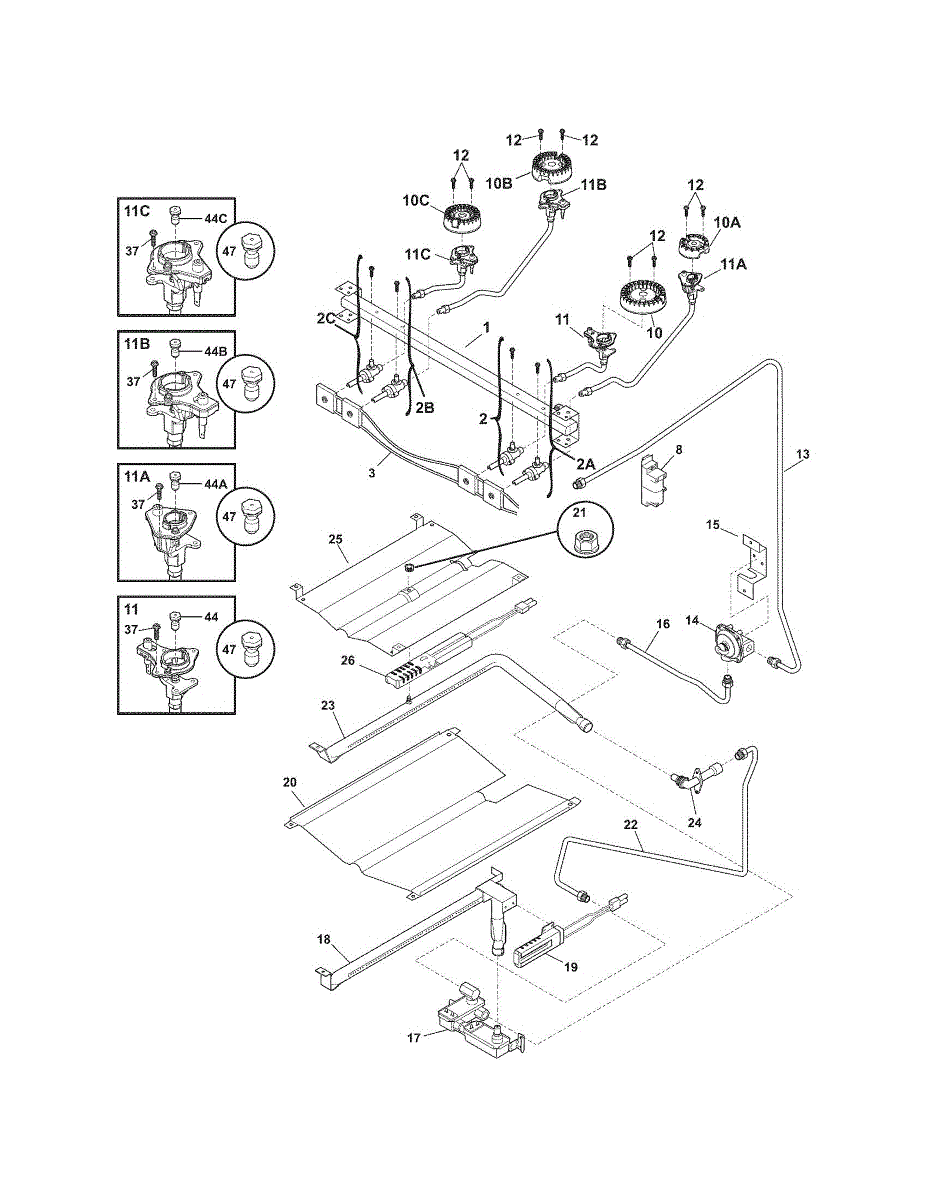

Parts for Crosley CRG3480IWWE: Burner Parts

This manifold pipe routes gas from the valve to your range burners. Replace yours if it's cracked, corroded, or leaking to restore safe fuel distribution.

This safety valve controls gas flow to the oven burner. When signaled by the igniter, it opens to allow ignition and helps maintain consistent heat, supporting safe, reliable preheating and baking performance.

• Regulates gas flow to the oven burner under control of the igniter and thermostat/electronic control
• Prevents gas from flowing until proper ignition conditions are met
• Common symptoms: oven won't ignite or heat, intermittent heating, extended preheat time, or weak/unstable flame
• Often inspected when the igniter glows but the burner does not light

• Disconnect power and shut off the gas supply before servicing
• Transfer any model-specific fittings or brackets from the original valve
• Use approved thread sealant on threaded connections; support tubing and avoid overtightening
• After installation, leak-check every connection with a soap-and-water or leak-detection solution

This safety valve controls gas flow to the oven burner, opening only when the ignition system calls for heat. Replacing a weak or stuck valve restores reliable ignition and consistent oven temperatures for safe, dependable baking and roasting. What it does:

• Regulates and shuts off gas to the oven burner circuit
• Works with the igniter; opens only when proper current is present
• Fails closed to help prevent unlit gas from entering the oven
• Common symptoms may include: oven won't heat, intermittent heating, very long preheat, or a weak/unstable flame

• 1 safety valve

• Disconnect power and shut off gas supply before servicing
• Label and transfer all tubing and wires from the original valve one-for-one
• Support flare fittings with two wrenches; use thread sealant only on NPT threads (never on flare connections)
• After installation, restore gas and check every joint for leaks with an approved leak-detection solution

Burner won't light or knob won't turn? This top burner valve controls gas flow to restore reliable ignition and flame control. DIY-friendly replacement.

Replace a gas range burner valve that's broken, stuck open, or causing hard-to-adjust flames. Moderate DIY repair requires raising the stovetop.

This wiring harness routes power and control signals between key components inside your range or wall oven. Replace a damaged harness to restore safe, reliable operation and prevent intermittent heat, shorts, or non-working burners and oven functions.

• Distributes electrical power and signals between controls, switches, heating elements/igniters, and safety components
• Maintains correct connector orientation and wire routing for dependable operation
• Typical symptoms: no heat in oven or on surface burners, intermittent operation, breaker tripping, or visible burnt/melted wiring
• Restores stable connections to reduce arcing and overheating

• Disconnect power at the circuit breaker; for gas ranges, also shut off the gas supply
• Label or photograph all connections and transfer one wire at a time to avoid miswiring
• Route the harness exactly as original; keep away from sharp edges and hot surfaces; secure with existing clips/ties
• If connectors don't match or any terminals are heat-damaged, stop and inspect mating components.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Replaces cracked or corroded sealed burner head on gas ranges and cooktops. Restores proper flame distribution when original part is damaged or clogged.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly replaces the gas burner orifice and ignitor mounting used to safely direct gas to the oven burner so the igniter can light. Restores reliable ignition for gas ovens and ranges. What it does:

• Directs gas flow to the oven burner through the correct orifice size for proper ignition
• Positions and secures the ignitor so the spark/heat source can light the burner
• Helps resolve symptoms like a burner that won't ignite, delayed ignition, or weak burner flame
• Works as a service replacement for damaged, clogged, or corroded orifice/ignitor fittings

• One ignitor orifice assembly

• Turn off gas supply and power before starting any repair; follow appliance shutoff procedures
• Handle the ignitor carefully—it's fragile and can be damaged by rough handling or static
• Use appropriate wrenches and avoid overtightening the orifice fittings to prevent damage

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges. This part ignites the gas burners and regulates the flow of gas through the orifices.

Causes of a bad Igniter and Orifice Assembly can range from electrical issues or corrosion affecting the igniter to clogs or obstructions in the gas orifices.

Symptoms of a faulty Igniter and Orifice Assembly include:

• Difficulty igniting or relighting burners
• Uneven or inconsistent flame patterns
• Burners not staying lit or extinguishing spontaneously
• Clicking or sparking noises during ignition attempts

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

Integrated ignitor and orifice assembly for gas range burners. Replace when ignitor electrodes are damaged, orifice threads are stripped, or mounting holes are worn.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Gas supply tube for ranges. Connects gas supply to burners. Replace if cracked, has pinholes, or shows signs of wear to prevent leaks. Direct fit.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

Burner won't light or flame is weak? This gas valve controls flow to your range surface burner for reliable ignition and heat control. Moderate DIY.

Replace a cracked, clogged, or damaged surface burner head on your gas range or cooktop. Restores proper gas distribution and flame pattern.

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

Replace your gas range oven baffle if cracked, damaged, or missing. Directs heat circulation inside the oven cavity for even cooking performance.

Burner tube for gas ranges. Connects gas valve to burner assembly. Replace if cracked, corroded, or leaking to restore proper gas flow to cooktop burners.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

Oven won't heat or takes too long to ignite? This gas range igniter draws current to light the burner. Straightforward DIY repair in under an hour.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Natural gas burner orifice meters gas flow to range burners. Replace worn or clogged orifices for stable flame. Used for LP to natural gas conversions.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Convert your gas range from natural gas to liquid propane with this LP conversion kit. Includes all necessary orifices for burners when switching fuel types.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

Replacement instruction manual for your gas range. Includes operating procedures, care guidelines, and maintenance information for safe use.

Secures and stabilizes internal components in your gas range. Replace this mounting bracket if cracked, bent, or worn to restore proper alignment.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
