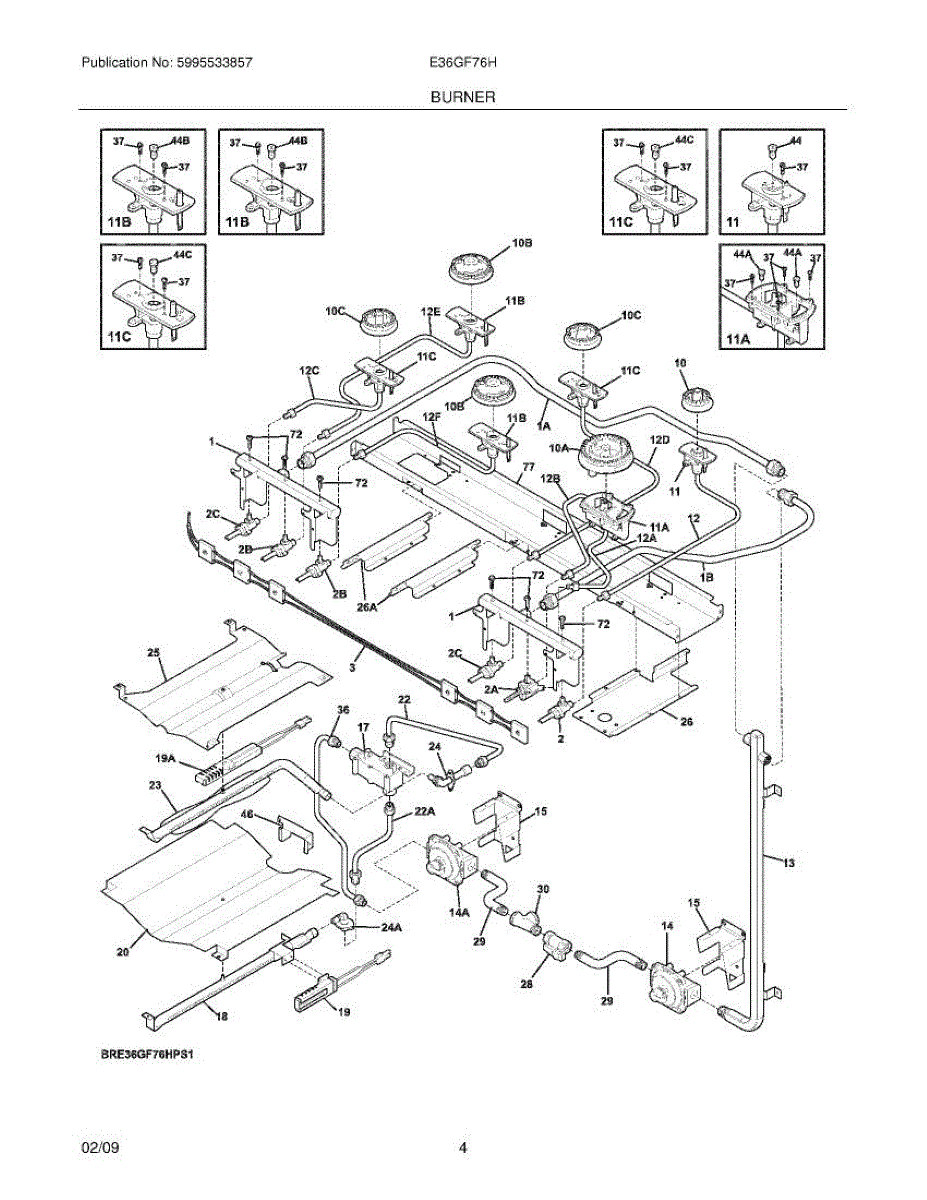

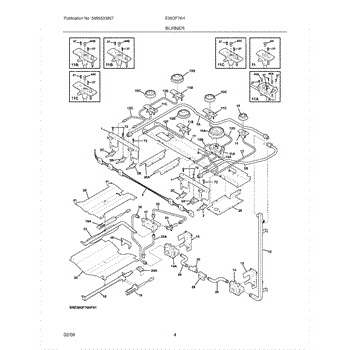

Parts for Electrolux E36GF76HPS1: 05 - Burner Parts

Burner base includes orifice and ignitor.

This replacement part is a safety valve. This part is found in various types of refrigerators or freezers and is able to ensure that the appliance is running smoothly and safely during use. A new safety valve might be needed if the user notices that the current one is no longer working properly. This may include it having a leak or making unfamiliar sounds. The user should be able to access the back of the appliance to replace or repair this part.This is a genuine OEM replacement part made by Frigidaire, sold individually. The item, made of durable materials, is meant to last a long time.

This is the spark electrode used to ignite the gas in the oven. It creates a spark at the burner to light the flame so your oven can heat reliably.

• Generates the spark that lights the oven burner
• A failed electrode can cause no heat, delayed ignition, or the oven not lighting
• Intermittent sparking or clicking without ignition may indicate a worn or cracked tip
• Carbon buildup or damage to the ceramic insulator can prevent proper ignition

• Disconnect power and shut off gas before servicing
• Access the burner area, note wire routing, and handle the ceramic insulator carefully
• Position the electrode tip at the specified gap to the burner per service literature
• Test for proper spark and burner ignition after reassembly

The Oven Igniter is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners or bake and broil burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven igniter can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven igniter include:

• Failure of the oven burners to ignite or light
• Delayed ignition or inconsistent burner lighting
• Visible damage or deterioration of the igniter element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

This baffle directs cold air inside the refrigerator to help maintain even temperatures and protect stored food. It replaces a damaged or broken deflector to restore correct airflow and cooling performance. What it does:

• Guides cold air from the evaporator toward fresh-food or freezer compartments
• Helps prevent uneven cooling and localized warm spots
• Reduces frost buildup caused by disrupted airflow
• Restores proper circulation when cracked, warped, or missing

• Disconnect power to the appliance before starting any repair
• Typically installs with clips or screws; retain fasteners from the original part
• Handle with care to avoid cracking plastic tabs during removal or installation

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This water inlet valve controls water flow to the refrigerator's ice maker and water dispenser, restoring normal dispensing and ice production when the valve is faulty or leaking. What it does

• Opens and closes to allow water into the ice maker and dispenser as commanded by the refrigerator.
• Stops water flow to prevent overfilling; a failed valve can cause no water, slow flow, or continuous filling.
• Commonly linked to symptoms such as no ice production, weak or no water from the dispenser, or visible leaks at the valve.

• One water inlet valve assembly.

• Disconnect power and shut off the water supply before starting work.
• Relieve line pressure and have towels ready for residual water when disconnecting fittings.
• Inspect and replace any worn water line fittings or gaskets; tighten connections to manufacturer torque—do not overtighten plastic fittings.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner base includes orifice and ignitor.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This wiring harness connects the appliance's electrical components so controls and motors receive power and signals for normal operation. Replacing a damaged harness restores reliable electrical connections and helps prevent intermittent faults. What it does:

• Routes power and signal wires between control board, motors, switches, and sensors
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation or loss of function
• Stops connection-related symptoms such as no power to components, unexpected shutdowns, or control failures
• Prevents potential arcing from damaged connectors when installed correctly

• Disconnect all power to the appliance before beginning disassembly to avoid shock or injury
• Take photos of original routing and connector positions to aid reassembly
• Route harness to avoid pinching, sharp edges, or heat sources and secure with original clips or fasteners
• If connectors are corroded or damaged, replace them with the correct OEM harness rather than splicing

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
