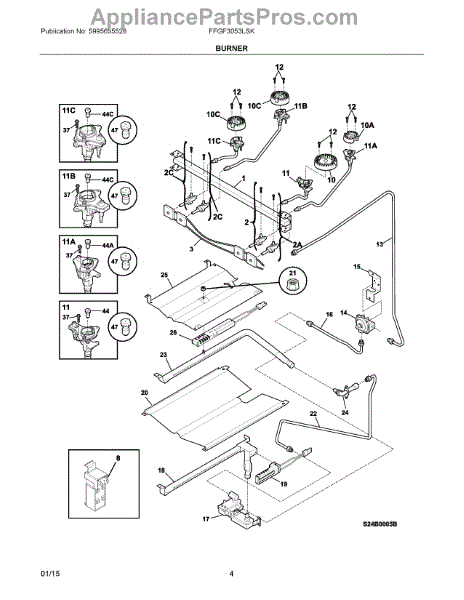

Parts for Electrolux FFGF3053LSK: 03 - Burner Parts

This manifold pipe routes gas from the valve assembly to the oven or cooktop burners, restoring proper fuel distribution for reliable ignition and flame performance. Designed as a direct replacement to maintain safe burner operation. What it does:

• Distributes gas evenly from the main gas valve to individual burners
• Enables burners to light and maintain steady flames
• Helps eliminate weak or no-flame symptoms tied to a damaged or clogged manifold
• Works with the range/oven gas system components for proper combustion

• One manifold pipe

• Turn off the gas supply and power to the appliance before service
• Inspect fittings and replace any damaged gaskets or seals; use pipe sealant appropriate for gas connections if required
• After installation, check all connections for leaks with a gas leak detector or soapy water; do not use an open flame

This safety valve controls gas flow to the oven burner, opening only when the ignition system calls for heat. Replacing a weak or stuck valve restores reliable ignition and consistent oven temperatures for safe, dependable baking and roasting. What it does:

• Regulates and shuts off gas to the oven burner circuit
• Works with the igniter; opens only when proper current is present
• Fails closed to help prevent unlit gas from entering the oven
• Common symptoms may include: oven won't heat, intermittent heating, very long preheat, or a weak/unstable flame

• 1 safety valve

• Disconnect power and shut off gas supply before servicing
• Label and transfer all tubing and wires from the original valve one-for-one
• Support flare fittings with two wrenches; use thread sealant only on NPT threads (never on flare connections)
• After installation, restore gas and check every joint for leaks with an approved leak-detection solution

This replacement valve controls gas flow to a cooktop/range surface burner, restoring smooth, dependable flame control through the burner knob. Replace a worn or leaking valve to improve safety and consistent burner performance.

• Regulates and shuts off gas to a single surface burner when you turn the control knob
• Helps resolve issues like a burner that won't light or won't adjust flame properly
• Can address a stiff/hard-to-turn knob or gas odor/leak at the valve stem area
• Supports steady, even flame when the original valve is worn or inconsistent

• Disconnect power and shut off gas supply before servicing
• Match the valve to the correct burner position per your model's parts diagram
• Transfer any required fittings/orifice from the original valve
• Use approved sealant where specified and check all connections with a leak-detection solution before use—never an open flame

This is the gas control valve for a surface burner. It regulates gas flow to the burner head so you can ignite the flame and adjust heat output safely and smoothly.

• Controls and meters gas to an individual cooktop/range burner
• Worn or leaking valves can cause hard-to-adjust flames, no flame, or gas odor
• A sticking or stripped valve stem can make the knob hard to turn or fail to shut off fully
• Helps restore precise flame control and reliable ignition

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; work in a well-ventilated area
• Transfer any mounting hardware or orifice components from the old valve
• Check for leaks with an approved leak-detection method after reassembly and gas restoration

The Igniter Switch Assembly is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the spark needed to ignite the gas burners when you turn the control knobs. This assembly ensures that the burners light quickly and efficiently, providing the flame needed for cooking.

Causes of a bad igniter switch assembly can include wear and tear from frequent use, electrical issues, or damage from spills or moisture. When the igniter switch assembly malfunctions, it can prevent the burners from igniting or cause inconsistent sparking.

Symptoms of a bad igniter switch assembly include:

• Burners not igniting
• No clicking sound when the control knob is turned
• Inconsistent or weak sparking
• Burners igniting only intermittently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Spark Module is an OEM part for Frigidaire ranges and cooktops, designed to generate and control the ignition spark for the burners. This component ensures that each burner lights reliably and safely when the control knob is turned to the ignite position. By producing a high-voltage electrical spark, the spark module ignites the gas released by the burner, allowing for the cooking process to begin. It's a key part of the appliance's operation, ensuring both performance and safety.

The causes behind these issues can often be traced back to a malfunction within the spark module itself, which may result from normal wear and tear, moisture exposure, or electrical surges. A faulty spark module can lead to inefficient burner operation, potentially causing gas leaks or preventing the appliance from being used for cooking.

Symptoms of a failing Spark Module include:

• Burners not igniting when the control knob is turned
• Intermittent ignition or failure to maintain a flame
• Continuous sparking when the burner is on or off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This gas burner orifice meters the flow of fuel to a burner on your range or cooktop. Replacing a clogged, damaged, or wrong-size orifice helps restore correct flame characteristics for safer, efficient cooking performance.

• Precisely meters gas through a calibrated jet to the burner
• Supports proper flame size and color for the specified fuel (natural gas or LP)
• Symptoms to address can include weak/uneven flame, yellow or sooty flame, delayed ignition, or no flame if the jet is blocked
• Replace if the jet is stripped, damaged, drilled out, or cannot be cleared of debris

• Disconnect electrical power and shut off the gas supply; allow the appliance to cool before service.
• Use the correct orifice for the specific burner position and fuel type; do not over-tighten the brass fitting.
• After installation, verify regulator setting and adjust air shutters (if applicable) for the correct fuel.
• Leak-test disturbed connections with a soap-and-water solution and confirm proper flame before use.

The Igniter and Orifice Assembly is an OEM part for Frigidaire ranges. This part ignites the gas burners and regulates the flow of gas through the orifices.

Causes of a bad Igniter and Orifice Assembly can range from electrical issues or corrosion affecting the igniter to clogs or obstructions in the gas orifices.

Symptoms of a faulty Igniter and Orifice Assembly include:

• Difficulty igniting or relighting burners
• Uneven or inconsistent flame patterns
• Burners not staying lit or extinguishing spontaneously
• Clicking or sparking noises during ignition attempts

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This surface burner ignitor/orifice assembly directs gas through a calibrated orifice and provides the spark to ignite it. Replacing a worn or damaged assembly restores consistent lighting and an even flame on the affected rangetop burner.

• Routes gas from the valve through the orifice to the burner head
• Positions the ignitor for reliable sparking and quick ignition
• Helps maintain correct flame size and pattern on that burner
• Common symptoms: burner won't light, clicks without flame, delayed ignition, weak or uneven flame

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; lift the cooktop to access the assemblies
• Note wire routing and original orifice location; transfer any reusable hardware from the old part
• After installation, restore gas and check connections for leaks, then test spark and flame

The Igniter Orifice Assembly is an OEM component for Frigidaire gas ranges. It is an integrated assembly housing both the electric ignition wire and adjustable gas orifice or restrictor needed for controlled gas flow.

Symptoms of a bad ignitor orifice assembly include:

• Burners failing to light or requiring multiple igniter clicks
• Flames that are irregularly shaped, oversized, or yellow-tipped
• Burners ignite but flame size is not adjustable across settings
• Gas smells were detected without an obvious leak at the connections

Over time, normal use can cause an orifice to deteriorate or crack while ambient gases degrade igniter wires.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Regulator is an OEM part for Frigidaire ranges and cooktops. It's designed to maintain a safe and consistent gas flow to the burners, ensuring optimal performance and efficiency during cooking. This regulator adjusts the pressure of the gas coming from your home's supply line to match the requirements of the appliance, allowing for precise temperature control and reliable operation.

Causes of a bad regulator can include general wear and tear over time, exposure to high temperatures or cleaning chemicals that degrade its components, or a malfunction within the regulator itself, such as a stuck valve or broken diaphragm.

Symptoms of a bad Regulator include:

• Inconsistent flame size or color
• Burners not lighting
• A noticeable gas smell when the cooktop or range is on
• Weak or uneven heating performance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This valve-to-regulator tube carries fuel between the pressure regulator and gas control valve, maintaining a sealed path for proper ignition and stable flame. Replace if the tube is kinked, damaged, or leaking.

• Provides a rigid, factory-formed connection between the pressure regulator and valve
• Helps ensure correct gas flow to the burner system
• Failure signs include weak or no flame, delayed ignition, repeated clicking, or a gas odor
• Visible kinks, corrosion, or stripped fittings indicate the tube should be replaced

• Disconnect power and shut off the gas supply; ventilate the area before servicing
• Use two wrenches to back up fittings; avoid twisting the regulator or valve bodies
• Route the tube without kinks and tighten flare connections securely
• Leak-test all joints with an approved solution—never an open flame—before restoring service.

The Valve is an OEM replacement part for Frigidaire ranges. Located along the gas line leading to the oven burners, it regulates gas flow and controls burner ignitions. Proper valve function is critical for safe and efficient cooking performance.

Causes of a bad valve can include wear from prolonged use, corrosion or clogging of small internal passages over many years. Damage may also occur if exposed to extreme heat or sudden temperature changes.

Symptoms include:

• Inconsistent or intermittent burner ignition
• Flames that fluctuate in size or temperature
• Gas leaks around connections that develop
• Failure of the oven or burners to ignite properly

Compatible models include Electrolux, Gibson, and select Kenmore ranges.

This replacement surface burner head restores proper flame on your gas range or cooktop. It mixes gas and air and directs the flame through the ports for even heat and reliable ignition when the original head is clogged or damaged.

• Distributes gas through flame ports for stable, even heating
• Supports quick, consistent ignition when paired with a working igniter
• Helps address weak, uneven, yellow, or noisy flames
• Replaces burner heads that are warped, pitted, cracked, or corroded

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, lift off the old head, and clear debris from the seating area
• Align the new head with the igniter/electrode and locating features; seat it fully and level
• Restore gas and power; verify ignition and check for a uniform flame around all ports

The Gas Oven Ignitor is an OEM replacement part for Frigidaire gas ranges and ovens. It uses electricity to generate a spark that ignites the burner flames for heating. To check if the ignitor is the issue, look inside the broiler oven while the oven is turned on. If the element is glowing a bright red, it's getting power. If not, it may not be getting enough power to ignite the gas and should be replaced.

Symptoms of a bad gas ignitor can include:

• The oven or burners failing to ignite or stay lit consistently
• Diminishing heating performance over time
• Burners that intermittently ignite or go out

Causes stem from normal wear with extended use. The ignitor's ability to spark diminishes as parts degrade. No spark means no gas ignition.

This OEM replacement part is compatible with Electrolux, Gibson, Kelvinator, and Kenmore brands.

This replacement baffle is the internal guide that channels flow inside the appliance so it operates as designed. Replace a cracked or missing baffle to restore proper circulation and eliminate rattles from loose or damaged pieces.

• Directs internal airflow/circulation along the intended path
• Shields adjacent components from direct spray, debris, or heat
• Helps maintain consistent performance and reduce vibration/noise
• Replace if the original is cracked, warped, loose, or missing

• Disconnect power before service; allow any hot surfaces to cool
• Use your model's parts diagram to locate the baffle; retain screws/clips for reuse
• Install in the same orientation; do not overtighten to avoid cracking
• Run a brief test to check for proper operation and no noise

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This baffle is an air deflector used to direct airflow inside the appliance, helping maintain even temperatures and proper ventilation. It replaces a worn or damaged baffle to restore intended airflow paths and performance. What it does:

• Redirects internal air to help even out temperatures and airflow distribution
• Helps prevent localized hot or cold spots that can affect performance
• Can reduce abnormal airflow noise caused by loose or damaged deflectors
• Restores correct airflow routing after impact or cracking

• High-level swap; usually secures with clips or screws—inspect mounting points before installing
• Disconnect power (or unplug) and remove any shelving or panels that block access
• Handle carefully to avoid cracking thin plastic fins or tabs
• Replace hardware before completing installation

The Oven broil Igniter is an OEM part for Frigidaire ovens and ranges. This component is responsible for igniting the gas in the oven burner, allowing the oven to heat up. It works by drawing electrical current through the igniter filament until it becomes hot enough to ignite the gas, providing the flame necessary for cooking.

Common causes for an Oven Igniter to fail include a burnt-out filament, a break in the igniter's ceramic base, or a malfunction within the igniter's electrical system.

Symptoms of a bad Oven Igniter include:

• Oven not starting or heating up
• Gas smell when the oven is turned on
• Weak or no glow from the igniter element
• Unusual noises when attempting to ignite the gas

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This natural gas burner orifice meters gas flow to a specific burner on your range, delivering the correct flame size and heat output. Replace a worn or clogged orifice to restore stable, efficient burner performance. What it does:

• Meters natural gas to match the assigned burner's BTU rating and flame height
• Helps produce a steady blue flame and even heating when the correct orifice is installed
• Helps with weak/uneven flame, yellow tipping/soot, or delayed ignition if the orifice is blocked or damaged
• Fuel-specific component designed for natural gas systems

• One natural gas orifice

• Shut off gas supply and disconnect power before servicing
• Replace like-for-like; the stamped size/marking matches the burner position and fuel type—do not drill or modify
• Use an appropriate wrench and tighten snugly without overtightening
• Restore gas and leak-test with a soap solution; proper flame.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The LP Conversion Kit is an OEM part for Frigidaire gas ranges. This kit allows for the conversion of the range's fuel type from natural gas to LP (liquefied petroleum) gas. It ensures the safe and efficient operation of the gas range when using LP gas as the fuel source.

Causes of a bad LP conversion kit can include incorrect installation, missing components, or damaged parts.

Symptoms of an improper fuel conversion or a bad LP conversion kit may include:

• Uneven flame
• Improper heating
• Unusual gas smells

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
