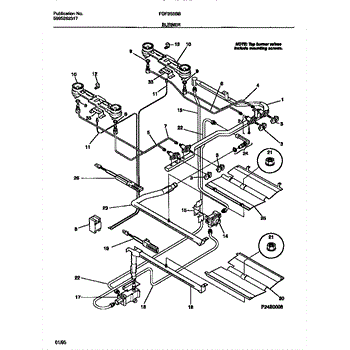

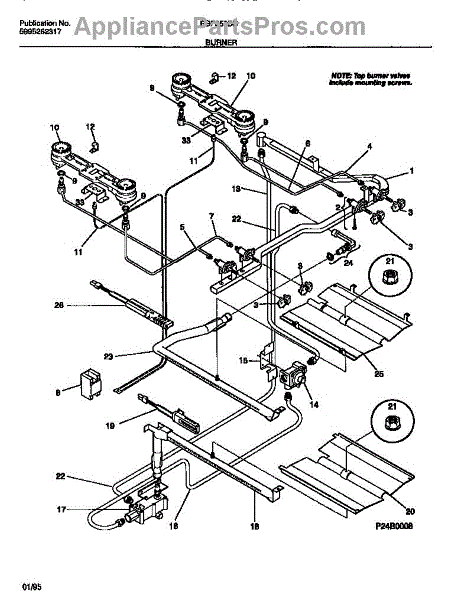

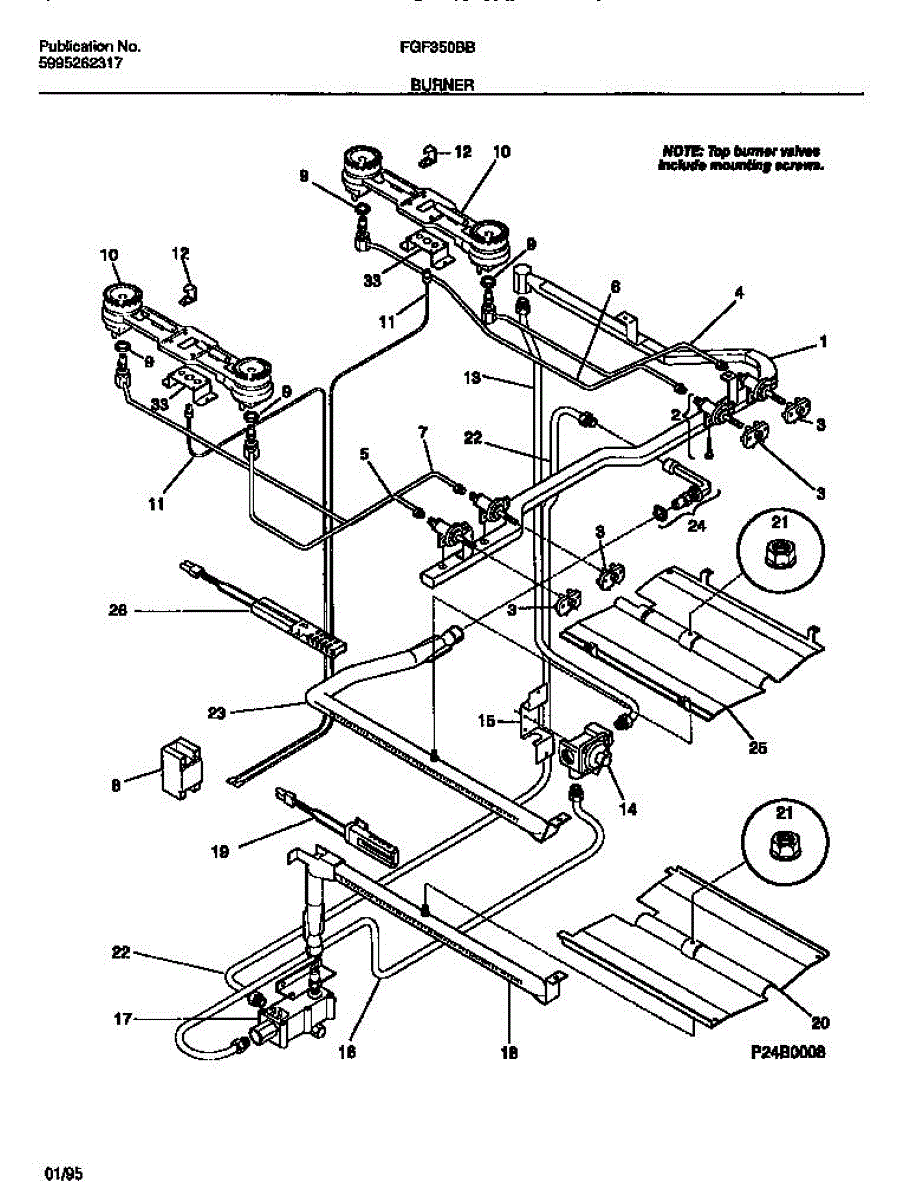

Parts for Frigidaire FGF350BBDA: 03 - Burner Parts

This burner tube connects gas supply to your range burner assembly. Replace if cracked, corroded, or damaged to restore proper gas flow and prevent leaks.

Replace your worn or damaged range burner tube. This tube connects the gas valve to the burner assembly. Needed when cracked, corroded, or missing.

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

Cable retainer for cooktop installation. Secures wiring harnesses in place. Replace if broken, cracked, or missing to properly organize internal cables.

The pressure regulator with bracket controls gas flow to the range burners and is typically located behind the range. Replace when burners won't light, flame is irregular, or you smell gas during operation.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

Oven won't light even though igniter glows? Burner lights only when valve is tapped? Replace the dual gas safety valve. DIY install in under 1 hour.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Oven won't heat, slow to reach temperature, or glows dull orange? This igniter fixes weak ignition. Moderate DIY repair with basic hand tools.
