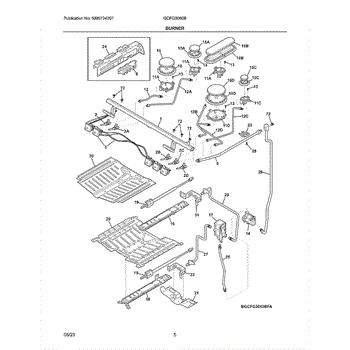

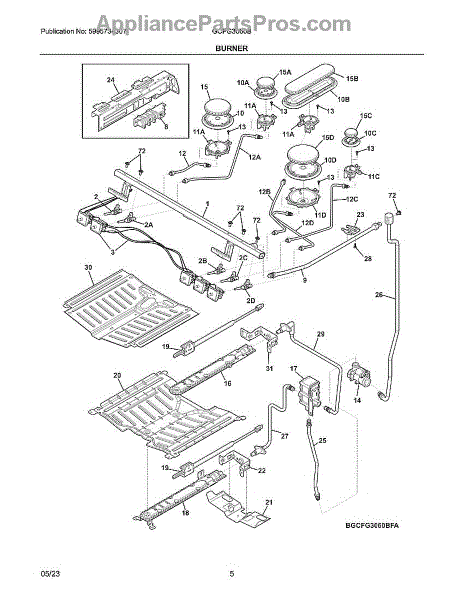

Parts for Frigidaire GCFG3060BDA: Burner Parts

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker so you get a steady supply when needed and stop unwanted leaks. Replaces a worn or faulty valve to restore proper fill and dispensing. What it does

• Opens and closes to allow water into the ice maker and dispenser when requested
• Stops water flow to prevent overfilling or continuous running
• Commonly replaced when dispenser or ice maker won't fill, has weak flow, or leaks
• Works with the refrigerator's water line and solenoid actuators to meter supply

• One water inlet valve (single unit as shown)

• Disconnect power and shut off the household water supply before starting
• Drain lines and remove front or rear access panels to reach the valve
• Inspect and replace any damaged water lines or fittings; tighten connections and check for leaks after installation

The Gas Valve is an OEM part for Frigidaire gas ranges. It controls the flow of gas to the surface burners, enabling precise temperature adjustments and safe operation. This valve operates by opening and closing to allow gas to pass through when the burner is turned on and shutting off the flow when it is turned off.

Causes of a bad gas valve can include mechanical wear, debris buildup that obstructs the valve, or failure of the electrical components that control the valve's operation.

Symptoms of a bad Gas Valve include:

• Gas burner failing to light despite the ignition sparking
• Uneven flame or a flame that goes out unexpectedly
• A noticeable gas smell when the appliance is in use, indicating a potential leak
• Inability to adjust the flame height or heat level on the burners

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Surface Burner Valve is an OEM replacement part for Frigidaire ranges. It controls the flow of gas to one of the surface cooking burners, allowing for temperature control on that burner.

Causes of a bad surface burner valve can include wear and tear from extensive use over time, damage to the valve components due to impact or mishandling, or issues with the gas control mechanism failing to function properly.

Symptoms of a bad surface burner valve include:

• Inability to adjust flame height or turn burner on/off
• Burner only works at one setting or unpredictably adjusts itself
• Leaking gas smell coming from the valve area
• Yellow burner flames instead of clean blue flames

This part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ranges.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


This water inlet valve controls water flow to the refrigerator's dispenser and ice system so you get a steady supply when needed and stop unwanted leaks. It replaces a worn or failing valve to restore proper water delivery. What it does:

• Opens and closes to allow water into the ice maker and dispenser
• Stops water flow when dispenser/ice fill is inactive
• Commonly replaced when water won't dispense or ice maker won't fill
• Needed if the valve is leaking or causing water drips

• Disconnect power and shut off the water supply before replacing the valve
• Handle with care and inspect inlet/outlet fittings and gaskets for proper sealing
• Reconnect water and power, then check for leaks and proper water flow after installation
• Follow manufacturer instructions

This wiring harness connects refrigerator components to the main electrical system, restoring reliable power and signal paths so controls, lights, and accessories operate correctly. It's a direct-fit replacement designed for factory routing and connector types. What it does:

• Provides the electrical connections between control board and fridge components for proper operation
• Replaces damaged or corroded wiring that can cause intermittent power or component failure
• Helps resolve symptoms like lights or controls not working, intermittent operation, or certain accessories not powering on
• Maintains factory connector fit and routing to prevent loose or stressed connections

• One wiring harness assembly as pictured

• Disconnect all power to the appliance before starting work to avoid shock or damage
• Inspect connectors for damage; plug firmly into mating sockets until fully seated
• Route harness away from sharp edges, hinges and moving parts; secure with original clips or ties

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner crown is the replacement oval burner head for a 10,000-BTU gas cooktop burner. It restores the correct gas flow pattern so cookware heats evenly and burners light reliably. What it does:

• Replaces a damaged or corroded oval burner crown (burner head) for a 10K burner
• Helps restore even flame distribution and consistent heat across the burner
• Addresses symptoms like weak or uneven flame, sputtering, or burners that won't light evenly
• Works with the burner cap and base to ensure a proper seal and ignition

• One burner crown (10K oval) as shown

• Turn off gas supply and power to the appliance before servicing
• Remove cooking grates, burner caps, and ignition components as needed to access the crown
• Inspect and clean burner ports and mating surfaces before installing the new crown for best performance

This extra-large burner crown replaces the outer decorative cap on a cooktop surface burner, restoring proper flame distribution and cookware support for large pots and pans. Durable finish helps maintain even heating and appearance. What it does:

• Covers and protects the burner head while directing flames for even heating
• Supports large cookware on the cooktop surface
• Can reduce uneven or weak flames caused by a damaged or warped crown
• Restores proper fit and appearance for an extra-large surface burner

• One extra-large burner crown

• Ensure the cooktop is completely cool and gas or power is turned off before starting
• Remove and replace gently to avoid bending the burner head; no special tools usually required
• Follow the appliance manufacturer's instructions and safety guidelines

This large surface burner head mounts on a sealed gas burner and distributes gas through its flame ports. Replace a worn or clogged crown to restore smooth ignition and an even, controllable flame on the large burner. What it does:

• Channels gas through the port ring to create an even flame on the large surface burner
• Works with the igniter for quick, reliable lighting
• Helps correct weak or uneven flames and yellow tipping
• Can resolve delayed ignition or clicking without lighting when ports are obstructed

• 1 large burner crown

• Disconnect power and shut off gas; allow the cooktop/range to cool completely.
• Remove grate and burner cap; lift off the old crown and clean the orifice area and surrounding surface.
• Position the new crown over the burner orifice and igniter; ensure it seats flat and is properly aligned.
• Reinstall the cap and grate; restore gas and power, then test for proper ignition and even flame.

This medium crown burner sits on the gas cooktop/range burner to shape and distribute the flame for even heating. Replacing a worn or damaged crown restores reliable ignition and a consistent flame pattern on the medium-output burner.

• Distributes gas evenly around the burner for steady, uniform heat
• Works with the igniter for reliable lighting when properly seated
• Helps protect burner ports from spills and debris
• Helps with uneven or yellow flames, delayed ignition, inconsistent lighting, or visible cracks/warping

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the old crown and clean the mating surfaces
• Align the new crown with any locator pins/notches and seat it flat; if screws are present on your model, tighten gently and evenly
• Restore gas/power and test for proper ignition and flame pattern

This is a small crown-style burner cap for a gas cooktop. It sits on top of the matching burner head to distribute flame evenly, protect the burner ports, and provide a finished surface that's easy to clean.

• Covers the burner head to help ensure even flame and proper heat
• Shields burner ports from spills and debris
• Cosmetic top piece; damage or warping can cause poor flame pattern
• Common symptoms: uneven flames, flame lifting, difficulty simmering, or a missing/damaged cap

• Disconnect power and shut off gas before servicing
• Ensure the cooktop and burner are completely cool
• Lift off the old cap and place the new cap centered on the burner head
• Verify the cap sits level; re-seat if flame is uneven after relighting

This hot surface igniter is the heated element that lights the bake burner in gas ovens. It provides a reliable glow to ignite gas so the oven can reach and maintain baking temperatures. What it does

• Heats and glows to ignite the oven's bake burner when the control calls for heat.
• Restores normal oven heating when a failed igniter prevents the burner from lighting.
• Common symptoms: oven won't heat, long preheat times, or bake burner not lighting.
• Works with compatible gas oven systems that use a hot surface ignition method.

• One hot surface igniter assembly (single igniter).

• Turn off power and shut off gas supply before beginning any repair.
• Handle the igniter carefully; the element is brittle and can crack if touched or dropped.
• Verify fit and wiring match your appliance before installation.

This ignitor/orifice is the replacement part for the oven's gas burner ignition assembly, helping the burner light reliably so your oven can reach and hold cooking temperature. Designed to restore proper ignition function. What it does:

• Provides the ignition pathway and orifice for the oven burner so gas can be lit safely
• Restores consistent ignition when the burner fails to light or lights intermittently
• Can stop clicking or sparking without ignition when the orifice or ignitor is compromised
• Helps produce an appropriate pilot/ignition spark for stable burner operation

• Turn off gas supply and power to the appliance before starting any service
• Inspect surrounding gaskets and fittings for leaks or damage when replacing the part
• Hand-tighten fittings and follow torque guidance from the oven's service manual where applicable

This hot surface igniter glows to ignite the oven's bake burner, restoring consistent ignition so your oven can reach and hold the set temperature for baking and roasting. What it does:

• Heats until glowing hot to open the gas valve and ignite the oven bake burner
• Helps the oven reach set temperature and maintain steady baking heat
• Common symptom fixer: oven won't heat or takes too long to reach temperature
• Also used when the oven clicks or cycles without lighting

• Always disconnect power and shut off the gas supply before beginning work
• Avoid touching the ceramic/glowing element; handle by the mounting bracket or connector
• Verify proper wiring connection and secure mounting for reliable operation

This ignitor/orifice assembly sits at the surface burner and provides both the ignition spark and metered gas flow for clean, reliable light-off. Replace it to restore quick starts and consistent flame quality. What it does:

• Provides the ignition spark at the burner via the electrode
• Meters gas through the fixed orifice to set proper flame size
• Wear, cracks, or blockage here can cause clicking with no flame or a burner that won't light without a match
• A damaged or restricted orifice may lead to small, uneven, or yellow flames

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the cooktop to cool; handle the ceramic electrode carefully to avoid damage
• Transfer any burner-specific hardware as needed and secure the spark lead connection
• After reassembly, restore gas and check all joints for leaks with a soapy-water solution; verify proper spark and flame

This replacement drain tube routes condensate away from the evaporator area to the drain pan, helping prevent water buildup and frost problems. Fits specific Frigidaire refrigerator models—use OEM part number for confirmation. What it does

• Channels defrost and condensation water to the drain pan to prevent pooling inside the cabinet
• Helps stop water leaks and ice buildup in the freezer or fresh food compartments
• Restores proper drainage when the original tube is cracked, pinched, or clogged
• Works with the refrigerator's defrost/drain system to maintain normal cooling performance

• Disconnect power and water supply before beginning any repair
• Inspect connections and hose clamps; replace clamps if corroded or damaged
• Ensure proper routing and secure attachment to prevent kinks or pinching

This replacement water fill tube routes water from the household supply to the refrigerator's ice maker or dispenser, restoring proper water delivery and preventing leaks when the original tube is cracked or blocked. What it does

• Directs water from the inlet valve to the ice maker or dispenser to enable ice production and dispensing
• Maintains a sealed path to prevent leaks and water damage
• A worn, cracked, kinked or clogged tube can cause reduced water flow, leaking, or no ice production
• Compatible with systems that use a small-diameter plastic water tube for fill and dispense functions

• One replacement water fill tube

• Disconnect power and shut off the water supply before starting any work
• Inspect for kinks or sharp bends during installation to ensure proper flow
• After installation, restore water and power, then check all connections for leaks and proper operation

This replacement water fill tube routes the refrigerator's water to the ice maker so it can fill and form ice reliably. It restores proper water delivery when the original tube is cracked, clogged, or leaking. What it does:

• Directs water from the fridge fill valve to the ice maker inlet
• Helps stop intermittent or constant water leaks when damaged
• Restores normal ice production when a failing tube causes underfilling
• Fits where the original rigid or flexible fill tube was installed

• One replacement water fill tube (quantity: 1)

• Only install with the refrigerator unplugged and water supply shut off
• Verify orientation and routing match the removed tube to avoid kinks or pinches
• Inspect and replace any worn clamps, fittings, or seals while access is available

The Regulator is an OEM replacement part for Frigidaire gas ranges and cooktops. It is a valve component that regulates gas flow from the supply line into the appliance burners. Carefully controlling fuel input maintains proper and safe burner flame sizes.

Symptoms of a bad regulator include:

• Burners producing uneven or excessively high flames
• Inability to reduce burner flames properly
• Gas leaks at the regulator connections

Causes of failure involve wear of internal sealing parts over extended use. Corrosion or debris clogging gas passages can also disrupt flow regulation.

This OEM Frigidaire replacement regulator ensures optimal and reliable burner performance. Compatible with some Amana, Electrolux, and KitchenAid models as well, regular replacements prevent dangerous gas line issues from developing.

Replacement snap-on cap that restores a finished appearance and helps protect underlying components from dirt and accidental contact. Fits original mounting locations to cover exposed hardware and improve appliance safety and aesthetics. What it does:

• Covers and protects exposed hardware, terminals or posts to reduce debris buildup and accidental contact.
• Restores a clean, finished look to panels, trim or appliance edges.
• Helps reduce rattling or vibration noise caused by missing trim pieces.
• Use when the original cap is cracked, broken, missing or when exposed fasteners are visible.

• Always disconnect power (and water, if applicable) before attempting any repair.
• Remove the damaged cap by hand or with a small pry tool; press the replacement cap onto the mounting post until fully seated.
• Avoid excessive force during removal/installation to prevent damage to the mounting post or surrounding trim.
• If mounting posts or clips are damaged, replace those components to ensure a secure fit.

This replacement cap covers and protects exposed fasteners and trim on compatible Frigidaire appliances, restoring a finished appearance while helping keep out dirt and moisture. A simple, low-cost part for cosmetic and protective repair. What it does:

• Covers exposed fasteners, hinge posts, or trim edges to restore the appliance's finished look
• Helps prevent dirt, debris and moisture from entering mounting points and seams
• Can reduce rattling or vibration caused by missing or damaged trim pieces
• Snaps or presses into place to conceal hardware without altering function

• Typically installs by snapping into position; no special tools usually required
• Work with the appliance powered off if accessing areas near electrical components
• Inspect mating surfaces for damage or debris before installing for a secure fit
• Replace with identical OEM cap for correct fit and appearance

This replacement cap covers and protects its designated opening or fastener on your appliance. It restores a clean, finished look and helps shield internal areas from dust and wear when the original cap is missing or damaged. What it does:

• Covers a specific opening, fastener, or trim end to protect the area
• Helps keep moisture, grease, and debris out of the assembly
• Restores proper fit and finished appearance
• Typical symptoms include a cracked, loose, discolored, or missing cap

• 1 cap

• Disconnect power and, if applicable, shut off gas/water before servicing
• Note the cap's orientation; gently unclip, pry, or unthread the original per model design
• Seat the new cap fully and avoid forcing or overtightening
• The cap is secure and does not interfere with moving parts

This replacement cap covers and protects a small opening or fastener on your appliance. It restores a clean, finished appearance and helps keep out dust and moisture when the original cap is missing or damaged. What it does:

• Covers a screw hole or open end as designed on the unit
• Helps block debris and moisture and can reduce rattles
• Maintains a clean, finished look and protects underlying hardware
• Replace if the original cap is cracked, loose, deformed, or missing

• 1 cap

• Disconnect power and allow any hot surfaces to cool before servicing
• Use a non-marring tool to gently remove the old cap to avoid scratching
• Align and press/snap the new cap into place; do not force
• If the cap conceals a fastener, the fastener is secure before reinstalling the cap

This genuine replacement cap restores a clean, finished look and helps protect the underlying fastener or opening on your appliance. Replace a missing or damaged cap to keep components covered and looking factory-fresh.

• Covers and protects an exposed screw, hinge, or opening from dust and debris
• Restores the appliance's finished appearance
• Helps maintain secure retention of the underlying component
• Common signs of failure: missing or broken cap, cap won't stay in place, cosmetic wear, visible exposed fastener/opening

• Disconnect power before servicing; if working near water or gas lines, shut those off as applicable
• Gently pry off the old cap; avoid scratching surrounding surfaces
• Align and press the new cap until it seats/snaps securely

This safety valve is the gas control used on compatible gas ranges and ovens to regulate burner and oven fuel flow, restoring reliable ignition and temperature control when the valve fails. Replaces a faulty valve to help appliances operate safely. What it does:

• Controls gas flow to oven and surface burners so the appliance can light and maintain heat
• Common symptom: burners or oven fail to ignite or stay lit
• Works with the appliance's gas control system to stop flow when a fault is detected
• Safe, direct replacement for the listed part number when the original valve is defective

• One safety valve

• For gas appliances: shut off the gas supply and disconnect power before servicing
• Check all fittings and seals for leaks after installation using an approved leak-detection method
• Do not use the appliance if you detect the smell of gas; ventilate area

The Ignitor is an OEM replacement part for Frigidaire gas ovens and ranges. It is responsible for igniting the gas to produce a flame for cooking or baking. The ignitor heats up to a high temperature and then ignites the gas, ensuring efficient and reliable operation of your appliance.

Over time, ignitors can wear out due to repeated heating cycles, exposure to moisture, or general aging. A failing ignitor may struggle to reach the necessary temperature, preventing the oven or range from igniting properly.

Symptoms of a bad ignitor include:

• The oven not heating or taking an unusually long time to preheat
• Weak or inconsistent burner flames
• Clicking sounds without ignition of the burner
• A visible crack or damage to the ignitor element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement bracket provides a secure mounting point to hold appliance components in place, restoring proper alignment and reducing vibration. It's a simple, durable fix when a damaged or missing bracket causes looseness or movement. What it does:

• Secures and supports panels or assemblies to prevent shifting during use
• Helps maintain proper alignment to reduce wear on adjacent parts
• Reduces noise and vibration caused by loose components
• Commonly used where a small metal or plastic mounting point is required

• One bracket

• Disconnect power (and water if applicable) before starting any repair
• Use basic hand tools; align bracket to existing mounting holes before fastening
• Tighten screws securely but avoid over-torquing which can strip threads or crack plastic
• Repair or replace corroded or damaged metal mounting surfaces before installing the new bracket

This evaporator drain tube directs defrost and condensate water from the freezer/refrigerator evaporator to the drain pan, helping prevent leaks, ice buildup, and pooling inside the appliance. What it does:

• Channels defrost/condensate water away from the evaporator and cabinet to the drain pan
• Helps prevent interior leaks, puddles, and ice formation near the evaporator area
• Common replacement when the tube is cracked, separated, or clogged
• Works with the fridge's defrost/condensate system to maintain proper drainage

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove applicable interior panels or shelving to access the evaporator and drain area
• Inspect and clear any clogs in the drain path; ensure tube is seated and secured in clips/fittings

This replacement tube routes water to the ice maker or dispenser so your appliance can fill ice trays and dispense water reliably. It restores a sealed water path to prevent leaks and ensure proper filling. What it does

• Carries water from the supply or valve to the ice maker or dispenser
• Restores proper ice maker fill and water dispensing when a cracked or clogged tube is causing underfilling
• Helps stop leaks by replacing brittle, split, or deteriorated tubing
• Works with the appliance's existing fittings and clamps to maintain a sealed connection

• One replacement water tube

• Turn off the water supply and unplug the appliance before starting work
• Inspect fittings and clamps; reuse if undamaged or replace with equivalent clamps for a secure seal
• Confirm tube routing matches the original to avoid kinking or interference with moving parts

This feed tube assembly carries wash water up the back of the tub to the upper spray system. Replacing a cracked or clogged tube restores proper spray pressure and helps recover upper-rack cleaning performance while preventing leaks from the rear wall.

• Directs water from the pump/sump to the middle/top spray system
• Maintains a sealed path at rear connections to prevent leaks
• Helps ensure proper spray pressure and coverage to clean the upper rack
• Typical symptoms: weak or no spray on the upper rack, leaks from the rear wall, visible cracks, broken mounting tabs, or the tube not staying latched

• Disconnect power at the breaker and turn off the dishwasher's water supply
• Open the door; remove the upper rack if needed for access
• Remove rear fasteners/clips, disengage the tube from the sump/manifold, and transfer any seals or clips
• Seat the new tube fully, secure fasteners, restore power/water, and run a short cycle to check for leaks

A replacement mounting bracket that secures and supports appliance panels and components to restore proper alignment and reduce movement. Designed to replace a worn or damaged bracket so panels and assemblies stay stable during normal use. What it does:

• Secures panels, trim, or internal assemblies to the cabinet or frame
• Keeps parts aligned to prevent binding or improper sealing
• Reduces vibration and rattling caused by loose hardware
• Provides structural support where the original bracket is cracked or bent

• Disconnect power or gas and follow manufacturer safety procedures before beginning repairs
• Use basic hand tools; keep small fasteners and washers organized
• Handle edges carefully—brackets and surrounding metal can be sharp

This replacement screw secures appliance panels and small components to keep assemblies stable and aligned. Use it when a mounting fastener is missing, stripped, or damaged to restore proper fit and reduce vibration. What it does

• Fastens trim, panels, brackets, or internal components depending on application
• Helps eliminate loose parts, rattling, or misaligned panels
• Restores secure mounting after corrosion, wear, or a lost screw
• Matches OEM fit and thread form for compatible attachment points

• Turn off power to the appliance and unplug before servicing electrical appliances
• Use the correct driver size to avoid stripping the screw head
• Replace only like-for-like fasteners; if screw length or thread engagement is uncertain, confirm with the service manual or parts diagram
• Tighten until secure but avoid over-torquing which can strip threads or damage components

This screw is a factory replacement fastener used to secure panels, trim, or internal components so parts stay aligned and stable during normal use. It restores proper fit and reduces rattles from loose hardware. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Restores proper alignment when hardware is missing or worn
• Helps stop vibration or rattling caused by loose or missing fasteners
• Replaces stripped, damaged, or lost screws to allow correct reassembly

• Screw

• Disconnect power and water to the appliance before servicing when applicable
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Wear gloves to protect hands from sharp edges and steady small parts during installation

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

The LP Conversion Kit with Instructions is an OEM replacement part for Frigidaire gas appliances. This kit is designed to convert a natural gas appliance to operate with liquid propane (LP) fuel. It includes all necessary components and instructions for a safe and effective conversion, ensuring optimal performance with propane.

Causes for needing an LP conversion kit typically include a change in the type of gas supply, such as moving to an area where propane is the primary fuel source. Proper installation is crucial to maintain safety and efficiency during operation.

Symptoms indicating the need for this kit include:

• The appliance is not functioning due to an incompatible gas type
• Incorrect or inconsistent burner flames
• Relocation to an area with propane-only gas service

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
