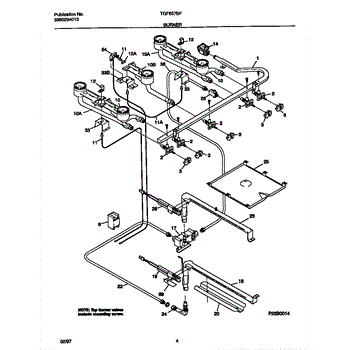

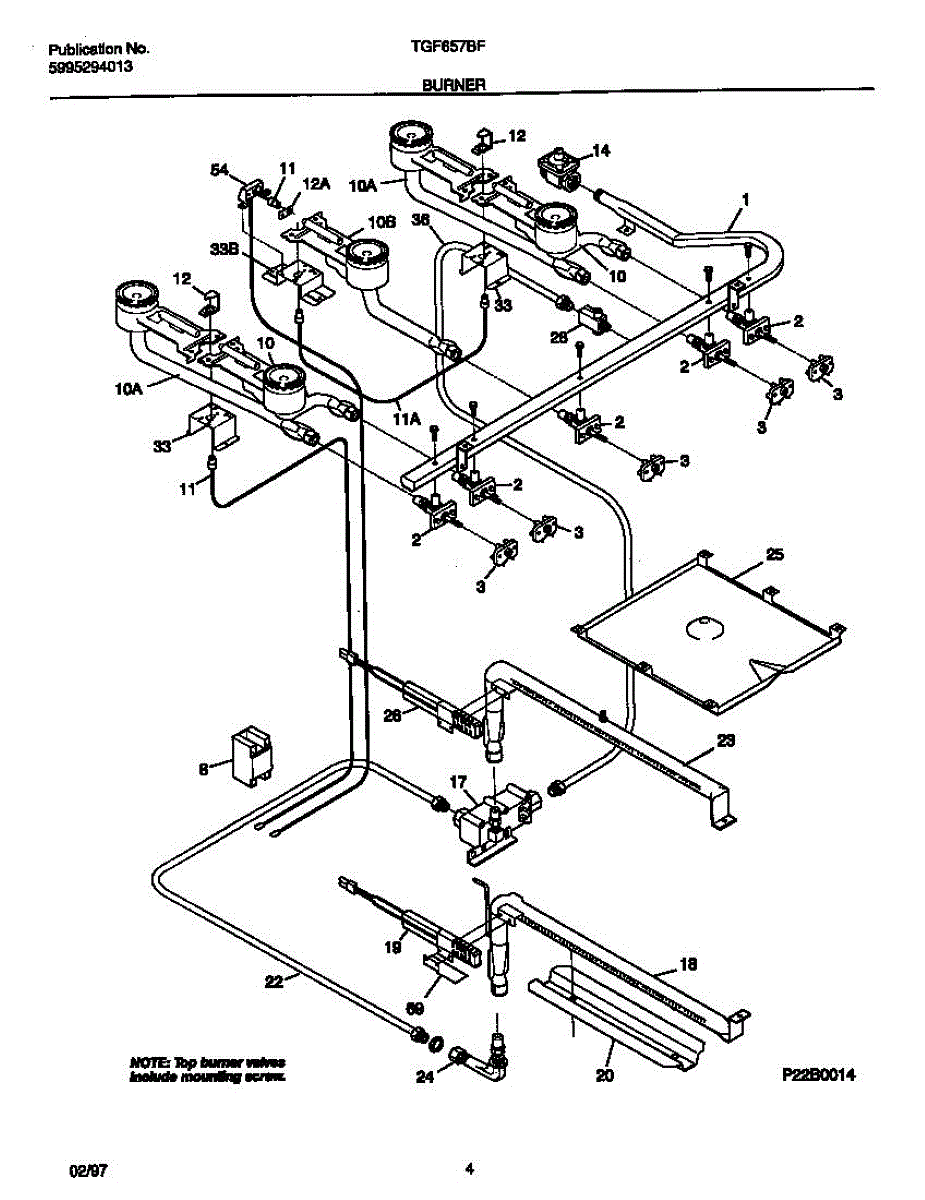

Parts for Frigidaire TGF657BFB1: 03 - Burner Parts

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.

This small replacement retainer secures the griddle igniter so the igniter stays correctly positioned for reliable spark and consistent lighting. It restores proper alignment to help the griddle burner light safely and evenly. What it does:

• Holds the griddle igniter in place so the igniter tip stays aligned with the burner for consistent sparking
• Prevents the igniter from shifting or touching adjacent parts that can cause misfiring or damage
• Common symptom fix: griddle burner fails to light or sparks but flame does not establish due to misaligned igniter
• Helps maintain safe burner operation by keeping the igniter stable during use

• One igniter retainer specific to griddle burner assemblies

• Disconnect electrical power and shut off gas supply before servicing gas components
• Handle ceramic igniters and the retainer carefully; avoid impact and avoid bending the igniter electrode
• Reinstall so the igniter tip is properly centered over the burner slot; do not overtighten fasteners

This pressure regulator controls gas flow to the range valve, helping maintain steady burner operation for safe, consistent flames. It replaces a worn or failed regulator to restore proper gas delivery and reliable ignition performance. What it does:

• Regulates incoming gas pressure to the range's control valve for steady burner flames
• Helps correct issues like weak or uneven flames and burners that struggle to light
• Reduces risk of high-pressure surges that can affect burner performance
• Works as a direct replacement when the existing regulator is faulty or leaking

• Turn off the gas supply and power before starting any work; always follow appliance shutoff procedures
• Inspect fittings and seals; use proper thread sealant for gas-rated connections if required by the manufacturer
• After installation, perform a gas leak check and verify correct burner operation and flame appearance

The Oven Igniter is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners or bake and broil burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven igniter can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven igniter include:

• Failure of the oven burners to ignite or light
• Delayed ignition or inconsistent burner lighting
• Visible damage or deterioration of the igniter element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

By Frigidaire. Flat Norton style oven igniter. Length - 5.53 inches. Replaces any flat oven igniter with a 3.2 to 3.6 amperage draw (excluding blue ceramic igniters). Includes 2 ceramic wire connectors.

This shoulder screw secures moving or fixed appliance components by providing a built-in spacer and pivot point for proper alignment and smooth operation. It restores correct fit where a worn or missing shoulder fastener causes play. What it does:

• Provides a precision spacer and pivot for hinges, drawers, or linkage assemblies
• Holds components at the correct distance to prevent rubbing and binding
• Helps stop wobble, misalignment, rattling, or uneven movement when the original shoulder screw is worn or missing
• Works where a headed screw with an integrated shoulder is required for smooth rotation or exact spacing

• One shoulder screw

• Disconnect power and remove the appliance panel or access covers before replacing hardware
• Handle small parts carefully to avoid dropping them into assemblies; magnetic pickup tool can help
• Install in the original location and tighten securely but avoid overtightening; do not modify the shoulder or thread
• If the screw secures a load-bearing hinge or mechanism, verify alignment and operation after installation

These are replacement countertop mounting screws that secure the appliance to the countertop or cabinet, restoring a stable, flush fit and preventing movement or gaps. Sold as a 2-pack for quick, direct replacement. What it does

• Secures the appliance countertop or trim to the cabinet or counter to keep the unit from shifting.
• Helps eliminate rocking, gaps, or uneven alignment caused by missing or loose mounting screws.
• Restores proper fit and finish where original mounting hardware has been lost or damaged.
• Works with factory mounting points and standard driver heads for straightforward replacement.

• Two countertop mounting screws.

• Use the correct-size driver to avoid stripping the screw head.
• Tighten until snug; avoid over-tightening which can strip threads or damage the cabinet/countertop.
• Keep original brackets and hardware; replace only the missing or damaged screws as needed.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole
