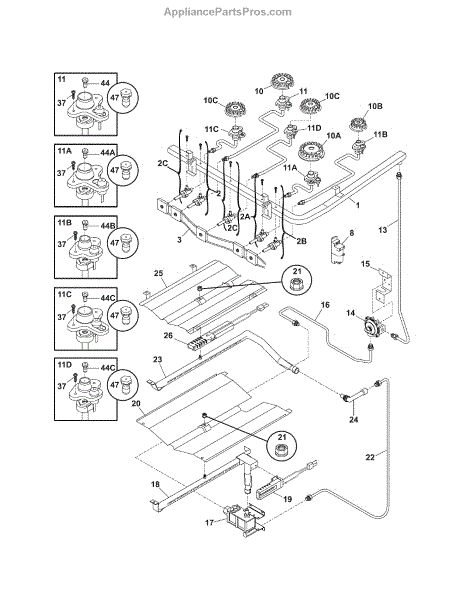

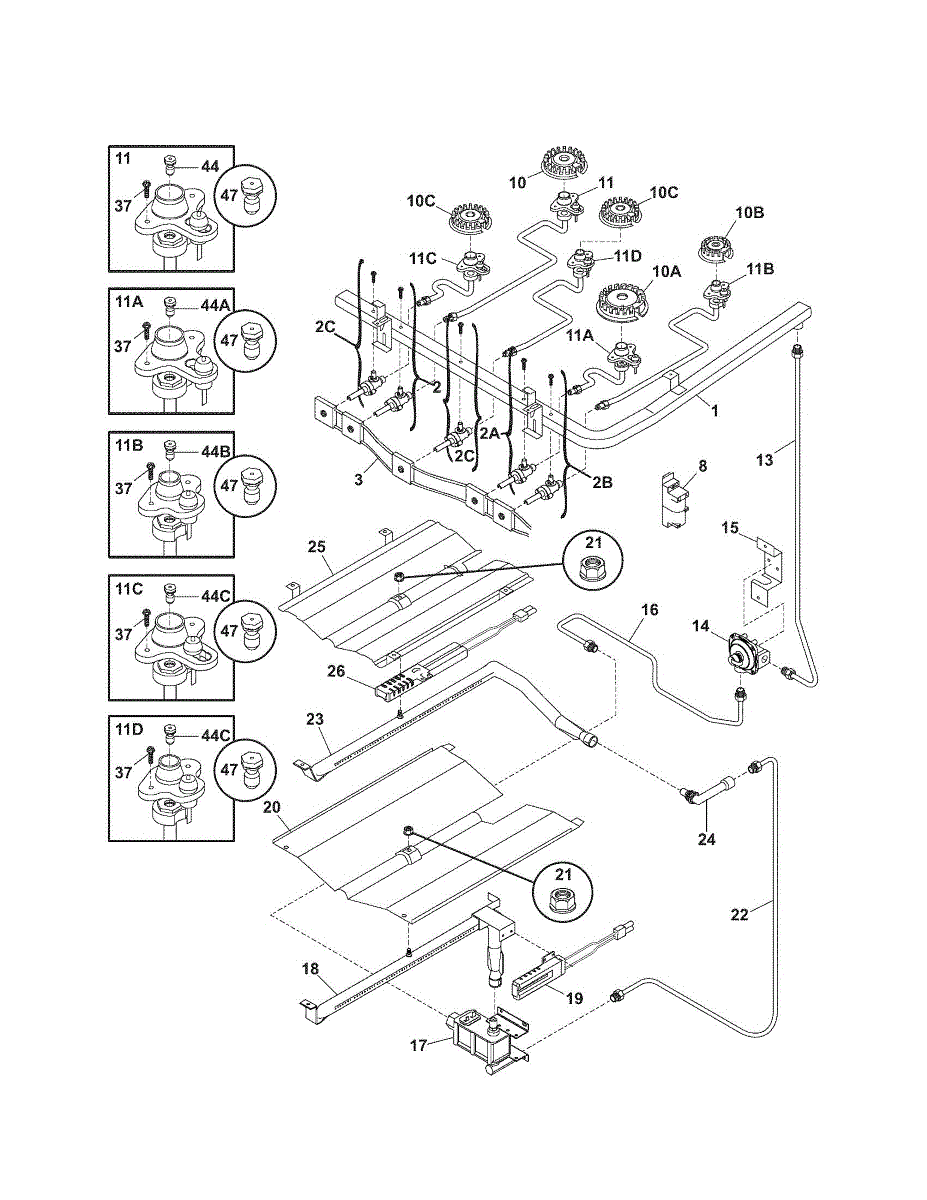

Parts for Kenmore 790.79213302 (79079213302, 790 79213302): Burner Parts

This is a gas valve for a range cooktop that regulates the flow of gas to a surface burner. It connects to the control knob and allows you to adjust the flame size from simmer to high heat. Replace this valve if the burner won't ignite, the flame is inconsistent, the knob feels loose or unresponsive, or you smell gas when the burner is turned off.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

Mounting bracket that secures the gas pressure regulator to your range frame. Replace if bent, broken, or missing to properly support the regulator assembly.

Oven won't light even though igniter glows? Burner lights only when valve is tapped? Replace the dual gas safety valve. DIY install in under 1 hour.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Oven won't heat, slow to reach temperature, or glows dull orange? This igniter fixes weak ignition. Moderate DIY repair with basic hand tools.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

A small brass fitting located inside the gas burner assembly that controls the flow of gas to create the proper flame size. Replace if flames are too high, too low, yellow instead of blue, or if the burner won't light properly.

For 5k burner.

For 12k burner.

Burner orifice installs in the gas valve to control fuel flow to the cooktop burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Size: 8-18ab x 0.5 inch.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.
