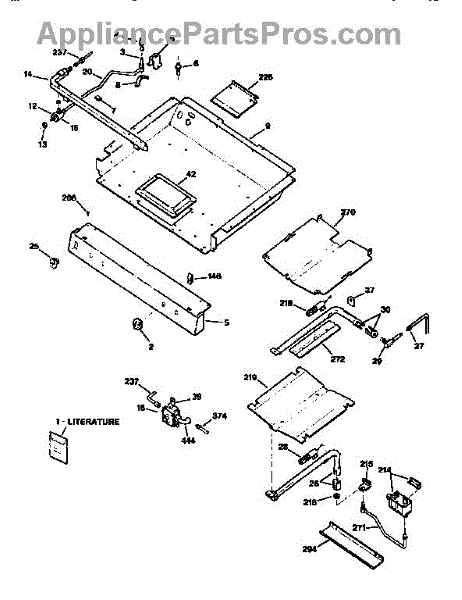

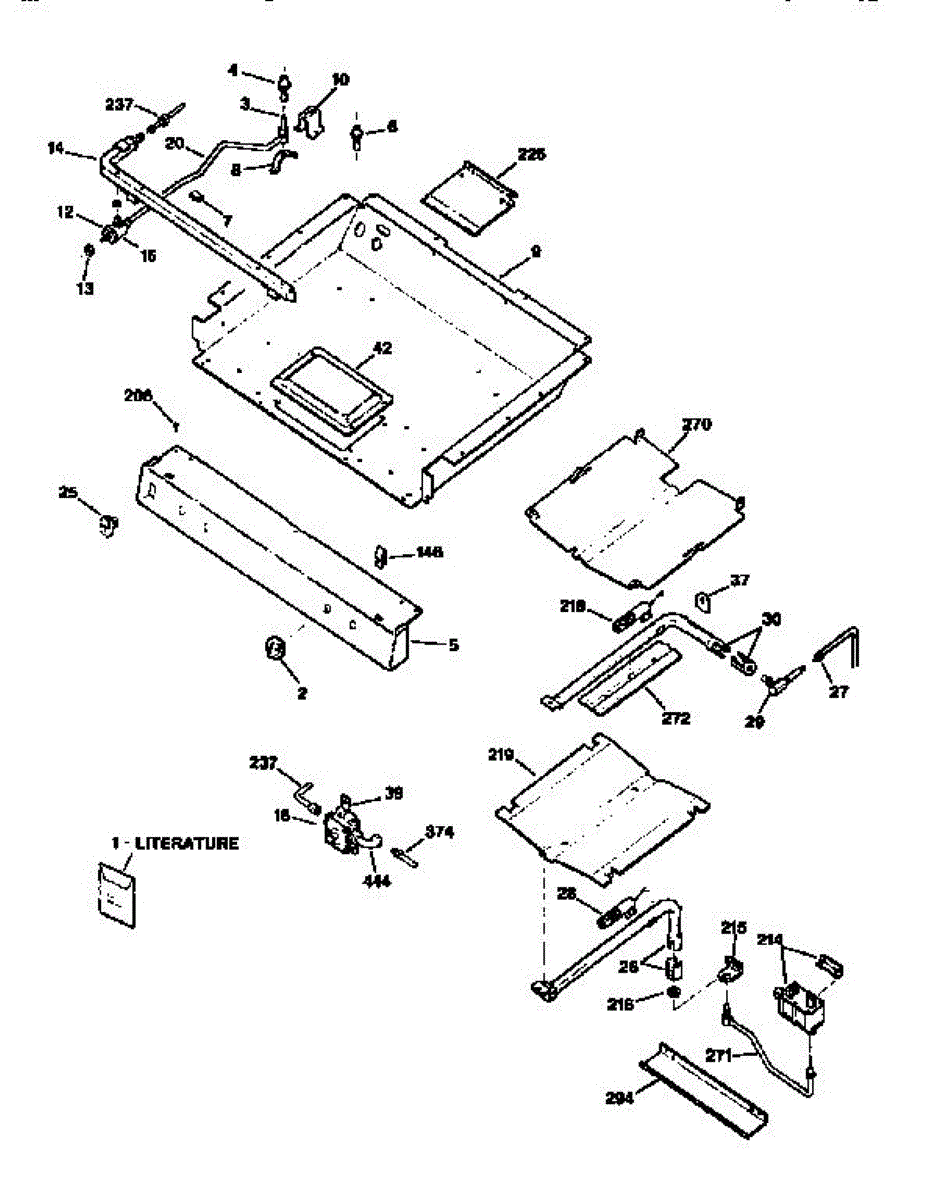

Parts for Kenmore 362.7536890 (3627536890, 362 7536890): Burner Section Parts

This mini manual is a small, original-style user guide that provides quick-reference operating and care information for the appliance. It helps you find basic instructions and safety guidance without needing the full service manual. What it does:

• Gives concise operating and control instructions for everyday use
• Lists basic maintenance tasks and care tips to keep the appliance functioning
• Provides safety warnings and handling guidance to reduce risk during use
• Offers simple troubleshooting steps and usage reminders for common issues

• One mini manual (instruction booklet)

• Read all instructions before using or servicing the appliance
• Keep the manual near the appliance for quick reference
• If repair or disassembly is required, disconnect power and follow safety procedures

This printed user manual contains the owner's guide and basic operating instructions for your appliance, helping you find safety information, control explanations, maintenance tips, and simple troubleshooting steps quickly. What it does:

• Explains controls, settings, and normal operation so you can use the appliance correctly
• Lists safety warnings and care recommendations to reduce misuse and wear
• Provides basic troubleshooting tips and maintenance guidance for common issues
• Helps identify routine cleaning and filter or part access points for service tasks

• No tools required; keep the manual near the appliance for quick reference
• Follow all safety warnings in the manual before performing any maintenance
• For electrical or major repairs,
• If lost, a downloadable PDF may be available from the manufacturer's literature/support site

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Liquid propane. Small burner.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Fix a burner that won't light, leaks gas, or has a broken control stem. This gas valve regulates flow to one cooktop burner. Moderate DIY repair.

Positions the gas orifice for proper burner alignment and gas flow. Replace if bent, corroded, or damaged to restore secure orifice placement and safe burner operation.

Orifice tube connects gas supply to burners on your range. Replace if cracked, damaged, or leaking to restore proper gas flow and safe operation.

Color: Black

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Oven won't heat but broiler works? This safety valve controls gas flow to bake and broil burners. Common when one side fails but the other still works.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Tube burner supply for gas ranges. Connects the orifice to the burner assembly. Replace if cracked, damaged, or when converting between fuel types.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.
