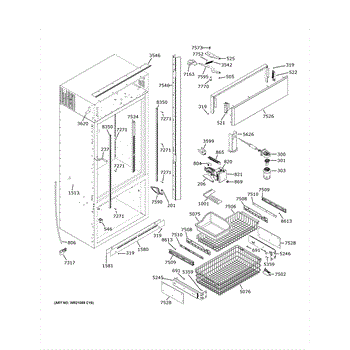

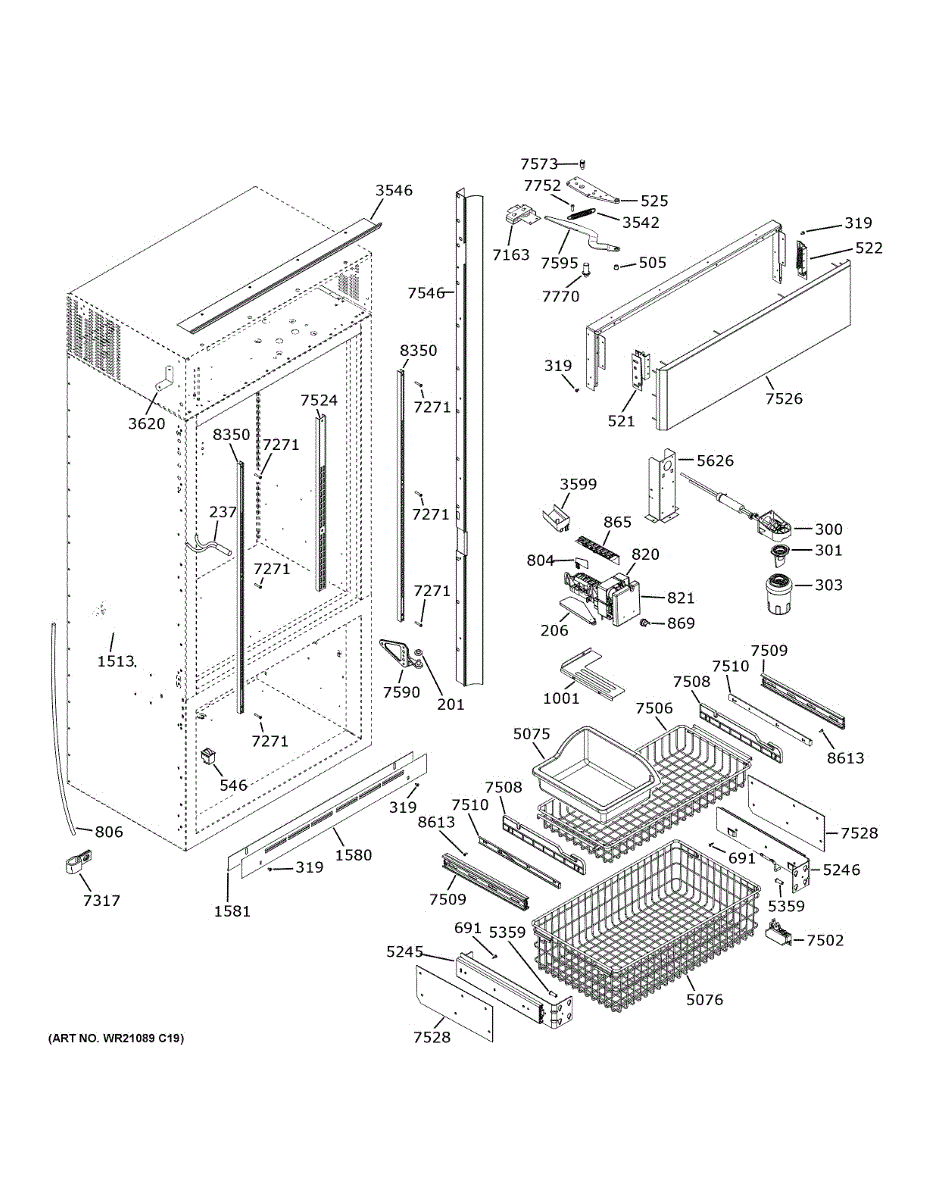

Parts for Ge CDB36RP2PHS1: Cabinet (2) Parts

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This water filter manifold is the assembly the MWF cartridge locks into, sealing the connection and routing water through the filter to your dispenser and icemaker. Replacing a worn manifold can stop leaks and restore normal water flow. What it does:

• Holds and seals the MWF water filter cartridge
• Directs filtered water to the dispenser and icemaker
• Can help resolve leaks at the filter head, slow/low flow, or no water/ice
• Addresses issues where the filter won't seat or keeps popping out

• 1 water filter manifold assembly

• Unplug the refrigerator and shut off the water supply; dispense water to relieve pressure
• Keep a towel handy for residual water and take photos to note tube routing before removal
• Fully seat tubing and connections during reassembly; ensure the filter locks in securely
• Restore water and power, then check for leaks and run water to purge air

The MWF Bypass is an OEM replacement part for GE refrigerators. Located within the bottom freezer compartment, the metal water filter bypass fitted assembly is responsible for directing filtered or unfiltered water flow to the ice maker and dispenser.

Causes for replacement may include faulty diverter components obstructing water flow to selections or resulting in water leaks.

Symptoms of a problematic bypass unit include:

• Inability to select filtered or unfiltered water from the dispenser
• Ice maker failure due to lack of water or poor water quality
• Mineral deposits accumulating on internal parts from unfiltered water

This OEM replacement bypass is compatible with GE, Hotpoint, and Profile model refrigerators.

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This nylon hinge arm secures and guides a refrigerator/freezer door, providing smooth pivoting and reliable door alignment to help prevent sagging and uneven seals. Durable nylon resists wear at hinge contact points. What it does:

• Supports the door at the hinge pivot to maintain proper alignment and sealing
• Reduces metal-on-metal wear by providing a low-friction contact surface
• Helps stop door sag and uneven closing that can lead to poor sealing
• Works with the hinge assembly to enable smooth opening and closing

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing hinge components to prevent movement or injury
• Basic hand tools are typically required; avoid overtightening fasteners

This 12-24, white screw secures panels and small appliance components. Replaces missing or damaged fasteners to restore a secure fit, reduce vibration and rattling, and help maintain proper alignment. What it does:

• Secures trim, panels, brackets and other small components.
• Replaces missing or worn fasteners that cause loose or rattling parts.
• Helps restore proper alignment of covers and access panels.
• Use when the original 12-24 screw is stripped, missing, or damaged.

• Disconnect power to the appliance before beginning any repair that exposes wiring or electrical components.
• Use the correct driver for the screw head to avoid stripping.
• Tighten until snug; avoid over-tightening which can damage threads or components.

This ice maker guardrail secures and guides the ice maker/ice bin assembly so cubes dispense and stay aligned. It helps restore proper ice flow and prevents the ice bin from shifting or rubbing during harvest cycles. What it does:

• Holds the ice maker/ice bin in place to prevent movement and misalignment
• Guides ice cubes during ejection for smoother dispensing
• Reduces rubbing or contact that can cause noise or wear
• Helps maintain consistent ice delivery to the bin

• One ice maker guardrail/rail

• Disconnect power (and water supply if applicable) before beginning service
• Remove shelves or ice bin as needed for clear access; keep fasteners for reinstallation
• Install using existing mounting points and hardware; inspect surrounding parts for wear

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker stripper is the front comb that helps release cubes from the ejector during harvest. It guides ice cleanly into the bin to reduce jams and keep ice production running smoothly. What it does

• Strips ice cubes off the ejector fingers as the ice maker cycles
• Directs cubes into the bucket, helping prevent jams and cube bridging
• Wear, cracks, or warping can cause cubes to stick, spill, or clump
• Symptoms include cubes piling at the front, clicking during harvest, or reduced/no ice

• 1 ice maker stripper

• Disconnect power and shut off water before servicing
• Remove the ice bin and access the ice maker front (remove cover if present)
• Release the old stripper (tabs/screws), align the new stripper with the ejector fingers, and seat it fully
• Reinstall cover and bin; restore power and allow a full cycle to verify operation

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This toe kick is the lower front panel that covers the space beneath the refrigerator, restoring the appliance's finished look and protecting internal components from dust and debris. It matches factory fit and appearance. What it does:

• Covers and protects the refrigerator's lower opening and components from dirt and small objects
• Restores the appliance's original front appearance after damage or removal
• Helps direct airflow under the refrigerator for normal operation
• Replaces cracked, bent, or missing lower trim that can collect debris

• One toe kick lower front panel

• Remove power supply or unplug the appliance before starting work
• Usually secures with clips or screws along the cabinet base; keep fasteners from removal
• Handle panel carefully to avoid scratching finish; alignment may require slight adjustments

This toe kick skirt replaces the lower front trim that covers the gap beneath the appliance, restoring a finished look and protecting under-cabinet components from dust and debris. It's a direct-fit exterior trim piece designed to match factory appearance. What it does:

• Covers the open space under the appliance to improve appearance and conceal components
• Helps keep dust, dirt and small debris out of the area beneath the unit
• Restores a secure lower trim that may have been cracked, bent or missing
• Re-establishes a flush edge to prevent small items from sliding under the appliance

• One toe kick skirt (single lower front kickplate)

• Disconnect power to the appliance before starting work to ensure safety
• Typically installs from the front using existing clips or screws; retain original fasteners if possible
• Handle trim carefully to avoid scratching painted or plastic surfaces during installation
• Purchase replacement clips/screws specified for your model

Spring should have GOLD color.

This fill cup directs water into the ice maker so each cycle produces properly filled ice trays. It helps prevent overflows and ensures reliable water delivery to the ice maker assembly. What it does:

• Guides the water fill into the ice maker mold during harvest and fill cycles
• Helps prevent water from spilling into the freezer compartment
• Supports consistent ice size by ensuring proper water placement
• Common replacement when cracked, warped, or leaking and causing underfilled or overflowing ice

• One fill cup for the ice maker

• Disconnect power to the appliance before service to avoid electrical shock
• Remove ice maker/module per manufacturer instructions before replacing the cup
• Inspect the surrounding chute and seals for damage or ice buildup when installing
• Use only manufacturer-recommended fasteners and reassemble components in reverse order

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets

This ice bucket is the removable plastic bin that collects and stores ice from the ice maker, keeping cubes contained and easy to access. It restores proper ice storage and makes removing or pouring ice simple. What it does:

• Holds and stores ice produced by the freezer ice maker so cubes stay contained and sanitary.
• Guides ice from the ice maker into the storage bin to prevent spills and jams.
• Allows easy removal for scooping, pouring, or cleaning when ice build-up occurs.
• Commonly replaced when the bucket is cracked, warped, missing, or no longer seats properly.

• One ice bucket.

• Unplug or disconnect power to the appliance before servicing the ice maker area.
• Slide the bucket into the freezer compartment aligning tabs or guides; do not force.
• Handle plastic tabs and mounting points carefully to avoid breakage.
• Inspect the ice maker assembly and chute for ice buildup or damage.

This freezer slide support assembly stabilizes and guides a freezer drawer so it opens and closes smoothly and stays level. Replacing a worn or broken support restores proper drawer alignment and prevents sagging or catching. What it does:

• Supports the freezer drawer or slide to maintain proper alignment and smooth movement
• Keeps the drawer level to prevent binding, sagging, or accidental dropping
• Replaces cracked, worn, or missing support pieces that cause uneven operation
• Works as a direct-fit mounting/guide for the drawer slide mechanism

• One freezer slide support assembly

• Disconnect power before starting and remove the freezer drawer to access the support
• Inspect mating slide and mounting tabs; replace any damaged clips or hardware
• Typically installs by snapping or securing into the existing slide track—retain fasteners if present

This freezer drawer slide is installed on refrigerators with bottom drawer freezers. The slide makes it possible to open the drawer without any jamming.If there is noticeable difficulty opening the slide-out freezer, or it is unable to be opened at all, the problem is likely with the slide rail. Inspect the length of the slide rail and if there are any broken pieces or missing screws, this is the culprit. If the damage is unable to be fixed by replacing a few screws, a replacement will need to be ordered. Begin the installation by removing the old pieces of slide rail. Prepare the screws for the new installation. Fasten the new slide rail to the refrigerator by inserting the screws in their proper mounting. To reinsert the freezer drawer, tip at an angle and insert into the slide rail.This freezer drawer slide rail is a genuine OEM replacement part and is sourced directly from GE. The product listed is only available individually and is not included with any other parts or the original appliance. This part Is compatible with GE appliances.

This top right-hand door closure assembly helps the refrigerator door latch and close smoothly, restoring a proper seal and preventing cold air loss or door sag. Designed to replace a worn or broken closure mechanism. What it does:

• Guides and secures the top of the door during closing to maintain a tight seal
• Helps prevent the door from sticking, slipping open, or not closing fully
• Addresses symptoms like a misaligned or loose top corner, drafts, and temperature fluctuation near the door
• Works as the replacement closure piece for the right-hand/top door location

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; remove door or trim as needed for access
• Inspect door hinges and strike for wear and alignment while replacing the closure
• Tighten fasteners snugly but avoid over-torquing; test door operation after installation

Size: 1/4 inch diameter.

This support mounts to the freezer wall and holds the upper basket in place. Replace a broken or missing support to restore proper alignment and smooth in-out movement of the basket and prevent sagging or jams.

• Provides side support for the upper freezer basket
• Keeps the basket level and aligned for easy access
• Replaces cracked or missing support that can cause the basket to drop, bind, or jam
• Helps eliminate wobble and uneven sliding when opening/closing

• Disconnect power to the refrigerator before servicing
• Empty and remove the upper freezer basket
• Release retaining tab(s) or remove fastener(s) and note the support's orientation
• Secure the new support, reinstall the basket, and verify smooth operation

Upper freezer slide liner replaces the plastic guide that supports and guides the upper freezer shelf, restoring proper shelf alignment and smooth sliding for easier access and safer storage. What it does:

• Guides and supports the upper freezer shelf along its track to prevent tipping or misalignment
• Keeps the shelf sliding smoothly so drawers and items move without catching
• Helps prevent shelf damage from uneven loading or cracked supports
• Replace when the liner is cracked, worn, or the shelf slides unevenly or binds

• Remove food and the affected shelf before replacing the liner for safe, clear access
• In many cases no tools are required—slide out the old liner from the track and snap the new liner into place
• Inspect mating track and adjacent clips for damage; replace damaged components to ensure proper fit

Freezer basket slide for the upper basket. This rail supports and guides the top freezer basket so it glides in and out smoothly. Replace a cracked or warped slide to restore proper movement and alignment.

• Supports and tracks the upper freezer basket along the cabinet wall
• Provides smooth sliding action for easier access to frozen items
• Replace when the slide is cracked, broken, or deformed
• Typical symptoms: basket binds or tilts, scrapes, pops out, or won't close fully

• Disconnect power to the refrigerator before servicing
• Remove the upper basket; release locking tabs or screws and lift out the damaged slide
• Position and secure the new slide as shown in your model's diagram; do not overtighten screws
• Reinstall the basket and verify smooth travel and proper door sealing

The Actuator Arm Ff Door is an OEM part for GE refrigerators responsible for activating the opening and closing mechanism of the refrigerator's fresh food compartment door.

A bad actuator arm can be caused by regular wear and tear over time or damage due to mishandling or impact. If you notice that your refrigerator door is not opening or closing properly, or if it feels loose or unresponsive, it may indicate a problem with the actuator arm.

Symptoms of a bad actuator arm include:

• Difficulty in opening or closing the fresh food compartment door
• Door not staying securely closed
• Door misalignment or sagging
• Unusual noises when operating the door mechanism

Replace your faulty actuator arm with this genuine OEM part to restore your refrigerator.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This track shelf is the replacement door shelf track that secures a refrigerator door shelf in place, restoring stable storage and preventing the shelf from shifting or falling during normal use. What it does:

• Provides the mounting channel that a door shelf or retainer sits in to hold items on the refrigerator door
• Replaces a cracked, worn, or broken track that lets a door shelf tilt or slide out
• Restores proper shelf alignment so door bins sit securely and items stay in place
• Compatible with typical snap-in or screw-mounted door shelf assemblies

• Remove all items from the door shelf and, if needed, remove the shelf before replacing the track
• Power off or unplug the appliance only if access requires it; otherwise take care to avoid sharp edges
• Align the track with the door mounting locations and press or secure into place until fully seated
• If hardware is present, retain and reuse existing screws/clips; replace only with manufacturer-specified fasteners

This screw handle trim replaces the small decorative cover that hides and secures the mounting screw on a range/oven handle, restoring a finished look and preventing debris buildup around the screw. What it does:

• Covers the handle mounting screw and provides a clean finished appearance
• Helps keep crumbs and grease out of the screw cavity
• Stops a loose or missing trim from catching on clothing or hands
• Restores cosmetic look after handle removal or damage

• One screw handle trim

• Safety first: unplug the appliance or shut off power to the range before working
• Remove the handle screw, fit the trim over the screw area, then reinstall and tighten the screw securely (do not overtighten)
• Use the correct screwdriver and avoid forcing the trim; check alignment before final tightening
• If the original mounting hardware is damaged, replace it with OEM hardware
