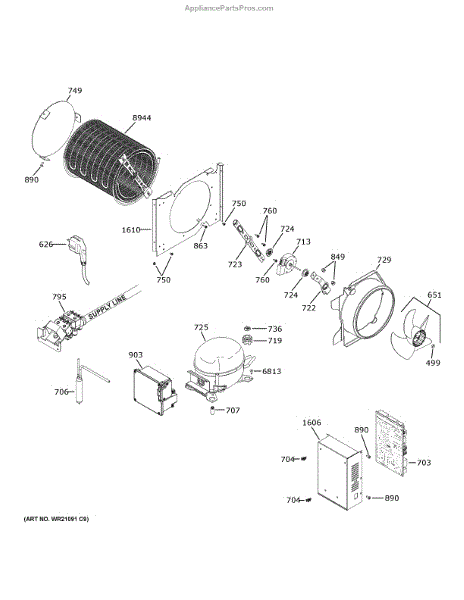

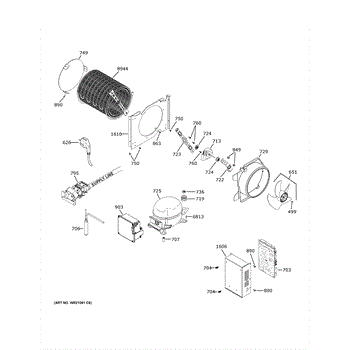

Parts for Ge CDB36RP2PHS1: Machine Compartment Parts

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement power cord restores a safe, grounded electrical connection for compatible GE appliances so the unit can receive line power. Use it when the original cord is damaged or the plug or grounding prong is compromised. What it does:

• Delivers household AC power to the appliance through a grounded 3-prong plug
• Replaces frayed, cut, burned, or otherwise damaged cords that cause loss of power
• Resolves intermittent power or appliances that fail to power on due to cord issues
• Helps prevent loose connections and exposed wiring at the cord or plug

• Disconnect the appliance from power before inspecting or replacing the cord
• Route the cord and secure any strain reliefs per the appliance's service instructions
• Do not use with damaged outlets or modified plugs; replace the cord if the plug or insulation is compromised

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This main control board assembly replaces the refrigerator's primary electronic control module to restore normal control and operation. It manages user interface signals and coordinates compressor, fans and defrost functions for reliable cooling performance. What it does:

• Receives input from the control panel and sends commands to compressor, fans and defrost components
• Controls timing for cooling cycles and defrost events to help maintain set temperatures
• Can stop or reset refrigerator functions when the original board fails, helping address no-power or unresponsive-control symptoms
• Can resolve symptoms such as unresponsive display/controls, intermittent cooling, or fans/compressor not running when caused by a failed board

• One main control board assembly (electronic control) as shown

• Disconnect appliance power before starting and do not work on energized circuits
• Handle the board by edges and avoid static discharge; ground yourself or use an ESD strap
• Verify connector orientation and seating; match part number to the original board before installation

A small plastic standoff that secures and insulates the refrigerator main control board from the chassis to prevent shorts and keep the board stable. Simple, serviceable replacement for damaged or missing mounting posts. What it does:

• Positions and supports the main control board to prevent movement and vibration
• Provides electrical insulation between the board and metal chassis to reduce short risk
• Restores proper board alignment so connectors and mounting points seat correctly
• Commonly replaced when the board is loose, cracked, or the original standoff is missing

• One main board standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Remove protective panels to access the control board; handle the board by edges
• Press or snap the standoff into the chassis mounting hole, then seat the board onto the post
• Do not force or overtighten fasteners; replace any damaged clips or screws as needed

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

This condenser fan shroud directs cooling airflow across the condenser and keeps the condenser fan and motor securely positioned for reliable cooling performance. It helps maintain proper condenser airflow and protects fan components from contact. What it does:

• Guides airflow from the condenser fan to improve heat dissipation
• Holds the condenser fan motor and blade in the correct position
• Reduces the risk of fan-to-coil contact and related noise or damage
• Can help address symptoms like noisy fan operation, increased run time, or reduced cooling when damaged or missing

• Disconnect power to the appliance before beginning any work
• Handle carefully — edges and nearby sheet metal can be sharp
• Basic hand tools are typically required; follow OEM instructions for removal/installation

Specs: 8-32 ca hxw 1/2

This assembly includes the refrigerator's water inlet valve mounted on its bracket. It regulates water flow from the household supply into the refrigerator's water system to restore reliable filling for the ice maker and/or dispenser.

• Controls water flow by opening/closing the valve when the refrigerator calls for water
• Helps deliver proper water during fill cycles and shuts off cleanly after
• Common symptoms: no ice production, no water from dispenser, slow/weak flow, leaks at the valve, or loud buzzing/chattering during fill
• Mounts in the original location using the included bracket for secure fit

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure (dispense water if equipped) and keep a towel handy for residual water
• Move tubes and wire connectors to the new valve one at a time to maintain placement
• Restore water and power, then check all connections for leaks and proper operation

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Specs: 8-18 AB IHW 5/8 S

The Compressor Inverter Board is an OEM part for GE refrigerators. It controls the operation of the compressor, adjusting its speed to optimize cooling efficiency and energy consumption. This component is crucial for maintaining consistent temperatures inside the refrigerator and ensuring smooth, reliable performance.

Causes of a bad compressor inverter board can include electrical surges, overheating, or component failure due to wear and tear. When the inverter board malfunctions, it can lead to inadequate cooling and increased energy usage.

Symptoms of a bad Compressor Inverter Board include:

• Refrigerator not cooling properly
• Unusual noises coming from the compressor
• The compressor running continuously or not running at all
• Error codes or flashing lights on the control panel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-32 x 5/8" Phillips screw is a stainless steel fastener used to secure panels and components in appliances. It resists corrosion and provides a reliable, low-profile Phillips head fastening solution. What it does:

• Fastens panels, brackets and trim where an 8-32 x 5/8" screw is specified
• Stainless steel construction helps resist rust in humid or food-prep environments
• Phillips head accepts standard drivers for quick, positive installation
• Replaces worn or stripped fasteners that cause loose or rattling parts

• One 8-32 x 5/8" Phillips stainless steel screw

• Unplug the appliance or disconnect power before beginning work
• Use a properly sized Phillips screwdriver to avoid cam-out or stripping
• Tighten until snug; avoid over-tightening which can strip threads or crack plastics

This condenser assembly is the condenser coil used in compatible refrigerators to release heat from the refrigerant so the appliance can cool efficiently. Replacing a damaged coil helps restore proper cooling performance and energy use. What it does:

• Circulates refrigerant through the condenser coil to dissipate heat from the refrigeration system
• Supports normal compressor cycling and helps maintain steady internal temperatures
• Common symptom fixes: reduces long run times, improves inadequate or uneven cooling, and addresses overheating or noisy compressor operation
• Works with the condenser fan and other sealed-system components to complete the heat-exchange process

• Disconnect power to the refrigerator before servicing to avoid electric shock
• Access commonly from the rear lower panel or front grille; may require removal of kick plate or back cover
• Avoid damaging the coil fins; handle carefully and use fin comb if needed
