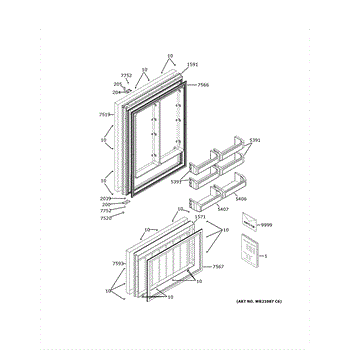

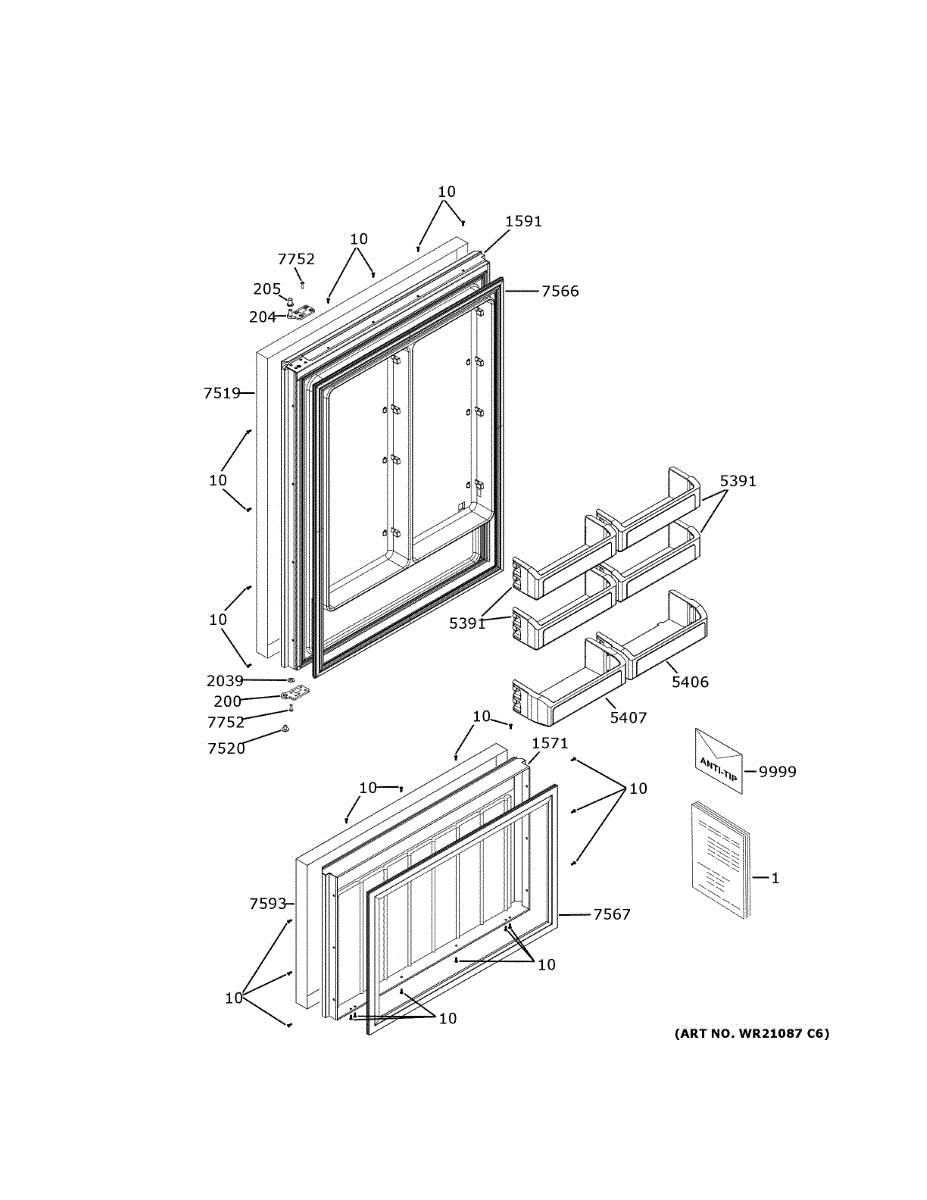

Parts for Ge CDB36RP2PHS1: Doors Parts

Size: 10-32 GXTT FLP.595 S

Color: white

This deep fresh food door bin installs on the right-hand refrigerator door to provide sturdy storage for taller containers and everyday items. Replace a broken or missing bin to restore safe, organized space on your refrigerator door.

• Mounts to the right-side fresh food door to hold and organize items
• Deep profile adds capacity for taller containers and bottles
• Replace when the bin is cracked, warped, has broken tabs, or won't stay seated
• Common symptoms: bin falls out, leans, is loose, or is missing

• Empty the old bin; lift straight up to remove from the door liner
• Align the new bin's hooks with the slots and press down until fully seated
• Handle gently; allow plastic to warm to room temperature to reduce cracking risk
• Do not force into place; ensure correct right-side orientation

Color: white

The Freezer Drawer Gasket is an OEM replacement part for GE refrigerators. It serves as a critical seal between the freezer drawer and the refrigerator cabinet, preventing cold air from escaping and warm air from entering the freezer compartment.

Symptoms of a need to replace the freezer drawer gasket:

• Frost buildup or condensation inside the freezer compartment
• Difficulty opening or closing the freezer drawer due to a poor seal
• Visible gaps, cracks, or damage to the gasket material
• Gasket feeling brittle or not sealing properly when the drawer is closed

Causes of a faulty freezer drawer gasket can include general wear and tear over time, exposure to extreme temperatures, damage from mishandling or improper cleaning, and loss of flexibility or brittleness of the material.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.
