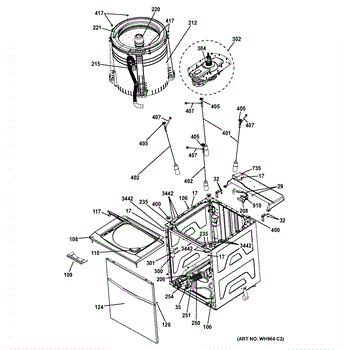

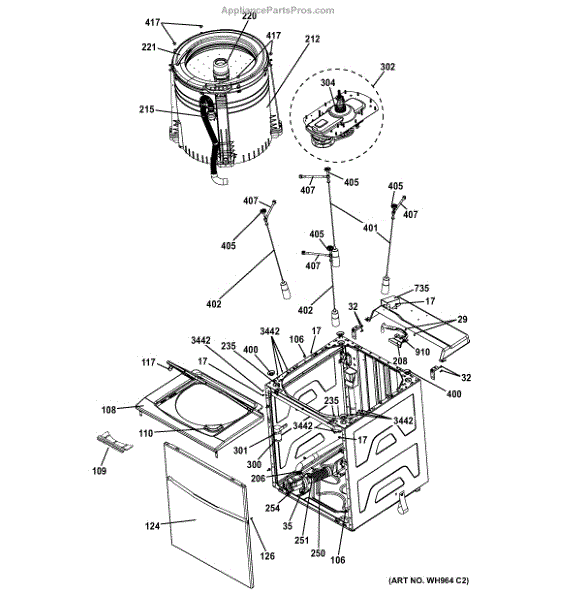

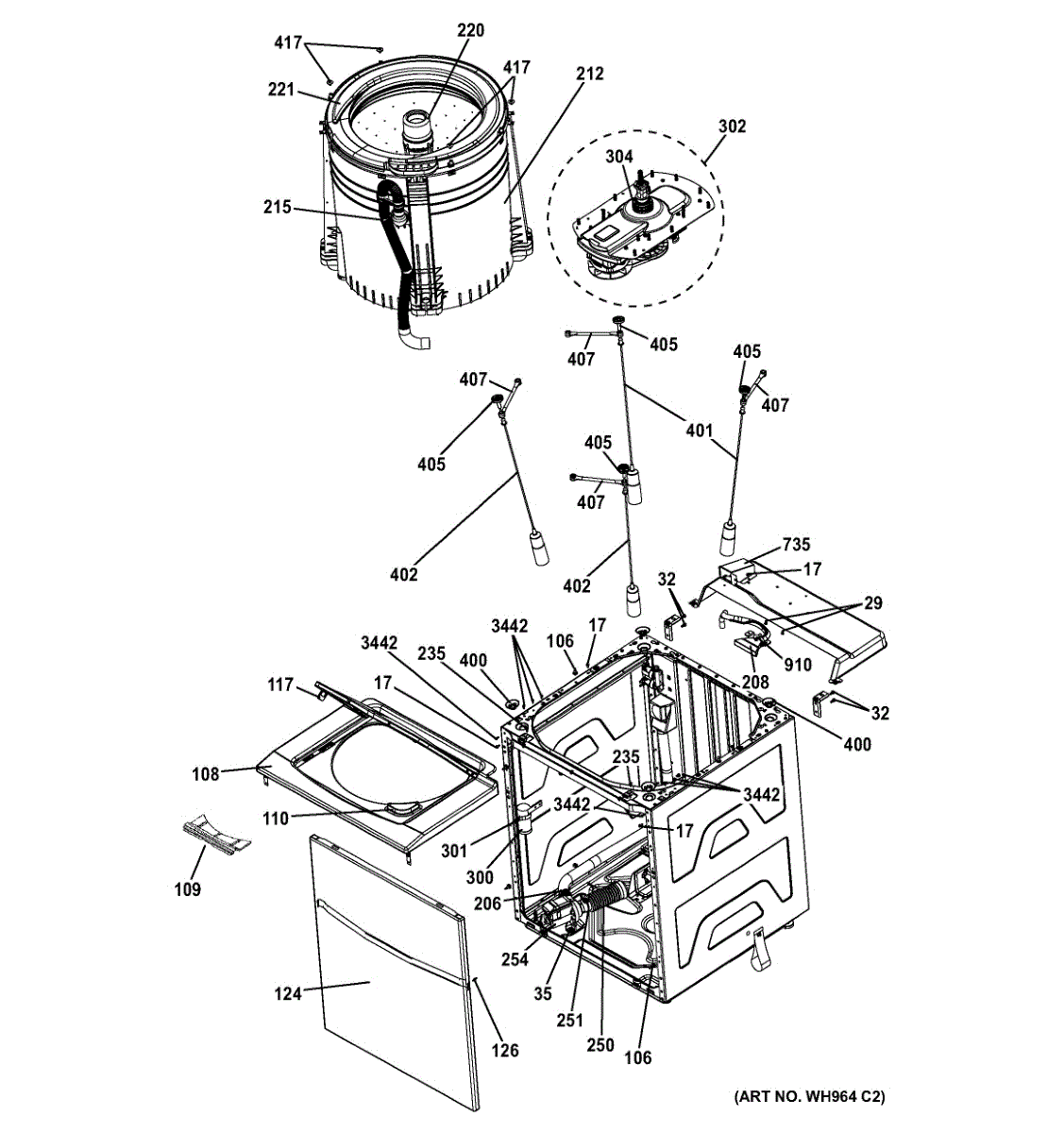

Parts for Kenmore 267.15321 (26715321, 267 15321): Cabinet (4) Parts

Size: 8 - 18 ab.

A replacement pin alignment used to correctly position and secure moving parts in appliance hinge or latch assemblies. Restores proper alignment to reduce sagging, rubbing, or uneven operation for smoother, quieter performance. What it does:

• Aligns and secures hinge or latch components to maintain correct movement and fit
• Helps stop door sag, binding, or uneven closing when the alignment pin is worn or damaged
• Reduces rubbing and noise caused by misaligned parts
• Restores proper clearance for seals and moving assemblies

• One pin alignment

• Refer to the appliance OEM service manual for model-specific removal and installation steps
• Disconnect power (or unplug) and, if applicable, remove stored contents before working on doors or hinges
• Use basic hand tools; avoid forcing parts or over-tightening fasteners to prevent damage
• If alignment issues persist after replacement, inspect associated hinges, brackets, and fasteners for wear

Bleach funnel directs liquid bleach from the washer dispenser into the wash tub for even distribution and helps reduce spills, pooling, and bleach odor. Designed to replace cracked, clogged, or worn dispenser funnels. What it does:

• Directs bleach into the wash tub for consistent dispensing and mixing during the wash cycle.
• Helps prevent bleach pooling, dispenser leaks, and blockages that can cause odors or uneven bleaching.
• Replaces damaged or deteriorated funnels; common symptoms include visible cracks, leaking, or persistent bleach residue in the dispenser area.

• Disconnect power to the appliance before servicing to reduce risk of shock or injury.
• The funnel typically seats or snaps into the dispenser housing.
• Inspect and clean surrounding dispenser components before installing the new funnel; rinse the part to remove any manufacturing residue.
• Handle concentrated bleach with care—wear gloves and follow bleach safety instructions.

This lid actuator engages the washer's lid switch or lock when the lid closes, signaling the control that it's safe to run. Replacing a worn or broken actuator restores reliable lid detection for wash and spin cycles.

• Engages the lid switch/lock when the lid is closed
• Signals the control to allow the washer to start and spin
• A damaged or missing actuator can lead to "lid open" errors
• Common symptoms include won't start, won't spin, or lid lock light flashing

• Disconnect power before servicing
• Access the lid switch/lock area; remove the failed actuator
• Install the new actuator, aligning it to the original mounting points; reuse existing hardware
• Close up and test lid detection before running a full cycle

This front panel assembly replaces a damaged or worn control-panel face to restore the appliance's front appearance and provide a secure mounting surface for controls. It keeps the control area sealed and looking factory-fresh. What it does:

• Replaces the visible front/control panel to cover and protect underlying controls and electronics
• Provides a mounting surface for buttons, knobs, or the touch-control interface
• Helps prevent dirt, grease, and moisture from reaching internal components
• Common repair for cracked, discolored, or broken control-face panels

• One front panel assembly as shown

• Installation requires removing the range/oven console and disconnecting power first — disconnect power at the breaker or unplug the appliance
• Handle panels and clips carefully to avoid damaging trim tabs or painted surfaces
• Use proper fasteners and alignment during reassembly; verify controls and display function before returning the appliance to service
• Label connections and take photos for reference

This clamp is a small retaining fastener used to secure hoses, tubes or wiring to appliance fittings and keep connections stable during operation. It helps prevent leaks, chafing and loose connections that can cause performance issues. What it does:

• Secures a hose or tube to a barb or fitting to maintain a tight seal
• Prevents hoses and lines from slipping free during use or vibration
• Reduces wear from rubbing or chafing by holding components in place
• Helps stop minor leaks at hose junctions when properly seated

• One clamp (quantity: 1)

• Disconnect power and water supply before servicing the appliance
• Drain or catch any residual water from hoses before removing the old clamp
• Use the correct pliers or screwdriver for the clamp type; avoid over-tightening which can damage hoses
• Inspect adjacent hoses and fittings and replace any worn components while accessible

The Funnel Shower Head is an OEM part for GE washing machines, designed to distribute water evenly over the laundry during the wash cycle. This component plays a crucial role in ensuring that water and detergent mix effectively, saturating the clothes thoroughly to achieve optimal cleaning performance. The design of the Funnel Shower Head ensures a gentle yet efficient distribution pattern, minimizing the risk of fabric damage while maximizing the removal of dirt and stains.

Causes of a bad Funnel Shower Head can stem from clogging due to mineral deposits from hard water, damage to the part itself, or a blockage caused by foreign objects.

Symptoms of a bad Funnel Shower Head include:

• Inadequate water distribution during the wash cycle
• Clothes not being fully saturated or washed evenly
• Decreased washing machine performance due to poor water flow

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part is the outer tub assembly for washing machines. It is often used in washer dryer combo units. This particular part houses the spin basket. It also holds the water during the washing cycles. In the event that the washing machine is leaking water, do a visual inspection of the outer tub to check for any cracks. If the tub has been damaged in any way, it will allow water to leak out. If this is the case, it will need to be replaced with this durable part. Make sure to unplug the washing machine from the outlet prior to attempting to replace this part. Wear work gloves to protect the hands.The tub is compatible with washing machines and washer dryer combo units that are manufactured by GE and Kenmore. It is a genuine OEM part this is sourced directly from the manufacturer. It is sold individually.

This overflow elbow is a small drain fitting that routes excess water away from the appliance to prevent spills and water damage. It restores proper overflow/drain flow so the unit can safely divert unwanted water. What it does:

• Directs overflow or drain water from the appliance plumbing to the drain path
• Replaces cracked, clogged, or leaking elbows that can cause pooling or leaks
• Helps restore normal draining behavior and reduces risk of water where it shouldn't be
• Fits into the appliance's existing drain/overflow tubing and connections

• One overflow elbow

• Inspect surrounding hoses and clips; replace any damaged components for a reliable repair
• Disconnect power and water supply before beginning work to avoid electrical shock or flooding
• Use appropriate clamps or fittings to ensure a secure, leak-free connection

This replacement cover fits the washer's front service door. It restores a clean, finished look and helps shield the service compartment from dust and debris when the original cover is cracked, loose, or missing.

• Covers the service opening to protect internal components from debris and accidental contact
• Restores cabinet appearance by concealing the service area
• Replaces a broken, warped, loose, or missing cover
• Common symptoms: cover won't stay closed, visible cracks, rattling, or a missing access cover

• Disconnect power and turn off water before servicing
• Remove the damaged cover
• Align the new cover with the existing hinge/tabs and secure per your model's configuration
• Confirm proper closure and clearance before restoring power

Note: Newly designed cover includes 4 new rod and spring assemblies. The tub dampening straps and clips are no longer used.

Package of 12

This drain inlet hose carries wastewater through the washer's internal drain path during drain and spin cycles. Replacing a cracked, kinked, or leaking hose helps restore proper draining and protect floors and nearby components from water damage. What it does:

• Routes drain water between internal components to the drain outlet
• Maintains a sealed flow path to help prevent leaks
• Common symptoms: water on the floor during/after draining, standing water left in the tub, visible cracks/bulges/kinks on the hose
• May clog with debris, restricting flow and causing slow or no drain

• 1 drain inlet hose

• Unplug the washer and shut off water supply before servicing
• Have towels or a shallow pan ready; residual water may spill when hoses are removed
• Note hose routing and clamp positions; ensure the new hose is fully seated and not twisted or kinked
• After installation, run a quick drain/spin and check all connections for leaks

This retaining clamp secures wiring, hoses, or small assemblies to keep them routed and stable, helping prevent rubbing and vibration that can lead to wear or intermittent issues. Use it to replace a broken or missing clamp. What it does:

• Holds wires, hoses, or tubing in place to prevent contact with moving parts
• Reduces vibration and rattling by keeping components secure
• Prevents chafing that can cause insulation wear or exposed wiring
• Restores proper routing after repairs or part replacement

• Disconnect power (and water if applicable) before accessing internal components
• Use appropriate hand tools; avoid over-tightening which can damage the clamp or secured part
• Inspect surrounding wiring/hoses for damage and replace if needed

The Pump Drain is an OEM part for GE washing machines. This component is responsible for removing water from the washer drum during the drain cycle, ensuring that the water is efficiently expelled from the machine. The pump drain plays a crucial role in the washing machine's ability to complete its cycles and maintain optimal performance.

Over time, the pump drain can become clogged, worn out, or damaged due to regular use or foreign objects obstructing the pump. Common causes of a bad pump drain include buildup of debris, wear and tear on the pump mechanism, or blockages from items accidentally left in pockets.

Symptoms of a bad pump drain include:

• Water not draining from the washer
• Unusual noises during the drain cycle
• The washer stopping mid-cycle due to drainage issues
• Water leaking from the bottom of the washer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This washer motor run capacitor stores and releases electrical energy to help the drive motor start and run smoothly. Replacing a weak capacitor can help restore consistent agitation and spin and reduce motor humming or stalling under load.

• Provides the phase shift and torque assist the drive motor needs to start and stay running
• Can address: washer won't start, no agitate or spin, motor only hums/buzzes, or stops under load
• Visible clues of failure can include a swollen, cracked, or leaking capacitor case

• Unplug the appliance before servicing; capacitors can retain a charge even when power is off
• Discharge the capacitor safely before handling
• Note wire positions; move leads to the same terminals and secure the capacitor in the original bracket/orientation
• Inspect connectors and replace any burnt or loose terminals to ensure a tight fit

This transmission and support assembly drives the wash and spin cycles while supporting the inner tub. Replacing a worn unit can restore proper agitation/spin and reduce noise or vibration from a failing gearcase or support shaft.

• Transfers motor power to agitate and spin the basket
• Supports and centers the inner tub through the drive shaft/support
• Failures may cause no-spin/no-agitate, loud grinding/rumbling, slipping, or oil spotting under the washer
• Can contribute to wobble, scraping from the center, or a burning smell during cycles

• Disconnect power and water supply before servicing; wear appropriate PPE
• Access varies by model; remove agitator/impeller and inner tub, then detach drive components
• The assembly is heavy—support the tub/frame and use proper lifting techniques
• After reassembly, run a test cycle to check for leaks/noise

The Tub Seal is an OEM part for GE washing machines. It is a critical component responsible for sealing the gap between the outer tub and the inner wash basket, preventing water leaks and ensuring proper containment during the wash cycle.

Causes of a faulty Tub Seal include wear and tear over time, exposure to excessive heat or chemicals, or physical damage from sharp objects or improper installation.

Symptoms of a bad Tub Seal include:

• Water leaking from the washing machine during cycles
• Excessive moisture or dampness around the tub area
• Mold or mildew buildup due to leaks
• Vibrations or noise from an improperly sealed tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The ball joint seat is the plastic socket for the washer's suspension rod ball. It supports the tub and allows smooth pivoting, helping control vibration and noise when the original seat becomes worn, cracked, or deformed.

• Provides a low-friction seat for the suspension rod ball
• Helps stabilize the tub and isolate vibration during wash and spin
• Wear can cause squeaks/creaks, knocking/banging, or a leaning/off-center tub
• Restores proper suspension movement for smoother, quieter operation

• Disconnect power and water supply; wear gloves and eye protection
• Support the tub before releasing spring/rod tension
• Access the suspension support per model; release the rod from the old seat and install the new seat fully into place
• Ensure the ball end is fully seated before reassembly and testing

This rear suspension rod assembly supports the washer tub from the back of the cabinet. Replacing a worn or broken rod restores stable spin performance and helps reduce banging, vibration, and off-balance interruptions.

• Supports and stabilizes the wash tub from the rear of the cabinet
• Absorbs tub movement during agitation and spin to minimize vibration and noise
• Helps maintain tub alignment to reduce off-balance pauses or repeated redistributions
• Typical symptoms include loud banging, excessive shaking/walking, or the tub leaning toward the back

• Disconnect power and water; wear gloves and eye protection
• Open the cabinet or raise the top to access the rear suspension
• Support the tub to relieve tension, then remove and replace the rod in the same mounting points
• Level the washer and run a short test cycle after replacement

This front suspension rod assembly supports and stabilizes the washer tub from the front side, helping control vibration and keeping the basket centered for smooth spin and wash performance.

• Supports the tub from the front to maintain proper alignment
• Helps reduce excessive vibration, banging, or walking during spin
• Can address shaking, out-of-balance loads, or tub leaning forward
• Restores proper suspension when the original rod or spring is worn or broken

• Unplug the washer and shut off water before servicing
• Access typically requires lifting the top or removing the cabinet/front panel
• Support the tub while swapping the rod to prevent sudden drop
• Replace in matched positions; inspect other suspension rods for wear

This suspension rod support socket replaces the plastic cup the suspension rod sits in on a top-load washer. Replacing a worn socket restores smoother tub movement and helps reduce vibration and noise during wash and spin cycles.

• Supports the suspension rod at the tub/frame connection point
• Provides a low-friction pivot to stabilize the basket
• Helps reduce excessive shaking and out-of-balance banging
• Common signs of failure: cracks, squeaks/scraping, or the rod popping out

• Unplug the washer and shut off water supply before servicing
• Access the suspension area per your model (remove top/front panel as needed)
• Support the tub, relieve tension on the suspension rod, swap the socket, and ensure the rod seats fully in the new socket
• Reassemble, level the washer, and run a test spin to check balance

This washer strap assembly secures and stabilizes the component it anchors, helping control movement and noise during operation. Replacing a worn or broken strap restores proper support for smoother, quieter cycles.

• Retains and supports the attached part within the washer cabinet
• Helps limit vibration and movement, especially during spin
• Reduces rattling and knocking noises caused by loose or missing restraints
• Visual cracks, stretching, or breakage indicate it's time to replace

• Disconnect power and shut off water before servicing
• Access location per your model's service/repair guide (often requires lifting the top or removing the front panel)
• Support the component being secured while transferring/replacing the strap
• Verify secure attachment points and even support before test running a cycle

Size: 10-12 a. Includes 12 screws.

This SCR 8-18 AB 1/2 is a replacement silicon controlled rectifier that restores proper power control to the appliance's control circuitry, helping the unit switch and regulate current reliably. What it does:

• Controls current flow in the appliance's power/control circuit for timed or regulated output
• Replaces a failed or intermittent SCR to stop erratic cycling, no-power, or control malfunctions
• Commonly used where electronic switching or phase control is required
• Helps restore stable operation when heating or motor circuits fail to receive proper control signals

• One SCR 8-18 AB 1/2 replacement component

• Disconnect power to the appliance before inspecting or replacing electrical components
• Observe ESD precautions and handle the SCR by its body; avoid touching leads
• Verify wiring and mounting orientation match the original part before final assembly
