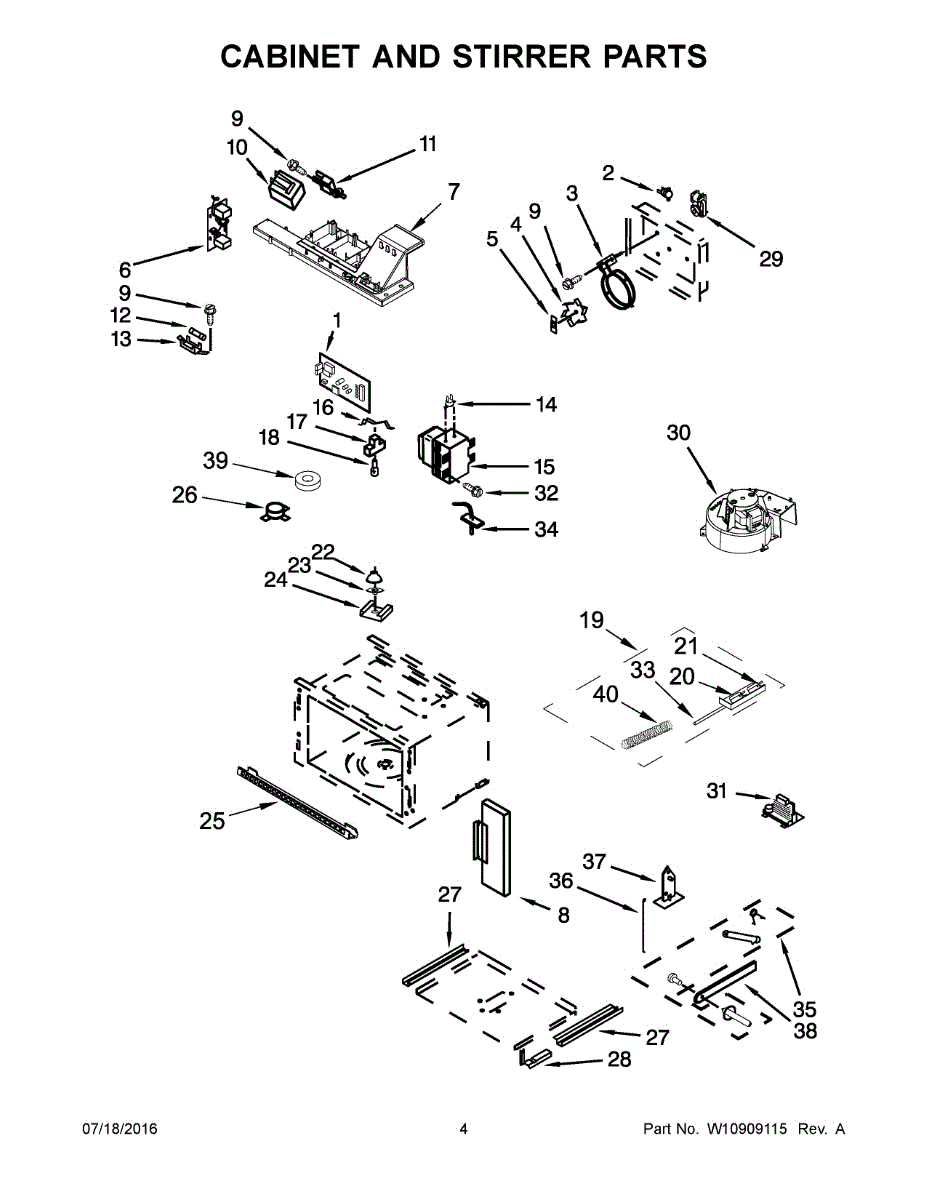

Parts for Kitchenaid KOCE507EBS01: 03 - Cabinet And Stirrer Parts

Fix a microwave that won't start, shows 'close door' errors, or has unresponsive controls. This electronic control board manages timing and power distribution.

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

This is a metal support clip that holds the heating element securely in place inside the microwave. It prevents the element from shifting or sagging during operation. Replace this clip if the heating element appears loose, has dropped out of position, or if the original support is broken or missing.

The Noise Filter is an OEM component specifically designed for Whirlpool microwaves. It works to dampen vibrations and reduce noise originating from the microwave's internal mechanisms during use.

Causes of a bad noise filter include degradation of the noise-dampening material over repeated heating cycles. Microwave usage subjects the filter to heat and vibration stress.

Symptoms of a bad noise filter include:

• Increased volume levels emanating from the microwave cabinet
• Louder high-pitched whining or buzzing sounds
• Vibrations felt on the exterior of the microwave body

This OEM Whirlpool replacement noise filter helps ensure a quiet cooking experience. Its precise design and durable construction minimize disruptive sounds. Please replace yours if you notice louder than normal operation noise.

This part is also compatible with some KitchenAid, Jenn-Air, Amana, and select Kenmore and Frigidaire microwaves.

Control panel not responding or display flickering? This transformer supplies low-voltage power to your microwave's control board, restoring reliable operation.

Microwave won't turn on or has no power? This fuse protects circuits from power surges. Simple replacement restores operation in about 30 minutes.

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This temperature sensor monitors refrigerator temperature and sends readings to the control board so the appliance can regulate cooling. Replacing a failing sensor restores accurate temperature feedback for reliable cooling performance. What it does

• Measures internal temperature and reports it to the refrigerator control board
• Helps the system cycle the compressor and fans correctly for stable temperatures
• Commonly linked to symptoms like poor cooling, frequent compressor run, or temperature-related error codes
• Works as the sensing element for automatic defrost and temperature-control routines

• One temperature sensor (thermistor) with attached lead

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring gently; secure the lead per factory routing to avoid contact with moving parts
• May require basic hand tools and access to the evaporator/thermostat area

Microwave not heating but runs normally? The magnetron generates microwave energy for cooking. Moderately difficult repair requiring careful handling.

Secures and powers the G4-base bulb for reliable interior lighting. Replace if bulb flickers, won't stay seated, or socket is damaged. Confirm fit.

Halogen light bulb illuminates your microwave or oven cavity. Replace when light dims or burns out after extended use. Confirm fit with model number.

Wire harness for microwave convection systems. Connects electrical components in the convection assembly. Replace if wires are damaged or frayed.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Microwave won't start when door closes? This door interlock assembly restores the safety switch mechanism. Requires panel removal to install.

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

Replacement door trim for microwave ovens. Installs on the door frame to cover edges and provide a finished look. Order a new trim if cracked or damaged.

This humidity sensor detects moisture levels inside the microwave cavity during cooking. It allows the microwave to automatically adjust cooking time and power when using sensor-cook or auto-reheat functions. Replace this sensor if your microwave consistently overcooks or undercooks food on sensor settings, or if you receive error codes related to the humidity sensor.

If your microwave overheats or ventilation has stopped working, the fan motor likely needs replacement. Circulates air to regulate temperature.

Microwave won't heat or shows F1E5 error? The inverter regulates power to the magnetron. Intermediate repair, 1-2 hours with full disassembly required.

Microwave door won't open when you press the button? This release rod connects the button to the latch mechanism, restoring smooth door operation.

This sensor detects moisture and temperature levels inside the microwave cavity during cooking. It communicates with the control board to regulate automatic cooking and sensor reheat cycles. Replace this part if the microwave fails to properly detect doneness, overcooks or undercooks food on sensor settings, or displays a sensor error code.

This tension spring restores proper movement and tension for the appliance component it secures, helping the part operate smoothly and reliably. It's a simple replacement that fixes common issues caused by worn or broken springs. What it does:

• Provides tension to hold or return a moving component to its correct position
• Helps stop sagging, slipping, or loose operation of doors, latches, or levers
• Can reduce rattling or unusual noises caused by a failed spring
• Restores normal mechanical action when the original spring is stretched or broken

• Disconnect power to the appliance before starting any repair
• Springs can be under tension—use appropriate tools and wear eye/hand protection
• Compare the new spring to the old one for length, coil size, and end fittings before installation

Replacement mounting bracket that secures internal microwave components. Restores proper alignment and stability. Ideal when original is cracked or broken.

This seal-foam piece provides a cushioned, insulating barrier between cabinet or door panels to help reduce air leaks and vibration. It restores proper contact where foam sealing is required for consistent temperature control and quieter operation. What it does

• Fills gaps and cushions panel edges to improve thermal insulation and reduce drafts.
• Helps prevent moisture intrusion that can cause condensation or frost buildup.
• Dampens vibration and reduces rattling between panels or trim pieces.
• Supports proper door/panel alignment so seals and gaskets seat correctly.

• One seal-foam piece as shown

• Intended for replacement where existing foam is damaged, compressed, or missing.
• Clean mating surfaces and remove old adhesive or residue before installing for best adhesion.
• May require adhesive or clips depending on application—verify mounting method on your appliance.
• Disconnect power and follow appliance manufacturer's safety instructions before servicing.
