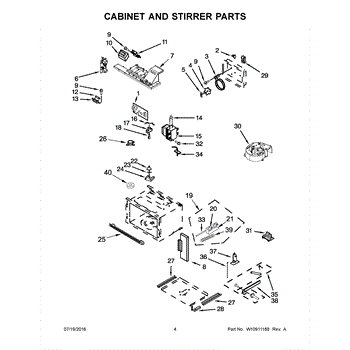

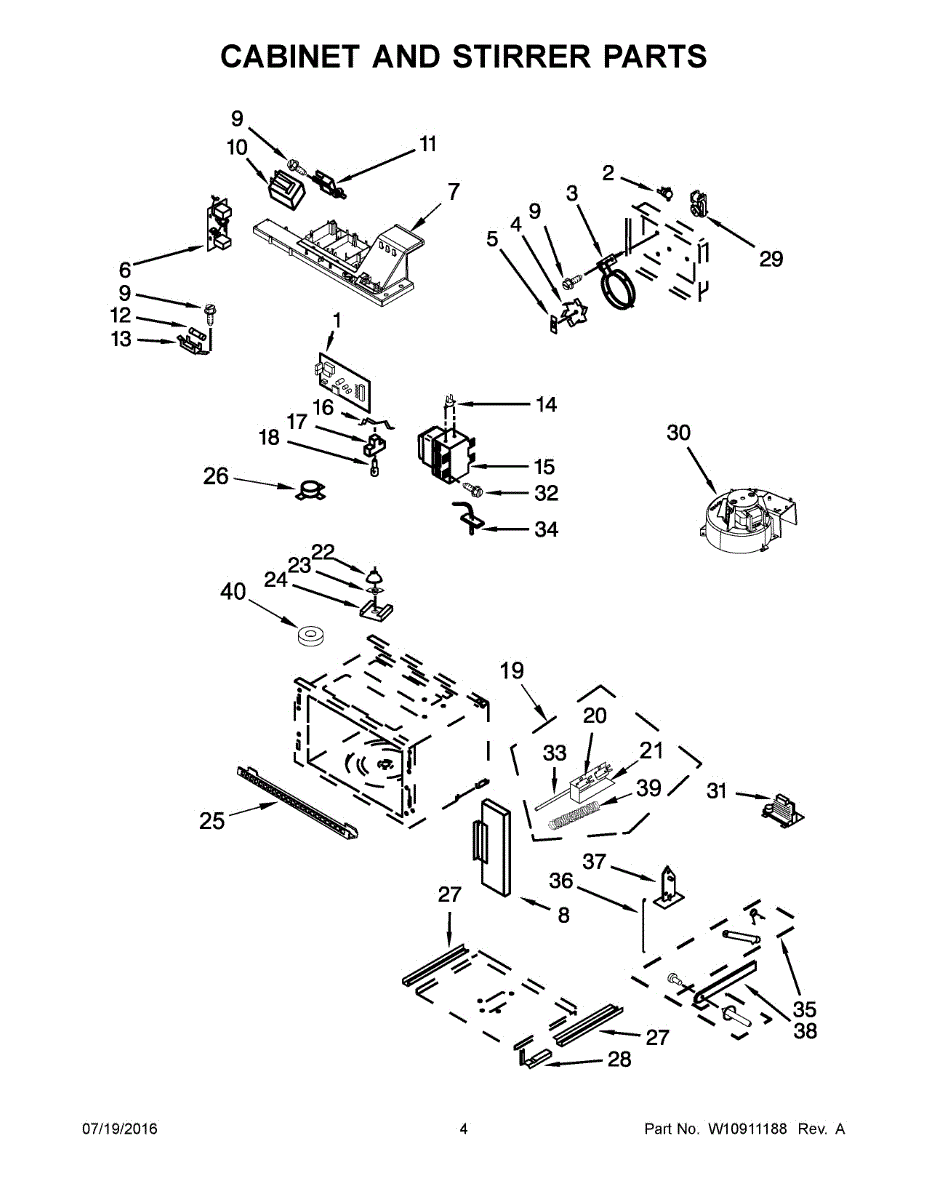

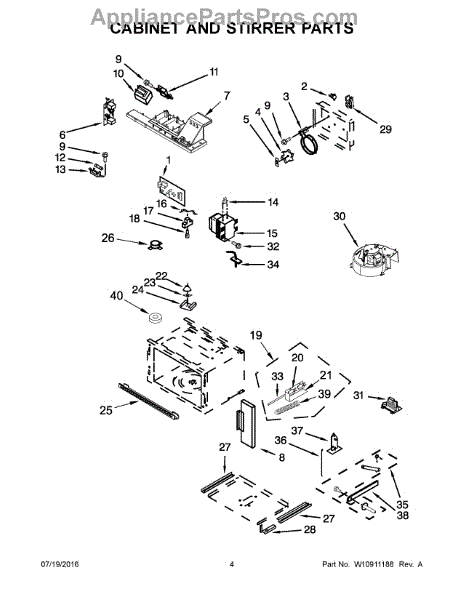

Parts for Kitchenaid KOCE507EBS02: 03 - Cabinet And Stirrer Parts

This electronic control board is the appliance's main control module. It interprets inputs, manages timing, and sends power to the proper components so cycles run correctly. Replacing a failed board can restore normal operation and responsive controls. What it does

• Processes signals from sensors and the user interface to execute programmed cycles
• Switches internal relays to power motors, valves, heaters, fans, or other loads as required
• Regulates timing, sequencing, and safety interlocks for reliable operation
• Common symptoms of a failed board: unresponsive controls, won't start, intermittent operation, cycle stalls, or error codes/alarms

• 1 electronic control board

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection; handle the PCB by its edges and avoid static-sensitive components
• Photograph/label connectors and transfer wiring one at a time to the new board
• Follow model-specific service instructions; some models may require entering service mode for configuration or calibration after installation

This evaporator fan moves cold air across the evaporator and through the refrigerator cabinet to keep temperatures even and food properly chilled. Replacing a failing fan restores airflow and helps the cooling system work efficiently. What it does:

• Circulates cold air from the evaporator to maintain even temperatures in the fresh-food and freezer compartments
• Promotes proper defrosting by moving air over the evaporator coils
• Reduces frost buildup and helps the compressor run less frequently when working correctly
• Common symptoms of a bad fan: loud or unusual noise from the fridge, warm compartments, or uneven cooling

• One evaporator fan assembly

• Disconnect power to the appliance before starting any repair
• Remove interior panels or shelving as needed to access the evaporator fan; follow OEM instructions for disassembly
• Handle evaporator coil area and sheet metal with care—sharp edges can cause injury
• After installation, restore power and check for improved cooling and absence of abnormal noise

The Support is an OEM part for Whirlpool microwaves, designed to secure the heating element in place. This support ensures the stability and proper functioning of the microwave's heating element, which is essential for cooking and heating food evenly.

Causes of failure can range from normal wear and tear over time, which can weaken the material of the support, to accidental damage during cleaning or use.

Symptoms of a bad Support include:

• The heating element becoming loose or misaligned, leading to uneven cooking or heating.
• Excessive vibration or noise from the microwave during operation, indicating a lack of stability.
• Visible wear or damage to the support, such as cracks or warping from heat exposure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Noise Filter is an OEM component specifically designed for Whirlpool microwaves. It works to dampen vibrations and reduce noise originating from the microwave's internal mechanisms during use.

Causes of a bad noise filter include degradation of the noise-dampening material over repeated heating cycles. Microwave usage subjects the filter to heat and vibration stress.

Symptoms of a bad noise filter include:

• Increased volume levels emanating from the microwave cabinet
• Louder high-pitched whining or buzzing sounds
• Vibrations felt on the exterior of the microwave body

This OEM Whirlpool replacement noise filter helps ensure a quiet cooking experience. Its precise design and durable construction minimize disruptive sounds. Please replace yours if you notice louder than normal operation noise.

This part is also compatible with some KitchenAid, Jenn-Air, Amana, and select Kenmore and Frigidaire microwaves.

This transformer converts incoming mains power to the low-voltage supply your appliance's control board needs, restoring reliable control and display operation. It's a direct-replacement component for worn or failed transformers. What it does:

• Provides the low-voltage power feed used by the control board and user interface
• Stops intermittent or complete loss of display or control responsiveness
• Prevents erratic cycling or failure to start when the control supply is interrupted
• Helps eliminate buzzing or overheating caused by a failing transformer

• One replacement transformer (exact part number required for compatibility)

• Disconnect all power at the breaker or unplug the appliance before servicing
• Note or photograph original wiring and connector locations for correct reassembly
• Handle with care; avoid touching terminals while energized and secure all covers
• Replace with the exact OEM part number to ensure correct voltage and fit

The Fuse is an OEM component for Whirlpool microwaves. As a critical safety device, it protects circuits from power surges or overloads that could damage internal electronics.

The fuse properly calibrates electrical flow through the appliance, preventing excessive currents from traveling between high and low-voltage systems. Its compact design installs discretely but is easily accessible for replacement when needed.

Causes for blown fuses include voltage spikes from power outages, faulty door interlocks energizing the magnetron with the door open, or short circuits due to loose wires or water intrusion over time.

Causes of a bad fuse can include:

• Repeatedly blowing when the appliance is in use
• No power to any microwave functions
• Tripped circuit breakers upon turning on the microwave
• Discoloration or physical damage to the fuse body

Compatible with microwave models from Maytag, Magic Chef, Admiral, and more for consistent, worry-free operation.

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This temperature sensor monitors refrigerator temperature and sends readings to the control board so the appliance can regulate cooling. Replacing a failing sensor restores accurate temperature feedback for reliable cooling performance. What it does

• Measures internal temperature and reports it to the refrigerator control board
• Helps the system cycle the compressor and fans correctly for stable temperatures
• Commonly linked to symptoms like poor cooling, frequent compressor run, or temperature-related error codes
• Works as the sensing element for automatic defrost and temperature-control routines

• One temperature sensor (thermistor) with attached lead

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring gently; secure the lead per factory routing to avoid contact with moving parts
• May require basic hand tools and access to the evaporator/thermostat area

The Magnetron is an OEM replacement part for Whirlpool microwaves. It is the main electronic component responsible for generating microwave energy for cooking and heating foods.

Causes of a bad magnetron can include electrical issues such as power surges, overheating due to blocked ventilation, or internal component wear and tear over time.

Symptoms of a bad magnetron include:

• The microwave not heating food
• Unusual buzzing or humming noises during operation
• A burning smell coming from the microwave
• The microwave shutting down or failing to start

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

This lamp holder secures and powers the oven/cabinet G4-base bulb so interior lighting works reliably and safely. It restores proper bulb contact and helps prevent flickering or intermittent lighting. What it does:

• Holds the G4-base light bulb in place and provides the electrical connection
• Restores interior lighting when the socket is loose, corroded, or damaged
• Helps stop flickering or intermittent on/off issues caused by a faulty holder
• Compatible with the oven/cabinet light assembly that uses a G4-style bulb

• Disconnect power to the appliance before servicing to avoid shock
• Allow the appliance and bulb to cool before touching components
• Inspect wiring and connectors; replace the holder if terminals are corroded or melted
• Use the correct G4 bulb type and wattage per the appliance manufacturer's instructions

The Halogen Bulb is an OEM replacement part is for Whirlpool range and oven models. This bulb provides concentrated light for the oven cavity, allowing users to clearly see food and monitor cooking progress.

Causes of a bad halogen bulb can include natural burnout over the lifecycle of the bulb from prolonged and frequent use of the oven light, or damage to the bulb from accidental impact or breakage during cleaning.

Symptoms of a bad halogen bulb include:

• Dim or no light emitted from the oven cavity
• Flickering or intermittent light function
• Premature burnout of the bulb filament

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This door interlock assembly mounts behind the microwave's front panel and aligns the latch and safety switches. Replacing a worn interlock restores reliable door detection so the microwave only starts when the door is fully closed.

• Holds and actuates the internal door safety switches
• Maintains precise latch alignment to prevent false "door open" signals
• Ensures the microwave will not run with the door open for safety
• Common symptoms: won't start, requires pressing on the door to run, stops when the door is jostled, intermittent "door" message

• Disconnect power before servicing; microwaves contain a high-voltage capacitor that can retain a charge.
• Access typically requires removing the outer cabinet and control panel.
• Position switches correctly in the holder per your service manual and verify smooth latch engagement.
• After reassembly, the unit only operates with the door fully closed.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

This oven temperature sensor monitors the oven cavity temperature and sends readings to the control board so your range can maintain accurate cooking temperatures. Replacing a faulty sensor restores proper temperature sensing for reliable bake and roast results. What it does:

• Measures internal oven temperature and reports it to the control board
• Helps maintain set cooking temperatures for even baking and roasting
• Common repair for ovens that run too hot, too cool, or display temperature errors
• Works with electronic controls to enable accurate temperature cycles

• One temperature sensor

• Disconnect power to the appliance before beginning any repair
• Sensor typically mounts inside the oven cavity and connects to a plug or harness; confirm connector location before removing
• Handle sensor carefully to avoid bending or damaging the probe

The Fan Motor is an OEM part compatible with Whirlpool microwave ovens. It is a crucial component responsible for circulating air and ventilating the interior of the microwave during operation. The fan motor ensures proper air flow, which helps regulate temperature and prevent overheating.

Symptoms of a bad Fan Motor include:

• Inadequate ventilation or poor air circulation within the microwave
• Overheating issues or unusual odors during use
• Excessive noise or rattling sounds coming from the fan area
• Complete failure of the fan to operate or turn on

Causes of a bad fan motor can range from bearing failure due to wear and tear over time, to physical damage from impact or debris buildup. Electrical issues, such as voltage fluctuations or component failures, can also contribute to the malfunction of the fan motor.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore microwave models.

The Inverter is an OEM replacment part for Whirlpool microwaves. It regulates the magnitude and duration of electromagnetic waves generated during cooking functions.

Causes of a faulty inverter can include general wear from prolonged use or damage from power surges entering the microwave.

Symptoms include:

• Inconsistent or incomplete heating of foods
• Sparking or burning smells emanating from within
• Control panel errors or failure to properly sense wattage settings

This OEM Whirlpool replacement ensures precise electromagnetic wave output. Compatible with KitchenAid, Maytag, Jenn-Air, and select other branded microwaves, the inverter restores consistent cooking performance.

This release rod links the push-button to the latch mechanism so the microwave door opens when pressed. Replacing a bent or broken rod restores smooth, consistent door release and proper latch operation.

• Transfers motion from the door-open button to the latch levers to release the door catch
• Helps ensure the door opens promptly when the button is pressed
• Common symptoms: button does nothing or feels loose, door hard to open, intermittent opening
• Often fails due to wear, misalignment, or a dislodged linkage

• Disconnect power; microwaves contain a high-voltage capacitor that can retain a dangerous charge
• Remove the upper grille and control panel to access the latch/button linkage
• Note the rod's routing and any clips; transfer reusable hardware and match original orientation
• After reassembly, verify door switch alignment and test for smooth opening before use

This temperature sensor monitors oven cavity temperature and sends readings to the range control so your oven can regulate bake and broil cycles more accurately. Replaces a failing sensor to restore reliable temperature sensing. What it does:

• Detects oven cavity temperature and reports it to the control board
• Helps the range maintain set cooking temperatures during bake/broil cycles
• Common symptom: oven runs too hot, too cold, or cooks unevenly
• Can cause temperature-related error codes or prevent proper preheating

• Disconnect power to the appliance before starting any repair
• Handle the sensor and its wiring harness carefully to avoid damage
• Install the sensor in the original location and orientation for proper readings

This tension spring restores proper movement and tension for the appliance component it secures, helping the part operate smoothly and reliably. It's a simple replacement that fixes common issues caused by worn or broken springs. What it does:

• Provides tension to hold or return a moving component to its correct position
• Helps stop sagging, slipping, or loose operation of doors, latches, or levers
• Can reduce rattling or unusual noises caused by a failed spring
• Restores normal mechanical action when the original spring is stretched or broken

• Disconnect power to the appliance before starting any repair
• Springs can be under tension—use appropriate tools and wear eye/hand protection
• Compare the new spring to the old one for length, coil size, and end fittings before installation

This support is a replacement mounting bracket that secures internal components and restores proper alignment and stability. It helps reduce vibration and prevents loose or sagging parts for safer, quieter operation. What it does:

• Provides a rigid mounting point to hold internal assemblies in place
• Restores correct alignment when panels or components sit unevenly
• Reduces vibration or rattling caused by a broken or missing support
• Helps prevent additional wear on adjoining parts by keeping components stable

• One support mounting bracket

• Recommended for repair by someone comfortable with appliance disassembly
• Disconnect power (and water, if applicable) before starting any repair
• Keep track of mounting hardware and gaskets removed during replacement
• Inspect adjacent parts for wear when installing this support and replace as needed

This seal-foam piece provides a cushioned, insulating barrier between cabinet or door panels to help reduce air leaks and vibration. It restores proper contact where foam sealing is required for consistent temperature control and quieter operation. What it does

• Fills gaps and cushions panel edges to improve thermal insulation and reduce drafts.
• Helps prevent moisture intrusion that can cause condensation or frost buildup.
• Dampens vibration and reduces rattling between panels or trim pieces.
• Supports proper door/panel alignment so seals and gaskets seat correctly.

• One seal-foam piece as shown

• Intended for replacement where existing foam is damaged, compressed, or missing.
• Clean mating surfaces and remove old adhesive or residue before installing for best adhesion.
• May require adhesive or clips depending on application—verify mounting method on your appliance.
• Disconnect power and follow appliance manufacturer's safety instructions before servicing.
