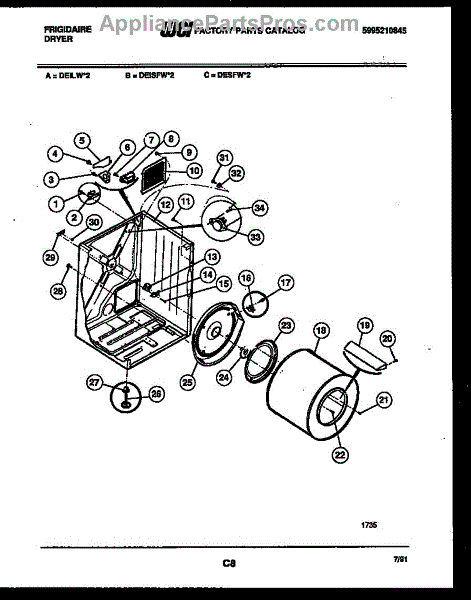

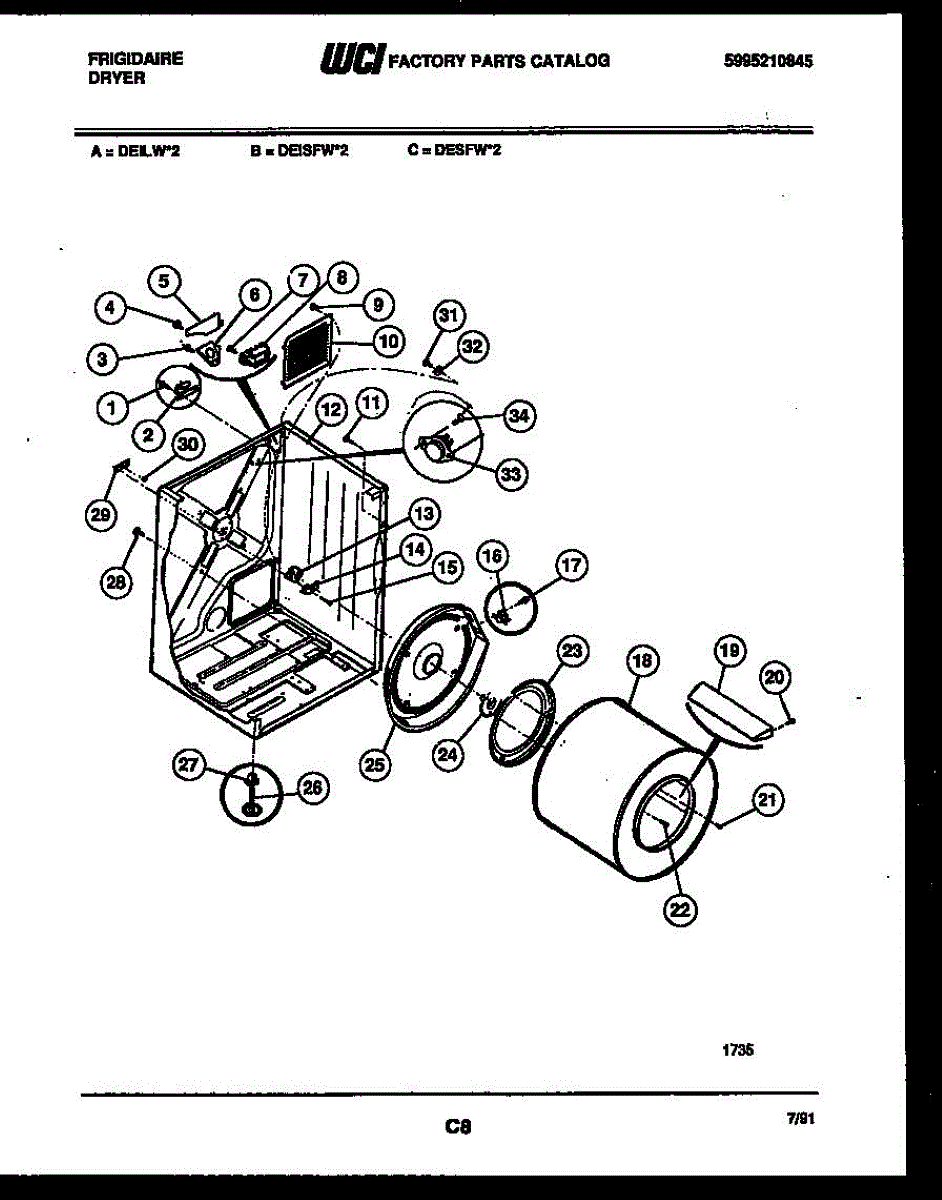

Parts for Frigidaire DESFW2: 02 - Cabinet And Component Parts

This block is a small mounting spacer used to secure and align components inside the appliance, helping maintain proper fit and operation. It replaces worn or broken mounting blocks to restore stable support and alignment. What it does:

• Provides a stable mounting surface or spacer between cabinet components
• Holds panels or assemblies in correct position to prevent rubbing or misalignment
• Helps reduce vibration or shifting of the connected parts during operation
• Commonly replaced when cracked, broken, or missing

• One mounting block

• High-level replacement; may require removing panels or trim to access mounting location
• Use appropriate hand tools and keep fasteners organized for reassembly
• Disconnect power before servicing any electrical components

The Dryer Drum Bearing is an OEM part for Frigidaire dryers. It supports the dryer drum, ensuring smooth rotation during the drying cycle. This part attaches to the inside of the rear panel of the cabinet, offering support to the dryer drum.

You should replace the drum bearing if it becomes worn out or damaged. Causes of a bad drum bearing can include normal wear and tear, overloading the dryer, or lack of lubrication.

Symptoms of a bad drum bearing include:

• Loud squeaking or grinding noises during operation
• The drum not turning smoothly or becoming misaligned
• Increased friction causing overheating or burning smells
• The dryer not tumbling clothes properly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drum Bearing Bracket is an OEM replacement part for Frigidaire dryers. It holds and supports the drum bearing, which allows the dryer drum to spin smoothly during the tumbling and drying cycle.

Causes of failure can be cracking or breaking of the bracket over time due to constant use and stress. Improper installation that puts strain on the bracket may also lead to issues.

Symptoms of a bad drum bearing bracket include:

• Excessive vibration or shaking during operation
• Loud grinding or scraping noises
• The dryer drum not spinning properly or at all
• Premature wear of the drum bearing

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

A replacement bracket screw used to fasten internal brackets and panels to the appliance frame, restoring secure mounting and reducing rattling or misalignment caused by stripped, corroded, or missing fasteners. What it does

• Secures mounting brackets, panels or trim to the appliance chassis.
• Restores proper alignment and prevents movement or vibration-related noise.
• Use when the original screw is stripped, rusted, broken, or missing.
• Square-drive head provides a reliable engagement for positive tightening.

• Disconnect power to the appliance before servicing to avoid electrical hazard.
• Use the correct square (Robertson) driver to avoid cam-out and head damage.
• Tighten until snug; avoid over-tightening which can strip threads or crack panels.
• If threads are damaged, replace with the matching screw size and type or repair threads before reuse.

This replacement screw secures appliance panels and components to restore proper fit and reduce movement. It's a simple, direct fix when small fasteners are missing, worn, or stripped and panels sit loose or rattle. What it does:

• Secures trim, panels, or internal components to keep parts aligned
• Prevents rattling or vibration caused by loose fasteners
• Replaces missing or damaged screws that prevent proper panel attachment
• Restores a safe, snug fit for covers and access panels

• Disconnect power or fuel supply before accessing the appliance for safety.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent damage to threads or housing.
• Keep small parts away from children and pets during installation.

A single replacement screw fastener used to secure trim, panels, or internal components. Fits specific Frigidaire appliance locations to restore proper fastening and alignment where factory hardware is missing or damaged. What it does:

• Secures plastic trim, brackets, or metal panels in refrigerators and freezers
• Restores proper alignment and prevents rattling or loose parts
• Replaces stripped, corroded, or lost hardware to maintain appliance function
• Works wherever the original factory screw was specified

• One replacement screw

• Use the correct screwdriver or bit to avoid damaging the screw head
• Do not overtighten; snug until seated to prevent cracking plastic or stripping threads
• Replace only with the exact factory part for proper fit and function
• Unplug the appliance or turn off power first if working near electrical components

This heater baffle mounts near the heating element to deflect and distribute radiant heat. It helps protect nearby surfaces and wiring while promoting more even temperatures and reliable performance inside the appliance.

• Directs and diffuses heat from the element to reduce hot spots
• Acts as a heat shield to protect the liner and adjacent components from direct radiant heat
• Helps maintain proper clearance and airflow around the element
• Damage or a missing baffle can lead to uneven temperatures, localized discoloration/scorching, or a burning smell

• Disconnect power at the breaker or unplug the appliance; allow it to cool completely
• Access the heater area; remove the screws or clips securing the existing baffle and retain the hardware
• Position the new baffle in the same orientation; ensure it does not contact the heating element
• Restore power and test operation

For a complete drum bearing and shaft kit order 5303281153.

This replacement heater assembly restores proper heat output in your appliance. It delivers the thermal energy needed for normal operation so your unit can reach and maintain the correct temperature and complete cycles as designed.

• Generates heat for the appliance's heating/drying/defrost function (as applicable to your model)
• Helps the unit reach and maintain target temperature for proper performance
• Common failure signs: no heat or weak heat; cycles take too long or do not complete
• May trigger heating-related error/fault codes; visible breaks or hot spots on the element; tripped breaker from a short to ground

• Disconnect electrical power before servicing; allow hot components to cool
• Wear cut-resistant gloves; internal panels and chassis edges can be sharp
• Document wire routing and mounting positions before removal; route wiring exactly as original
• After installation, ensure secure connections and clearance from metal surfaces; run a brief test cycle to verify operation

Sold individually.

For a complete drum bearing and shaft kit order 5303281153.

The Ball is an OEM part for Frigidaire dryers. This part helps the drum to rotate smoothly and evenly. It provides a stable and low-friction contact point, allowing the drum to turn efficiently during drying cycles. This is a drum-bearing ball only. For a complete drum bearing and shaft kit order 5303281153.

Causes of a bad ball can include regular wear and tear, friction from continuous drum rotation, or physical damage.

Symptoms of a bad dryer ball include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming unbalanced
• Increased friction leading to higher energy consumption
• Visible wear or damage to the ball

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Hex washer head ,10-32 x 0.375. Ground

The Rear Drum Bearing Kit is an OEM replacement part for Frigidaire dryers. It contains a set of parts responsible for supporting the rear end of the dryer drum, allowing it to rotate smoothly and efficiently during the drying cycle.

Symptoms of a faulty Rear Drum Bearing Kit include:

• Excessive noise or grinding sounds coming from the rear of the dryer
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear or damage on the existing bearings
• Increased vibrations or shaking during the drying cycle

Causes of needing to replace the rear drum bearing kit can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryer models.

NOTE: The metal plate holes are not threaded. Use the self-tapping screws provided in the kit to thread the plate.

The Thermal Limiter is an OEM part for Frigidaire dryers. It acts as a safety feature, designed to prevent the dryer from overheating by shutting down the appliance when the internal temperature exceeds safe limits.

Symptoms of a failing Thermal Limiter include:

• The dryer failing to start or stopping abruptly during a cycle
• No heat being generated while the dryer is running
• The dryer overheating or feeling excessively hot

Common causes for a bad thermal limiter include restricted airflow due to a clogged lint filter or venting system, component failure from age or faulty manufacturing, and unusually high operating temperatures from overloading the dryer or mechanical failures elsewhere in the system. When a thermal limiter trips or fails, it must be replaced to restore functionality to the dryer.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
