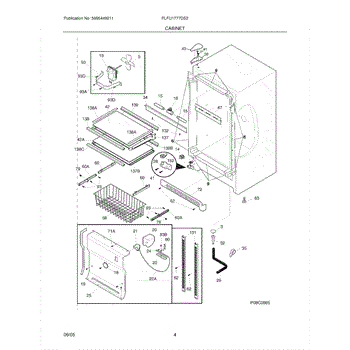

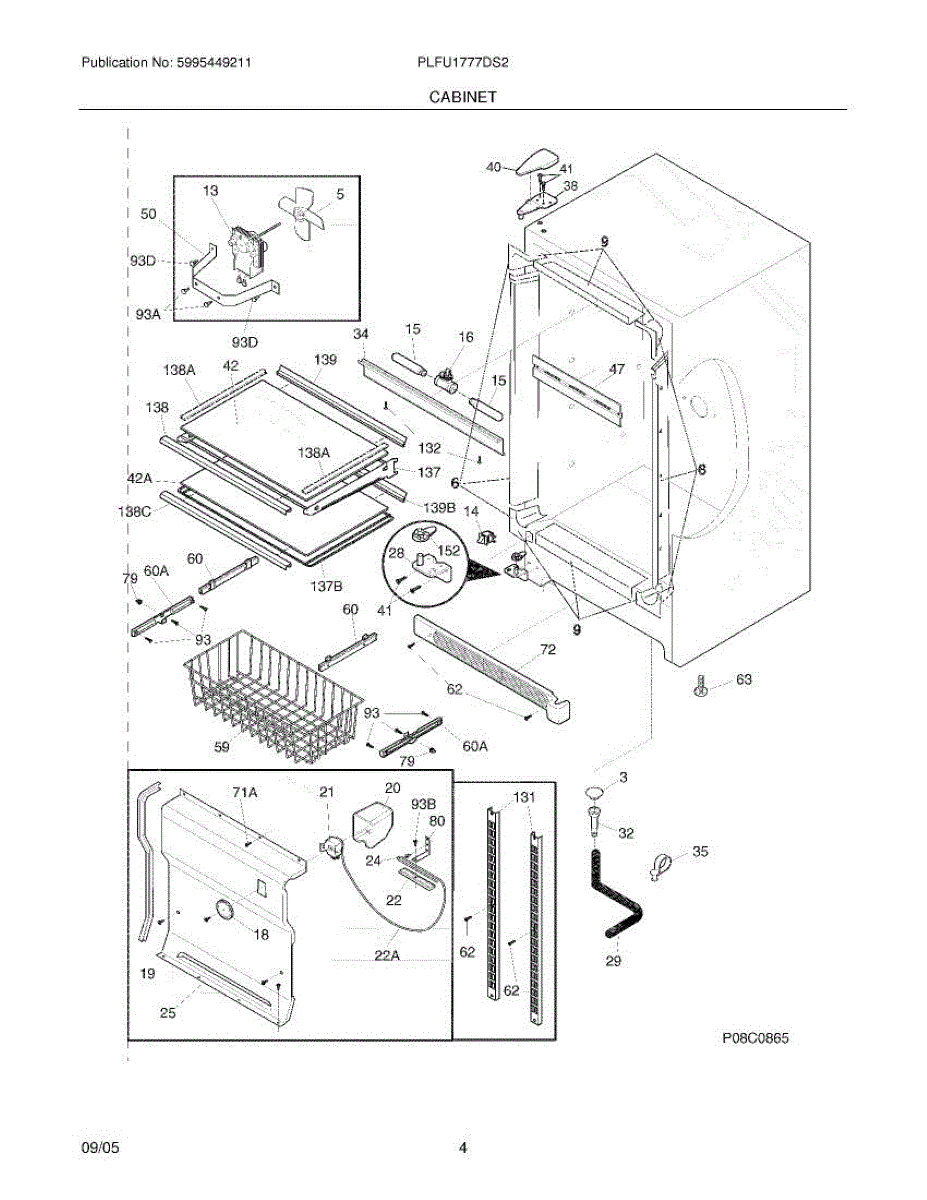

Parts for Frigidaire PLFU1777DS2: 05 - Cabinet Parts

Screen - drain keeps the drain path clear by trapping lint and small debris before it reaches the pump or drain hose, helping reduce clogs and improve drainage. Simple replacement restores proper water flow and drain performance. What it does:

• Traps lint, hair and small debris to help prevent clogs in the drain path
• Helps maintain consistent water drainage and pump operation
• Replace if you notice slow draining, standing water, or visible debris at the drain opening
• Sits in the appliance's drain assembly to protect downstream components

• Disconnect power to the appliance before servicing; turn off the water supply if the model requires it
• Access the drain area per your model's service instructions (remove access panel or wash tub components as needed)
• Inspect surrounding seals and hoses for damage and clean mating surfaces before installing the new screen

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

The Evaporator Cover Gasket seals the perimeter of the freezer's evaporator cover to prevent air leaks that can lead to frost, moisture, and temperature swings. Replacing a worn gasket helps restore proper airflow and consistent cooling.

• Seals the evaporator cover to the liner to maintain directed airflow and contain cold air
• Helps prevent frost or ice buildup around the cover and on nearby air passages
• Can help address symptoms like temperature inconsistencies, poor cooling, or excess moisture caused by air leaks
• Replaces a torn, flattened, or missing gasket to ensure a tight cover fit

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the evaporator cover to access the gasket
• Clean mating surfaces; press the new gasket fully into place with no gaps or twists
• Ensure air vents are unobstructed, reinstall the cover securely, then restore power

This replacement cover is an access panel trim piece that protects internal components and gives the appliance a finished appearance. It restores a secure, clean-looking exterior where the original cover is cracked or missing. What it does

• Covers and protects control or component openings from dust, debris, and accidental contact
• Keeps wiring and fasteners concealed for a neater appearance
• Prevents rattling or vibration caused by a damaged or loose trim piece
• Commonly replaced when the cover is cracked, broken, warped, or missing

• One cover

• Disconnect power to the appliance before starting any work
• Remove adjacent trim or fasteners as needed to access mounting points; retain hardware for reassembly
• Align tabs or screw holes and secure without over-tightening to avoid cracking the plastic

The Temperature Control Thermostat is an OEM replacement part for Frigidaire refrigerators. It is a crucial component that regulates the temperature within the refrigerator and freezer compartments, ensuring optimal cooling and food preservation.

Symptoms of a need to replace the temperature control thermostat:

• Inability to maintain consistent temperatures in the refrigerator or freezer
• Excessive cooling or warming, leading to food spoilage
• Complete failure of the refrigerator to cool or maintain any cooling at all

Causes of a faulty temperature control thermostat can include general wear and tear over time, electrical malfunctions or wiring issues, exposure to moisture or condensation, or physical damage from impact or mishandling.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This replacement glass shelf restores a flat, sturdy storage surface and helps contain spills inside your refrigeration appliance. Replace cracked or missing shelf glass to recover usable space and keep items organized and secure.

• Creates a level surface for food storage; sits in the shelf frame or rails
• Helps contain drips and spills to the shelf area
• Replace if the glass is cracked, chipped, shattered, bowed, or missing
• Common symptoms: shelf won't seat level, items tip over, or liquids leak between levels

• Disconnect power and wear cut-resistant gloves and eye protection
• Allow any chilled glass to warm to room temperature before handling
• Support the glass with both hands; slide or set it evenly into the frame/side rails until fully seated
• Load items only after the shelf is properly supported

This mounting bracket secures internal components and panels to restore proper alignment and reduce vibration. It provides a direct replacement for worn or damaged support hardware so assemblies stay firmly in place. What it does:

• Secures appliance panels or internal components to the cabinet or frame
• Keeps parts aligned to prevent rattling, vibration, or movement during operation
• Restores proper fit where a bent, broken, or missing bracket causes loose assemblies
• Helps maintain safe, stable operation by holding parts in their designed position

• One mounting bracket

• Designed to replace the factory bracket in the same mounting location; verify fit before installation
• Use appropriate fasteners and torque to avoid striping or damage to mounting points
• Disconnect power and empty unit if needed before accessing internal areas

This replacement slide is the rail that mounts inside the freezer and supports the storage basket or drawer so it glides in and out smoothly. Replacing a worn slide restores smooth operation and keeps baskets properly aligned.

• Supports and guides the freezer basket/drawer during opening and closing
• Helps keep the basket level and correctly aligned on its track
• Common fix for cracked, warped, or broken rails
• Symptoms include binding, rough travel, derailment, or difficulty opening/closing

• Disconnect power to the appliance before servicing.
• Remove the basket, then unfasten and remove the existing slide; note its mounting position.
• Install the new slide using the original hardware; do not overtighten.
• Reinstall the basket and verify smooth travel.

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly

This kickplate grille mounts along the bottom front of the appliance to cover the lower compartment while allowing ventilation. Replace a cracked or missing grille to restore a finished look and maintain proper airflow to the condenser area.

• Covers and protects the lower front opening and internal components from bumps and debris
• Vents the toe-kick area to help maintain proper airflow through the condenser section
• Restores a clean, finished appearance at the base of the unit
• Common signs it's time to replace: cracked or broken grille, warped or missing piece, won't stay attached, rattling at the bottom front

• Disconnect power before servicing
• Remove the existing grille by releasing clips or removing screws as applicable
• Align the new grille with the mounting points; press or fasten in place and keep vent slots clear
• Restore power and check that the grille is secure and unobstructed

The insert nut provides a durable threaded anchor in thin metal or plastic panels. It lets mounting screws tighten securely so covers, brackets, or trim stay fastened and aligned without loosening from vibration.

• Adds internal threads in a thin panel so a machine screw can be used
• Secures panels, brackets, or trim to the appliance cabinet or frame
• Replaces a stripped, damaged, or missing insert to restore screw retention
• Symptoms addressed: screws won't tighten, hardware falls out, panel rattles or shifts

• Disconnect power to the appliance before servicing; shut off water or gas supply if applicable
• Access the mounting location; remove the screw and the old insert if present
• Position the new insert squarely in the hole/slot and press or snap into place as designed
• Reinstall the screw and tighten snugly—do not overtighten to avoid stripping the insert or panel

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. Use when original fasteners are lost, stripped, or damaged to keep parts aligned and prevent noise or movement. What it does:

• Fastens trim, panels, brackets or small components to maintain proper alignment
• Helps stop rattling, vibration, or loose parts caused by missing or worn screws
• Replaces stripped or corroded screws to restore secure connections
• Matches the original mounting function for reliable holding strength when correctly installed

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and hand-start screws to prevent cross-threading; tighten securely but avoid over-torquing
• If threads in the mating part are damaged, inspect and repair or replace the mating part rather than over-driving a screw

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

Replacement frame shelf that secures and supports a refrigerator shelf, restoring stable storage and helping prevent sliding or tipping of items. Fits the OEM shelf opening and provides a finished trim around the shelf edge. What it does:

• Holds and supports a glass or plastic shelf so food and containers sit level and secure
• Keeps shelf edges aligned with the refrigerator liner to prevent tipping or shifting
• Restores proper shelf seating when the original frame is cracked, warped, or broken
• Helps maintain an even load distribution across the shelf surface

• 1 frame shelf

• Remove all items from the shelf and use caution handling glass components
• Many installs slide or snap the frame into place after removing the shelf; keep track of any clips or fasteners
• If the shelf or frame is damaged, replace both pieces when recommended by the OEM

This external ice maker cover protects the ice maker assembly and helps keep ice clean by shielding it from debris and direct airflow. It restores the ice compartment's finished appearance and helps prevent ice contamination. What it does:

• Shields the ice-making components from splashes, food particles, and incidental contact
• Helps maintain consistent ice shape by reducing airflow disruptions near the mold
• Prevents loose ice from falling into the mechanism and interfering with operation
• Replaces cracked, warped or missing covers that expose the ice maker

• One external ice maker cover

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the cover carefully to avoid cracking; use soft gloves if needed
• Reinstall by aligning with existing mounting points—do not force into place
• Replace fasteners with OEM-equivalent parts

Color: White
