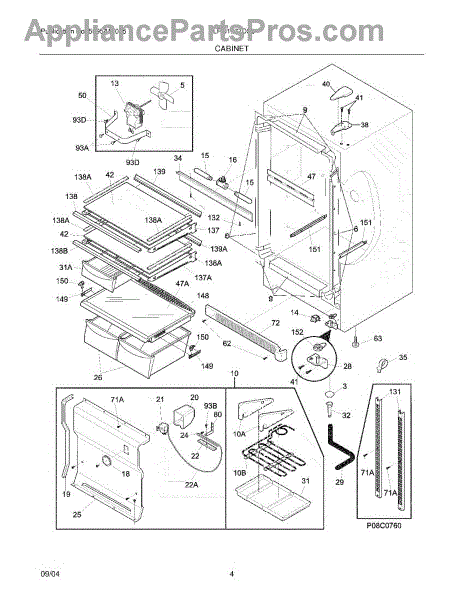

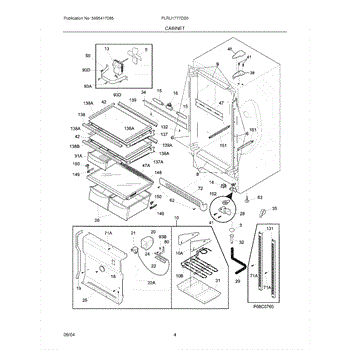

Parts for Frigidaire PLRU1777DS0: 05 - Cabinet Parts

Screen - drain keeps the drain path clear by trapping lint and small debris before it reaches the pump or drain hose, helping reduce clogs and improve drainage. Simple replacement restores proper water flow and drain performance. What it does:

• Traps lint, hair and small debris to help prevent clogs in the drain path
• Helps maintain consistent water drainage and pump operation
• Replace if you notice slow draining, standing water, or visible debris at the drain opening
• Sits in the appliance's drain assembly to protect downstream components

• Disconnect power to the appliance before servicing; turn off the water supply if the model requires it
• Access the drain area per your model's service instructions (remove access panel or wash tub components as needed)
• Inspect surrounding seals and hoses for damage and clean mating surfaces before installing the new screen

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The LED Light Bulb is an OEM part for Frigidaire refrigerators. It provides illumination inside the refrigerator, making it easier to see and access food items.

Causes of a bad LED light bulb can include burnout from prolonged use, electrical surges, or damage from physical impact. Additionally, issues with the bulb's connection or internal circuitry can result in malfunction.

Symptoms of a bad LED light bulb include:

• The refrigerator interior remaining dark when the door is opened
• Flickering or dim light
• Intermittent lighting
• Complete failure to light up

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This receptacle is the mating socket for a plug-in refrigerator component, providing a secure connection for reliable operation. Replacing a worn or heat-damaged socket restores solid contact and helps prevent intermittent performance.

• Serves as the socket/interface for a plug-in component inside the appliance
• Maintains tight contact for consistent operation and safe connectivity
• Replaces loose, burned, or broken sockets that can cause heat or arcing
• Common symptoms: connected part won't run or is intermittent; loose fit; visible discoloration or melting at the socket

• Disconnect power to the appliance before servicing
• Access the socket location and note/photograph wire orientation
• Transfer wires/terminals one at a time to the new receptacle; ensure full seating
• Inspect the mating plug/harness for heat damage and replace if necessary

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

The Evaporator Cover Gasket seals the perimeter of the freezer's evaporator cover to prevent air leaks that can lead to frost, moisture, and temperature swings. Replacing a worn gasket helps restore proper airflow and consistent cooling.

• Seals the evaporator cover to the liner to maintain directed airflow and contain cold air
• Helps prevent frost or ice buildup around the cover and on nearby air passages
• Can help address symptoms like temperature inconsistencies, poor cooling, or excess moisture caused by air leaks
• Replaces a torn, flattened, or missing gasket to ensure a tight cover fit

• Disconnect power before servicing; wear cut-resistant gloves
• Remove freezer shelves/bins and the evaporator cover to access the gasket
• Clean mating surfaces; press the new gasket fully into place with no gaps or twists
• Ensure air vents are unobstructed, reinstall the cover securely, then restore power

Replace a failed control assembly with this control kit. It restores proper control response and consistent operation by replacing the module that manages your appliance's settings, timing, and user interface. What it does:

• Manages mode selection, timing, and outputs based on user inputs
• Interfaces with buttons/knobs and display
• Interprets sensor/thermostat signals to control motors, heaters, valves, or relays
• Common symptoms include no response from controls, erratic operation, error codes, won't start, or cycles that won't advance

• One control kit

• Disconnect power before servicing
• Transfer wires/connectors one at a time; label or photograph for reference
• Handle any circuit boards by the edges; avoid static discharge and bent pins
• After installation, complete any model-specific setup per manufacturer instructions

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This replacement part is a crisper pan, and it is intended for use in different types of appliances. This is a genuine replacement part made by Frigidaire. The crisper pan is usually found at the very bottom of the fridge and is used for vegetables and other items that need to stay very cold. A new crisper pan might be needed if the current one is damaged or broken in any way. It is common for pans to be chipped, broken, or cracked after years of normal use as they are pulled in and out quite frequently. It is also possible for the pan to become brittle over time after being exposed to such cold temperatures. If the pan has become discolored and is unable to be cleaned, it is also recommended that it be replaced with a new one. After emptying the current pan, simply replace the area with a new crisper pan. This part is sourced directly from the manufacturer. This is a genuine OEM replacement part and is sold individually.

This drain hose carries water away from your appliance during draining to help prevent backups and leaks. Replace a cracked, clogged, or kinked hose to restore reliable water removal and protect surrounding floors and cabinets. What it does:

• Directs drain water from the outlet or pump to the designated discharge point
• Maintains proper flow; kinks or blockages can cause slow or no draining
• Helps prevent leaks from splits, pinholes, or loose connections
• Common signs: standing water, water under/around the unit, drain-related error codes, or odors

• Includes 1 drain hose

• Disconnect power and shut off water supply before servicing
• Place towels or a shallow pan to catch residual water when removing the old hose
• Note the original routing; seat connections fully, secure with clamps, and avoid sharp bends or kinks
• Run a brief drain/rinse and check all joints for leaks

The Meat Pan is an OEM part for Frigidaire refrigerators. This drawer is specifically designed to store meats and other perishables at an optimal temperature within your refrigerator. Its placement often allows for slightly different temperature conditions than the rest of the refrigerator, helping to keep meats fresher for longer. This bin measures approximately 18 inches long and 13 inches wide,

Symptoms of a failing meat pan include:

• Cracks or breaks in the pan that compromise its structural integrity
• Difficulty sliding the pan in and out due to damage or warping
• The pan not sealing properly, which can affect temperature regulation within the compartment

Causes of meat pan damage usually stem from overloading the drawer beyond its capacity, frequent and forceful use, or accidental damage from items being dropped on or in it.

This OEM part is compatible with Kenmore, Frigidaire, Crosley, Westinghouse, Electrolux, Kelvinator, and Gibson brands.

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This replacement glass shelf restores a flat, sturdy storage surface and helps contain spills inside your refrigeration appliance. Replace cracked or missing shelf glass to recover usable space and keep items organized and secure.

• Creates a level surface for food storage; sits in the shelf frame or rails
• Helps contain drips and spills to the shelf area
• Replace if the glass is cracked, chipped, shattered, bowed, or missing
• Common symptoms: shelf won't seat level, items tip over, or liquids leak between levels

• Disconnect power and wear cut-resistant gloves and eye protection
• Allow any chilled glass to warm to room temperature before handling
• Support the glass with both hands; slide or set it evenly into the frame/side rails until fully seated
• Load items only after the shelf is properly supported

This baffle plate secures internal panels and helps position or shield components for proper airflow and operation. It replaces a worn or damaged bracket to restore stable mounting and reduce vibration or rattling. What it does:

• Secures internal panels or assemblies to prevent movement and noise
• Helps direct or protect airflow paths around internal components
• Reduces rattling, vibration, and intermittent contact caused by loose parts
• Commonly replaced when a panel is cracked, bent, or no longer holds fasteners

• Disconnect power to the appliance before beginning any repairs
• Inspect surrounding fasteners and mounting points; replace any stripped or damaged screws
• Reuse existing hardware only if in good condition; use manufacturer-recommended fasteners when available

The Glass Shelf Insert is an OEM replacement part for Frigidaire refrigerators. It provides versatile storage space by allowing items to be viewed clearly and easily rearranged. This insert measures approximately  23.82 x 15.50 inches

Causes of a bad shelf insert may include cracks, chips or other damage due to repeated handling or excessive weight loads not suitable for glass. Normal wear over time can also affect the shelf surface.

Symptoms of issues include:

• Visible damage detracting from shelf appearance and function
• Increased risk of items stored atop the shelf getting damaged
• Difficulty cleaning due to cracks or irregular surfaces

This OEM replacement part is compatible with models by Electrolux, Kelvinator and Kenmore as well.

This mounting bracket secures internal components and panels to restore proper alignment and reduce vibration. It provides a direct replacement for worn or damaged support hardware so assemblies stay firmly in place. What it does:

• Secures appliance panels or internal components to the cabinet or frame
• Keeps parts aligned to prevent rattling, vibration, or movement during operation
• Restores proper fit where a bent, broken, or missing bracket causes loose assemblies
• Helps maintain safe, stable operation by holding parts in their designed position

• One mounting bracket

• Designed to replace the factory bracket in the same mounting location; verify fit before installation
• Use appropriate fasteners and torque to avoid striping or damage to mounting points
• Disconnect power and empty unit if needed before accessing internal areas

The Adjustable Foot is an OEM part for Frigidaire dryers. This part is located at the bottom of the dryer and allows you to level it, ensuring stability and proper operation.

Causes of a bad adjustable foot can include regular wear and tear, damage from moving the appliance, or breaking due to excessive weight or stress.

Symptoms of a bad adjustable foot include:

• The dryer wobbling or tilting
• Difficulty in adjusting the height of the foot
• Visible damage or deformation of the foot
• Unusual noises or vibrations during operation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly

This kickplate grille mounts along the bottom front of the appliance to cover the lower compartment while allowing ventilation. Replace a cracked or missing grille to restore a finished look and maintain proper airflow to the condenser area.

• Covers and protects the lower front opening and internal components from bumps and debris
• Vents the toe-kick area to help maintain proper airflow through the condenser section
• Restores a clean, finished appearance at the base of the unit
• Common signs it's time to replace: cracked or broken grille, warped or missing piece, won't stay attached, rattling at the bottom front

• Disconnect power before servicing
• Remove the existing grille by releasing clips or removing screws as applicable
• Align the new grille with the mounting points; press or fasten in place and keep vent slots clear
• Restore power and check that the grille is secure and unobstructed

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

Replacement frame shelf that secures and supports a refrigerator shelf, restoring stable storage and helping prevent sliding or tipping of items. Fits the OEM shelf opening and provides a finished trim around the shelf edge. What it does:

• Holds and supports a glass or plastic shelf so food and containers sit level and secure
• Keeps shelf edges aligned with the refrigerator liner to prevent tipping or shifting
• Restores proper shelf seating when the original frame is cracked, warped, or broken
• Helps maintain an even load distribution across the shelf surface

• 1 frame shelf

• Remove all items from the shelf and use caution handling glass components
• Many installs slide or snap the frame into place after removing the shelf; keep track of any clips or fasteners
• If the shelf or frame is damaged, replace both pieces when recommended by the OEM

This humidity damper kit replaces the adjustable vent in your refrigerator's crisper cover. It restores proper airflow control so you can set high or low humidity for produce and reduce excess moisture or wilting. What it does:

• Regulates airflow at the crisper vent to raise or lower humidity levels
• Restores smooth slider/lever operation for accurate open/close of the damper
• Helps reduce condensation or pooling water in the crisper area
• Replaces broken, warped, or missing humidity vent parts

• One humidity damper kit (manufacturer-supplied damper/control components)

• Unplug the refrigerator; remove crisper drawers and lift out the glass cover/shelf
• Release tabs or screws to remove the old humidity control; note orientation of parts
• Install the new damper components and confirm the slider moves freely from Low to High
• Reinstall the cover and drawers; restore power and verify proper operation

This humidity damper kit replaces the adjustable vent in your refrigerator's crisper cover. It restores proper airflow control so you can set high or low humidity for produce and reduce excess moisture or wilting. What it does:

• Regulates airflow at the crisper vent to raise or lower humidity levels
• Restores smooth slider/lever operation for accurate open/close of the damper
• Helps reduce condensation or pooling water in the crisper area
• Replaces broken, warped, or missing humidity vent parts

• One humidity damper kit (manufacturer-supplied damper/control components)

• Unplug the refrigerator; remove crisper drawers and lift out the glass cover/shelf
• Release tabs or screws to remove the old humidity control; note orientation of parts
• Install the new damper components and confirm the slider moves freely from Low to High
• Reinstall the cover and drawers; restore power and verify proper operation

Left Hand

Right hand

This drain tube insulation cushions and thermally protects the refrigerator's defrost drain tube to help prevent condensation and ice buildup. It keeps the drain line insulated so water flows freely to the drip pan and reduces drip/ice-related issues. What it does:

• Wraps around the defrost drain tube to limit heat transfer and condensation.
• Helps prevent drain freeze-ups that can cause water pooling or slow drainage.
• Reduces the chance of water dripping inside the cabinet or onto the floor.
• Supports reliable defrost water routing to the drain pan.

• Always unplug the appliance or disconnect power before servicing.
• Access may require removing the back or inside panel; keep track of fasteners.
• Slide the insulation over the drain tube so it fully covers the exposed section; ensure it sits flat without kinks.
• If corrosion or heavy buildup is present, clean the drain tube before installing new insulation.
