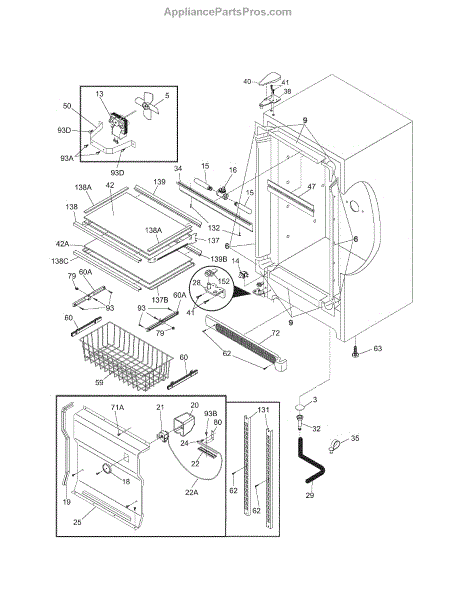

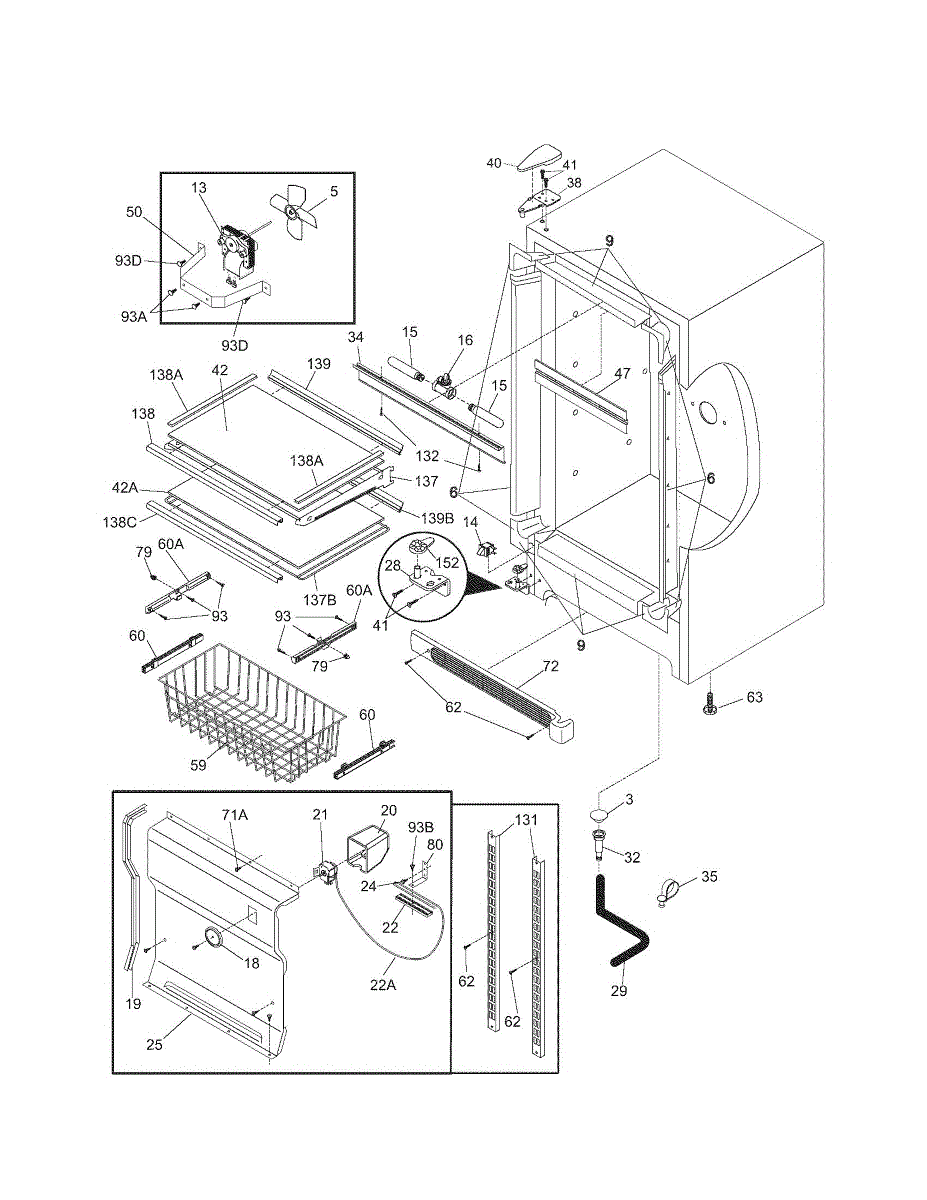

Parts for Kenmore 253.44713101 (25344713101, 253 44713101): Cabinet Parts

Water pooling in freezer? This drain screen traps debris before it clogs the drain tube. Quick snap-in replacement restores proper drainage flow.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

This kit provides structural support and sealing for freezer compartments, including corner reinforcements to maintain proper door alignment. Replace it if you notice air leaks around the freezer door, frost buildup, or if the door doesn't close properly.

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

A light socket that holds the bulb in your refrigerator's freezer compartment. This electrical component provides power to illuminate the freezer interior when the door opens. Replace it when the freezer light won't turn on, flickers, or the bulb won't stay securely in place.

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

Seals the evaporator cover to prevent air leaks, frost buildup, and temperature fluctuations. Replace if worn or cracked. Verify fit with your model.

Access panel cover that protects internal components and provides a finished look. Replace if the original is cracked, broken, or missing from your appliance.

Freezer won't shut off or runs continuously? A faulty temperature control thermostat is often the cause. Simple DIY fix in about 30 minutes with a screwdriver.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

Carries defrost water from your freezer drain outlet to the drip pan. Replace if cracked, kinked, or detached to prevent leaks onto floors and cabinets.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

Replaces cracked, broken, or missing glass shelf in your refrigerator. Restores a sturdy storage surface and helps contain spills inside the fridge.

Secures internal components and panels in your freezer. Replace this support bracket if it's cracked, broken, or missing to restore proper alignment.

Replacement slide rail that mounts inside the freezer to support and guide storage baskets. Replace if cracked, broken, or worn to restore smooth gliding.

Replacement mounting screw for various appliances. Needed when original screws are stripped, lost, or damaged during repair or maintenance work.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

Bottom front grille that covers the lower compartment while allowing airflow. Replace if cracked, broken, or missing to restore a finished appearance.

Threaded insert nut creates secure anchor point in thin metal or plastic panels. Replace worn, stripped, or missing insert nuts to properly mount covers.

Hex washer head screw secures hinges, panels, and trim to your freezer or refrigerator. Replace missing, stripped, or corroded screws for stable parts.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Replacement shelf frame that secures and supports freezer shelves. Needed when original is cracked, broken, or missing to restore stable storage space.

This paper owner's manual provides the manufacturer's operating, maintenance and safety information so you can use and care for your appliance correctly. It helps you find basic troubleshooting steps and proper maintenance guidance. What it does:

• Describes normal operation, controls and features in plain language
• Lists safety warnings and recommended precautions to reduce risk during use
• Provides basic troubleshooting tips and suggested routine maintenance
• Explains care, cleaning and recommended operating practices

• No tools required; keep the manual near the appliance for quick reference
• Follow all safety instructions in the manual before performing any service
• For repairs or parts replacement, obtain a replacement from the manufacturer or authorized dealer

Replacement plug insert for freezer ice maker assembly. Installs into ice maker housing to seal connections. Order if original is cracked or missing.
