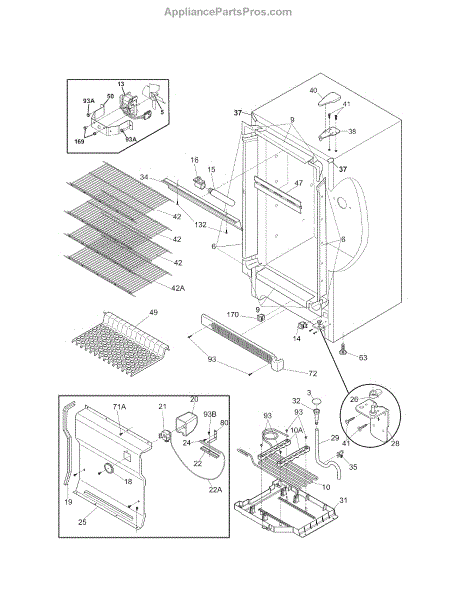

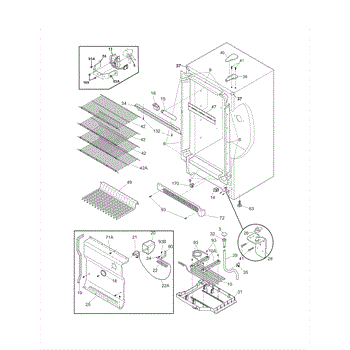

Parts for Kenmore 253.60722012 (25360722012, 253 60722012): Cabinet Parts

Water pooling in freezer? This drain screen traps debris before it clogs the drain tube. Quick snap-in replacement restores proper drainage flow.

Refrigerator making loud noises or not cooling? A worn evaporator fan blade often causes these issues. DIY-friendly repair typically takes 30 minutes.

This cabinet breaker kit forms the insulating trim around the appliance opening. It provides a proper surface for the door or lid gasket to seal against and helps minimize condensation along the edge for clean, reliable performance.

• Creates the thermal break and finished edge around the cabinet opening
• Supports correct seating of the door/lid gasket for a consistent seal
• Helps reduce sweating or moisture at the perimeter
• Replaces cracked, warped, or missing breaker trim components

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the door/lid if required for access and retain all fasteners
• Carefully remove old breaker components and clean the mounting surfaces
• Install the new breaker and corners, align evenly, avoid overtightening, and verify the gasket seals all around

Freezer not cooling or running warm? A failed evaporator fan motor stops cold air circulation. DIY-friendly repair typically takes 30-45 minutes.

The Door switch is an OEM replacement part for Frigidaire refrigerators. This part turns the light on/off as the door opens and closes.

Causes of a faulty door switch include normal wear of electrical contacts from repetitive on/off cycles. Moisture exposure may potentially corrode internal connections.

Symptoms of a bad light/switch include:

• The interior light fails to turn on when the door is opened
• The light stays on when the door is closed, leading to potential overheating
• An impact on the refrigerator’s temperature regulation due to the switch not signaling the door's closure

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

LED light bulb illuminates your refrigerator interior. Replace when bulb burns out, flickers, or stops working. Verify fit with your model number.

Interior light not working? This light socket provides the electrical connection for your freezer bulb. Simple DIY fix restores compartment lighting.

This temperature control knob replaces a worn or missing knob so you can easily adjust the cold-control setting. Restores smooth, precise temperature adjustments and a clean, factory look. What it does:

• Attaches to the cold-control (thermostat) shaft to change the temperature setting
• Provides secure grip and pointer alignment for accurate selections
• Typical failure symptoms: cracked or missing knob, stripped hub, or a knob that slips or won't turn the control

• 1 temperature control knob

• Disconnect power before servicing
• Pull the old knob straight off the shaft; avoid prying at an angle to prevent shaft damage
• Align the shaft shape with the new knob and press firmly until fully seated
• The pointer aligns with the control graphics after installation

Seals the evaporator cover to prevent air leaks, frost buildup, and temperature fluctuations. Replace if worn or cracked. Verify fit with your model.

Access panel cover that protects internal components and provides a finished look. Replace if the original is cracked, broken, or missing from your appliance.

Refrigerator won't shut off or freezing food? This temperature control thermostat regulates cooling cycles. DIY-friendly repair, installs in 10 minutes.

Secures the temperature sensing tube to the thermostat for accurate temperature control. Replace if loose, missing, or damaged to prevent erratic cooling.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This bottom hinge replaces the lower door pivot on compatible Frigidaire refrigerators to restore proper door alignment and smooth opening. It provides a secure pivot point to help maintain an even close and consistent seal. What it does:

• Supports and pivots the lower edge of the refrigerator door for smooth opening and closing.
• Helps maintain correct door alignment so the gasket seals evenly.
• Common replacement for doors that sag, bind, or do not close evenly.
• Works with the factory mounting hardware and hinge locations on compatible models.

• Disconnect power and remove food and loose items from the door before starting.
• Always support the door while removing or installing the hinge to prevent injury or damage.
• Use appropriate hand tools and avoid overtightening fasteners; check door alignment after installation.
• Refer to your model's service manual or official parts diagram for model-specific steps and torque specs.

Carries defrost water from your freezer drain outlet to the drip pan. Replace if cracked, kinked, or detached to prevent leaks onto floors and cabinets.

Collects defrost water from the evaporator and channels it to the drain system. Replace if cracked, broken, or missing to prevent leaks inside the cabinet.

This drain pipe connects the defrost drain outlet to the drain pan area, channeling condensation and defrost water away from the freezer compartment. It is a rigid or semi-rigid tube that slides into the drain opening and directs water downward. Replace this part if you notice water pooling inside the freezer, ice buildup near the bottom of the compartment, or water leaking onto the floor beneath the appliance.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Supports and pivots the freezer door at the top hinge point. Replace this hinge if cracked, broken, or worn to restore proper door alignment and swing.

Specs: Hex head ,1/4-20 x 5/8

The Freezer Shelf is an OEM part for Frigidaire freezers. It provides additional storage space within the freezer, allowing for better organization and efficient use of the available space. The shelf measures approximately 14.5 x2 inches.

Causes of a bad freezer shelf can include wear and tear from holding heavy items, accidental damage from dropping or mishandling, or warping due to temperature fluctuations. A compromised shelf can reduce storage capacity and potentially damage stored items.

Symptoms of a bad Freezer Shelf include:

• Cracks or breaks in the shelf
• Shelf not fitting securely or wobbling
• Difficulty in holding weight or sagging
• Warped or misshapen shelf

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Baffle plate mounting bracket secures internal panels and shields components in your refrigerator. Replace if cracked, broken, or missing to restore stability.

This is a wire or metal trivet that sits inside the freezer compartment, functioning as a shelf or tray support to organize and separate frozen food items. It rests on the interior ledges or brackets of the freezer section. Replace this trivet if it is bent, rusted, or has broken welds that prevent it from sitting level and supporting items properly.

Secures internal components and panels in your freezer. Replace this support bracket if it's cracked, broken, or missing to restore proper alignment.

Adjustable leveling foot installs at the bottom of your appliance to ensure stability and proper leveling. Replace if broken, cracked, or missing.

Replacement screw that secures freezer panels, brackets, and trim. Install when original hardware is missing, stripped, or loose to keep components aligned.

Bottom front grille that covers the lower compartment while allowing airflow. Replace if cracked, broken, or missing to restore a finished appearance.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

This is a small air baffle breather valve that helps equalize air pressure between the interior compartment and the outside environment. It allows air to pass through while helping maintain proper temperature regulation. Replace this valve if you notice excessive frost buildup, difficulty opening the door shortly after closing it, or unusual air pressure issues inside the unit.

Retaining clip for freezer interior components. Secures shelves, bins, or trim pieces in place. Replace if cracked, broken, or missing to restore fit.
