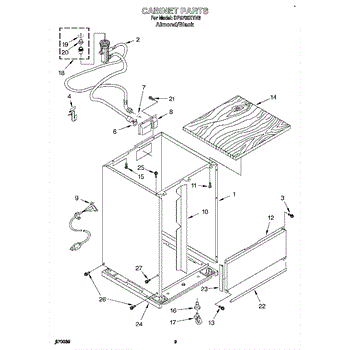

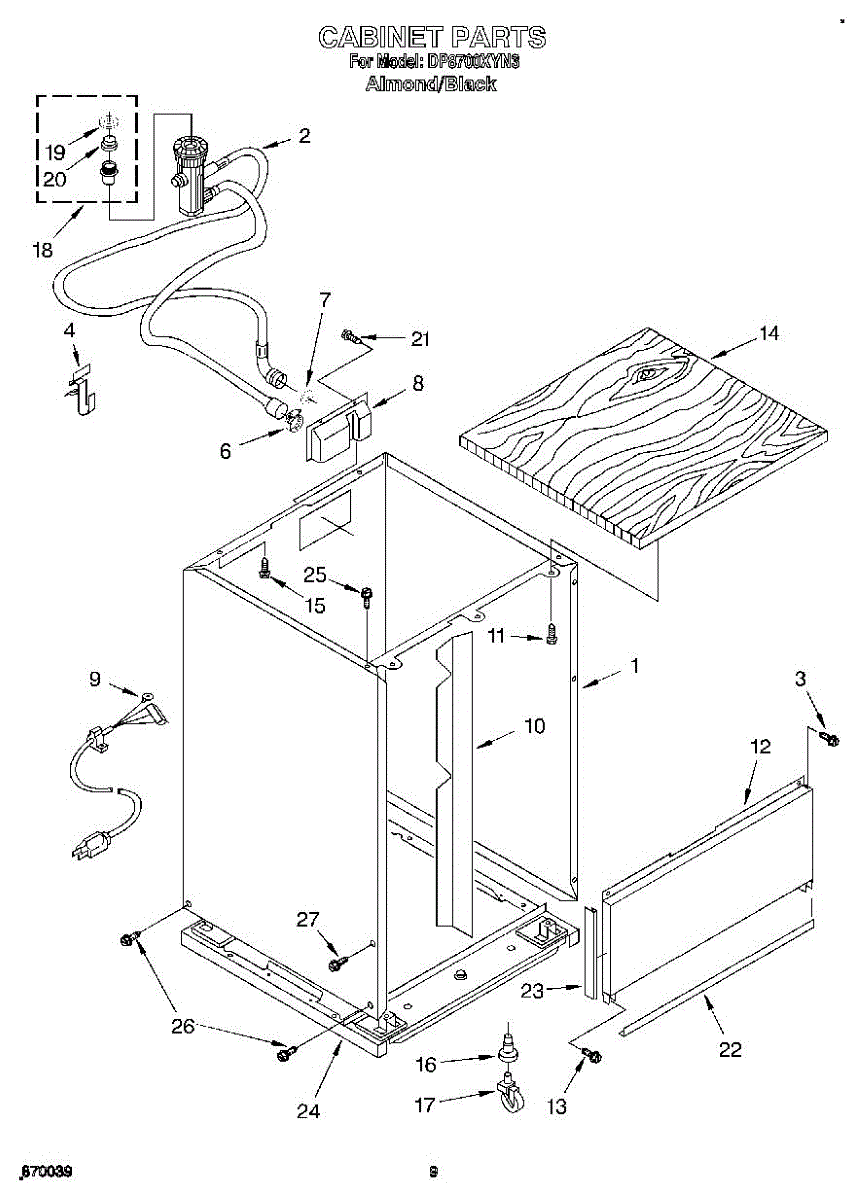

Parts for Whirlpool DP8700XYN3: 06 - Cabinet, Optional Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Connects portable dishwasher to sink faucet for water supply and drainage. Replace if hoses are cracked, connector is worn, or faucet coupling leaks.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Secures hoses to fittings to prevent leaks and blow-offs. Replace if rusted, stripped, or loose to restore a tight seal. Verify fit with your model.

Rubber washer gasket for washer fill hose connections. Replace if worn or leaking at coupler adapter. Measures 1-1/16 x 5/8 inch. Verify fit with model.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Lower Panel. Color: Black

Specs: 10-16 x 1/2 inch.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This replacement caster and socket assembly restores smooth rolling and stable support for the appliance cabinet. Use it to replace a worn or damaged wheel and mounting socket so the appliance moves easily and sits level. What it does:

• Provides a rolling wheel and mounting socket to support appliance movement and weight.
• Replaces cracked, seized, or worn casters that cause dragging, sticking, or uneven motion.
• Helps reduce noise and cabinet scuffs from a damaged or loose wheel.
• Restores proper alignment when the appliance tilts or does not roll smoothly.

• Disconnect power and water and move the appliance to a safe, stable work area before starting.
• Support the appliance to prevent tipping when removing/installing the caster.
• Remove any trim or mounting hardware covering the caster; match orientation and fasteners when installing the replacement.
• After installation, verify the appliance rolls smoothly and sits level; tighten fasteners as needed.

Connects portable dishwasher hose to kitchen faucet. Replace if cracked, worn, or threads are stripped causing loose connection or leaks at sink.

This part has been discontinued and is no longer available.

Dishwasher air gap with chrome cap installs on your sink. Replaces cracked, leaking, or missing anti-siphon devices to prevent water backflow.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
