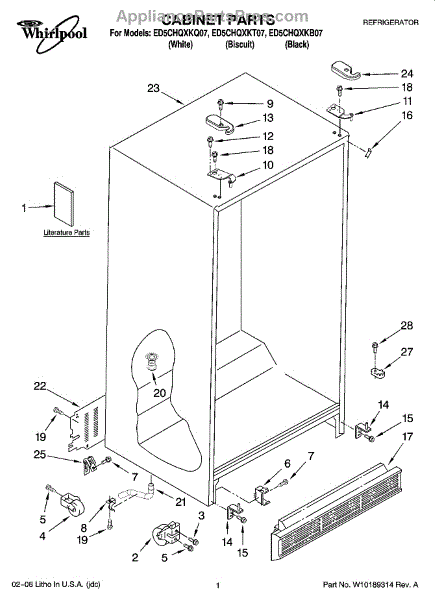

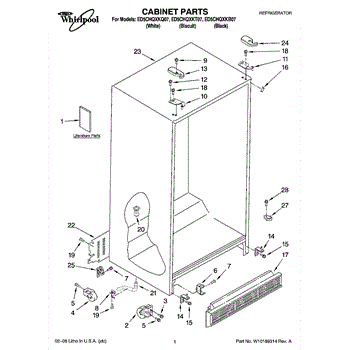

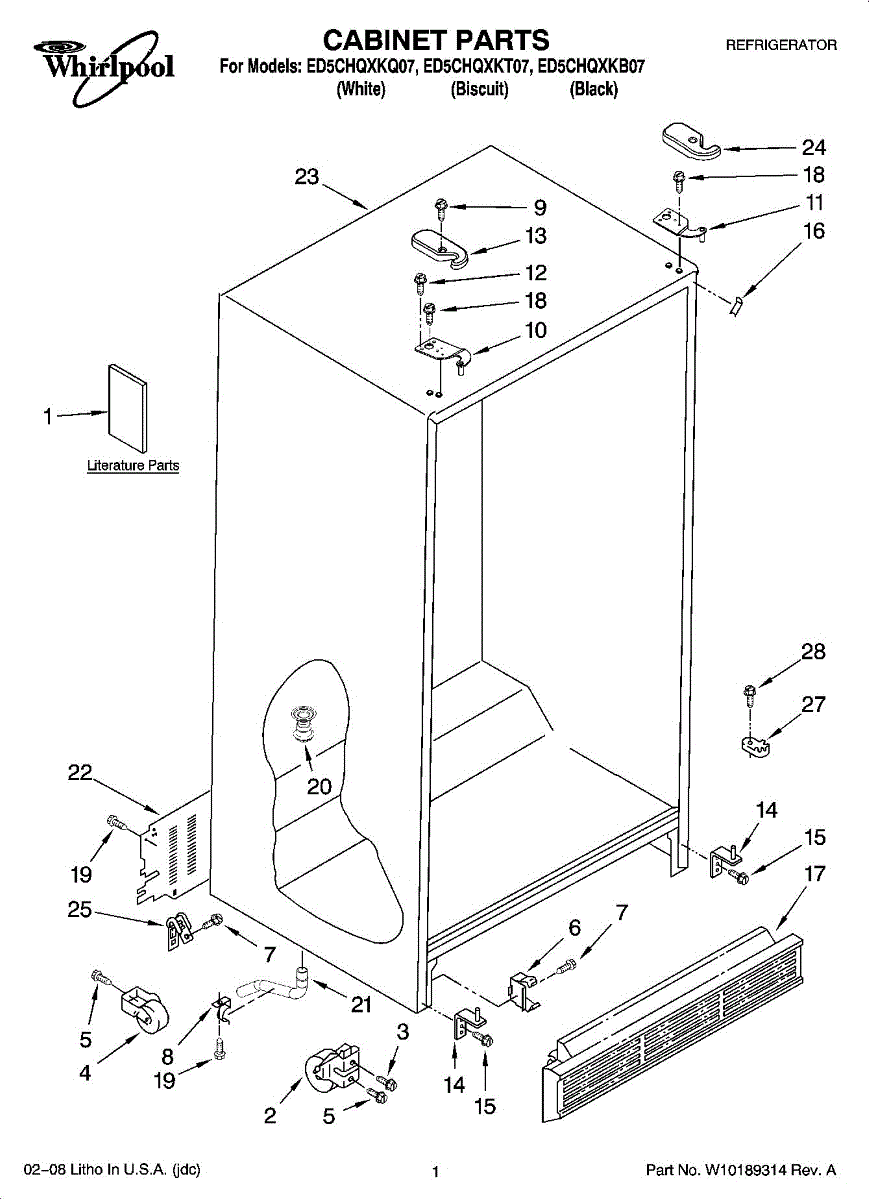

Parts for Whirlpool ED5CHQXKQ07: 01 - Cabinet Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cabinet roller assembly supports the refrigerator at the base and lets you roll the unit forward for cleaning or service. Replace a cracked or seized roller to restore smooth movement and a stable, level stance. What it does:

• Supports the refrigerator cabinet and helps maintain proper leveling
• Allows the unit to roll for easier cleaning and servicing
• Replaces worn, cracked, or seized rollers and damaged brackets
• Helps resolve wobbling, uneven stance, scraping noises, or difficulty moving the fridge

• One complete cabinet roller assembly

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a second person or an appliance dolly to safely tilt or move the unit
• Remove mounting fasteners, swap the assembly in the original position, and reuse hardware if applicable
• After installation, level the refrigerator and verify doors close and seal properly

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

Size: 8 x 1/2 ab.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

Fresh freezer cabinet top hinge.

The Top Hinge is an OEM part for Whirlpool refrigerators. This hinge ensures the proper alignment and smooth operation of the refrigerator door, allowing it to open and close securely. It supports the weight of the door and helps maintain an airtight seal.

Causes of a bad top hinge can include general wear and tear, heavy use, or accidental damage.

Symptoms of a bad top hinge include:

• Refrigerator door sagging or misaligned
• Difficulty in opening or closing the door
• Door not sealing properly, leading to temperature fluctuations
• Unusual noises when the door is operated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw: 8-16 x 3/8 inch.

Color: Biscuit

Color: White

Color: Black

This refrigerator door hinge secures and guides a fridge door for smooth opening and reliable alignment. It restores proper door movement and helps maintain an effective seal to keep temperatures stable. What it does:

• Provides the pivot point that lets the refrigerator door open and close smoothly
• Keeps the door aligned to prevent rubbing, gaps, or uneven sealing
• Helps stop drafts that can cause temperature fluctuations or higher energy use
• Suitable when a bent, broken, or worn hinge causes noisy or misaligned doors

• One door hinge

• Disconnect power and empty the door before starting; follow manufacturer's service manual for safe removal
• Typical install requires removing door trim or shelves to access hinge fasteners
• Re-tighten mounting screws securely and check door alignment; adjust per OEM instructions

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

Color: Biscuit

Color: White

Color: Black

The Grille is an OEM part for Whirlpool bottom-mount refrigerators. It is an attractive decorative grille installed on the top of the refrigerator, above the freezer compartment. The grille covers internal fans and vents while maintaining an airy design aesthetic.

Symptoms of a faulty grille include:

• Gaps or openings around the edges compromising seals
• Loose or detached mounting points from vibration
• Damage like dents, scratches or cracks affecting appearance

Causes can be normal wear and tear over time, accidental impacts, or degradation from cleaning chemicals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This black grille extension replaces a damaged or faded lower front trim to restore the appliance's finished appearance and help direct airflow at the base. Fits models that use the WPW10283946 grille extension. What it does:

• Covers and protects the lower front opening of the appliance while providing a finished look
• Helps channel air intake/exhaust at the base so the appliance can ventilate properly
• Replaces cracked, warped, or discolored trim that no longer sits flush or locks into the cabinet
• Visible cosmetic fix that can eliminate rough edges or gaps at the toe-kick area

• One black grille extension

• Disconnect power to the appliance before attempting removal or installation
• Usually secures with clips or a few screws; remove adjacent trim pieces as needed to access fasteners
• Handle plastic trim carefully to avoid cracking; align tabs and press or fasten until secure

This black grille extension replaces a damaged or faded lower front trim to restore the appliance's finished appearance and help direct airflow at the base. Fits models that use the WPW10283946 grille extension. What it does:

• Covers and protects the lower front opening of the appliance while providing a finished look
• Helps channel air intake/exhaust at the base so the appliance can ventilate properly
• Replaces cracked, warped, or discolored trim that no longer sits flush or locks into the cabinet
• Visible cosmetic fix that can eliminate rough edges or gaps at the toe-kick area

• One black grille extension

• Disconnect power to the appliance before attempting removal or installation
• Usually secures with clips or a few screws; remove adjacent trim pieces as needed to access fasteners
• Handle plastic trim carefully to avoid cracking; align tabs and press or fasten until secure

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drain fitting extension connects to the ice machine's drain outlet to extend the connection point for proper hose attachment. It helps ensure a secure, leak-resistant drain path so meltwater can exit the unit correctly.

• Extends the factory drain fitting to improve hose reach and connection
• Maintains a tight, stable drain hookup to help prevent leaks
• Designed for ice machines that use a gravity or pump-assisted drain path

• Disconnect power and shut off water before servicing
• Place a towel or pan to catch residual water
• Ensure the drain hose seats fully and clamp is secure per your model's instructions
• Check for leaks by running a short test after reassembly

The Rear Access Cover is an OEM part for Whirlpool refrigerators. It protects the rear components of the refrigerator, such as the compressor, condenser coils, and electrical connections, ensuring these vital parts are shielded from dust, debris, and potential damage while still allowing for necessary ventilation.

Causes of a bad rear access cover can include wear and tear from prolonged use, accidental impacts that cause cracks or breaks, or damage during maintenance or repairs.

Symptoms of a bad rear access cover include:

• Cracks or visible damage to the cover
• Difficulty securing the cover in place
• Excessive dust or debris around internal components
• Rattling or noise from a loose cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Biscuit

Color: Black

Color: White

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
