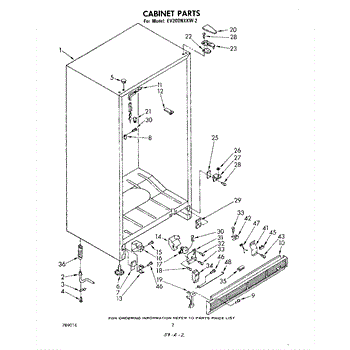

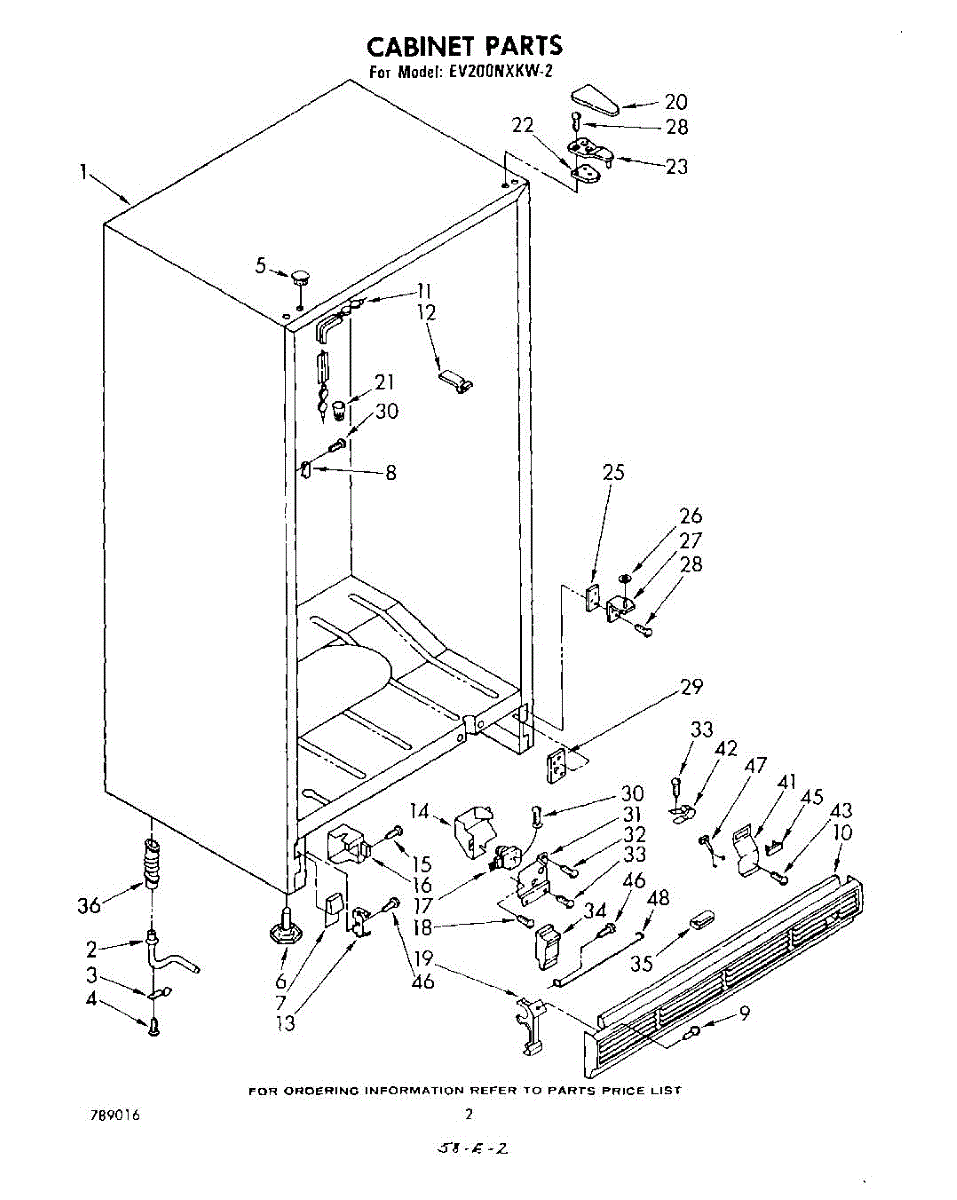

Parts for Whirlpool EV200NXKW2: 02 - Cabinet Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Grille support holds the oven's lower kickplate (grille) securely in place, preventing sagging and alignment issues so the appliance front stays flush, quiet, and visually correct. What it does

• Secures the lower front grille/kickplate to the appliance frame
• Prevents the kickplate from sagging, vibrating, or rattling during use
• Restores proper alignment and closes visible gaps at the bottom of the appliance
• Helps maintain a tidy appearance and keeps the grille seated against vent openings

• Disconnect power to the appliance before beginning any service
• Access is typically gained by removing the lower kickplate/grille; moderate hand tools are usually required
• Retain and reuse existing fasteners if they are undamaged; replace if stripped or corroded

White.

This part has been discontinued and is no longer available.

This washer is a small hardware spacer used in appliance assemblies to distribute load and maintain proper spacing under a fastener or rotating component. Replacing a worn or missing washer helps restore alignment, reduce noise, and keep parts secure.

• Distributes fastener load to protect mating surfaces
• Maintains spacing/alignment between components
• Can act as a thrust surface to reduce friction and wear
• Typical symptoms: looseness or wobble, scraping/squeaking noises, or parts that won't stay tight

• Disconnect power; shut off gas and/or water as applicable
• Note the order/orientation of washers, spacers, and clips during disassembly; take a photo for reference
• Inspect related parts (retainers, bushings) and replace if worn
• Tighten fasteners per manufacturer guidance; avoid overtightening and verify smooth operation after reassembly

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
