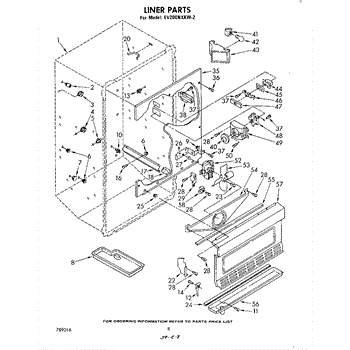

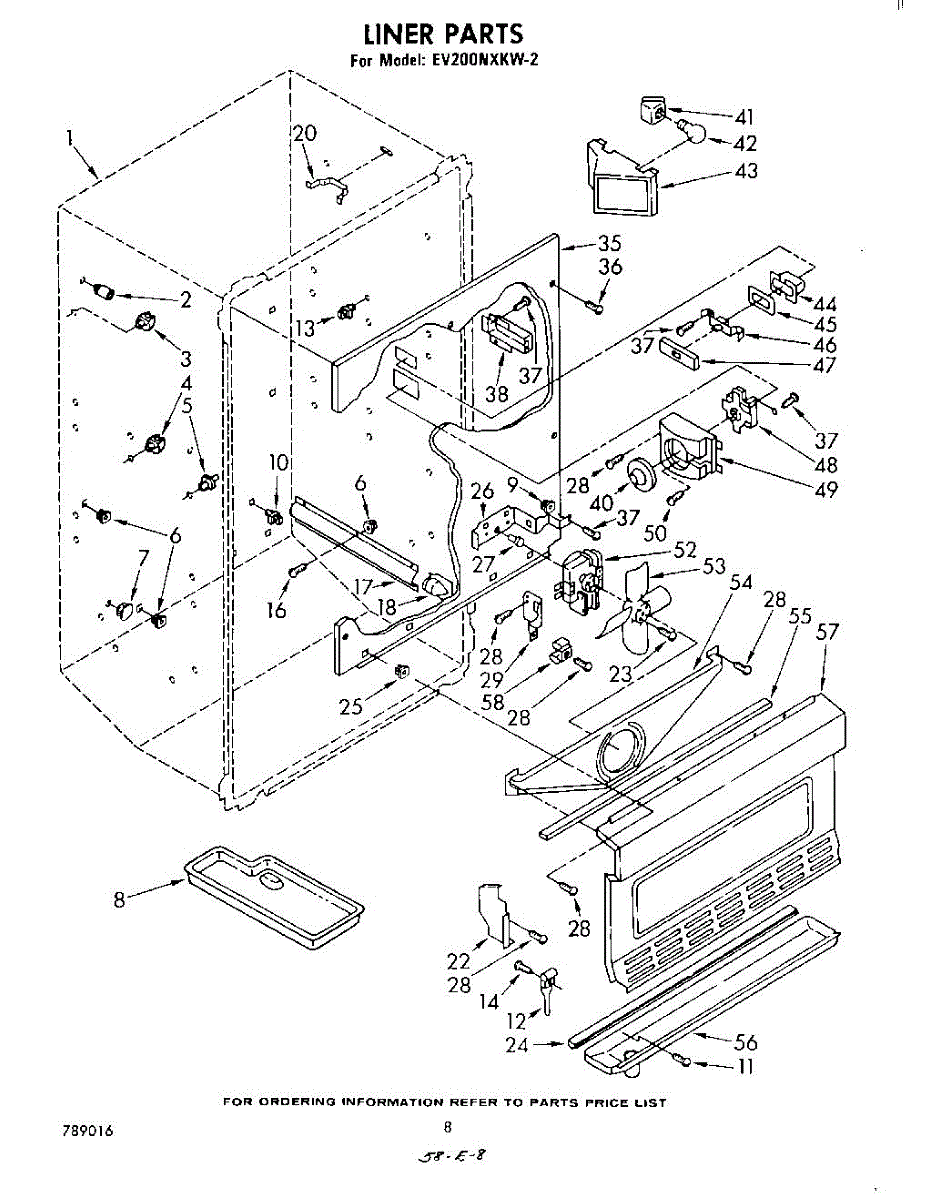

Parts for Whirlpool EV200NXKW2: 05 - Liner Parts

Color: Black. Due to manufacturer changes this replacement is now 17" x 7".

This part has been discontinued and is no longer available.

This shelf stud secures refrigerator shelving in place so shelves stay level and don't shift during normal use. A small replacement part that restores proper shelf support and prevents glass or wire shelves from slipping. What it does

• Anchors and supports a refrigerator shelf or shelf bracket so the shelf sits flush and stable
• Prevents shelf movement, tilting, or sudden drops that can cause spills or broken items
• Works with glass or wire shelves designed for stud-style mounting
• Can eliminate rattle or looseness at the shelf mounting point

• Remove shelves and contents before replacing the stud to avoid injury or damage
• Inspect mating bracket or slot for damage; replace any damaged clips or brackets as needed
• Many studs snap or press into place; if fastened with a screw, use the correct screwdriver and snug firmly (do not overtighten)
• Wear gloves when handling glass shelves and follow appliance manufacturer instructions for safe handling

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Screw: 8-16 x 3/8 inch.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This thermostat is a temperature-sensitive switch that controls power to cooling components as temperatures change. Replacing a worn thermostat restores consistent cycling and more accurate temperature regulation, helping the appliance maintain stable performance. What it does:

• Senses temperature and opens/closes electrical contacts at set points
• Regulates operation of key cooling components to maintain target temperature
• Helps prevent overcooling, overheating, and erratic cycling
• Failure signs include: no cooling, overcooling, temperature swings, unit runs continuously, or short-cycling

• 1 thermostat

• Disconnect power before servicing; verify no voltage is present
• Access the thermostat location; label/photograph wire positions and transfer one at a time
• Install in the same position and orientation as the original to ensure proper thermal response
• Restore power and confirm proper cycling and temperature control

This part has been discontinued by the manufacturer and is no longer available.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Includes wiring harness and a 4 inch push-on blade. Replaces hub-style motor and blade. Note: It may be necessary to reuse your old motor bracket in some cases.

This part has been discontinued by the manufacturer and is no longer available.
