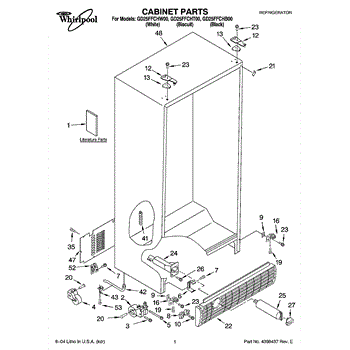

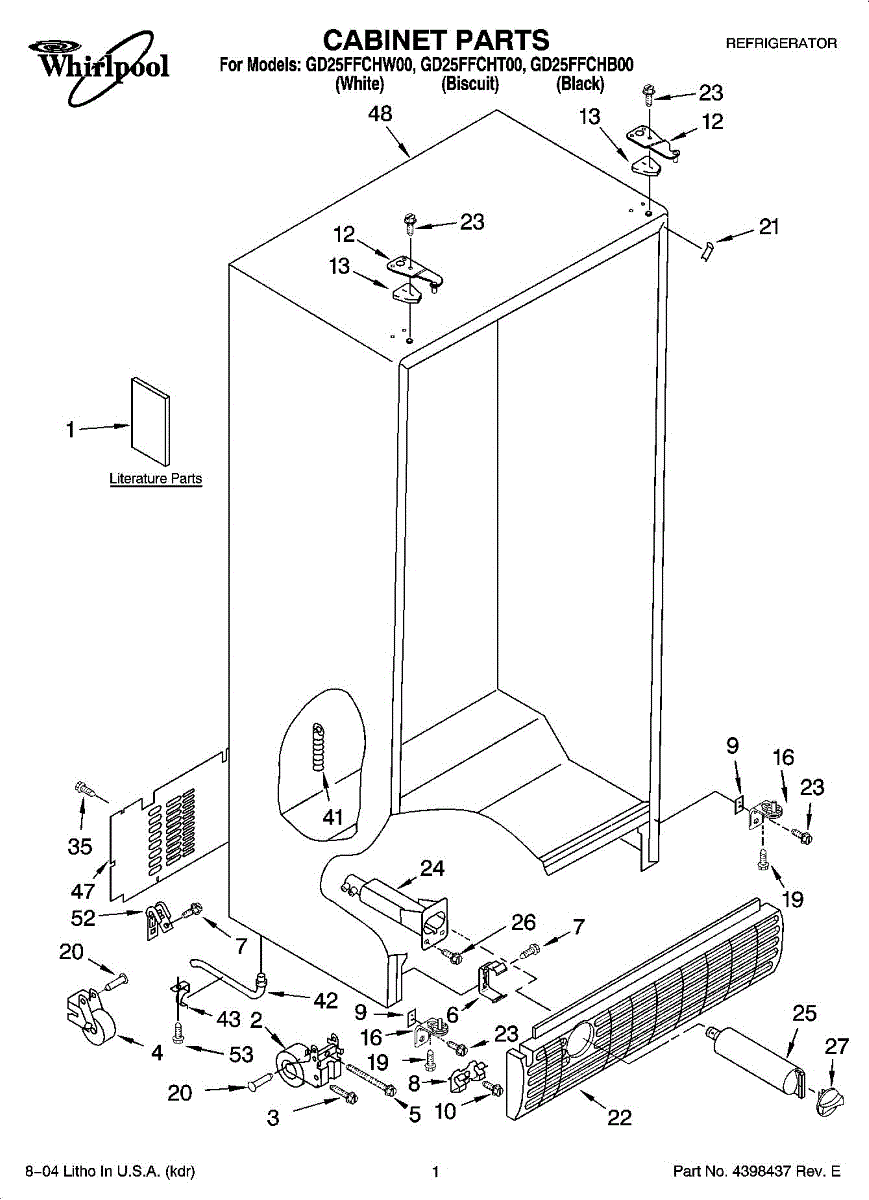

Parts for Whirlpool GD25FFCHB00: 01 - Cabinet Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 8 x 1/2 ab.

This hinge shim installs at the bottom refrigerator door hinge to fine-tune door height and alignment. Replacing a missing or damaged shim helps the door close smoothly and seal evenly for reliable performance.

• Positions the door by spacing the bottom hinge for correct height and alignment
• Helps restore smooth closing and consistent gasket contact
• Useful after hinge or gasket service to set the door-to-cabinet gap

• Disconnect power before servicing
• Support the door; remove bottom hinge fasteners and lift the door off per your manual
• Add or replace shim(s) on the bottom hinge, then reinstall and tighten hardware
• Check level and uniform gasket contact around the door

Color: Biscuit. Other colors: For white use 2307008AP, for black use 2307008B.

Color: Biscuit. Other colors: For white use 2307007AP, for black use 2307007B.

Color: Apollo Gray

Color: Black. Other colors: For biscuit use 2307008T, for white use 2307008AP.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The water filter housing holds the refrigerator's filter cartridge and seals the water lines, directing water through the filter to the dispenser and ice maker. Replace a cracked or leaking housing to restore proper flow and prevent leaks. What it does:

• Secures the water filter and maintains watertight seals at the connections
• Routes water through the filter before it reaches the dispenser and ice maker
• Provides the connection point for easy filter installation and removal
• Typical symptoms: leaks around the filter area, low/no water flow, or a filter that won't seat or eject properly

• Disconnect power and shut off the household water supply
• Dispense water to relieve pressure; place a towel to catch residual water
• Note tube routing; release tubing from quick-connect fittings and remove mounting screws to swap the housing; transfer any brackets or screws as needed
• Restore water and power, then check all connections for leaks and flush to clear air from the lines

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 8 x 1/2 ab.

White. For black order WP2186494B. For biscuit order WP2186494T.

Color: biscuit. It measures about 2-1/2 inches in diameter. For black order WP2186494B. For white order WP2186494W.

The Water Filter Cap is an OEM part for Whirlpool refrigerators. It secures the water filter in place, ensuring a proper seal and preventing leaks. This cap also facilitates the easy replacement of the water filter by providing a handle to twist the filter in and out.

You should replace the water filter cap if it becomes damaged or worn out. Causes of a bad water filter cap can include repeated use, cracking from excessive force, or wear and tear from regular filter replacements.

Symptoms of a bad water filter cap include:

• Leaking water from the filter area
• Difficulty in securing the water filter
• The cap being cracked or visibly damaged
• The filter not staying in place properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
