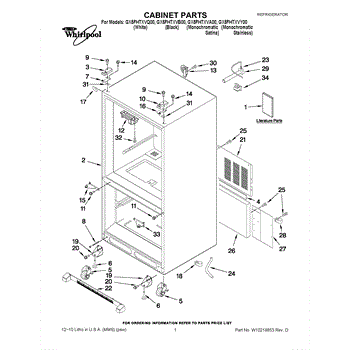

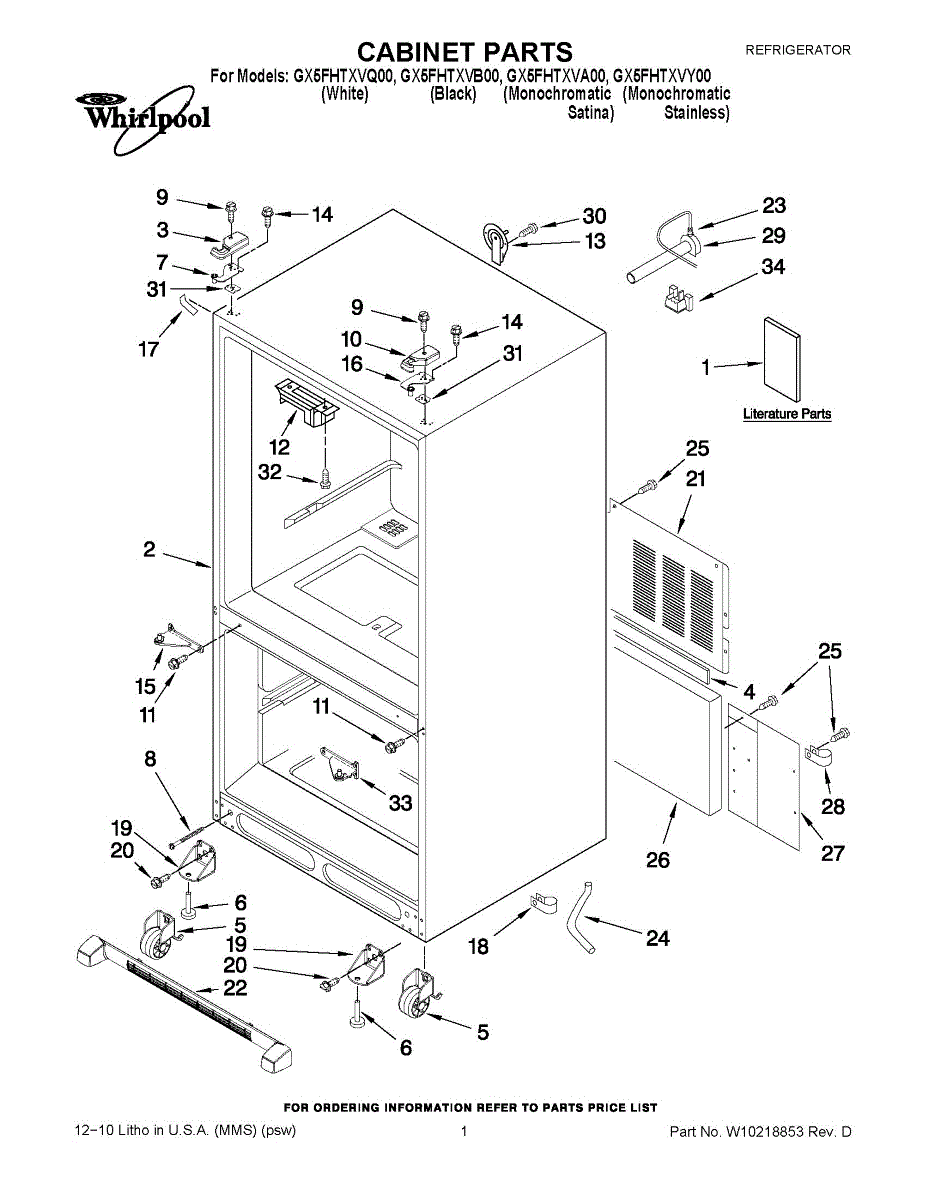

Parts for Whirlpool GX5FHTXVB00: 01 - Cabinet Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement cover protects and conceals the appliance's control board and related electronics, helping prevent debris intrusion and accidental contact. It restores the appliance's original internal protection and appearance. What it does

• Shields the control board and wiring from dust, lint, and small debris
• Helps prevent accidental contact with electrical components
• Maintains proper component placement and internal airflow paths
• Useful when repairing or replacing control assemblies or wiring

• One replacement cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels as needed to access the control area; handle panels gently to avoid breaking tabs
• Align the cover with mounting points and secure with original fasteners; do not overtighten
• If you see damaged wiring or connectors, stop and address electrical damage before reassembling

This cover hinge assembly secures and guides the appliance lid or top panel so it opens and closes smoothly. Replacing a worn hinge restores proper lid alignment and helps eliminate sticking, sagging, or uneven closure. What it does:

• Provides a pivot point for the lid/top cover, holding it in the correct position during use
• Restores smooth opening and closing when original hinge is bent, worn, or broken
• Helps eliminate lid sag, misalignment, or rubbing against the cabinet
• Works with the appliance's existing bracketry and fasteners to maintain fit and function

• One cover hinge assembly

• Basic hand tools required; keep fasteners organized for reassembly
• Disconnect power and follow appliance-specific safety guidelines before beginning repair
• Inspect mating surfaces and replace any damaged screws or brackets for a secure fit

This hinge cover assembly conceals and protects the door hinge area, providing a clean look while shielding wiring and moving parts from dust and moisture. It restores proper coverage if the original cover is cracked, missing, or loose.

• Covers the hinge area to protect components and improve appearance
• Helps prevent debris intrusion around the hinge mechanism
• Common fix for a broken, missing, or damaged hinge cover
• May help if the hinge area is exposed or rattling due to a loose cover

• Unplug appliance before service; shut off water if applicable
• Use a non-marring tool to release clips or tabs; avoid prying on finished surfaces
• Transfer any reusable screws or trim from the old cover
• Confirm secure engagement of tabs/screws to prevent vibration

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement

Top hinge assembly secures the top of the refrigerator door to the cabinet and restores proper pivoting for smooth opening and correct alignment, helping maintain the door seal and prevent sagging. What it does:

• Supports and pivots the top of the door for stable, even movement.
• Keeps the door aligned so the gasket seals evenly across the cabinet.
• Helps prevent door sagging, rubbing, or uneven gaps that can affect cooling.
• Resolves symptoms like difficulty closing or a door that sits crooked.

• Disconnect power and empty the door before starting the repair.
• Have a second person or a support to hold the door while removing/installing the hinge.
• Use basic hand tools and follow the manufacturer's service instructions; avoid forcing parts.
• After installation, check door alignment and operation to ensure a proper seal.

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This right top hinge cover protects and conceals the refrigerator door hinge for a clean finish and safer access. It restores appearance and keeps the hinge area free from dirt and accidental contact. What it does:

• Covers the top right door hinge to hide hardware and improve aesthetics
• Shields the hinge from dust, debris and incidental contact that can cause wear
• Prevents sharp or moving hinge parts from catching on clothing or items
• Useful when the original cover is cracked, broken, or missing

• One right top hinge cover

• Remove any items from the door and support the door before removing hinge components
• Use basic hand tools; avoid forcing parts or overtightening fasteners
• Wear gloves to protect hands from sharp edges and to keep the cover clean

A right-side top hinge cover that restores your appliance's finished appearance and protects the hinge mechanism from dust and debris. Fits over the hinge area to hide hardware and prevent snags or buildup. What it does

• Covers and protects the top hinge assembly to keep moving parts free of lint, dirt, and moisture
• Restores a clean, finished look when the original cover is cracked, broken, or missing
• Helps prevent clothing or items from catching on exposed hinge hardware
• Matches the original mounting points for a secure, low-profile fit

• One right-side top hinge cover

• Disconnect power before starting work and follow basic electrical safety
• Typically installs by removing the top or lift panel and snapping or fastening into the hinge area; keep all mounting screws
• If cover is brittle or fragmented, remove all remnants before fitting the new piece to ensure a flush install
• Use hand tools; avoid overtightening fasteners which can crack the replacement

This cover replaces a cracked, warped, or missing cover on your appliance. It protects internal components and restores the correct fit and finish so parts stay secured and the unit operates as designed.

• Shields internal components from debris and moisture
• Helps maintain proper airflow, water path, or guarding as designed
• Restores fit/finish and keeps parts secured
• Common signs of failure: cracks, broken tabs, discoloration, or a cover that won't stay in place

• Disconnect power and shut off water/gas before servicing
• Note the original orientation and transfer any screws/clips from the old part
• Align tabs and fasteners; avoid overtightening to prevent damage
• After installation, test operation and ensure no interference or leaks

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

The Refrigerator Pivot Block is an OEM part for Whirlpool refrigerators. It supports the door hinge, allowing the refrigerator door to open and close smoothly. The pivot block ensures that the door stays aligned and securely attached to the refrigerator frame.

Causes of a bad pivot block can include wear and tear over time, heavy use, or damage from accidental impacts. Misalignment or excessive force when opening and closing the door can also contribute to its failure.

Symptoms of a bad refrigerator pivot block include:

• The refrigerator door not opening or closing properly
• A misaligned door that doesn't seal correctly
• Unusual noises when the door is operated
• The door feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement cover protects water-related components on select Whirlpool washers, helping keep valves and hoses shielded from debris and incidental contact for reliable water flow management. What it does

• Protects water valves, inlet hoses, and nearby fittings from dirt and accidental contact
• Helps maintain proper water routing by keeping components covered and positioned
• Commonly replaced if cracked, broken, warped, or missing after impact or wear
• Can prevent debris buildup that interferes with valve operation or connections

• One replacement cover as pictured

• Disconnect power and shut off the water supply before starting any repair
• Secure with existing screws or clips
• Do not force the cover into place; inspect surrounding fittings and hoses for damage while installing
• If you see leaks after installation, recheck hose connections and valve seating; replace defective parts as needed

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

The door hinge is an OEM part for Whirlpool refrigerators. It plays a role in holding the refrigerator door securely in place while allowing it to swing freely for easy access. The hinge is designed to withstand the pressure of opening and closing the door smoothly over many years of use.

Causes of a bad hinge include wear and tear from repeated opening and closing of the door, exposure to excessive force or impact, or overloading of the door with heavy items.

Symptoms of a bad hinge include:

• The door not closing properly or unevenly
• Increased effort required to open or close the door
• Noises or squeaking coming from the hinge area
• The door leaning or not staying securely closed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A replacement door hinge assembly that secures the appliance door and lets it pivot smoothly. Installing the correct hinge restores proper door alignment so the door opens and closes reliably and reduces uneven gaps. What it does:

• Provides the pivot point that supports the door and maintains alignment.
• Replaces cracked, worn, or bent hinges that cause door sag or misalignment.
• Helps the door close fully and stay seated to reduce drafts and uneven sealing.
• Restores normal hinge movement to eliminate sticking or noisy operation.

• Disconnect power to the appliance before beginning any repair.
• Support the door while removing and installing the hinge to prevent injury or damage.
• Use the correct hand tools and keep track of mounting hardware; do not overtighten fasteners.
• After installation, check door swing and alignment; adjust as needed.

Top hinge assy-rh gal

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This base grille installs at the bottom front of the appliance to cover the lower opening and direct airflow through the ventilation area. Replace it to restore a clean, finished look when the original is damaged, loose, or missing.

• Finishes and protects the lower front of the cabinet
• Allows proper airflow through the front vent area
• Helps shield internal components from debris
• Replace if cracked, warped, broken tabs, rattling, or missing

• Disconnect power before servicing
• Remove the old grille by pulling outward at the top and lifting up, or by removing screws/clips if your model uses them
• Align tabs with slots and snap firmly into place
• Verify door clearance and secure fit, then restore power

The Kickpanel is an OEM part for Whirlpool refrigerators.This part provides a finished look while protecting internal components such as the condenser coils and compressor from dirt and debris.

Causes of a bad kickpanel can include physical damage from impacts, wear and tear from regular use, or breakage during cleaning or maintenance.

Symptoms of a bad kickpanel include:

• Visible cracks or breaks in the panel
• The panel not fitting securely or becoming detached
• Increased noise levels from the refrigerator
• Accumulation of dirt and debris around the exposed area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Kickplate Grille is an OEM part for Whirlpool refrigerators. It is installed at the base of the refrigerator and serves to cover and protect the lower ventilation area, helping to ensure proper airflow to the condenser and other components. It measures approximately 37 inches wide, 2 inches high, and 4 inches deep.

You should replace the kickplate grille if it becomes damaged or broken. Causes of a bad kickplate grille can include accidental impacts, wear and tear over time, or exposure to cleaning chemicals that can weaken the material.

Symptoms of a bad kickplate grille include:

• Visible cracks or breaks in the grille
• Loose or unstable attachment
• Obstructions in airflow leading to poor refrigerator performance
• Accumulation of dust and debris behind the grille

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

This replacement drain tube directs discharged water from the appliance to the household drain, helping restore proper drainage and reduce the risk of leaks. Designed to match OEM fit and routing for straightforward replacement. What it does:

• Channels drained water away from the appliance to prevent pooling and leaks
• Replaces cracked, split, or collapsed tubing that causes slow or no drainage
• Restores proper flow when water backs up or drains intermittently
• Works with factory clamps and fittings to maintain a secure seal

• Disconnect power and shut off water supply before beginning service
• Inspect surrounding fittings and clamps; replace any damaged hardware for a reliable seal
• Follow the appliance service manual for correct routing and clamp locations
• If you smell gas or detect significant water damage, stop.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

The Icemaker Fill Tube is an OEM replacement part for Whirlpool refrigerators. It delivers water to the icemaker, allowing it to produce ice cubes. It is responsible for directing water from the water inlet valve to the icemaker tray, where it freezes into ice cubes.

A bad fill tube can occur due to wear and tear, blockages, or damage. If you notice symptoms such as no ice production, leaking water, or ice cubes with an unusual shape or size, it may be time to replace the fill tube.

Symptoms of a bad fill tube include:

• No ice production or limited ice output
• Leaking water around the icemaker area
• Irregularly shaped or oversized ice cubes

Repair your refrigerator by replacing the faulty or damaged fill tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement shim is a thin positioning spacer used to align or level internal components for correct fit and operation. It helps restore proper clearances and reduce rubbing, noise, or misalignment-related issues. What it does:

• Provides precise spacing between parts to ensure correct alignment
• Helps eliminate rubbing or contact that can cause noise or wear
• Restores proper component clearance after service or reassembly
• Used when a missing, worn, or incorrect spacer leads to misalignment symptoms

• One replacement shim

• Inspect mating surfaces and clean debris before installing the shim
• Verify correct placement and orientation against the original shim or diagram
• Tighten fasteners to the manufacturer's specifications; do not overtighten
• Disconnect power and follow all safety precautions before servicing

A flat replacement shim that fills small gaps and realigns appliance components to restore proper fit and reduce vibration. Use it where a thin, precise spacer is needed for better part alignment and quieter operation. What it does:

• Provides a thin, stable spacer to correct minor misalignment between metal parts
• Helps reduce vibration or rubbing caused by uneven panels or mounts
• Restores correct clearance for seals, bearings, or mounting surfaces
• Useful when a worn or missing shim allows parts to sit unevenly

• Disconnect power before servicing; follow your appliance's service manual for disassembly
• Handle edges carefully — shims can be sharp
• Replace any additional shims or related fasteners shown in the model's parts diagram for best results

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This door hinge secures and pivots a refrigerator door, restoring smooth opening and proper alignment to prevent gaps and uneven closing. Designed to match OEM form and fit for reliable operation. What it does:

• Provides a durable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and cooling performance
• Reduces door sag and uneven gaps that can cause leaks or rubbing
• Fits the original hinge location and mounting pattern for correct operation

• Support the door before removing the old hinge to prevent injury or damage
• Disconnect power to the appliance if required for access or to avoid electrical components
• Use basic hand tools; follow OEM instructions for torque and fastener sequence
• Inspect and repair before installation if hinge mounting holes or door alignment are damaged.

A replacement door hinge assembly that secures the appliance door and lets it pivot smoothly. Installing the correct hinge restores proper door alignment so the door opens and closes reliably and reduces uneven gaps. What it does:

• Provides the pivot point that supports the door and maintains alignment.
• Replaces cracked, worn, or bent hinges that cause door sag or misalignment.
• Helps the door close fully and stay seated to reduce drafts and uneven sealing.
• Restores normal hinge movement to eliminate sticking or noisy operation.

• Disconnect power to the appliance before beginning any repair.
• Support the door while removing and installing the hinge to prevent injury or damage.
• Use the correct hand tools and keep track of mounting hardware; do not overtighten fasteners.
• After installation, check door swing and alignment; adjust as needed.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power
