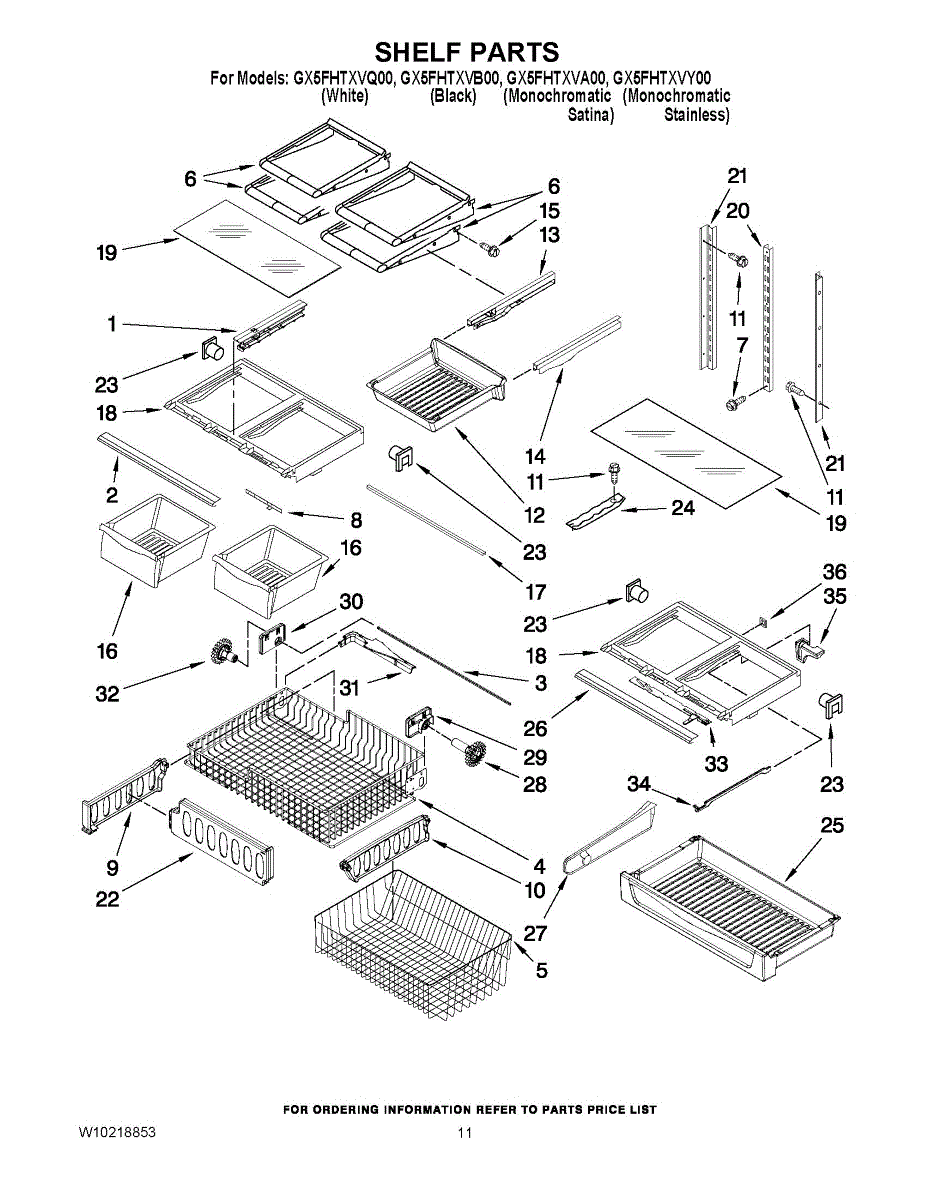

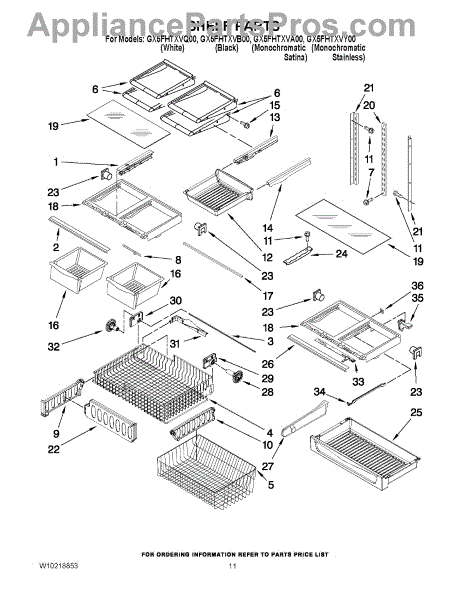

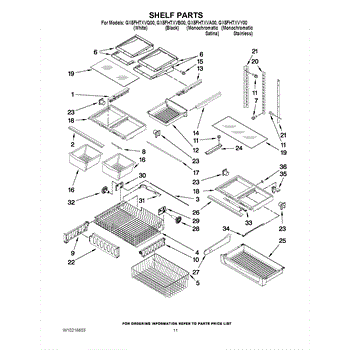

Parts for Whirlpool GX5FHTXVB00: 07 - Shelf Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

The Center Rail is an OEM part compatible with Whirlpool refrigerators. It plays a crucial role in providing structural support and stability for the shelves and drawers within the refrigerator compartment. This rail measures approximately 14.1 x 2.6 x 1.5 inches.

Causes of a bad refrigerator center rail can include physical damage from impact or excessive force, warping due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad center rail include:

• Shelves or drawers becoming misaligned or difficult to slide in and out
• Excessive wobbling or instability when shelves or drawers are loaded
• Visible signs of damage, such as cracks or bends, on the center rail itself

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

Upper freezer basket for bottom-mount refrigerators. Installs in the freezer compartment to organize frozen foods. Replaces cracked or broken baskets.

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

Humidity control slide for refrigerator crisper drawers. Replace this plastic slide if the lever tab has snapped off, cracked, or broken during use.

Organizes items inside your refrigerator drawer by creating separate storage sections. Replace if cracked, broken, or missing to restore neat storage.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Replacement crisper pan for refrigerators. Installs in the fresh food section to store fruits and vegetables. Replace if cracked, broken, or missing.

Drawer glide for refrigerator deli or crisper drawers. Replace if cracked, broken, or causing drawer to stick or fall out when opened. Mounts to shelf.

Replace your cracked or broken refrigerator drawer glide. Mounts to the interior wall to support smooth drawer sliding. Essential for worn or damaged glides.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replacement crisper pan for refrigerators. Installs in the fresh food section to store fruits and vegetables. Replace if cracked, broken, or missing.

Cross-support brace that reinforces the crisper cover on 36-inch models. Replace if broken, missing, or cracked to prevent cover sagging and keep bins aligned.

Structural frame that supports crisper drawers and holds the glass shelf above them. Replace if cracked, broken, or damaged to restore proper drawer support.

Note: Per the manufacturer, the center rail is part number WPW10326469.

Glass panel that covers the top of crisper drawers in your refrigerator. Replace if cracked, shattered, or broken during cleaning or normal use.

Center ladder support for refrigerator shelves. Replaces worn, cracked, or broken ladders that no longer secure shelving properly. Restores alignment.

Replacement drawer divider that separates and organizes items inside refrigerator bins. Restores compartment organization when original is cracked or missing.

Structural support that holds the crisper drawer frame in place. Replace if cracked, broken, or missing. Slides into liner holes for stability.

Supports and guides the deli drawer in your refrigerator's fresh food section. Replace if worn, broken, or causing drawer sticking, sagging, or derailment.

Front-edge molding that finishes and secures your refrigerator shelf. Replace if cracked, broken, or missing to restore clean appearance and stability.

Replacement pantry shelf divider that separates and organizes items in your refrigerator pantry. Needed when original is cracked, broken, or missing.

Refrigerator freezer drawer glide gear that attaches to the rear shaft. Replace if broken, cracked, or missing tabs cause your basket to lean or fall off track.

Right-side gear mount bracket for refrigerators. Secures gear assembly in place. Replace if cracked, broken, or mounting tabs are damaged or missing.

Left-side gear mount bracket for bottom-mount refrigerators. Secures gear assembly in place. Replace if cracked, broken, or damaged to restore stability.

This is a door handle designed for the exterior of the refrigerator, providing a grip for opening and closing the door. It attaches to the door panel via mounting brackets or screws. Replace this handle if it is cracked, loose, or broken off, making it difficult to open the refrigerator door properly.

This is a small spur gear used in the drawer glide assembly, typically on the left side of a refrigerator or freezer drawer. It meshes with the drawer track mechanism to allow smooth opening and closing. Replace this gear if the drawer is difficult to slide, feels rough or catches when pulled out, or if the original gear teeth are worn or broken.

Replacement pantry slide assembly for refrigerator shelves. Restores smooth gliding action when original slides are worn, cracked, or broken. Direct fit.

Replacement bar for refrigerator crisper drawer. Installs at the front or back of the drawer. Order a new one if your original is cracked or broken.

Guides and supports your refrigerator's pantry drawer for smooth sliding. Replace if drawer misaligns or sticks. Confirm fit with your model number.

This is a gasket that seals around the rear pantry drawer frame inside the refrigerator, helping maintain proper temperature and humidity within the pantry compartment. It prevents cold air from escaping around the edges of the frame. Replace this gasket if you notice frost buildup, condensation, or temperature inconsistencies in the pantry area, or if the gasket is torn, compressed, or no longer sealing properly.
