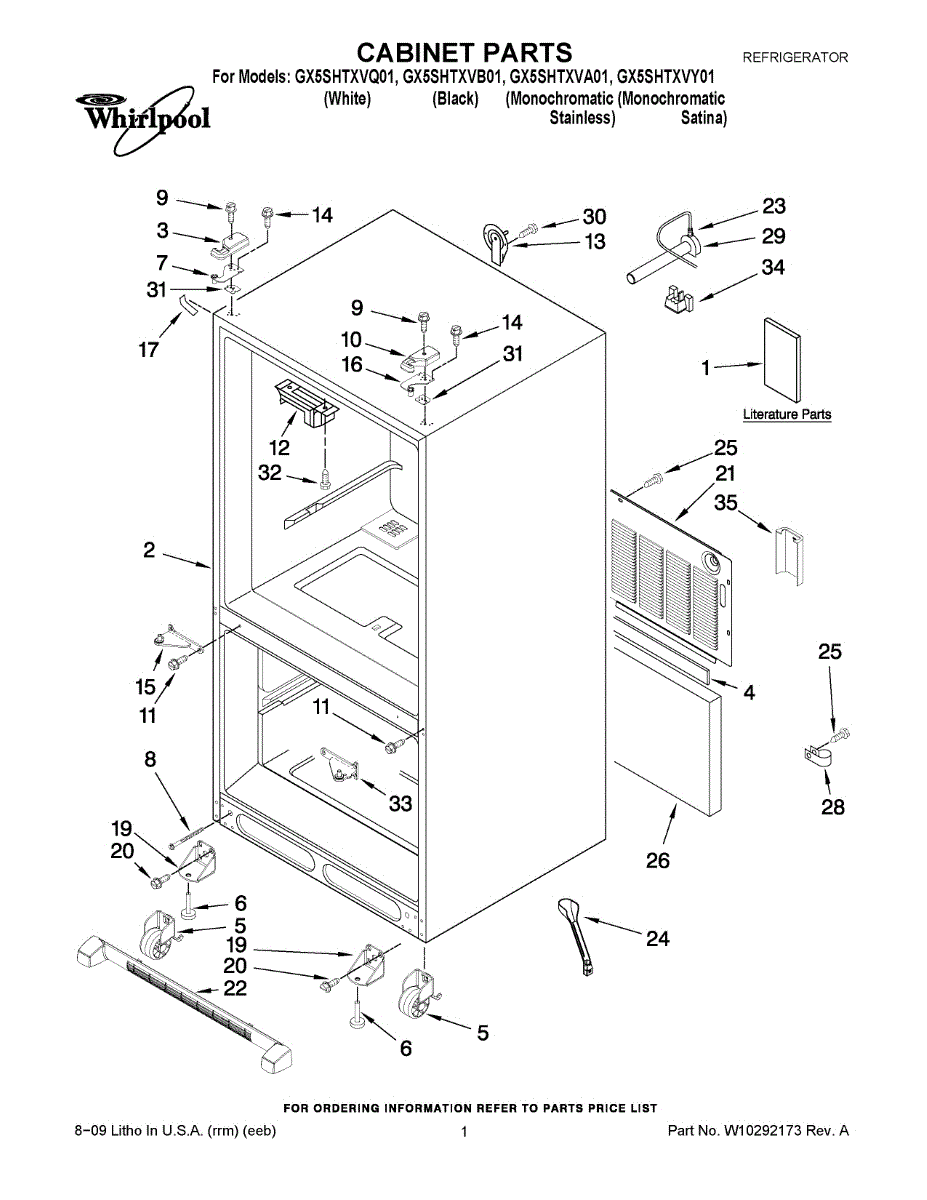

Parts for Whirlpool GX5SHTXVB01: 01 - Cabinet Parts

Protective cover that shields the control board and electronics from dust and debris. Replace if cracked, broken, or missing to restore internal protection.

This cover hinge assembly secures and guides the appliance lid or top panel so it opens and closes smoothly. Replacing a worn hinge restores proper lid alignment and helps eliminate sticking, sagging, or uneven closure. What it does:

• Provides a pivot point for the lid/top cover, holding it in the correct position during use
• Restores smooth opening and closing when original hinge is bent, worn, or broken
• Helps eliminate lid sag, misalignment, or rubbing against the cabinet
• Works with the appliance's existing bracketry and fasteners to maintain fit and function

• One cover hinge assembly

• Basic hand tools required; keep fasteners organized for reassembly
• Disconnect power and follow appliance-specific safety guidelines before beginning repair
• Inspect mating surfaces and replace any damaged screws or brackets for a secure fit

Conceals and protects the refrigerator door hinge area. Replaces cracked, missing, or loose hinge covers to restore clean appearance and shield components.

Adjustable leveling foot that supports and stabilizes your refrigerator. Replace if worn, broken, or missing to eliminate wobbling and vibration.

Replaces a broken or worn top left door hinge on your refrigerator. Secures the door to the cabinet for proper alignment and smooth pivoting movement.

Replacement mounting screw for securing appliance panels, brackets, or trim. Restores tight fit when original fastener is missing, stripped, or rusted.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Plastic cover that conceals the top door hinge on your refrigerator. Replaces cracked, broken, or missing hinge covers for a clean finished look.

Right-side top hinge cover that restores your refrigerator's finished appearance. Snaps over hinge hardware to hide screws and protect from dust.

Replaces a cracked, warped, or missing cover on your refrigerator. Protects internal components and restores proper fit so parts stay secured.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Supports the refrigerator door hinge for smooth opening and closing. Replace this pivot block if it's cracked, worn down, or broken to restore proper alignment.

Protective cover for water valves and inlet hoses. Replace if cracked, broken, or missing to shield components from debris and accidental contact.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Secures the refrigerator door and allows smooth swinging. Replace if hinge is cracked, broken, or causing door misalignment and sagging issues.

Upper door hinge secures and pivots your refrigerator door for smooth operation. Replace if cracked, damaged, or causing door misalignment and gaps.

Replacement door hinge assembly that secures and supports your refrigerator door. Restores smooth pivoting when the original is cracked, worn, or broken.

Upper door hinge assembly for refrigerators. Mounts at the top of the door to secure it to the cabinet. Replace if cracked, broken, or missing.

Black plastic corner cover replaces damaged or missing exterior trim on your refrigerator. Restores finished appearance and protects edges from wear.

Replaces missing or damaged corner trim filler on your refrigerator. Restores a clean, finished look to interior or exterior cabinet seams and edges.

Hex head sheet metal screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, corroded, or stripped screws.

Back cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing rear cover. Installs on the back exterior of the unit.

Covers the lower front opening of your refrigerator. Replace this grille when the original is cracked, broken, or missing to restore a finished look.

Front kickplate grille panel that installs at the base of your refrigerator for a finished look. Replace if cracked, broken, or clips are damaged.

Covers the base of your refrigerator to protect the lower ventilation area. Replace if cracked, broken, or missing. Snaps into place in minutes.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

Guides condensation from the defrost cycle to the evaporation pan. Replace if cracked, clogged, or causing water leaks and ice buildup in the freezer.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Replacement icemaker fill tube that directs water from the valve to the ice tray. Replace if cracked, leaking, or causing water to freeze in the freezer.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Thin spacer shim that aligns and levels internal refrigerator components. Replace if worn, missing, or damaged to restore proper fit and clearances.

Flat shim spacer that fills small gaps between refrigerator components. Replace when worn, missing, or cracked to restore proper alignment and reduce noise.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Replaces cracked, broken, or worn refrigerator door hinges. Secures and aligns the door for proper closure. Available in multiple finishes to match.

Upper door hinge secures and pivots your refrigerator door for smooth operation. Replace if cracked, damaged, or causing door misalignment and gaps.

Replacement door hinge assembly that secures and supports your refrigerator door. Restores smooth pivoting when the original is cracked, worn, or broken.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

Plastic cover cap that protects the water valve connection on your refrigerator. Replace if cracked, broken, or missing to prevent debris buildup.
