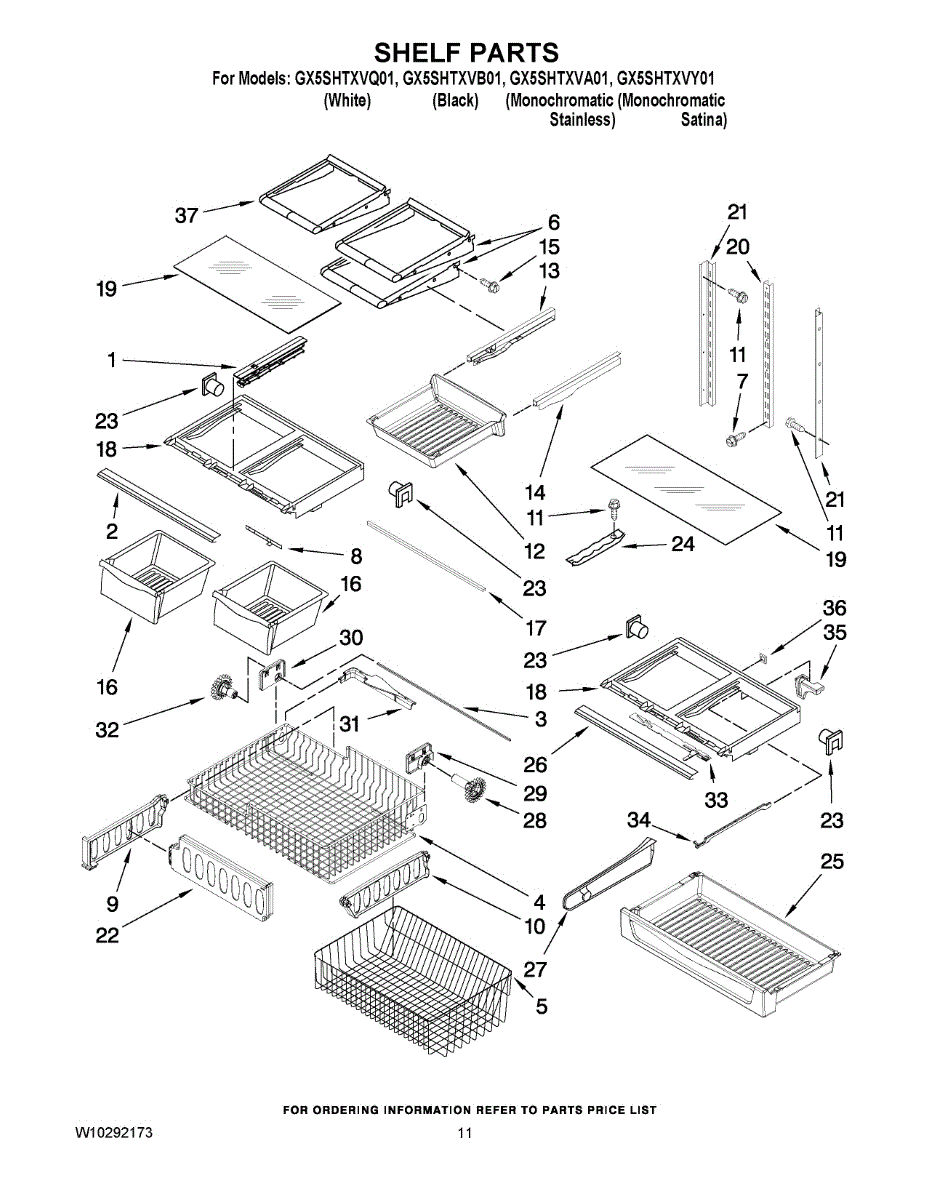

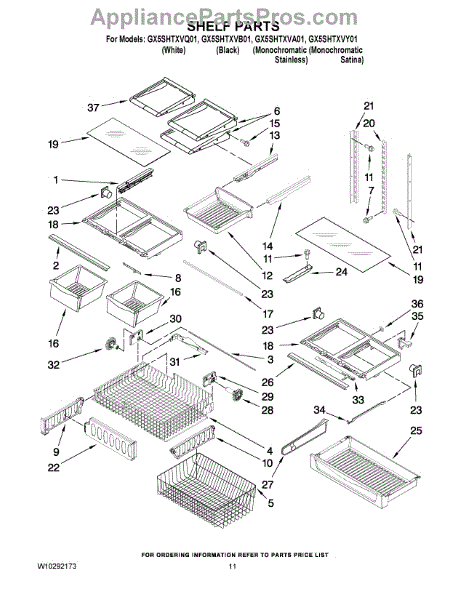

Parts for Whirlpool GX5SHTXVB01: 07 - Shelf Parts

The Center Rail is an OEM part compatible with Whirlpool refrigerators. It plays a crucial role in providing structural support and stability for the shelves and drawers within the refrigerator compartment. This rail measures approximately 14.1 x 2.6 x 1.5 inches.

Causes of a bad refrigerator center rail can include physical damage from impact or excessive force, warping due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad center rail include:

• Shelves or drawers becoming misaligned or difficult to slide in and out
• Excessive wobbling or instability when shelves or drawers are loaded
• Visible signs of damage, such as cracks or bends, on the center rail itself

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

This upper freezer basket is a direct-fit replacement that restores storage and organization inside the freezer compartment. It holds frozen food items securely and helps keep the freezer neat for easier access. What it does

• Replaces a cracked, broken or missing upper freezer basket so items stay contained
• Slides into the freezer compartment on existing rails or supports for stable storage
• Prevents items from shifting or falling into lower compartments during use
• Helps improve organization so you can see and access frozen foods quickly

• Unplug the refrigerator or disconnect power before servicing to reduce shock risk
• Remove any food and clear the shelf area before sliding the new basket into place
• Align the basket with the freezer supports and slide in gently; do not force
• If the basket attaches with clips or rails, inspect mounts for damage and replace any broken hardware

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Divider keeps items organized inside a refrigerator drawer by creating separate sections for food storage. It restores neat storage and prevents items from shifting or falling when the drawer opens and closes. What it does:

• Provides a stable partition inside a refrigerator drawer to separate foods and containers
• Helps prevent items from shifting, tipping, or becoming disorganized during use
• Replaces a cracked, broken, or missing divider that won't stay in place
• Fits into existing divider slots or guides in the drawer for a secure separation

• One replacement divider

• No special tools usually required; slides into the drawer slots or clips into place
• Remove food and the drawer for easier access before installing
• Align tabs or guides, then gently press until the divider locks into position
• Handle carefully to avoid cracking plastic; wash with mild soap and water before reinstalling if needed

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Drawer Glide is an OEM part for Whirlpool refrigerators. It ensures the smooth operation of refrigerator drawers, allowing them to slide in and out effortlessly. The glide measures approximately 15 inches in length.

Causes of a bad drawer glide can include wear and tear from regular use, accumulation of debris or dirt, or physical damage due to impact or overloading the drawers. When the glide becomes damaged, it can hinder the functionality of the refrigerator drawers, making it difficult to access stored items.

Symptoms of a bad drawer glide include:

• Difficulty opening or closing refrigerator drawers
• Drawers getting stuck or not sliding smoothly
• Unusual noises when operating the drawers
• Drawers misaligning or falling off their tracks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the right side drawer glide, use part number WP67001053

The Drawer Glide is an OEM part for Whirlpool refrigerators. This component facilitates the smooth sliding motion of refrigerator drawers, ensuring easy access to stored items.

Over time, drawer glides can become worn out or damaged due to constant use, heavy loads, or accidental impacts. A faulty drawer glide can hinder the smooth operation of the refrigerator drawers, making them difficult to open or close.

Symptoms of a bad Drawer Glide include:

• Difficulty in sliding the drawer in and out
• The drawer getting stuck or not aligning properly
• Unusual noises when operating the drawer
• The drawer not staying in place or sagging

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right hand side. For left side use WP67001054

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Crisper Pan is an OEM replacement part for Whirlpool side-by-side refrigerators. It provides a contained, elevated area to organize and store fruits and vegetables above internal drawers.

Causes of a faulty pan can include cracks or breaks from years of repeated opening and closing access doors above. Prolonged exposure to spills or condensation may also impact material integrity.

Symptoms include:

• Leaks compromising humidity within crisper drawers
• Containment issues resulting in disorganized storage
• Inability to effectively close access doors above

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper side-by-side refrigerator models.

This crisper brace is the cross-support used on 36-inch models to reinforce the crisper cover/shelf. It restores firm support so bins stay aligned and slide smoothly without the cover sagging or flexing. What it does:

• Supports the crisper cover/shelf to prevent bowing and flexing
• Keeps crisper drawers aligned for smooth open/close
• Replaces a cracked, warped, or missing brace
• Common symptoms: shelf sags or feels loose, drawers bind or rub, visible brace damage

• 1 crisper brace

• Unplug the refrigerator and clear the crisper area
• Remove crisper drawers and the cover/shelf to access the brace
• Position and secure the new brace using the original fasteners
• Reinstall the cover/shelf and drawers; verify drawers slide freely

The Crisper Shelf Frame is an OEM part for Whirlpool refrigerators. It supports the crisper drawers and holds the glass shelf above them, providing stability and organization for your fresh produce.

You should replace this crisper shelf frame if it becomes damaged or broken. Causes of a bad crisper shelf frame can include excessive weight placed on the shelf, accidental impact, or wear and tear over time. A damaged shelf frame can compromise the structural integrity of the crisper drawers and lead to further issues with storage.

Symptoms of a bad Crisper Shelf Frame include:

• Cracks or breaks in the frame
• Difficulty in sliding the crisper drawers
• Sagging or misalignment of the glass shelf
• Inability to properly support the contents

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Glass is an OEM part for Whirlpool refrigerators. This glass panel fits on top of the crisper drawers, providing a sturdy cover that helps maintain the optimal environment for storing fruits and vegetables. The crisper glass measures approximately 30.54 inches wide by 14.25 inches deep.

Causes of a bad crisper glass can include accidental impact that leads to cracks or shattering, excessive weight placed on the glass causing it to bend or break, and thermal stress from temperature changes. These issues can compromise the structural integrity of the crisper glass, making it unsafe for use.

Symptoms of a bad crisper glass include:

• Visible cracks or shattered pieces
• Sharp edges on the glass
• Difficulty in fitting the glass securely on top of the crisper drawers
• Unstable surface that wobbles or shifts

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement ladder is the OEM-style ladder used to support and stabilize the shelf/rail assembly inside the appliance, restoring proper alignment and preventing sagging or items from shifting during use. What it does:

• Provides sturdy support for the appliance shelf or rail assembly
• Keeps shelves aligned so items sit level and don't slide or tip
• Prevents noise and movement caused by a loose or broken support
• Helps maintain proper interior spacing for storage

• Disconnect power to the appliance before starting any repair
• Remove nearby shelves or trim to access the ladder; keep track of fasteners
• Inspect surrounding clips and rails; replace damaged hardware as needed

A replacement ladder shelf support that holds and stabilizes a refrigerator shelf or bin track so stored items stay level and secure. Restores proper shelf alignment and prevents shifting or sagging. What it does:

• Supports and aligns a refrigerator shelf or bin track to keep items stable
• Replaces broken, bent or cracked ladder pieces that cause shelves to tilt
• Helps stop shelves or bins from slipping forward or coming loose
• Compatible with common Whirlpool refrigerator shelf mounting points

• Disconnect power or unplug the appliance before starting any repair.
• Remove shelves or bins as needed to access the ladder; handle glass shelves carefully.
• Use basic hand tools; avoid forcing parts—inspect for damaged mounting clips or guides.

This replacement divider keeps items separated and organized inside a refrigerator drawer or bin so food stays tidy and easy to access. It restores proper compartment separation when the original divider is cracked or missing. What it does

• Separates compartments in a refrigerator drawer or bin to prevent items from shifting and mixing
• Helps organize produce, deli items, or small containers for easier access
• Restores stability to a damaged or missing partition so drawers close and function properly
• Common symptoms: cracked, broken, warped, or missing divider causing items to move or compartments to be unusable

• One replacement divider

• Remove drawer/bin contents and slide the drawer out before installing
• Align divider with the existing slots or tracks and press gently into place until it seats securely
• No special tools typically required; use care to avoid excessive force that could crack mounting points
• Clean with mild soap and water; avoid harsh solvents or abrasive scrubbers

This crisper frame support secures the crisper cover/frame to the refrigerator liner so the drawers glide correctly. Replace a cracked or missing support to restore a level cover and dependable support in the crisper area.

• Supports the crisper cover/frame on the cabinet wall
• Keeps the cover level to prevent sagging or drop
• Helps crisper drawers slide and close smoothly
• Typical failure signs: cracked/missing bracket, tilted cover, binding drawers

• Disconnect power and clear the crisper area before starting
• Remove crisper drawers and lift out the crisper cover/frame
• Remove the damaged support and install the new support in the same location; a screwdriver or nut driver may be needed
• Reinstall the cover/frame and drawers; verify level and smooth drawer operation

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

A replacement pantry divider that helps separate and stabilize items on the refrigerator pantry shelf for neater storage and fewer tipped containers. Restores proper spacing and organization inside the pantry area. What it does:

• Replaces a cracked, broken, or missing pantry shelf divider that allows items to shift or fall.
• Keeps tall or narrow items upright and organized to improve access and visibility.
• Helps maintain intended shelf spacing and prevents groceries from sliding during door movement.
• Suitable when original divider is chipped, warped, or no longer secures items.

• Remove items from the pantry shelf and follow the refrigerator owner's manual for safe shelf removal before installing.
• Handle the replacement part carefully to avoid cracking; align tabs or slots and press into place until secure.
• Do not force or bend the part—stop and re-check orientation if it does not seat easily.
• For safety, unplug the appliance or turn off power to the refrigerator before working in the compartment if required by your model's service instructions.

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Right side mount

Left side mount

This replacement oven door handle restores a secure grip for opening and closing the oven door. It replaces a damaged, loose, or missing handle to make door use safer and more convenient. What it does:

• Provides a sturdy grip for opening and closing the oven door
• Replaces handles that are cracked, bent, loose, or missing
• Helps prevent slippage and improves user control when handling hot appliances
• Matches the original mounting style for a straightforward replacement

• Use basic hand tools; support the door while removing and installing the handle to avoid injury or damage
• Disconnect power to the appliance or ensure it is cool before attempting replacement
• Tighten mounting fasteners securely but do not overtighten to avoid stripping

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Replacement pantry tunnel that restores the pantry drawer's alignment and helps maintain proper airflow and sealing in the pantry compartment. Restores smooth sliding and proper compartment performance for affected refrigerators. What it does:

• Guides and supports the pantry/deli drawer to help ensure smooth opening and closing.
• Helps maintain the intended airflow path and compartment sealing; a cracked or missing tunnel can contribute to temperature inconsistencies.
• Prevents items from rubbing against the cabinet opening and reduces wear on the drawer edges.
• Matches the original mounting direction and fit to restore the part's function when damaged.

• Unplug the refrigerator or disconnect power before beginning service.
• Remove the pantry/deli drawer per the owner's manual to access the tunnel area.
• Align the tunnel with the original mounting points and secure it without forcing; use basic hand tools as needed.

This glass shelf provides a flat, stable surface for organizing food and containers inside your refrigerator. It restores usable storage space and helps keep items level to reduce spills and stacking issues. What it does:

• Replaces a broken, chipped or missing refrigerator shelf panel to restore storage functionality
• Supports food containers, beverages and small appliances used inside the fresh-food compartment
• Helps contain minor spills on the shelf surface for easier cleanup
• Fits into existing shelf supports or rails to lock the panel in place

• One glass shelf panel

• Remove food and all items from the area before replacing the shelf
• Lift the old shelf straight up from its supports; align the new panel and set it into the shelf rails
• Handle glass carefully and wear protective gloves to avoid cuts if damaged
• Do not use a cracked or compromised shelf — replace immediately for safety
