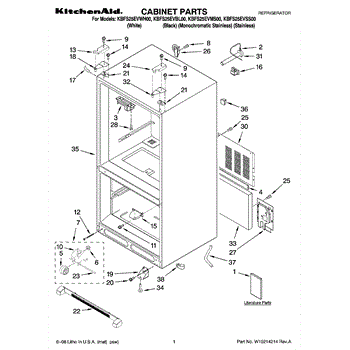

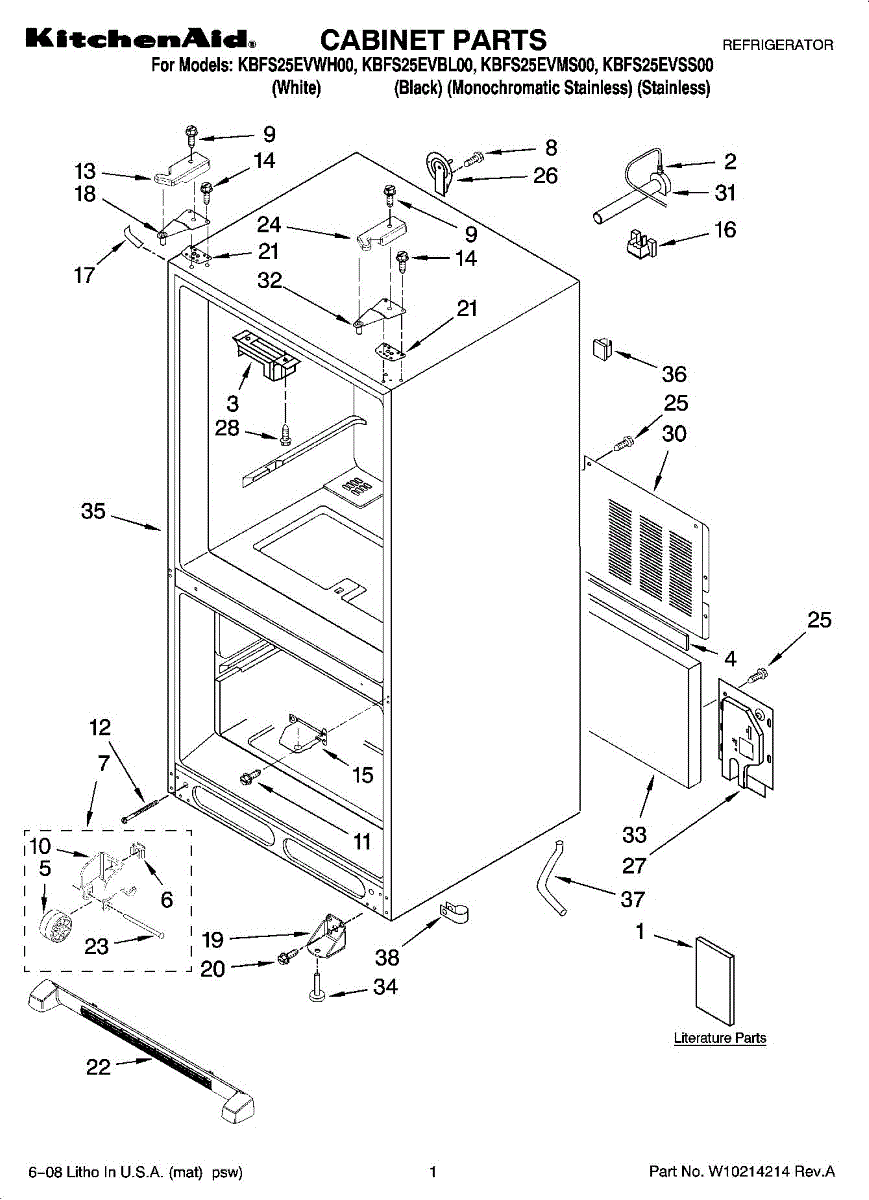

Parts for Kitchenaid KBFS25EVMS00: 01 - Cabinet Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Icemaker Fill Tube is an OEM replacement part for Whirlpool refrigerators. It delivers water to the icemaker, allowing it to produce ice cubes. It is responsible for directing water from the water inlet valve to the icemaker tray, where it freezes into ice cubes.

A bad fill tube can occur due to wear and tear, blockages, or damage. If you notice symptoms such as no ice production, leaking water, or ice cubes with an unusual shape or size, it may be time to replace the fill tube.

Symptoms of a bad fill tube include:

• No ice production or limited ice output
• Leaking water around the icemaker area
• Irregularly shaped or oversized ice cubes

Repair your refrigerator by replacing the faulty or damaged fill tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Refrigerator Pivot Block is an OEM part for Whirlpool refrigerators. It supports the door hinge, allowing the refrigerator door to open and close smoothly. The pivot block ensures that the door stays aligned and securely attached to the refrigerator frame.

Causes of a bad pivot block can include wear and tear over time, heavy use, or damage from accidental impacts. Misalignment or excessive force when opening and closing the door can also contribute to its failure.

Symptoms of a bad refrigerator pivot block include:

• The refrigerator door not opening or closing properly
• A misaligned door that doesn't seal correctly
• Unusual noises when the door is operated
• The door feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Cabinet Roller is an OEM part for Whirlpool refrigerators. It facilitates the smooth movement and positioning of the refrigerator cabinet, making it easier to adjust or relocate the appliance as needed. This roller is designed to support the weight of the refrigerator while allowing for effortless mobility.

Causes of a bad Cabinet Roller can include wear and tear over time, exposure to heavy loads, or damage due to rough handling or impact. These factors can lead to the roller becoming ineffective or breaking altogether, resulting in difficulty moving the refrigerator.

Symptoms of a bad Cabinet Roller include:

• Difficulty moving or adjusting the refrigerator
• Unusual noises when attempting to move the appliance
• The refrigerator not sitting level or wobbling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This is a replacement door hinge that supports and guides the appliance door for smooth opening and reliable alignment. Restores proper door movement and helps maintain a consistent seal. What it does:

• Secures the door to the cabinet and provides pivoting action for opening and closing.
• Helps maintain proper door alignment to prevent gaps and uneven sealing.
• Reduces door sag, rubbing, and binding that can cause wear or noise.
• Commonly replaced when the door feels loose, drops, or does not close evenly.

• Unplug the appliance or disconnect power before beginning any repair.
• Support the door during removal and installation to prevent damage or injury.
• Use appropriate hand tools; avoid forcing fasteners to prevent stripping.
• Adjust as needed by loosening hinge fasteners, repositioning, then retightening.

This is a replacement door hinge that supports and guides the appliance door for smooth opening and reliable alignment. Restores proper door movement and helps maintain a consistent seal. What it does:

• Secures the door to the cabinet and provides pivoting action for opening and closing.
• Helps maintain proper door alignment to prevent gaps and uneven sealing.
• Reduces door sag, rubbing, and binding that can cause wear or noise.
• Commonly replaced when the door feels loose, drops, or does not close evenly.

• Unplug the appliance or disconnect power before beginning any repair.
• Support the door during removal and installation to prevent damage or injury.
• Use appropriate hand tools; avoid forcing fasteners to prevent stripping.
• Adjust as needed by loosening hinge fasteners, repositioning, then retightening.

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This base grille installs at the bottom front of the appliance to cover the lower opening and direct airflow through the ventilation area. Replace it to restore a clean, finished look when the original is damaged, loose, or missing.

• Finishes and protects the lower front of the cabinet
• Allows proper airflow through the front vent area
• Helps shield internal components from debris
• Replace if cracked, warped, broken tabs, rattling, or missing

• Disconnect power before servicing
• Remove the old grille by pulling outward at the top and lifting up, or by removing screws/clips if your model uses them
• Align tabs with slots and snap firmly into place
• Verify door clearance and secure fit, then restore power

The Kickpanel is an OEM part for Whirlpool refrigerators.This part provides a finished look while protecting internal components such as the condenser coils and compressor from dirt and debris.

Causes of a bad kickpanel can include physical damage from impacts, wear and tear from regular use, or breakage during cleaning or maintenance.

Symptoms of a bad kickpanel include:

• Visible cracks or breaks in the panel
• The panel not fitting securely or becoming detached
• Increased noise levels from the refrigerator
• Accumulation of dirt and debris around the exposed area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Kickplate Grille is an OEM part for Whirlpool refrigerators. It is installed at the base of the refrigerator and serves to cover and protect the lower ventilation area, helping to ensure proper airflow to the condenser and other components. It measures approximately 37 inches wide, 2 inches high, and 4 inches deep.

You should replace the kickplate grille if it becomes damaged or broken. Causes of a bad kickplate grille can include accidental impacts, wear and tear over time, or exposure to cleaning chemicals that can weaken the material.

Symptoms of a bad kickplate grille include:

• Visible cracks or breaks in the grille
• Loose or unstable attachment
• Obstructions in airflow leading to poor refrigerator performance
• Accumulation of dust and debris behind the grille

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement cover protects water-related components on select Whirlpool washers, helping keep valves and hoses shielded from debris and incidental contact for reliable water flow management. What it does

• Protects water valves, inlet hoses, and nearby fittings from dirt and accidental contact
• Helps maintain proper water routing by keeping components covered and positioned
• Commonly replaced if cracked, broken, warped, or missing after impact or wear
• Can prevent debris buildup that interferes with valve operation or connections

• One replacement cover as pictured

• Disconnect power and shut off the water supply before starting any repair
• Secure with existing screws or clips
• Do not force the cover into place; inspect surrounding fittings and hoses for damage while installing
• If you see leaks after installation, recheck hose connections and valve seating; replace defective parts as needed

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This door hinge is a direct-fit replacement that helps the appliance door open and close smoothly and stay properly aligned to prevent rubbing or gaps. Durable construction restores reliable door movement and seal engagement. What it does:

• Supports and pivots the appliance door so it opens and closes correctly
• Maintains correct door alignment to help the gasket seal fully
• Reduces sagging, sticking, or uneven door gaps that can affect performance
• Works with the existing hinge mount points and hardware

• One door hinge

• Disconnect power and empty the door before starting to avoid injury or damage
• Use the OEM mounting screws and follow turning sequence to re-align the door
• Tighten fasteners securely, then cycle the door and check for proper seal and operation

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement

This replacement drain tube directs discharged water from the appliance to the household drain, helping restore proper drainage and reduce the risk of leaks. Designed to match OEM fit and routing for straightforward replacement. What it does:

• Channels drained water away from the appliance to prevent pooling and leaks
• Replaces cracked, split, or collapsed tubing that causes slow or no drainage
• Restores proper flow when water backs up or drains intermittently
• Works with factory clamps and fittings to maintain a secure seal

• Disconnect power and shut off water supply before beginning service
• Inspect surrounding fittings and clamps; replace any damaged hardware for a reliable seal
• Follow the appliance service manual for correct routing and clamp locations
• If you smell gas or detect significant water damage, stop.
