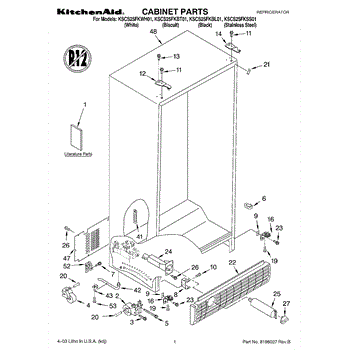

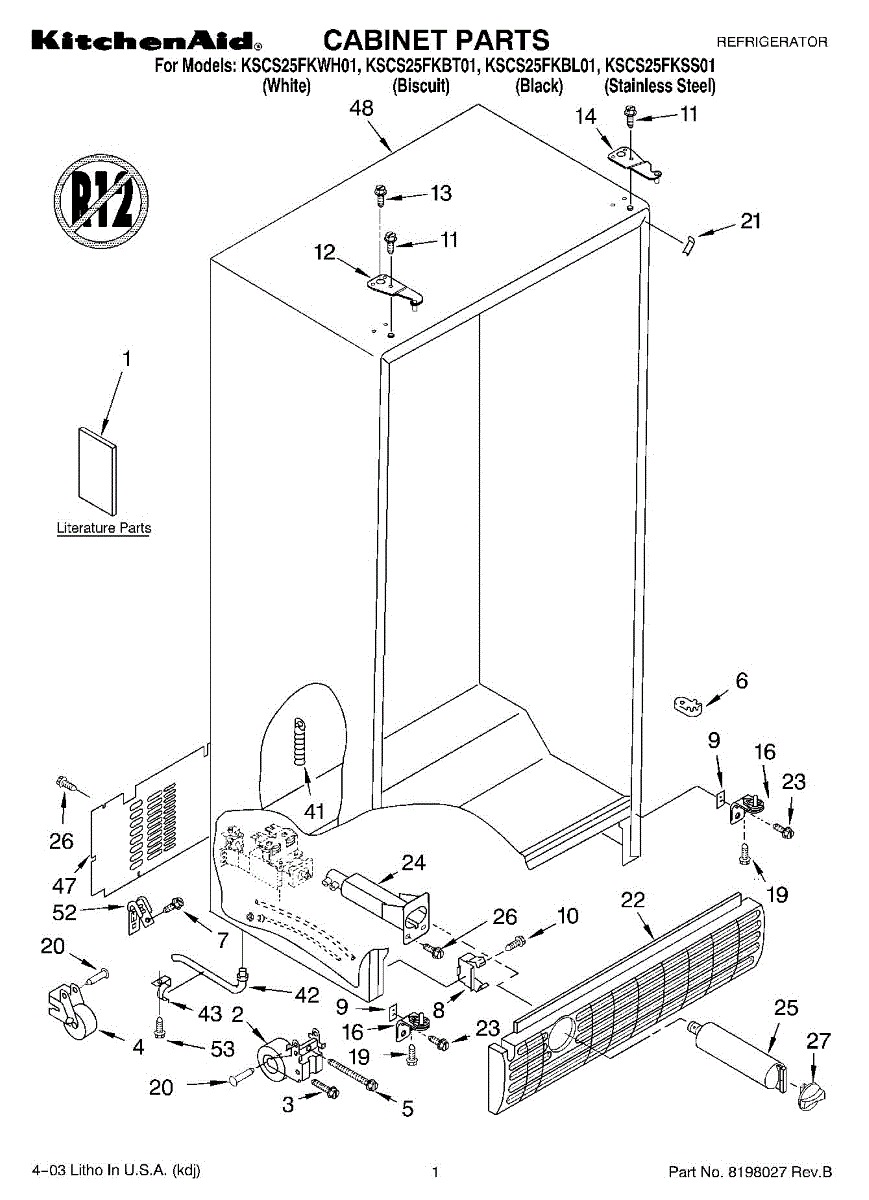

Parts for Kitchenaid KSCS25FKBT01: 01 - Cabinet Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Door Cam is an OEM part for Whirlpool refrigerators. It functions as a critical component in the door closing mechanism, facilitating the smooth opening and closing of the refrigerator door. The door cam helps to lift and lower the door slightly as it opens and closes, reducing stress on the hinges and ensuring a tight seal.

Causes of a bad Door Cam can include wear from regular use, cracking due to excessive force when opening or closing the door, or misalignment that prevents the door from functioning properly.

Symptoms of a bad Door Cam include:

• The refrigerator door making noise when opened or closed
• Difficulty in shutting the door completely
• Increased energy consumption as the fridge works harder to maintain its internal temperature due to a poor seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1/2 ab.

This hinge shim installs at the bottom refrigerator door hinge to fine-tune door height and alignment. Replacing a missing or damaged shim helps the door close smoothly and seal evenly for reliable performance.

• Positions the door by spacing the bottom hinge for correct height and alignment
• Helps restore smooth closing and consistent gasket contact
• Useful after hinge or gasket service to set the door-to-cabinet gap

• Disconnect power before servicing
• Support the door; remove bottom hinge fasteners and lift the door off per your manual
• Add or replace shim(s) on the bottom hinge, then reinstall and tighten hardware
• Check level and uniform gasket contact around the door

Color: Biscuit. Other colors: For white use 2307007AP, for black use 2307007B.

This screw secures appliance components to restore proper fit and stop parts from shifting. Replacing a missing or damaged screw helps eliminate rattling and keeps panels, trim and small assemblies aligned during normal use. What it does:

• Fastens panels, brackets, trim or small internal assemblies to maintain structural fit.
• Replacing a worn or missing screw can stop rattling, vibration or loose parts.
• Uses OEM-design fit and thread profile for correct engagement and to avoid stripped threads.
• Intended for use in specific Whirlpool assemblies.

• Disconnect power and, if applicable, shut off gas or water supply before servicing.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the screw head.
• Tighten snugly but do not overtighten — overtightening can strip threads or damage components.
• If threads or inserts are damaged, replace or repair per OEM instructions before reinstalling.

Color: Biscuit. Other colors: For white use 2307008AP, for black use 2307008B.

Color: Apollo Gray

Color: Black. Other colors: For biscuit use 2307008T, for white use 2307008AP.

This replacement screw secures panels, brackets, or trim on compatible Whirlpool appliances to restore proper fit and reduce rattles and movement. Use it when a fastener is missing, loose, or stripped. What it does:

• Secures appliance panels, trim pieces, brackets, or small components in place
• Restores proper fit to eliminate rattling, gaps, or shifting parts
• Replaces missing, worn, or damaged screws that compromise mounting
• Matches OEM form and function when the correct screw is specified for the repair

• Turn off power to the appliance before working near controls, heating elements, or wiring
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten
• Keep removed screws in a container to ensure none are lost during reassembly

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The water filter housing holds the refrigerator's filter cartridge and seals the water lines, directing water through the filter to the dispenser and ice maker. Replace a cracked or leaking housing to restore proper flow and prevent leaks. What it does:

• Secures the water filter and maintains watertight seals at the connections
• Routes water through the filter before it reaches the dispenser and ice maker
• Provides the connection point for easy filter installation and removal
• Typical symptoms: leaks around the filter area, low/no water flow, or a filter that won't seat or eject properly

• Disconnect power and shut off the household water supply
• Dispense water to relieve pressure; place a towel to catch residual water
• Note tube routing; release tubing from quick-connect fittings and remove mounting screws to swap the housing; transfer any brackets or screws as needed
• Restore water and power, then check all connections for leaks and flush to clear air from the lines

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 8 x 1/2 ab.

White. For black order WP2186494B. For biscuit order WP2186494T.

Color: biscuit. It measures about 2-1/2 inches in diameter. For black order WP2186494B. For white order WP2186494W.

The Water Filter Cap is an OEM part for Whirlpool refrigerators. It secures the water filter in place, ensuring a proper seal and preventing leaks. This cap also facilitates the easy replacement of the water filter by providing a handle to twist the filter in and out.

You should replace the water filter cap if it becomes damaged or worn out. Causes of a bad water filter cap can include repeated use, cracking from excessive force, or wear and tear from regular filter replacements.

Symptoms of a bad water filter cap include:

• Leaking water from the filter area
• Difficulty in securing the water filter
• The cap being cracked or visibly damaged
• The filter not staying in place properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
