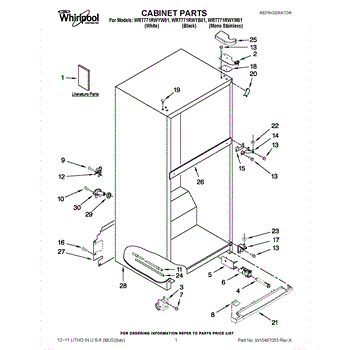

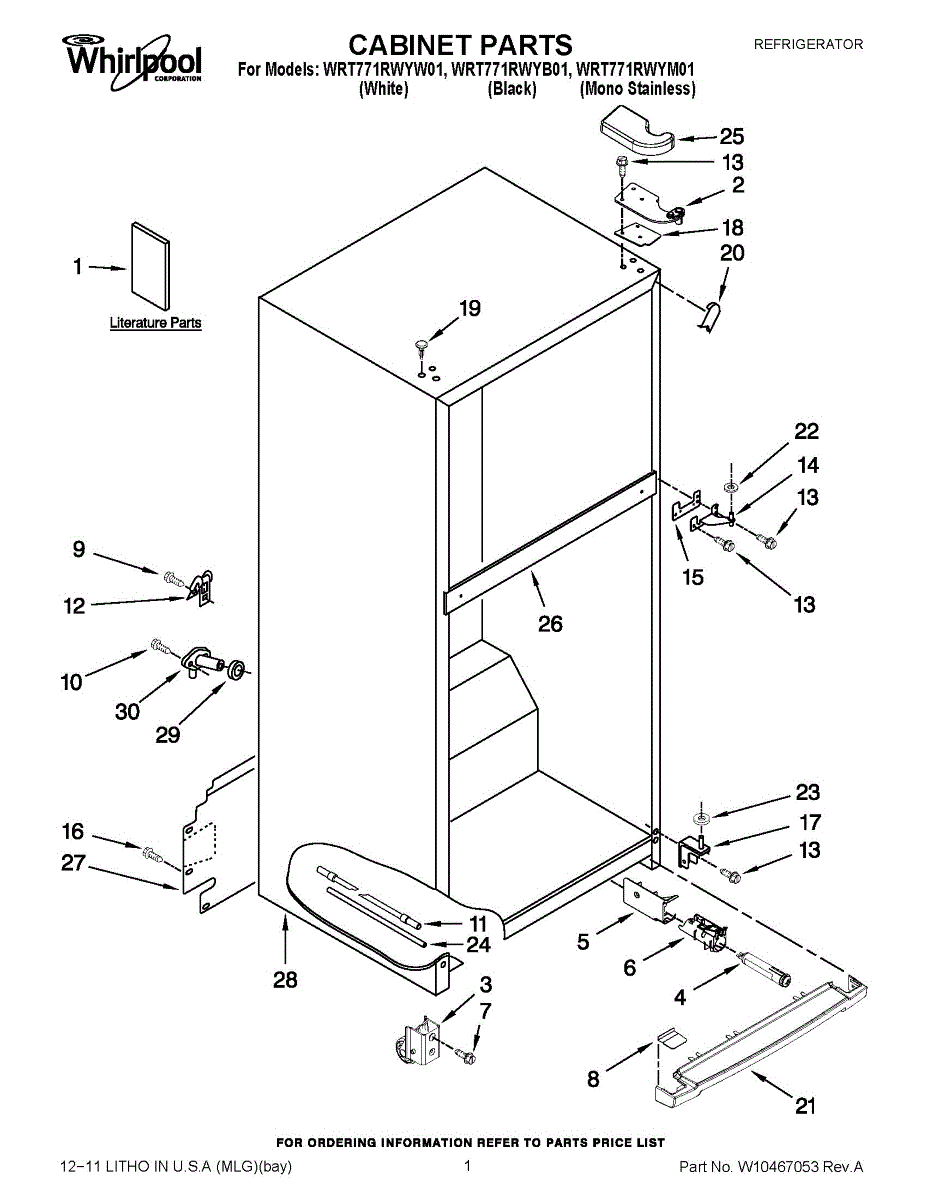

Parts for Whirlpool WRT771RWYM01: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This top door hinge assembly mounts at the upper corner of a refrigerator or freezer door to support the door and provide a smooth pivot. Replacing a worn hinge restores proper alignment, smooth closing, and an effective gasket seal.

• Supports the door at the upper pivot point and carries its weight
• Keeps the door square with the cabinet for proper sealing
• Enables smooth opening and closing without binding
• Common symptoms of a failing hinge include door sagging, rubbing, popping/creaking sounds, and poor sealing or condensation around the door

• Disconnect power; remove door contents for easier handling
• Support the door before removing the upper hinge screws and hinge
• Note hinge orientation and transfer any shims/spacers during reassembly
• Tighten screws securely, then verify door alignment and gasket seal

This cabinet roller helps a door or pull-out drawer roll smoothly along its track for consistent, quieter operation. It replaces a worn or damaged roller to restore even movement and reduce scraping or sticking. What it does:

• Supports and guides a door or drawer along its track for proper alignment and motion
• Reduces noise and friction from worn or damaged rollers
• Helps eliminate sticking, scraping, or uneven travel during opening/closing
• Restores consistent operation when the original roller is cracked, broken, or missing

• One cabinet roller

• Disconnect power to the appliance before beginning any repair
• Inspect the track and surrounding components for wear or debris; clean as needed
• Many rollers snap or screw into place; use appropriate tools and avoid forcing parts

This filter cover secures the appliance's filter element, keeping debris out of the sump and maintaining proper water flow for efficient cleaning. Replaces a worn or cracked cover to help restore normal filter function and reduce recurring clogs. What it does:

• Secures and protects the filter assembly from food particles and large debris
• Helps maintain correct water circulation through the filter area
• Prevents loose debris from entering the pump or spray system
• Can resolve symptoms like visible cover damage, persistent clogs, or debris in the sump

• One filter cover

• Turn off power to the appliance before accessing internal components
• Remove the old cover, clean the filter area, and snap or fasten the new cover into place per manufacturer guidance
• Do not force the cover; verify proper seating to avoid leaks or damage

This replacement housing serves as the structural cover/mount for a specific appliance assembly. Replacing a cracked or damaged housing restores secure mounting and protection so components stay aligned and operate as intended. What it does:

• Holds and positions the related components for correct operation
• Shields internal parts and wiring from impact and vibration
• Restores proper fit when the original housing is cracked, warped, or broken
• Common symptoms include loose/misaligned parts, rattling noises, broken tabs, or visible damage in the affected area

• 1 housing

• Disconnect power; if the serviced area ties into water, shut off the water supply
• Wear cut-resistant gloves; edges and surrounding sheet metal can be sharp
• Transfer any sensors, seals, or hardware from the old housing to the new one
• Reuse existing screws/clips; align carefully and do not overtighten, then test operation

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

This grille enclosure replaces a damaged lower front grille to restore the appliance's appearance and protect internal components. It provides a secure cover that helps direct airflow and prevents debris from entering the cabinet. What it does:

• Covers and protects lower front components from dirt, dust and accidental contact
• Helps direct airflow around vents and intake areas for proper operation
• Restores a finished, gap-free appearance when the original grille is cracked or broken
• Reduces rattling caused by loose or damaged grille pieces

• One lower front grille enclosure

• Disconnect power before starting any repair to avoid electrical shock
• Remove nearby panels or kickplate screws/clips as needed for access
• Align tabs and secure with the factory screws or clips; do not force or bend mounting tabs

Size: 8-18 x 1/2 inch.

Size: 8 x 1/2 ab.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

This hinge shim corrects hinge spacing to help doors sit square and reduce rubbing or uneven gaps. It's a simple replacement used to restore proper door alignment so the door closes and seals more reliably. What it does:

• Adjusts hinge spacing to realign doors; use when a door leans or shows uneven gaps.
• Helps the door close and seal better by restoring correct hinge clearance.
• Prevents binding or rubbing that can occur when a hinge or door is slightly out of position.
• Small, low-profile shim used as a targeted fix without replacing the entire hinge assembly.

• Disconnect power to the appliance before starting; if applicable, shut off the water supply.
• Support the door while loosening hinge fasteners to avoid sudden movement or injury.
• Install the shim between hinge components as shown in the service diagram; retighten fasteners evenly.

Color: white.

Color: Grey

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

This 33-inch toe grille restores the lower front trim on compatible refrigerators for a finished look and proper airflow at the base. It replaces damaged, cracked, or discolored grilles to improve appearance and maintain normal venting. What it does:

• Covers and protects the refrigerator kick area while allowing airflow under the cabinet
• Replaces cracked, broken, or warped grilles that affect appearance
• Helps keep dust and debris out of the lower vent area
• Restores a clean, factory look to the appliance front

• Disconnect power to the appliance before starting any work to ensure safety
• Typically installs at the refrigerator base—may require removing the lower access panel or sliding the grille into place
• Use caution to avoid scratching surrounding surfaces during removal and installation

This 33-inch toe grille covers the kickspace at the bottom of a range or oven, restoring appearance and protecting internal components from debris. It provides a finished look while allowing airflow under the appliance. What it does:

• Replaces a damaged, dented, or missing toe grille to restore the appliance's factory appearance
• Shields the oven/range base from dust, crumbs and small debris that can collect under the appliance
• Helps maintain proper airflow beneath the unit so components stay ventilated
• Matches the original mounting points for a direct-fit replacement when the correct part number is used

• One 33-inch toe grille

• Remove power (and gas supply, if applicable) and move appliance per manufacturer guidelines before accessing the toe area
• Typically attaches with clips or screws accessible from the front; handle trim carefully to avoid scratching
• Use basic hand tools; do not force clips—verify alignment before securing

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement access panel cover protects internal components and restores the appliance's outer appearance. It keeps parts covered to reduce debris entry and helps maintain safe operation. What it does:

• Replaces a damaged or missing access cover to protect wiring and internal parts
• Helps prevent debris and splashes from reaching sensitive components
• Can reduce rattles or vibration caused by a loose or broken cover
• Restores a finished look to the appliance cabinet and access area

• One access panel cover

• Disconnect power (unplug or shut off breaker) before starting any work
• Basic hand tools (screwdriver, nut driver) are typically required to remove and reinstall fasteners
• Handle edges carefully and wear gloves to avoid cuts from sheet metal

This replacement cover-unit restores the appliance's exterior housing and protects internal components from dust and damage. It helps maintain proper fit and appearance while keeping electrical and mechanical parts enclosed for safe operation. What it does:

• Replaces a cracked, warped, or missing housing cover to restore the cabinet's fit and finish
• Shields internal components from dust, lint, and accidental contact
• Helps reduce vibration-related rattles caused by loose or damaged panels
• Restores a secure mounting surface for adjacent panels and controls

• Disconnect power to the appliance before beginning any repair
• Basic hand tools typically required; follow model-specific disassembly steps
• Handle edges carefully to avoid scratches or cuts and to protect painted surfaces

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
