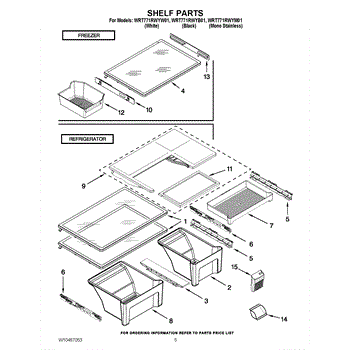

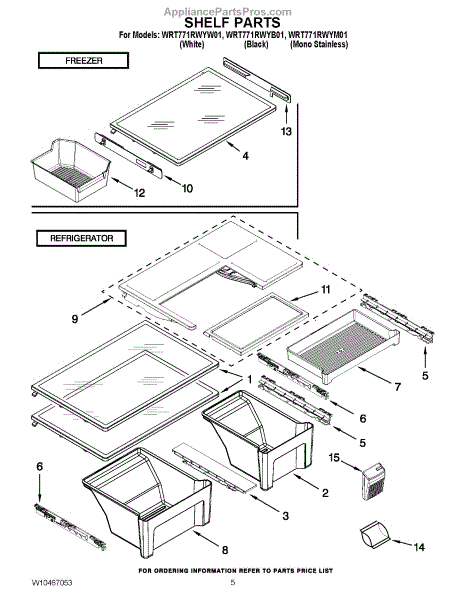

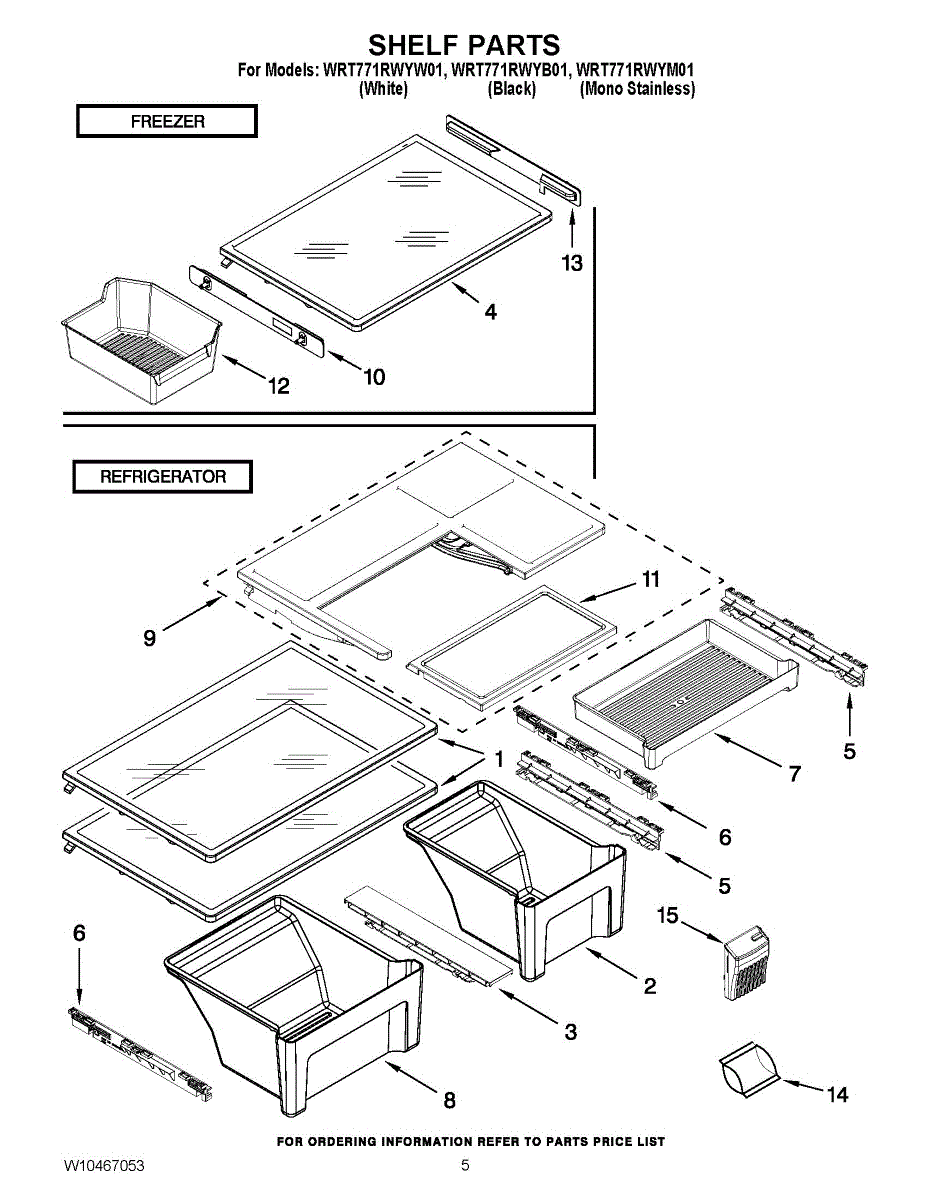

Parts for Whirlpool WRT771RWYM01: 03 - Shelf Parts

This center rail track supports and guides a sliding assembly inside your appliance, keeping the rack or drawer aligned and moving smoothly. Replace a cracked or bent center track to restore easy, stable operation and reduce binding. What it does:

• Provides the middle guide surface for a slide system
• Maintains level alignment with the mating rails
• Allows smooth in-and-out travel of the rack/drawer
• Typical symptoms: sticking or rough movement, derailment, tilting, or visible cracks/warping

• 1 center rail track

• Unplug or disconnect power before servicing; shut off gas if applicable
• Remove the rack/drawer and note the rail's orientation for reassembly
• Reuse existing fasteners and transfer any clips/brackets from the old track
• Test for smooth travel before returning to service

The Refrigerator Track is an OEM part for Whirlpool refrigerators. It supports and guides the movement of refrigerator drawers or shelves, ensuring they slide in and out smoothly. The track measures approximately 11 inches in length.

Causes of a bad track can include wear and tear from frequent use, damage from overloading the drawers or shelves, or breakage due to accidental impact. Over time, the track can become misaligned, cracked, or lose its ability to support the drawer properly.

Symptoms of a bad track include:

• Drawers or shelves that do not slide smoothly or get stuck
• Uneven or tilted drawers
• Noise when opening or closing the drawers
• The track appears damaged or broken

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Drawer Track is an OEM part for Whirlpool refrigerators. It provides a stable guide for the refrigerator drawers, ensuring they slide in and out smoothly for easy access to stored items.

Causes of a bad drawer track can include normal wear and tear from frequent use, buildup of dirt and debris, or physical damage from overloading the drawers or accidental impact. When the track becomes worn or damaged, it can impede the drawer's functionality.

Symptoms of a bad drawer track include:

• Difficulty opening or closing the refrigerator drawers
• Drawers getting stuck or not sliding smoothly
• Misalignment or falling off the tracks
• Unusual noises when operating the drawers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator meat pan replaces a broken or missing deli drawer to restore smooth, easy access storage for meats, cheeses, and snacks. Keep items organized while maximizing your refrigerator's usable space and convenience. What it does:

• Provides a dedicated bin for deli/meat items in the fresh food section
• Slides into existing rails for organized, easy access
• Restores function when the original drawer is cracked, warped, or missing
• Common symptoms: drawer broken, hard to open/close, falls off track, or won't stay seated

• 1 meat pan

• Disconnect power before servicing; handle glass and plastic parts with care
• Remove contents and slide the old drawer straight out of the tracks
• Align the new pan with both rails and push in until fully seated
• Let cold plastic warm to room temperature before installation to reduce risk of cracking

This support is a replacement mounting bracket that helps secure internal components and restore proper alignment for reliable operation. Replaces a worn or broken support to reduce movement and rattling. What it does

• Holds and stabilizes internal assemblies or panels to maintain correct positioning.
• Prevents excess movement that can cause noise, rubbing, or misalignment.
• Commonly replaced when support is cracked, bent, or missing hardware.
• Helps restore normal fit and reduce wear on adjacent parts.

• One support (mounting bracket) as shown.

• Disconnect power and, for refrigerators, water supply before servicing to avoid shock or flooding.
• Basic hand tools typically required; follow OEM disassembly order to access mounting location.
• Inspect surrounding fasteners and adjoining parts; replace any damaged hardware for secure fit.

Restore safe, usable storage space with this 2/3-width refrigerator glass shelf. It provides a strong, easy-to-clean surface in the designated flip-style shelf position when the original shelf is cracked, missing, or won't seat securely.

• Provides a level, durable surface in the 2/3-width shelf location
• Works with the flip-style position to help accommodate taller items when configured
• Restores lost storage area and proper support for everyday items
• Typical symptoms: cracked/chipped glass, broken frame tabs, shelf won't stay in place, missing shelf

• Handle tempered glass carefully; wear cut-resistant gloves
• Allow shelf to reach room temperature before washing to avoid thermal shock; clean with mild soap
• Engage rear hooks/tabs in the cabinet slots, then lower the front into the supports; confirm both sides are fully seated
• Transfer any trim from the original shelf if applicable

This ice cube pan is the molded tray that collects and holds ice produced by the refrigerator's ice maker, providing a stable reservoir for ice storage and dispensing. Designed to replace a cracked, leaky, or damaged pan and restore normal ice containment. What it does:

• Holds and contains ice cubes produced by the refrigerator ice maker
• Keeps ice aligned for easy dispensing and prevents water leaks into the cabinet
• Restores proper ice storage when the original pan is cracked, warped, or missing
• Helps prevent ice from jamming the dispenser area when seated correctly

• One ice cube pan

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove surrounding shelving or bin components as needed for access; handle gently to avoid damage
• Seat the pan fully on its mounting tabs so the ice maker and dispenser align correctly
• Diagnose and repair any underlying faults to avoid repeat failure

This Support (mounting bracket) secures a panel or component to the appliance frame to restore stability and reduce vibration. Replacing a broken or worn support helps stop rattling, misalignment, and loose panels. What it does:

• Secures panels or components to the appliance frame; symptom: loose or sagging panel, visible movement.
• Reduces vibration and noise caused by a failed bracket; symptom: increased rattling during operation.
• Maintains alignment for moving parts or doors; symptom: binding, misalignment, or uneven gaps.
• Replaces cracked, bent, or worn supports to restore original fit and function.

• Disconnect power to the appliance (and shut off gas for gas models) before starting any repair.
• Basic hand tools are typically required; keep original screws and hardware unless new hardware is supplied.
• Follow the appliance owner's manual or service guide for model-specific steps and torque requirements.
