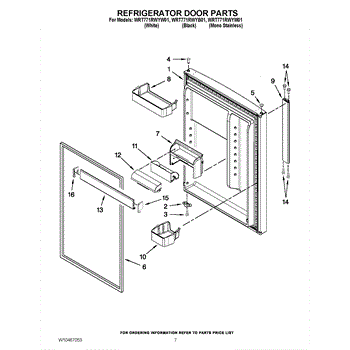

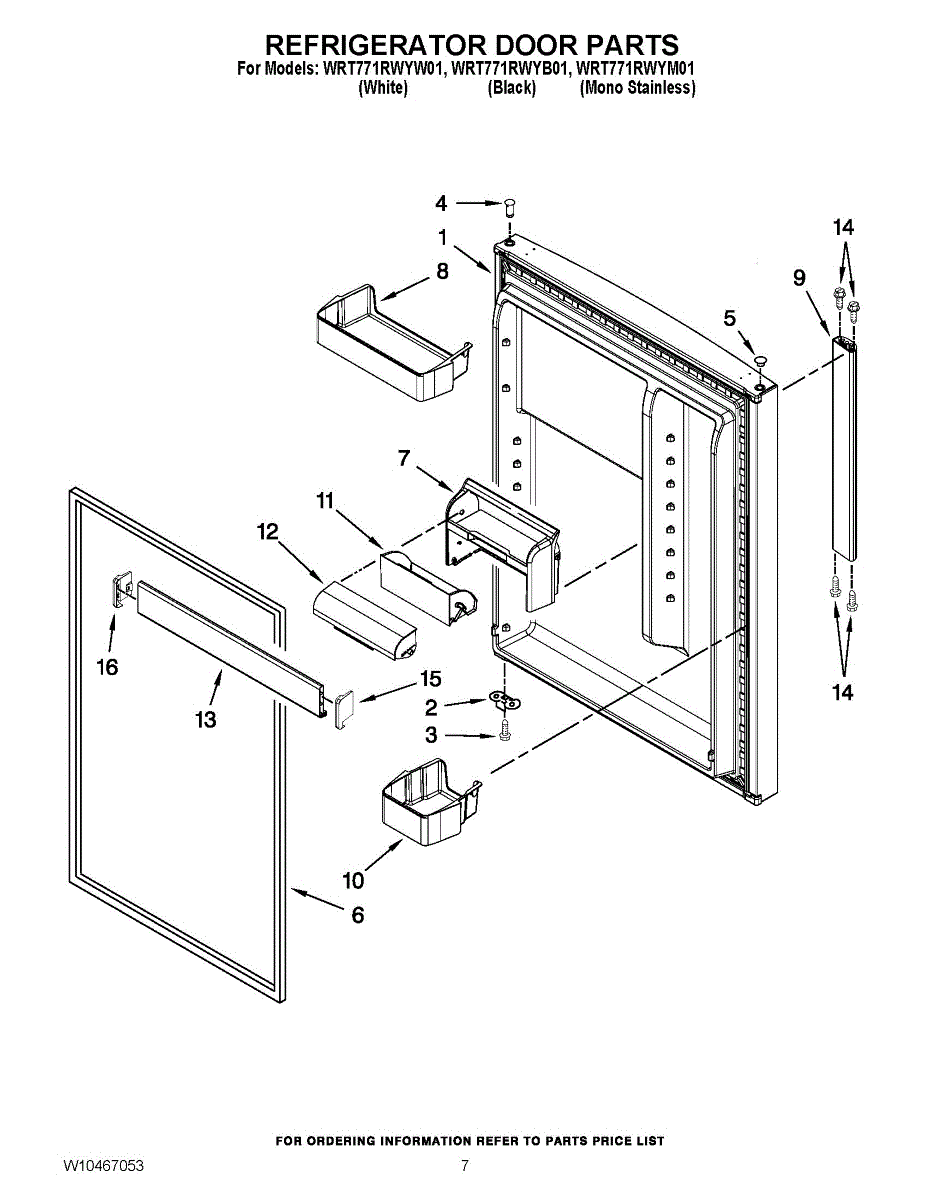

Parts for Whirlpool WRT771RWYM01: 05 - Refrigerator Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Grey

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms an important seal around the refrigerator door, preventing warm air from entering the sealed interior compartment. Maintaining proper temperature and humidity levels inside depends on an intact, well-sealed door gasket.

Causes of a bad door gasket can include cracks, tears or deterioration over time due to exposure and normal compression/expansion cycles. Food particles or debris trapped against the gasket can also damage sealing integrity.

Symptoms of a bad door gasket include:

• Difficulty closing or sealing the door properly
• Higher electric bills from the refrigerator running more often
• Warm air leaking into the refrigerator sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Fresh Food Door Gasket is an OEM part for Whirlpool refrigerators. It seals the refrigerator door, keeping cold air inside and preventing warm air from entering, which helps maintain the proper temperature and efficiency of the refrigerator.

You should replace the fresh food door gasket if it becomes damaged or worn out. Common causes of a bad gasket include wear and tear from regular use, exposure to temperature fluctuations, or physical damage from cleaning or handling.

Symptoms of a bad fresh food door gasket include:

• The refrigerator door not sealing properly
• Increased energy consumption
• Frost or condensation buildup around the door
• Visible cracks, tears, or deformation of the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This utility compartment housing is the outer cabinet piece that protects and secures the appliance's control area and internal components. It restores a clean, stable enclosure to prevent damage and exposure. What it does:

• Covers and protects the appliance's utility/control compartment from dust, debris, and accidental contact.
• Provides mounting surfaces and alignment for control modules, switches, and wiring harnesses.
• Restores proper fit to eliminate rattles, looseness, or gaps around the control area.
• Helps prevent exposed wiring or components that could lead to functional issues or safety concerns.

• Disconnect power before starting any repair to avoid shock or injury.
• Basic disassembly typically requires removing outer panels or the top cover; keep track of screws and fasteners.
• Handle with care to avoid scratching the finish or damaging mounting tabs; inspect clips and screw bosses before final assembly.

This large door bin restores sturdy, easy-access storage on your refrigerator door. Replace a cracked or missing bin to keep condiments and bottles organized, prevent tip-overs, and free up space on the main shelves.

• Holds jars, condiments, and beverages on the door to maximize shelf space
• Replaces bins that are cracked, warped, loose, or missing
• Snaps into the designated large-bin positions for your model
• Helps prevent tipping and spills when opening and closing the door

• Unplug the appliance or disconnect power; remove items from the door
• Align the bin's tabs/hooks with the slots on the door liner
• Lower/slide into place until fully seated—do not force
• The bin is locked in before loading items

The French Door Bin is an OEM part for Whirlpool refrigerators. This durable bin attaches to the inside of the refrigerator door, offering convenient access to frequently used items such as drinks, condiments, and snacks.

Causes of a bad French Door Bin can include overloading beyond its weight capacity, impact from items being moved in and out of the refrigerator, or degradation of the material over time due to the cold environment and frequent use.

Symptoms of a malfunctioning French Door Bin include:

• Cracks or breaks in the bin that prevent it from holding items securely
• Difficulty attaching or detaching the bin from the refrigerator door
• The bin sagging or not sitting flush against the door, indicating potential damage or wear

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This flip lid replaces a damaged or missing utility lid to keep the appliance opening covered and help contain contents. It restores proper closure and improves safety and cleanliness around the unit. What it does

• Replaces a broken, cracked or missing flip lid so the opening can close properly
• Helps keep debris and splashes out of the opening
• Prevents loose items from falling into the unit when closed
• Restores hinge function so the lid stays up or down as designed

• High-level swap: remove fasteners or hinge pins, align new lid on hinge, and reattach hardware
• Use caution handling small screws and pins; keep parts organized during removal
• No electrical disconnection required for most installs, but follow your appliance safety practices
• If hardware is damaged or missing, replace fasteners before completing installation

This replacement door trim restores the finished edge of a refrigerator door, protecting the door seal and improving appearance. Use it to replace cracked, warped or missing trim for a neater, more secure door fit. What it does

• Covers and protects the exposed edge of the refrigerator door
• Helps hold the door gasket in place for a consistent seal
• Restores a clean, finished appearance to a damaged or worn door edge
• Reduces gaps where cold air can escape around the door perimeter
• Fits where the original trim is cracked, warped, loose or missing

• Disconnect power to the appliance before starting any repair.
• Wear gloves and eye protection to avoid cuts from sharp edges.
• Remove any retaining screws or clips, align the new trim, and snap or fasten it into place.
• Check door alignment and gasket seating after installation; make adjustments as needed.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance
